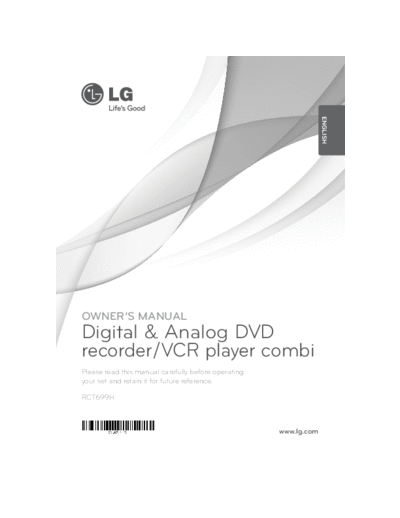

Image preview - the first page of the document
>> Download 48c570d1-4906-43de-825f-860832bc3fc9 documenatation <<
Text preview - extract from the document
OWNER'S MANUAL ENGLISH
Digital & Analog DVD
recorder/VCR player combi
Please read this manual carefully before operating
your set and retain it for future reference.
RCT699H
www.lg.com
Getting Started 3
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: This product employs a Laser System. 1
DO NOT OPEN To ensure proper use of this product, please read
Getting Started
this owner's manual carefully and retain it for future
CAUTION: TO REDUCE THE RISK OF ELECTRIC
reference. Shall the unit require maintenance,
SHOCK DO NOT REMOVE COVER (OR BACK) NO
contact an authorized service center.
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
Use of controls, adjustments or the performance of
TO QUALIFIED SERVICE PERSONNEL.
procedures other than those specified herein may
result in hazardous radiation exposure.
This lightning flash with arrowhead
To prevent direct exposure to laser beam, do not
symbol within an equilateral triangle
try to open the enclosure.
is intended to alert the user to the
presence of uninsulated dangerous CAUTION concerning the Power Cord
voltage within the product's Most appliances recommend they be placed upon
enclosure that may be of sufficient magnitude to a dedicated circuit;
constitute a risk of electric shock to persons.
That is, a single outlet circuit which powers only
The exclamation point within an that appliance and has no additional outlets or
equilateral triangle is intended branch circuits. Check the specification page of this
to alert the user to the presence owner's manual to be certain. Do not overload wall
of important operating and outlets. Overloaded wall outlets, loose or damaged
maintenance (servicing) wall outlets, extension cords, frayed power cords, or
instructions in the literature accompanying the damaged or cracked wire insulation are dangerous.
product. Any of these conditions could result in electric
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK shock or fire. Periodically examine the cord of your
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN appliance, and if its appearance indicates damage
OR MOISTURE. or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
WARNING: Do not install this equipment in a
exact replacement part by an authorized service
confined space such as a book case or similar unit.
center. Protect the power cord from physical or
CAUTION: Do not block any ventilation openings. mechanical abuse, such as being twisted, kinked,
Install in accordance with the manufacturer's pinched, closed in a door, or walked upon. Pay
instructions. particular attention to plugs, wall outlets, and
Slots and openings in the cabinet are provided for the point where the cord exits the appliance. To
ventilation and to ensure reliable operation of the disconnect power from the mains, pull out the
product and to protect it from over heating. The mains cord plug. When installing the product,
openings shall be never be blocked by placing ensure that the plug is easily accessible.
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer's
instruction has been adhered to.
4 Getting Started
This device is equipped with a portable battery or
accumulator. Disposal of waste batteries/
Safety way to remove the battery or the accumulators
battery from the equipment: Remove the
1 1. When this crossed-out wheeled
old battery or battery pack, follow the steps
bin symbol is attached to
in reverse order than the assembly. To prevent
batteries/accumulators of Your
Getting Started
contamination of the environment and bring on
product it means they are
possible threat to human and animal health, the
covered by European Directive
old battery or the battery put it in the appropriate
2006/66/EC.
container at designated collection points. Do
not dispose of batteries or battery together with 2. This symbol may be combined
other waste. It is recommended that you use with chemical symbols for
local, free reimbursement systems batteries and mercury(Hg), cadmium(Cd) or
accumulators. The battery shall not be exposed to lead(Pb) if the battery Contains
excessive heat such as sunshine, fire or the direct more that 0.0005% of mercury,
sun light. 0.002% of cadmium or 0.004% of
lead.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled 3. All batteries/accumulators should
with liquids, such as vases, shall be placed on the be disposed separately from
apparatus. the municipal waste stream via
designated collection facilities
Disposal of your old appliance appointed by the government or
the local authorities.
1. When this crossed-out wheeled
4. The correct disposal of Your
bin symbol is attached to a
old batteries/ accumulators
product it means the product
will help to prevent potential
is covered by the European
negative consequences for the
Directive 2002/96/EC.
environment, animal and human
2. All electrical and electronic health.
products should be disposed of
5. For more detailed information
separately from the municipal
about disposal of Your old
waste stream via designated
batteries/ accumulators, please
collection facilities appointed
contact Your city offi ce, waste
by the government or the local
disposal service or the shop
authorities.
where You purchased the
3. The correct disposal of your product.
old appliance will help prevent
potential negative consequences
for the environment and human
health.
4. For more detailed information
about disposal of your old LG Electronics hereby declares that this/these
appliance, please contact your product(s) is/are in compliance with the essential
city office, waste disposal service requirements and other relevant provisions of
or the shop where you purchased Directive 2004/108/EC, 2006/95/EC, 2009/125/EC
the product. and 2011/65/EU.
Contact office for compliance of this product:
LG Electronics Inc.
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands
Getting Started 5
Notes on Copyrights
y Recording equipment should be used only for
lawful copying and you are advised to check
carefully what is lawful copying in the area
in which you are making a copy. Copying of 1
copyright material such as films or music is
Getting Started
unlawful unless permitted by a legal exception
or consented to by the rights owner.
y This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Rovi Corporation.
Reverse engineering or disassembly is prohibited.
y CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE. IN CASE OF 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION
TO THE `STANDARD DEFINITION' OUTPUT. IF
THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 625p UNIT
PLEASE CONTACT OUR CUSTOMER SERVICE
CENTRE.
6 Table of Contents
Table of Contents System Setting
21 Auto Set Up
22 Home Menu Overview
22 General Settings
