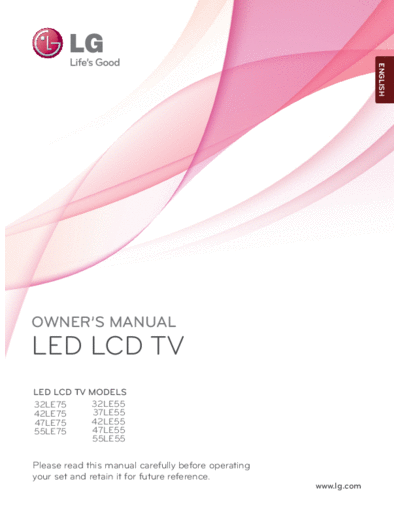

Image preview - the first page of the document
>> Download SAC34413301_-LE5500-CA-ENG documenatation <<
Text preview - extract from the document
ENGLISH
OWNER'S MANUAL
LED LCD TV
LED LCD TV MODELS
32LE75 32LE55
42LE75 37LE55
47LE75 42LE55
55LE75 47LE55
55LE55
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
Separate purchase
Wall Mounting Bracket
LSW200B or LSW400B or
LSW100B or LSW400BG
LSW100BG LSW200BG
(32LE5***, (37/42/47LE5***, (55LE5***,
32LE7***) 42/47LE7***) 55LE7***)
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
Wireless Media Box Wireless LAN for
Broadband/
DLNA Adaptor
AV1 AV2 COM RGB HDMI 1 HDMI 2 HDMI 3 HDMI 4 WIRELESS
WIRELESS OUT
CONTROL
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or regis-
tered trademarks of HDMI Licensing LLC.
CONTENTS
Manual programme Tuning ...............................32
ACCESSORIES Programme Edit ...............................................35
CONTENTS
LED LCD TV Models : 32/37/42/47/55LE5***, Booster ..............................................................39
32 /42/47/55LE7***........................................... A-1 Software Update...............................................40
Picture/Sound test .............................................42
PREPARATION Diagnostics ........................................................43
Product/service information...............................44
Front Panel Control..........................................A-2
Back Panel Information ...................................A-3 Network Test .......................................................44
Stand Installation .............................................A-4 Simple Manual ..................................................46
Swivel Stand.....................................................A-5 Selecting the Programme List ...........................47
Back Cover for Wire Arrangement ...................A-5 Input List ............................................................49
Kensington Security-System ............................A-6 Input Label ........................................................50
Careful installation advice ...............................A-6 SIMPLINK..........................................................51
Desktop Pedestal Installation...........................A-7 AV Mode ............................................................55
Wall Mount:Horizontal Installation....................A-7 Initializing(Reset to original factory settings) ....56
Remote Control Key Function ..........................A-8
NETCAST
EXTERNAL EQUIPMENT SETUP
Legal Notice ......................................................57
Antenna Connection............................................1 Netcast Menu ....................................................58
Connecting with a Component cable ..................2 YOUTUBE .........................................................59
Connecting with an HDMI cable .........................3 AccuWeather .....................................................61
Connecting with an HDMI to DVI cable ..............4 picasa ................................................................62
Usb setup ............................................................5
Connecting with a RF Cable ...............................5 TO USE THE BLUETOOTH
Connecting with a RCA cable .............................6
Connecting with a D-sub 15 pin cable ................7 Bluetooth? ........................................................63
Setting the Bluetooth .........................................64
Headphone Setup ...............................................8
My Bluetooth Information ..................................65
Digital audio out Setup .................................... ..9
Bluetooth Headset ............................................ 66
External Equipment WIreless Connection ........10
Remove the Bluetooth Device ..........................70
Supported Display Resolution...........................11
Receiving photos from external Bluetooth device
Screen Setup for PC mode ...............................13
...........................................................................71
network setup ....................................................17
Listening to the Musics from external Bluetooth
device ................................................................72
WATCHING TV / PROGRAMME CON- TO USE A USB DEVICE
TROL
When connecting a USB device .......................73
Turning on the TV .............................................27 DLNA .................................................................75
Initializing Setup ...............................................27 Movie list ...........................................................81
Programme Selection........................................27 Photo list............................................................92
.
Volume Adjustment ...........................................27 Music list..........................................................102
Quick Menu .......................................................28 DivX Registration Code...................................111
On Screen Menus Selection and adjustment ...29 Deactivation.....................................................112
Auto programme tuning ...................................31 Game...............................................................113
I
CONTENTS
Speaker Sound Output Selection ...................147
EPG(ELECTRONIC PROGRAMME
On-Screen Menu Language /
GUIDE)(IN DIGITAL MODE)
CONTENTS
Country Selection ............................................148
Language Selection (In digital mode only) .....149
Switch on/off EPG ...........................................115
Select a programme........................................115
Button Function in NOW/NEXT Guide Mode .115
TIME SETTING
Button Function in 8 Day Guide Mode ...........116
Clock Setup .....................................................151
Button Function in Date Change Mode ..........117
Auto on/off time setting ...................................152
Button Function in Extended Description Box 118
Sleep Timer setting .........................................153
Button Function in Record/Remind Setting Mode
.........................................................................119
Button Function in Schedule List Mode ..........120 PARENTAL CONTROL / RATINGS
PICTURE CONTROL Set Password & Lock System.........................154
Block Programme............................................155
Picture Size (Aspect Ratio) Control ................121 External Input Blocking ...................................156
Picture Wizard .................................................123 Key Lock..........................................................157
Energy Saving .................................................124
Preset Picture Settings ...................................125 TELETEXT
Manual Picture Adjustment .............................126
Picture Improvement Technology....................127 Switch on/off ...................................................158
Expert Picture Control .....................................128 SIMPLE Text....................................................158
Picture Reset ...................................................131 TOP Text..........................................................159
Trumotion ........................................................132 FASTEXT ........................................................159
LED LOCAL DIMMING ...................................133 Special Teletext Functions ..............................160
Power Indicator ...............................................134
Mode Setting ...................................................135 DIGITAL TELETEXT
Demo Mode.....................................................136
Teletext within Digital Service .........................161
SOUND & LANGUAGE CONTROL Teletext in Digital Service ................................161
Auto Volume Leveler .......................................137 APPENDIX
Clear Voice II ...................................................138
Preset Sound Settings-Sound Mode ..............139 Troubleshooting...............................................162
Sound Setting Adjustment -User Mode ..........140 Maintenance ....................................................164
Infinite Sound ..................................................140 Product Specifications.....................................165
Balance ...........................................................141 IR Codes .........................................................166
TV Speakers On/ Off Setup ............................142 External Control Device Setup........................167
DTV Audio Setting (in digital mode only) ........143 Open Source Software notice ........................174
Selecting Digital Audio out ..............................144
Audio Reset .....................................................145
Stereo/Dual Reception
(In Analogue Mode Only) ................................146
NICAM Reception (In Analogue Mode Only) ..147
II
PREPARATION
LED LCD TV MODELS
ACCESSORIES
PREPARATION
Ensure that the following accessories are included with your TV. If an accessory is missing, please
contact the dealer where you purchased the TV.
Image shown may differ from your TV.
ENERGY AV MODE INPUT
TV/
RAD
SAVING
1 2 ABC 3 DEF
4 GHI 5 JKL 6 MNO
7PQRS 8 TUV 9 WXYZ
LIST
0 Q.VIEW
MARK
FAV
CHAR/NUM P
A
RATIO P G
E
DELETE
MUTE
MENU Q.MENU
OK
BACK GUIDE EXIT
TEXT T.OPT
INFO
Owner's Manual Batteries Remote Control
(AAA)
This item is not included for all models.
* Lightly wipe any stains or
fingerprints on the surface
of the TV with the polish-
Ferrite Core ing cloth.
(This item is not included Nero MediaHome
for all models.) Polishing Cloth Do not use excessive
4 Essentials CD
Polishing cloth for force. This may cause
use on the screen. scratching or discoloura-
tion.
(Only 32/37/42/47LE5***, (Only 55LE5 ***,
32/37/42/47LE7***) 55LE7***)
x8
x2
x4 x4
(M4 x 16) (M4 x 24) (M4 x 16)
1-screw for stand fixing Component gender cable, Cable Holder
(Only 32LE55**) AV gender cable
Bolts for stand assembly
Use of ferrite core (This feature is not available for all models.)
Ferrite core can be used to reduce the electromagnetic
wave when connecting the power cord.
The closer the location of the ferrite core to the power
plug, the better it is.
Install the power plug closely.
A-1
PREPARATION
FRONT PANEL CONTROLS
NOTE
TV can be placed in standby mode in order to reduce the power consumption.
PREPARATION
The energy consumed during use can be significantly reduced if the level of
brightness of the picture is reduced, and this will reduce the overall running cost.
CAUTION
Do not drag the TV. The floor or the product may be damaged.
Image shown may differ from your TV.
Intelligent Sensor
Adjusts picture according to
the surrounding conditions.
Remote Control Sensor
SPEAKER
Touch Button
You can use the desired button function by touching.
OK INPUT
Power/Standby Indicator
(Can be adjusted using the Power
Indicator in the OPTION menu.)
PROGRAMME VOLUME MENU POWER
A-2
BACK PANEL INFORMATION
Image shown may differ from your TV.
PREPARATION
13
USB IN 2
USB IN 1
1
2 3 4 5
H/P
HDMI
IN 4
LAN
2 1
5
10
VIDEO L/MONO AUDIO R
HDMI/DVI IN
3
2 1
2
ANTENNA CABLE
14
1 IN IN
6
VIDEO L/MONO AUDIO R
HDMI/DVI IN
WIRELESS
CONTROL AV IN 1
AV IN 1
11 12
6 7 8 9 10
1 PowerHDMI/DVI IN Socket
Cord
VIDEO L/MONO AUDIO R
This TV operates on an AC power. The volt-
age is indicated on the Specifications page. 7 RGB IN Input
( p.165) Never attempt to operate the TV Connect the output from a PC.
on DC power.
AV IN 1 8 RS-232C IN (CONTROL & SERVICE) PORT
2 LAN Connect to the RS-232C port on a PC.
Network connection for Accu Weather, This port is used for Service or Hotel mode.
YouTube,Picasa, etc.
Also used for photo and music files on local 9 WIRELESS Control
Connect the Wireless Dongle to the TV to
network. control the external input devices connected
to Media Box wirelessly.
3 OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of 10 Audio/Video Input
equipment. Connect audio/video output from an external
Connect to a Digital Audio Component. device to these jacks.
Use an Optical audio cable.
11 Antenna Input
4 RGB/DVI Audio Input Connect antenna to this jack.
Connect the audio from a PC .
12 Cable Input
5 Component Input Connect cable signals to this jack.
Connect a component video/audio device to
these jacks. 13 USB Input
Connect USB storage device to this jack.
6 HDMI/DVI IN Input
14 Headphone Socket
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to Plug the headphone into the headphone
HDMI cable. socket.
A-3
PREPARATION
STAND INSTALLATION
Image shown may differ from your TV.
When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully,
the product can tilt forward after the product installation.) If you tighten the bolt with excessive force,
PREPARATION
the bolt can deviate from abrasion of the tightening part of the bolt.
1 Carefully place the TV screen side down
on a cushioned surface to protect the
5 Fix the 4 bolts securely using the holes in
the back of the TV.
screen from damage.
M4 X 16
(Only
2 Assemble the parts of the stand body with
the stand base of the TV.
32/37/42/47/55LE5***,
32/37/42/47/55LE7***)
M4 X 16 M4 X 24
(Only 32/37/42/47LE5***
32/37/42/47LE7***)
(Only 55LE5
55LE7***) Stand Body
Stand Base
3 Assemble the TV as shown.
4 Assemble the parts of the Stand rear
Cover with the TV.
Stand rear
Cover
A-4
ATTACHING THE TV TO A BACK COVER FOR
DESK WIRE ARRANGEMENT
(only 32le55**) Image shown may differ from your TV.
Image shown may differ from your TV.
PREPARATION
The TV must be attached to desk so it cannot be
pulled in a forward/backward direction, potentially
causing injury or damaging the product. Use only 1 Secure the power cord with the Cable
holder on the TV back cover.
an attached screw. It will help prevent the power cable from
being removed by accident.
Cable holder
1-Screw (provided as parts of the product)
Stand
2 After connecting the cables as necessary,
install Cable holder as shown and bundle
the cables.
Desk
Cable holder
WARNING
To prevent TV from falling over, the TV SWIVEL STAND
should be securely attached to the floor/wall Image shown may differ from your TV.
per installation instructions. Tipping, shaking,
After installing the TV, you can adjust the TV set
or rocking the machine may cause injury.
manually to the left or right direction by 20
degrees to suit your viewing position.
A-5
PREPARATION
KENSINGTON SECURITY CAREFUL INSTALLATION
SYSTEM ADVICE
This feature is not available for all models. You should purchase necessary components
Image shown may differ from your TV. to fix the TV safety and secure to the wall on
PREPARATION
the market.
The TV is equipped with a Kensington Security Position the TV close to the wall to avoid the
System connector on the back panel. Connect possibility of it falling when pushed.
the Kensington Security System cable as shown The instructions shown below are a safer way
below. to set up the TV, by fixing it to the wall, avoid-
For the detailed installation and use of the ing the possibility of it falling forwards if pulled.
Kensington Security System, refer to the user's This will prevent the TV from falling forward
guide provided with the Kensington Security and causing injury. This will also prevent the
System. TV from damage. Ensure that children do not
For further information, contact http://www.kens- climb or hang from the TV.
ington.com, the internet homepage of the 1
Kensington 1
company. Kensington sells security systems for 2
expensive electronic equipment such as note- 2
book PCs and LCD projectors.
NOTE
The Kensington Security System is an optional
1 Use the eye-bolts or TV brackets/bolts to fix the
product to the wall as shown in the picture.
accessory. (If your TV has bolts in the eyebolts, loosen then
If the TV feels cold to the touch, there may be a bolts.)
small "flicker" when it is turned on. * Insert the eye-bolts or TV brackets/bolts and
This is normal, there is nothing wrong with TV. tighten them securely in the upper holes.
Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue 2 Secure the wall brackets with the bolts on the
wall. Match the height of the bracket that is
spots. However, they have no adverse effect on mounted on the wall.
the monitor's performance.
Avoid touching the LCD screen or holding your
finger(s) against it for long periods of time.
3
Doing so may produce some temporary distortion
effects on the screen.
3 Use a sturdy rope to tie the product for align-
ment. It is safer to tie the rope so it becomes
horizontal between the wall and the product.
NOTE
When moving the TV undo the cords first.
Use a platform or cabinet strong and large
enough to support the size and weight of the TV.
To use the TV safely make sure that the height of
the bracket on the wall and on the TV is the
same.
A-6
The TV can be installed in various ways such as
on a wall, or on a desktop etc. NOTE
The TV is designed to be mounted horizontally. Should Install wall mount on a solid wall per-
pendicular to the floor.
EARTHING Should use a special wall mount, if you want
to install it to ceiling or slanted wall.
PREPARATION
Ensure that you connect the earth wire to prevent The surface that wall mount is to be mount-
possible electric shock. If grounding methods are ed on should be of sufficient strength to sup-
not possible, have a qualified electrician install a port the weight of TV set; e.g. concrete, nat-
separate circuit breaker. ural rock, brick and hollow block.
Installing screw type and length depends on
Do not try to earth the TV by connecting it to tele- the wall mount used. Further i nformation,
phone wires, lightening rods or gas pipes. refer to the instructions included with the
mount.
Power LG is not liable for any accidents or damage
Supply to property or TV due to incorrect installa-
tion:
- Where a non-compliant VESA wall mount
is used.
Circuit
breaker - Incorrect fastening of screws to surface
which may cause TV to fall and cause per-
sonal injury.
- Not following the recommended Installation
DESKTOP PEDESTAL method.
INSTALLATION
10 cm
Image shown may differ from your TV. 10 cm
10cm 10 cm
For adequate ventilation allow a clearance of
10cm all around the TV.
10 cm
10 cm
10 cm
10 cm 10 cm
WALL MOUNT: HORIZONTAL
INSTALLATION Model VESA Standard Quantity
(A * B) Screw
We recommend the use of a LG Brand wall 32LE7 *** 200 * 100 M4 4
mounting bracket when mounting the TV to a wall. 42LE7 *** 200 * 200 M6 4
We recommend that you purchase a wall mount- 47LE7 *** 200 * 200 M6 4
ing bracket which supports VESA standard. 55LE7 *** 400 * 400 M6 4
LG recommends that wall mounting be per- 32LE5 *** 200 * 100 M4 4
formed by a qualified professional installer. 37LE5 *** 200 * 200 M6 4
42LE5 *** 200 * 200 M6 4
47LE5 *** 200 * 200 M6 4
55LE5 *** 400 * 400 M6 4
A-7
PREPARATION
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
PREPARATION
POWER Switches the TV on from standby or standby to on.
ENERGY AV MODE INPUT ENERGY Adjust the Energy Saving mode of the TV.( p.124)
TV/ SAVING
RAD
SAVING
AV MODE It helps you select and set images and sounds
1 2 ABC 3 DEF when connecting AV devices.( p.55)
4 GHI 5 JKL 6 MNO INPUT External input mode rotate in regular sequence.( p.49)
7PQRS 8 TUV 9 WXYZ TV/RAD Selects Radio, TV and DTV channel.
LIST
0 Q.VIEW
MARK MENU Selects a menu.
FAV Clears all on-screen displays and returns to TV
CHAR/NUM P
A viewing from any menu.( p.29)
RATIO P G
E
DELETE
Select the desired Web TV menu source.
MUTE
(AccuWeather, Picasa, YouTube etc.)
MENU Q.MENU
Q. MENU Select the desired quick menu source. (Aspect
Ratio, Clear Voice II , Picture Mode, Sound Mode,
Audio, Sleep Timer, Skip Off/On, USB Device).
OK ( p.28)
BACK Allows the user to move return one step in an inter-
active application, EPG or other user interaction
BACK GUIDE EXIT function.
GUIDE Shows programme schedule.( p.115)
TEXT T.OPT EXIT Clears all on-screen displays and returns to TV
viewing from any menu.
THUMBSTICK Allows you to navigate the on-screen menus and
(Up/Down/Left/Right) adjust the system settings to your preference.
INFO
OK Accepts your selection or displays the current mode.
SIMPLINK / Controls SIMPLINK or MY MEDIA menu (Photo List,
MY MEDIA Music List and Movie List).
Menu
control buttons
A-8
0~9 number Selects a programme.
button Selects numbered items in a menu.
LIST Displays the programme table.
ENERGY AV MODE INPUT
TV/
Q.VIEW Returns to the previously viewed programme.
PREPARATION
RAD
SAVING
VOLUME UP Adjusts the volume.
/DOWN
1 2 ABC 3 DEF
FAV Displays the selected favourite programme.
4 GHI 5 JKL 6 MNO MARK Select the input to apply the Picture Wizard
settings.
7PQRS 8 TUV 9 WXYZ Check and un-check programmes in the USB
menu.
LIST
0 Q.VIEW
RATIO Selects your desired Aspect Ratio of picture.
MARK
FAV
( p.121 )
CHAR/NUM P
A CHAR/NUM Shifts the Character or Number for Web TV menu.
RATIO P G
E
DELETE MUTE Switches the sound on or off.
MUTE
DELETE Delete the character when input the character.
MENU Q.MENU
Programme Selects a programme.
UP/DOWN
OK PAGE UP/ Move from one full set of screen information to the
DOWN next one.
Coloured These buttons are used for teletext (on TELETEXT
buttons models only), Programme edit.
BACK GUIDE EXIT
1 DIGITAL These buttons are used for digital teletext.
TELETEXT For further details, see the `Digital Teletext' section.(p.158 )
SUBTITLE Recalls your preferred subtitle in digital mode.
1 TEXT T.OPT
See a list of AV devices connected to TV.
When you toggle this button, the Simplink menu
appears at the screen.( p.51)
INFO i Shows the present screen information.
INFO
Installing Batteries
Open the battery compartment cover on the back and install
the batteries matching correct polarity (+with +,-with -).
Install two 1.5V AAA batteries. Do not mix old or used batter-
ies with new ones.
Close cover.
To remove the batteries, perform the installation actions in
reverse.
A-9
EXTERNAL EQUIPMENT SETUP
To prevent damage do not connect to the mains outlet until all connections are made between the
devices.
ANTENNA CONNECTION
For optimum picture quality, adjust antenna direction.
An antenna cable and converter are not supplied.
EXTERNAL EQUIPMENT SETUP
USB IN 2
USB IN 1
H/P
HDMI
IN 4
Multi-family Dwellings/Apartments
Wall (Connect to wall antenna socket)
Antenna
Socket 2 1
RF Coaxial Wire (75 ohm)
VIDEO L/MONO AUDIO R
HDMI/DVI IN
AV IN 1
UHF
Antenna Signal
Amplifier
VHF
In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier
to the antenna as shown above.
If signal needs to be split for two TVs,use an antenna signal splitter for connection.
1
EXTERNAL EQUIPMENT SETUP
To avoid damaging any equipment, never plug in any power cord until you have finished connecting
all equipment.
Image shown may differ from your TV.
CONNECTING WITH A COMPONENT CABLE
This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other digital external device, refer to the diagram as
EXTERNAL EQUIPMENT SETUP
shown below.
Connect the video outputs (Y, PB, PR) of the
1 external equipment (digital set-top box, DVD, LAN
etc.) to the COMPONENT IN VIDEO jacks on 2 1
the TV.
1
VIDEO L/ MONO AUDIO R
HDMI/DVI IN
Connect the audio output of the external equip-
2 3
L/MONO
ment (digital set-top box, DVD, etc.) to the 2
COMPONENT IN AUDIO jacks on the TV. 1
2
Turn on the external equipment. WIRELESS
3 CONTROL AV IN 2 ANT
I
(Refer to the external equipment's manual for
operating instructions.)
Select the Component1/2 input source using the
4 INPUT button on the remote control.
If connected to COMPONENT IN 3, select
Component3 input source.
HDMI Audio Supported format : Dolby Digital, PCM
DTS Audio format is not supported.
Signal Component HDMI
*COMPONENT IN3 jack is just composed by an
480i/576i O X
integrated video jack and an integrated audio
480p/576p O O jack. And the integrated audio jack also can be
used as the AV IN2 jack.
720p/1080i O O Once you connected the integrated audio jack,
O the AV2 connection remind OSD will display,
1080p O
if you just need it as the component Audio jack,
(50/60Hz only) (24Hz/30Hz/50Hz/60Hz)
please choose No.
Component Input ports
To achieve better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV Y PB PR
Y PB PR
Video output ports Y B-Y R-Y
on DVD player Y Cb Cr
Y Pb P
2
CONNECTING WITH AN HDMI CABLE
Connect the HDMI output of the external equipment (digital set-
1 top box, DVD, etc.) to HDMI/DVI IN 1 , HDMI/DVI IN 2,
HDMI/DVI IN
HDMI/DVI IN 3 or HDMI IN 4 jack on the TV.
VIDEO L/MONO AUDIO R
3
EXTERNAL EQUIPMENT SETUP
2
Turn on the external equipment.
2 1
(Refer to the external equipment's manual for operating
instructions.)
AV IN 2
Select HDMI1, HDMI2, HDMI3 or HDMI4 input source using the
3 INPUT button on the remote control.
1
NOTE
The TV can receive video and audio signals simultaneously when
using an HDMI cable.
If the DVD does not support Auto HDMI, you must set the output reso-
lution appropriately.
Check that your HDMI cable is version 1.3 or higher.
If the HDMI cables don't support HDMI version 1.3, flickering or no
screen display can result. Please use the latest cables that support at
least HDMI version 1.3.
VIDEO L/MONO AUDIO R
A
3
EXTERNAL EQUIPMENT SETUP
CONNECTING WITH AN HDMI TO DVI CABLE
LAN
Connect the digital set-top box or the DVI out-
1
2 1
put of the PC to HDMI/DVI IN 1,HDMI/DVI IN 2 or
HDMI/DVI IN 3 jack on the TV.
VIDEO L/ MONO AUDIO R
EXTERNAL EQUIPMENT SETUP
HDMI/DVI IN
3
L/MONO
Connect the audio output of the digital set-top 2
2 box or the PC audio output to the AUDIO IN
1 ANTENNA
IN
CABLE
IN
(RGB/DVI) jack on the TV. WIRELESS
CONTROL AV IN 2
Turn on the digital set-top box or the PC and
3 the TV. 1
2
(Refer to the digital set-top box or the PC
manual for operating instructions.)
Select HDMI1,HDMI2 or HDMI3 input source using
4 the INPUT button on the remote control.
or
4
USB SETUP
1
1 Connect the USB device to the USB IN 1 or
EXTERNAL EQUIPMENT SETUP
USB IN 2 jack on the TV. or
After connecting the USB IN 1 or USB IN 2
2 jack, you use the USB function. ( p.73)
HDMI
IN 4
CONNECTING WITH A RF CABLE
To avoid picture noise (interference), allow adequate distance between the VCR and TV.
ANTENNA CABLE
1 Connect the ANT OUT socket of the VCR to
IN IN
1
the ANTENNA IN socket on the TV.
Connect the antenna cable to the ANT IN
2 socket of the VCR. Wall Jack
Press the PLAY button on the VCR and match
3 the appropriate channel between the TV and
2
VCR for viewing. Antenna
ANTENNA CABLE
IN IN
1
Wall Jack
2
Antenna
5
EXTERNAL EQUIPMENT SETUP
CONNECTING WITH A RCA CABLE
Connect the AUDIO/VIDEO jacks between TV
1 and VCR or external equipment. Match the LAN
jack colours (Video = yellow, Audio Left =
EXTERNAL EQUIPMENT SETUP
white, and Audio Right = red)
