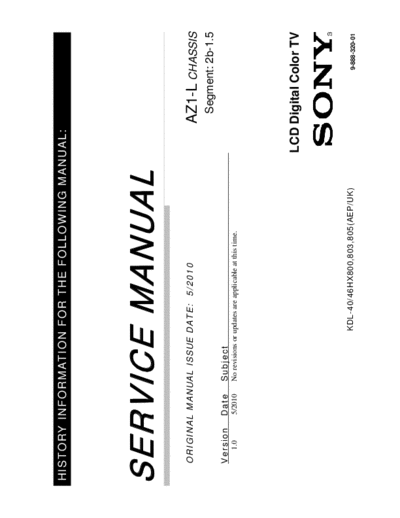

Image preview - the first page of the document
SONY+KDL-40-46HX800-803-805+CHASSIS+AZ1-L


>> Download SONY+KDL-40-46HX800-803-805+CHASSIS+AZ1-L documenatation <<

Text preview - extract from the document
HISTORY INFORMATION FOR THE FOLLOWING MANUAL:




SERVICE MANUAL
  O R I G I N A L MANUAL ISSUE DA T E : 5 / 2 0 1 0                              AZ1-L CHASSIS
                                                                                   Segment: 2b-1.5
  Version    Date     Su b j e c t
     1.0     5/2010   No revisions or updates are applicable at this time.




                                                                             LCD Digital Color TV



                                       KDL-40/46HX800,803,805(AEP/UK)                     9-888-320-01
SERVICE MANUAL
                                           AZ1-L CHASSIS
                                             Segment: 2b-1.5




                                       LCD Digital Color TV



      KDL-40/46HX800,803,805(AEP/UK)                9-888-320-01
 MODEL LIST
    MODEL               COLOR    COMMANDER   DEST.   MODEL   COLOR   COMMANDER   DEST.
    KDL- 4 0 H X8 0 0   Black    RM-ED034    AEP
    KDL- 4 0 H X8 0 3   Black    RM-ED034    UK
    KDL- 4 0 H X8 0 5   Black    RM-ED034    AEP
    KDL- 4 6 H X8 0 0   Black    RM-ED034    AEP
    KDL- 4 6 H X8 0 3   Black    RM-ED034    UK
    KDL- 4 6 H X8 0 5   Black    RM-ED034    AEP




KDL-40/46HX800,803,805(AEP/UK)                                                           3
 WARNINGS AND CAUTIONS                                                                                       - EN GLI SH

 CAUTION
    These servicing instructions are for use by qualified service personnel only.
    To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to
    do so.


 WARNING!!
    An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.
    The chassis of this receiver is directly connected to the ac power line.


 CARRYING THE TV
    Be sure to follow these guidelines to protect your property and avoid causing serious injury.
