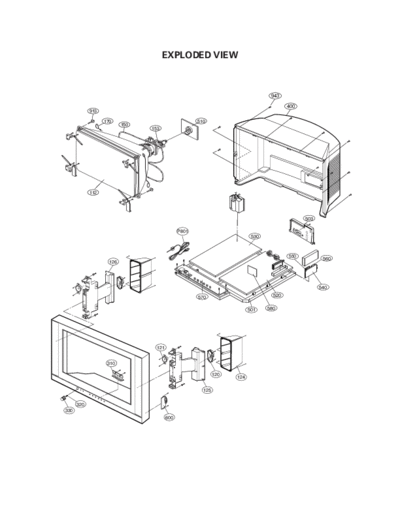

EXPLODED VIEW
943
400
913
170 510
150
153
112
503
P801
530
550 560
126
540
570 520
501 580
121
310
120
124
125
320
330
600
- 20 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
112 6335V32009A CPT ASSY,W76QDD259X 07N7ND 0.4G[V] 0G[H
120 120-D38C SPEAKER,MID-RANGE 8 OHM 15/25W 87
121 6400VG0002A SPEAKER,TWEETER T0520101(C76G) 8 OHM 10
124 3550V00068A COVER,DOME PS 60HR CT-29Q20
125 4810V00165A BRACKET,DOME(R) PS 60HR
126 4810V00165B BRACKET,DOME(L) PS 60HR
150 150-201J COIL,DEGAUSSING CU 32"TURN 1OHM
170 170-797X CPT EARTH,32" 144T 2LUG
300 3091V00344H CABINET ASSEMBLY
310 5020V00505D BUTTON
320 320-062J SPRING,KNOB
330 5020V00506D BUTTON
400 3809V00256N BACK COVER ASSEMBLY
501 4810V00311F BRACKET,MAIN HIPS,40AF
503 4810V00539A BRACKET,BRACKET REAR A/V ASSY
510 6871VSMB37B PWB ASSY,CPT DC026A
520 6871VMM888C PWB ASSY,MAIN DC026A
530 6871VDM888B PWB ASSY,MAIN2 DC026A
540 6871VSMB93A PWB ASSY,DIGIT DC026A D-MAIN
550 6871VSMB94A PWB ASSY,DIGIT DC026A COFDM
560 6739V00003B MODEM ASSEMBLY,SRE0102B 2.4KBPS SEROME
570 6871VSMB36A PWB ASSY,CONT DC026A
580 6871VSM845B PWB ASSY,CURRENT HARMONICS
600 6871VSMB38A PWB ASSY,A/V SIDE DC026A
913 332-229M SCREW + D7.0 L45.0 MSWR3 / FZY W/RUB
943 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB
P801 174-225W POWER CORD 6410VBH004B VOLEX VDE/SEMKO L4
