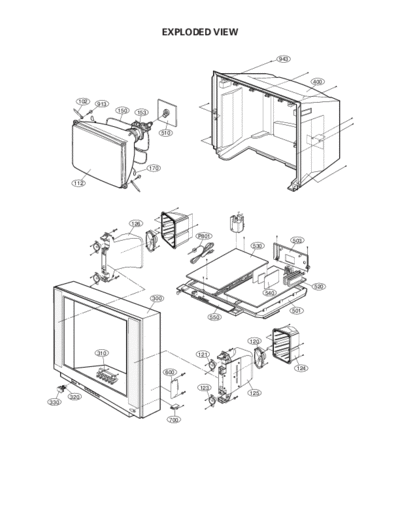

                                        EXPLODED VIEW


                                                                          943



                                                                                       400


        102   913
                    150    153


                                       510




                                 170

       112




                          126

                                                P801
                                                                                503
                                                              530




                                                                                       520
                                                                    540
                                  300

                                                                                501
                                                       550



                                                             120

              310                               121

                                                                                 124
                                        600

                                                 123
                                                             125
      320
330


                                         700




                                               - 1 -
                                                               The components identified by mark          is
                                                               critical for safety.
EXPLODED VIEW PARTS LIST                                       Replace only with part number specified.



  LOCA. NO     PART NO                      DESCRIPTIONS

   102       341-919C      HOLDER,D-COIL
   112       6341V29006A   BARE CPT ASSY
             6341V29004A   BARE CPT ASSY
   120       6400VA0015A   SPEAKER,GENERAL C151PX-373K14 8 OHM 15W
   121       120-C76G      SPEAKER,TWEETER C050TX-357K14 8 OHM 10/
   123       6400VA0016A   SPEAKER,GENERAL C050TX-346K14 8 OHM 15W
   124       3550V00039A   COVER,SPEAKER
   125       4810V00129A   BRACKET(R),SPEAKER
   126       4810V00129B   BRACKET(L),SPEAKER
   150       150-201S      COIL,DEGAUSSING CU 29" 440TURN 102 OHM 3P
   153       6150Z-1240F   DY,DC29SLFL1
   170       170-844K      CPT EARTH
   300       3091V00173B   CABINET ASSY *CT-29Q10ET
             3091V00173L   CABINET ASSY *CL-29Q10ET
             3091V00173Q   CABINET ASSY *CE-29Q10ET
   310       5020V00316A   BUTTON,CONTROL
   320       320-070G      SPRING,COIL
   330       5020V00315A   BUTTON,POWER
             3809V00127B   BACK COVER ASSY
   400
             3809V00127J   BACK COVER ASSY(2 SCART)
   501       4810V00139B   BRACKET,MAIN
             3500V00018A   BOARD,A/V(1PHONE & 1SCART)
   503
             3500V00017A   BOARD,A/V(2SCART)
   510       6871VSM327A   PWB ASSY,CPT
             6871VMM282B   PWB ASSY MAIN *LGEMT,LGEIN
             6871VMM282C   PWB ASSY MAIN *LGEAK,NAGHI,E.A.C
   520       6871VMM282D   PWB ASSY MAIN *LGEIL
             6871VMM282F   PWB ASSY MAIN *LGESA,LGEAL,N.ALLIED,H.POINT
             6871VMM282G   PWB ASSY MAIN *TELESTAR,LGEGF,KOOHEJI,I.G.I
             6871VMM282K   PWB ASSY MAIN *LGESV
             6871VMM333A   PWB ASSY MAIN CE,PAL/SECAM *LGEDG,LGEIS,LGEES,AGON
             6871VMM333B   PWB ASSY MAIN CE,PAL/SECAM *LGEPL
             6871VMM335A   PWB ASSY MAIN SECAML/L' *LGEFS
   530       6871VDM068B   PWB ASSY MAIN2 NON EU(WIDE ST-B
             6871VDM082A   PWB ASSY MAIN2 CE,PAL/SECAM
             6871VDM083A   PWB ASSY MAIN2 SECAM(L/L')
   540       6871VSM326A   PWB ASSY,DCF
   550       6871VSM345A   PWB ASSY,CONTROL
   600       6871VSM328A   PWB ASSY,AV
             6871VSM328B   PWB ASSY,AV EU
   700       0IGL120104D   CDS SENSOR MODULE
   913       332-229H      SCREW ASSY,HEXAGON HEAD
   943       1PTF0403116   SCREW,TRUSS HEAD D4.0 L16.0
   P801      174-009V      CORD,POWER(W/HOLD,HOUSING)
             174-224A      CORD,POWER FOR UK




                                         - 2 -
