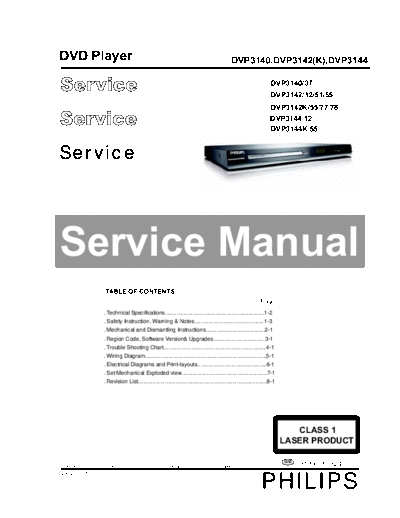

Image preview - the first page of the document
>> Download hfe_philips_dvp3140_3142_3144_service_en documenatation <<
Text preview - extract from the document
DVD Player DVP3140,DVP3142(K),DVP3144
DVP3140/37
DVP3142/12/51/55
DVP3142K/55/77/78
DVP3144/12
DVP3144K/55
Service
Service Manual
TABLE OF CONTENTS
Page
. Technical Specifications........................................................1-2
. Safety Instruction, Warning & Notes........................................ 1-3 .
. Mechanical and Dismantling Instructions....................................2-1
. Region Code, Software Version& Upgrades................................3-1
. Trouble Shooting Chart........................................................4-1
. Wiring Diagram..................................................................,5-1
. Electrical Diagrams and Print-layouts.......................................6-1
. Set Mechanical Exploded view.................................................. 7-1 .
. Revision List.........................................................................8-1
CLASS 1
LASER PRODUCT
GB
3139 785 32451
PHILIPS
Published by TCLET 0738 Service Audio Printed in The Netherlands Subject to modification
Version 1.1
1-2
Technical Specifications
TV standard (PAL/50Hz) (NTSC/60Hz) Audio performance
Number of lines 625 525 DA converter 24bits, 192KHz
Playback Multi standard (PAL/NTSC) DVD fs 96kHz 4Hz----44kHz
fs 48kHz 4Hz----22kHz
SVCD fs 48kHz 4Hz----22kHz
Video performance fs 44.1kHz 4Hz----20kHz
CD/ VCD fs 44.1kHz 4Hz----20kHz
Video DAC 12 bit, 108MHz Signal-Noise (1kHz) >90dB
YPbPr: 0.7Vpp ---- 75 ohm Dynamic Range (1kHz) >80dB
Video output 1Vpp ----- 75 ohm Cross talk (1kHz) >70dB
RGB(SCART) 0.7Vpp ---- 75 ohm Distortion/Noise (1kHz) >65dB
MPEG MP3 MPEG Audio L3
Video format
Digital Compression MPEG 2 for DVD,SVCD Connections
MPEG 1 for VCD Scart Oupput Euroconnector
