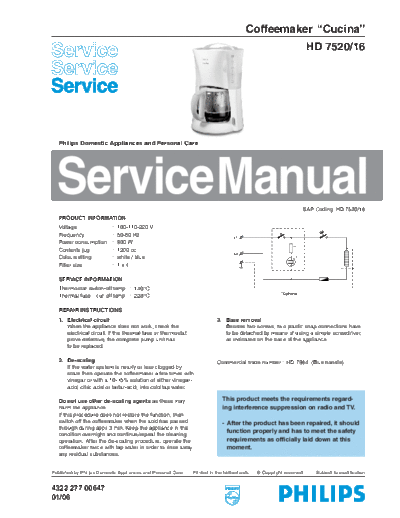

Image preview - the first page of the document



>> Download HD752016_SM_4569647411 documenatation <<

Text preview - extract from the document

                                                                                      Coffeemaker "Cucina"
                                                                                                                   HD 7520/16




   Philips Domestic Appliances and Personal Care




  Service Manual                                                                                                  SAP Coding HD 7520/16
   PRODUCT INFORMATION
   Voltage                :   100-110-220 V
   Frequency              :   50-60 Hz                                           L1
   Power consumption      :   900 W
   Contents jug           :   1200 cc                                                                        *
                                                                                 L2
   Coloursetting          :   white / blue                                                                   *
   Filter size            :   1x4

   SERVICE INFORMATION
   Thermostat switch-off temp : 140
