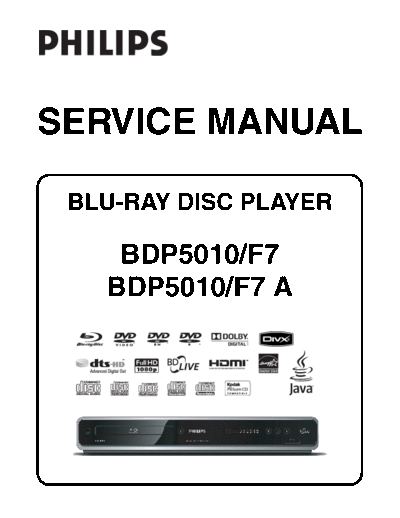

Image preview - the first page of the document
>> Download BDP5010F7_ET-SB-EX-SI_1413436087 documenatation <<
Text preview - extract from the document
SERVICE MANUAL
BLU-RAY DISC PLAYER
BDP5010/F7
BDP5010/F7 A
IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
P&F Equipment. The service procedures recommended by P&F and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
P&F could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, P&F has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by P&F must first use
all precautions thoroughly so that neither his safety nor the safe operation
of the equipment will be jeopardized by the service method selected.
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
How to Initialize the BLU-RAY Disc Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
SPECIFICATIONS
1-1-1 E5K11SP
LASER BEAM SAFETY PRECAUTIONS
This BD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable
Location: Inside Top of BD mechanism.
1-2-1 B2NLBSP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set.
safety-related characteristics which are often not
K. When connecting or disconnecting the internal
evident from visual inspection, nor can the protection
connectors, first, disconnect the AC plug from the
they give necessarily be obtained by replacing them
AC outlet.
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product's Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the # symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
1-3-1 BDN_ISP
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and Chassis or Secondary Conductor
surrounding metallic parts. (See Fig. 1)
Primary Circuit
Table 1: Ratings for selected area
AC Line Voltage Clearance Distance (d), (d') d' d
120 V
3mm(d)
4mm(d')
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
Fig. 1
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and Exposed Accessible Part
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
AC Voltmeter
Z
Measuring Method (Power ON): (High Impedance)
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
One side of
B
Power Cord Plug Prongs
Fig. 2
Table 2: Leakage current ratings for selected areas
One side of power cord plug
AC Line Voltage Load Z Leakage Current (i)
prongs (B) to:
2k RES.
i0.7mA AC Peak RF or
Connected in
i2mA DC Antenna terminals
parallel
120 V
50k RES.
i0.7mA AC Peak
Connected in A/V Input, Output
i2mA DC
parallel
Note:This table is unofficial and for reference only. Be sure to confirm the precise values.
1-3-2 BDN_ISP
STANDARD NOTES FOR SERVICING
Circuit Board Indications Pb (Lead) Free Solder
1. The output pin of the 3 pin Regulator ICs is When soldering, be sure to use the Pb free solder.
indicated as shown.
How to Remove / Install Flat Pack-IC
Top View Bottom View
Input 1. Removal
Out In
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
2. For other ICs, pin 1 and every fifth pin are machine, then apply hot air to the Flat Pack-IC
indicated as shown. (about 5 to 6 seconds). (Fig. S-1-1)
5
Pin 1
10
3. The 1st pin of every male connector is indicated as
shown.
Fig. S-1-1
Pin 1
2. Remove the flat pack-IC with tweezers while
applying the hot air.
Instructions for Connectors 3. Bottom of the flat pack-IC is fixed with glue to the
1. When you connect or disconnect the FFC (Flexible CBA; when removing entire flat pack-IC, first apply
Foil Connector) cable, be sure to first disconnect soldering iron to center of the flat pack-IC and heat
the AC cord. up. Then remove (glue will be melted). (Fig. S-1-6)
2. FFC (Flexible Foil Connector) cable should be 4. Release the flat pack-IC from the CBA using
inserted parallel into the connector, not at an tweezers. (Fig. S-1-6)
angle.
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
FFC Cable 2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
Connector around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
CBA
* Be careful to avoid a short circuit.
1-4-1 BDN_SN
3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron:
be careful not to break or damage the foil of each 1. Using desoldering braid, remove the solder from
pin or the solder lands under the IC when all pins of the flat pack-IC. When you use solder
removing it. flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
Hot-air
Flat Pack-IC Flat Pack-IC Desoldering Braid
Desoldering
Machine
CBA
Soldering Iron
Masking Flat Pack-IC Fig. S-1-3
Tape
Tweezers 2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
Fig. S-1-2
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
Fig. S-1-4
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
1-4-2 BDN_SN
With Iron Wire: 2. Installation
1. Using desoldering braid, remove the solder from 1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder the foil of each pin of the flat pack-IC on the CBA
flux which is applied to all pins of the flat pack-IC, so you can install a replacement flat pack-IC more
you can remove it easily. (Fig. S-1-3) easily.
2. Affix the wire to a workbench or solid mounting 2. The "" mark on the flat pack-IC indicates pin 1.
point, as shown in Fig. S-1-5. (See Fig. S-1-7.) Be sure this mark matches the 1
3. While heating the pins using a fine tip soldering on the PCB when positioning for installation. Then
iron or hot air blower, pull up the wire as the solder presolder the four corners of the flat pack-IC. (See
melts so as to lift the IC leads from the CBA Fig. S-1-8.)
contact pads as shown in Fig. S-1-5. 3. Solder all pins of the flat pack-IC. Be sure that
4. Bottom of the flat pack-IC is fixed with glue to the none of the pins have solder bridges.
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6) Example :
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Hot Air Blower Fig. S-1-7
or
Presolder
Iron Wire
Soldering Iron
To Solid
Mounting Point
Fig. S-1-5
Flat Pack-IC
CBA
Fine Tip Fig. S-1-8
CBA Soldering Iron
Flat Pack-IC
Tweezers
Fig. S-1-6
1-4-3 BDN_SN
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 M) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 M) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
CBA
Grounding Band
1M
CBA
1M
Conductive Sheet or
Copper Plate
1-4-4 BDN_SN
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart Removal
ID/
This flowchart indicates the disassembly steps to gain Loc. Part Remove/*Unhook/
Fig.
access to item(s) to be serviced. When reassembling, No. No. Unlock/Release/ Note
Unplug/Desolder
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally. Motor DC
[11] D5 *CN2004, Fan Holder ---
Fan
[1] Top Cover [3] Front CBA [12] AV CBA D6 5(S-13) ---
[2] Front Assembly [4] Power SW CBA Shield
[13] D6 4(S-14) ---
Bracket
[5] Multi Audio CBA [15] Audio PCB Bracket SD PCB
[14] D6 (S-15) ---
Bracket
[6] BD Main CBA & Audio PCB
BD Mechanism Assembly [15] D6 (S-16) ---
Bracket
[7] SD-A CBA
(1) (2) (3) (4) (5)
[8] SD-B CBA [13] Shild Bracket Note:
(1) Identification (location) No. of parts in the figures
[9] SD-C CBA [14] SD PCB Bracket
(2) Name of the part
[10] Rear Panel [11] Motor DC Fan (3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
[12] AV CBA
unlocked, released, unplugged, unclamped, or
desoldered.
2. Disassembly Method P = Spring, L = Locking Tab, S = Screw,
CN = Connector
Removal * = Unhook, Unlock, Release, Unplug, or Desolder
ID/ e.g. 2(S-2) = two Screws (S-2),
Loc. Part Remove/*Unhook/
Fig. 2(L-2) = two Locking Tabs (L-2)
No. No. Unlock/Release/ Note
Unplug/Desolder (5) Refer to "Reference Notes."
[1] Top Cover D1 9(S-1) ---
Reference Notes
*4(L-1), *3(L-2),
Front 1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
[2] D2 *5(S-2) *CN2002, 1
Assembly fragile. Be careful not to break them.
*CN3001
2. The BD Main CBA & BD Mechanism Assembly
[3] Front CBA D2 --------------- ---
is adjusted as a unit at factory. Therefore, do
Power SW not disassemble it. Replace the BD Main CBA
[4] D2 --------------- ---
CBA & BD Mechanism Assembly as a unit.
(S-3), 2(S-4),
Multi Audio
[5] D3 *CN2005, *CN7001, ---
CBA
Locking Card Spacer
(S-5), 2(S-6), 4(S-7),
BD Main 2(S-8), 4(S-9),
CBA & BD *CN6001, *CN7101,
[6] D4 2
Mechanism *CN7601, Main PCB
Assembly Earth Plate, Front
Shield
[7] SD-A CBA D4 Desolder ---
[8] SD-B CBA D4 Desolder ---
[9] SD-C CBA D4 --------------- ---
2(S-10), 4(S-11),
[10] Rear Panel D5 ---
2(S-12)
1-5-1 E5K11DC
(S-1) (S-1) (S-3)
[5] Multi Audio
CBA
CN7001
[1] Top Cover (S-4)
(S-1)
Locking
Card Spacer
CN2005
Fig. D3
Fig. D1
[6] *BD Main
CBA & BD
Mechanism Main PCB
Assembly Earth Plate
(S-8)
(S-7)
[7] SD-A CBA
CN7101
(S-9)
(S-2)
CN6001
(L-1)
CN2002
CN7601 (S-9)
[4] Power SW (S-2)
Front Shield
CBA [3] Front CBA [8] SD-B CBA
(S-2)
CN3001
(L-2) [9] SD-C CBA
(L-1) (S-6)
(S-5)
[2] Front Assembly
(L-2) Fig. D2
* See Reference Notes 2. Fig. D4
1-5-2 E5K11DC
[10] Rear Panel (S-10)
(S-10)
(S-11)
(S-12)
[11] Motor
DC Fan
Fan Holder
CN2004
Fig. D5
(S-13)
[12] AV CBA
(S-14)
(S-14)
(S-16)
[15] Audio
(S-14)
PCB Bracket
(S-15)
[13] Shild
Bracket
[14] SD PCB
Bracket
Fig. D6
1-5-3 E5K11DC
3. How to Eject Manually
1. Remove the Top Cover and Front Assembly.
2. Insert a screwdriver, hexagon wrench to push the Portion A.
3. Pull the tray out manually and remove a disc.
Screwdriver,
Portion A hexagon wrench
1-5-4 E5K11DC
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER
To put the program back at the factory-default,
initialize the BD player as the following procedure.
1. Turn the power on.
2. Remove the disc on the tray and close the tray.
3. Press [1], [2], [3], [4], and [INFO] buttons on the
remote control unit in that order.
Fig. a appears on the screen.
"*******" differ depending on the models.
Version Info
F/W Name : *******
Version : *.***
Region : *-*
EEPROM CLEAR EXIT
Fig. a
4. Press [STOP] button on the remote control unit.
Fig. b appears on the screen and Fig. c appears
on the VFD.
"*******" differ depending on the models.
Version Info
F/W Name : *******
Version : *.***
Region : *-*
EEPROM CLEAR : OK
EEPROM CLEAR EXIT
Fig. b
Fig. c
5. To exit this mode, press [ ] button.
1-6-1 E5K11INT
FIRMWARE RENEWAL MODE
Note: The file extension of the available firmware is The appearance shown in (*1) of Fig. c is
"b20". described as follows:
1. Turn the power on and remove the disc on the tray
No. Appearance State
and close the tray.
2. To put the BD player into version up mode, press 1 Now Loading... Loading the disc
[9], [8], [7], [6], and [DISC MENU/POP UP MENU] Sending files into the
buttons on the remote control unit in that order. memory.
The tray will open automatically. 2 Reading...
After reading, automatically
Fig. a appears on the screen and Fig. b appears the tray opens.
on the VFD.
Writing new version data,
"*******" differs depending on the models. 3 See FL Display the progress will be displayed
as shown in Fig. e.
F/W VERSION UP MODE F/W Name: ******* Ver. *.***
Please insert a Disc Fig. e VFD in Version Up Mode
for F/W Version Up
5. After programming is finished, the checksum on
the VFD (Fig. f).
Fig. a Version Up Mode Screen
Fig. f VFD upon Finishing the Programming Mode (Example)
Checksum appears on the VFD then the tray will
open automatically. Remove the disc on the tray.
Fig. b VFD in Version Up Mode At this time, no button is available.
3. Load the disc for version up. 6. Unplug the AC cord from the AC outlet. Then plug
4. The BD player enters the F/W version up mode it again.
automatically. Fig. c appears on the screen and 7. Turn the power on.
Fig. d appears on the VFD. If you enter the F/W for 8. Press [1], [2], [3], [4], and [INFO] buttons on the
different models, "Disc Error" will appear on the remote control unit in that order.
screen, then the tray will open automatically. Fig. g appears on the screen.
"*******" differs depending on the models.
"*******" differ depending on the models.
F/W VERSION UP MODE F/W Name: ******* Ver. *.*** Version Info
1. ALL F/W Name : *******
Version : *.***
Ver. *.*** ************A*.b20 Region : *-*
(*1) Now Loading...
EXIT : POWER
EEPROM CLEAR EXIT
Fig. c Programming Mode Screen (Example)
Fig. g
Fig. d VFD in Programming Mode (Example)
1-7-1 E5K13FW
9. Press [STOP] button on the remote control unit. How to Verify the Firmware Version
Fig. h appears on the screen and Fig. i appears on
the VFD. 1. Turn the power on.
"*******" differ depending on the models.
2. Remove the disc on the tray and close the tray.
3. Press [1], [2], [3], [4], and [INFO] buttons on the
Version Info remote control unit in that order.
F/W Name : ******* Fig. j appears on the screen.
Version : *.***
"*******" differ depending on the models.
Region : *-*
Version Info
F/W Name : *******
EEPROM CLEAR : OK Version : *.***
EEPROM CLEAR EXIT Region : *-*
Fig. h
EEPROM CLEAR EXIT
Fig. i Fig. j
10. To exit this mode, press [ ] button. 4. To exit this mode, press [ ] button.
1-7-2 E5K13FW
FIRMWARE RENEWAL MODE (for User)
1. Press [HOME] to display Home menu. 7. F/W loading starts. Fig. e will appear on the
2. Select to Settings - Advanced Setup - Others - screen.
Software Upgrade.
3. F/W Upgrade (Fig. a) will appear on the screen,
Software Upgrade
then select Yes.
1.Loading 2.Upgrading
Loading Software...
BD-Player Settings Advanced Setup Others
Software Upgrade Disc Upgrade
Disc Upgrade Yes If you want to exit the download, press'BACK'.
Network Upgrade No
Fig. e
8. Updating starts automatically. Progress degree is
displayed like Fig. f on the VFD.
Fig. a
4. Fig. b will appear on the screen then the tray
opens. Insert the disc and press [OPEN/CLOSE]. Fig. f VFD in Upgrade Mode.
9. SHUTDOWN on the VFD and turn the power off
Software Upgrade
automatically when it finishes.
10. The power turns on and the tray will open
Please insert a disc for software upgrade.
automatically. Remove the disc on the tray.
If you want to exit upgrade, press 'BACK'.
All the Settings will be kept as they were.
Fig. b
5. Disc loading starts.
6. Fig. c will appear on the screen, then select Yes.
Fig. d will appear on the VFD.
Software Upgrade
Current Version : X.XXX
Insert Version : X.XXX
Select 'Yes' and press 'OK' button to start upgradeing.
Press 'No' to exit software upgrade
Yes No
Fig. c
Fig. d VFD in Upgrade Mode.
1-7-3 E5K13FW
TROUBLESHOOTING
FLOW CHART NO.1
The power cannot be turned on.
No
Is the fuse normal? See FLOW CHART No.2
Yes
Is normal state restored when once unplugged No Check if there is any leak or short-circuiting on the
power cord is plugged again after several seconds? primary circuit component, and service it if defective.
Yes (IC1001,Q1003, T1001, D1001, D1002, D1003,
No
Is the EV+5V line voltage normal? D1004, D1007, D1008, C1010, R1013)
Yes
Check each rectifying circuit of the secondary circuit
and service it if defective.
FLOW CHART NO.2
The fuse blows out.
Check the presence that the primary component Check the presence that the rectifying diode or
is leaking or shorted and service it if defective. circuit is shorted in each rectifying circuit of
secondary side, and service it if defective.
After servicing, replace the fuse.
FLOW CHART NO.3
When the output voltage fluctuates.
Does the photo coupler circuit on the secondary No Check IC1003, IC1011 and their periphery,
side operate normally? and service it if defective.
Yes
Check IC1001, IC1003, D1006 and their periphery,
and service it if defective.
FLOW CHART NO.4
When buzz sound can be heard in the vicinity of power circuit.
Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary
side, and service it if defective. (D1010, D1013, D1014, D1018, D1023, IC2600, IC2601, IC2602, Q1011,Q2603,
Q2604, Q2606, Q2607)
FLOW CHART NO.5
FL is not outputted.
No Check D1018, C1021 and periphery circuit,
Is 34V voltage supplied to the emitter of Q2012?
and service it if defective.
Yes
Is the "L" signal outputted to the collector of No
Is the "H" signal inputted to the base of Q2013?
Q2013?
Yes No
Yes
Replace Q2013. Check FL-SW line and service
Check Q2012, D2001 and their periphery,
it if defective.
and service it if defective.
1-8-1 E5K11TR
FLOW CHART NO.6
P-ON+14.5V is not outputted.
No
Is 15V voltage supplied to the emitter of Q2603? Check D1023, D1019, C1023, L1005 and
Yes their periphery circuit, and service it if defective.
No
Is the voltage of base on Q2603 lower than the Check Q2601 and PWSW2 line and service it if
voltage of emitter on Q2603 when turning the power on? defective.
Yes
Replace Q2603.
FLOW CHART NO.7
P-ON+5V (P-ON+5V(2)) is not outputted.
No
Is 5V voltage supplied to the emitter of Q2604? Check D1013, D1014, D1021, C1019, C1025, and
Yes their periphery circuit, and service it if defective.
No
Is the voltage of base on Q2604 lower than the Check Q2605 and PWSW2 line and service it if
voltage of emitter on Q2604 when turning the power on? defective.
Yes
Replace Q2604.
FLOW CHART NO.8
P-ON+5V (1) is not outputted.
No
Is 5V voltage inputted to the emitter of Q2606? Check D1013, D1014, D1021, C1019, C1025, and
Yes their periphery, and service it if defective.
No
Is the voltage of base on Q2606 lower than the Check Q2605 and PWSW2 line and service it if
voltage of emitter on Q2606 when turning the power on? defective.
Yes
Replace Q2606.
FLOW CHART NO.9
P-ON+10.5V is not outputted.
No
Is 14V voltage inputted to the collector of Q2607? Check D1020, D1023, C1018, C1024, L1003 and
Yes their periphery, and service it if defective.
No
Is 11V voltage inputted to the base of Q2607? Is 14V voltage inputted to the base of Q2602?
Yes Yes No
Replace Q2607. Check Q2602, D2606, Check Q2601, D2613,
and their periphery, and and PWSW2 line, and
service it if defective. service it if defective.
1-8-2 E5K11TR
FLOW CHART NO.10
P-ON+1.2V is not outputted. (P-ON+3.3V is outputted normally.)
No
Is 5V voltage supplied to Pin(3) of IC2601? Check D1013, D1014, D1021, C1019, C1025 and
Yes the periphery circuit, and service it if defective.
No
Is the "H" signal outputted to the collector of Q2611? Is the "L" signal outputted to the collector of Q2610?
Yes Yes No
Replace IC2601. Replace Q2611. Check Q2610 and their periphery
circuit, and service it if defective.
FLOW CHART NO.11
P-ON+1.8V is not outputted. (P-ON+1.2V is outputted normally.)
No
Is 5V voltage supplied to Pin(3) of IC2602? Check D1013, D1014, D1021, C1019, C1025 and their
Yes periphery circuit, and service it if defective.
No
Is the "H" signal outputted to the collector of Q2613? Is the "L" signal outputted to the collector of Q2612?
Yes Yes No
Replace IC2602. Replace Q2613. Check Q2612 and their periphery
circuit, and service it if defective.
FLOW CHART NO.12
EV+3.3V is not outputted.
No
Is 5V voltage supplied to the collector of Q1011? Check D1013, D1014, D1021, C1019, C1025, and
Yes their periphery circuit, and service it if defective.
No
Is 4V voltage supplied to the base of Q1011? Check IC1012, R1046, R1047, R1048, and their
Yes periphery circuit, and service it if defective.
Replace Q1011.
FLOW CHART NO.13
P-ON+3.3V is not outputted.
No
Is 5V voltage supplied to Pin(1) of IC2600? Check D1013, D1014, D1021, C1019, C1025 and
Yes their periphery circuit, and service it if defective.
No
Is 1.2V voltage supplied to Pin(4) of IC2600? Is the "L" signal outputted to the collector of Q2600?
Yes Yes No
Replace IC2600. Check D2600 and their Check Q2600 and
periphery circuit, and PWSW1 line, and
service it if defective. service it if defective.
1-8-3 E5K11TR
FLOW CHART NO.14
The fluorescent display tube does not light up.
No
Is 3.3V voltage supplied to Pin(24) of FL3000? Check the P-ON+3.3V line and service it if defective.
Yes No
Is 8V voltage supplied to Pin(1,2) of FL3000? Is 10V voltage supplied to the emitter of Q2014?
Yes Yes No
Is 9V voltage inputted Check D1010, C1016, R1015,
to the base of Q2014? R1018 and their periphery,
Yes No and service it if defective.
Replace Q2014. Check Q2013 and FL-SW line
and service it if defective.
No
Is 5V voltage supplied to Pin(29,30) of FL3000? Check the F2 line and service it if defective.
Yes
Replace FL3000.
FLOW CHART NO.15
The key operation is not functioning.
Are the contact point and the installation state of No Re-install the switches (SW3003-3007) correctly
the key switches (SW3003-3007) normal? or replace the poor switch.
Yes
When pressing each switches (SW3003-3007), No Check the switches (SW3003-3007) and their
do the voltage of Pin(62) of IC2000 increase? periphery circuit, and service it if detective.
Yes
Replace IC2000.
FLOW CHART NO.16
No operation is possible from the remote control unit.(Operation is possible from the unit.)
No
Is 5V voltage supplied to Pin(2) of RS3000 Check EV+5V line and service it if defective.
(remote control receiver) ?
Yes
Is the "L" pulse sent out Pin(1) of RS3000 (remote No Replace the RS3000 (remote control receiver) or
control receiver) when the remote control unit is activated? remote control unit.
Yes
No
Is the "L" pulse inputted to the Pin(27) of IC2000? Check the line between the RS3000 (remote control
Yes receiver) and the Pin(27) of IC2000, and service it if
Replace IC2000. detective.
FLOW CHART NO.17
The disc tray cannot be opened and closed. (It can be done using the remote control unit.)
No
Is the normal control voltage inputted to Pin(62) of Replace the "OPEN/CLOSE" switch (SW3006).
IC2000? Refer to "FLOW CHART NO.15"
Yes
Replace the BD Main CBA & BD Mechanism
Assembly.
1-8-4 E5K11TR
FLOW CHART NO.18
The disc tray cannot be opened and closed.
[No Disc] indicated.
Both functions of picture and sound do not operate normally.
Yes
Replace the BD Main CBA & BD Mechanism
Assembly.
FLOW CHART NO.19
Picture does not appear normally.
Set the disc on the disc tray, and playback.
No
Are the video signals outputted to each pin of Replace the BD Main CBA & BD Mechanism
CN2001? Assembly.
CN2001 14PIN VIDEO
CN2001 16PIN VIDEO-Y(I/P)
CN2001 18PIN VIDEO-Pb/Cb
CN2001 20PIN VIDEO-Pr/Cr
Yes
Are the video signals shown above inputted into Check the line between each pin of CN2001 and
each pin of IC2300? No each pin of IC2300, and service it if detective.
IC2300 3PIN VIDEO CN2001 14PIN IC2300 3PIN VIDEO
IC2300 8PIN VIDEO-Y(I/P) CN2001 16PIN IC2300 8PIN VIDEO-Y(I/P)
IC2300 10PIN VIDEO-Pb/Cb CN2001 18PIN IC2300 10PIN VIDEO-Pb/Cb
IC2300 12PIN VIDEO-Pr/Cr CN2001 20PIN IC2300 12PIN VIDEO-Pr/Cr
Yes
Are the video signals outputted to each pin of
IC2300?
IC2300 20PIN VIDEO-Y(I/P) No
Is 5V voltage supplied to the Pin(7,21) of IC2300?
IC2300 17PIN VIDEO-Pb/Cb Yes No
IC2300 15PIN VIDEO-Pr/Cr
Replace IC2300. Check P-ON+5V line and
IC2300 25PIN VIDEO
service it if detective.
Yes
Are the video signals outputted to the specific
output terminal?
No
Are the component video signals outputted to the Check the periphery of JK2300 from Pin(15,17,20)
VIDEO OUT terminal (JK2300)? of IC2300 and service it if detective.
No
Are the composite video signals outputted to Check the periphery of JK2200 from Pin(25) of
the VIDEO OUT terminal (JK2200)? IC2300 and service it if detective.
1-8-5 E5K11TR
FLOW CHART NO.20
Audio is not outputted normally.
Set the disc on the disc tray, and playback.
No
Are the analog audio signals outputted to each pin Replace the BD Main CBA & BD Mechanism
of CN2001? Assembly.
CN2001 24PIN AUDIO(L)
CN2001 22PIN AUDIO(R)
Yes
Are the analog audio signals inputted to each pin Check each line between each pin of CN2001
of IC2200? and each pin of IC2200, and service it if detective.
No
IC2200 6PIN AUDIO(L) CN2001 24PIN IC2200 6PIN AUDIO(L)
IC2200 2PIN AUDIO(R) CN2001 22PIN IC2200 2PIN AUDIO(R)
Yes
Is the "H" level mute signal outputted to CN2001?
No
CN2001 25PIN AUDIO(R)-MUTE Replace the BD Main CBA & BD Mechanism
CN2001 26PIN AUDIO(L)-MUTE Assembly.
Yes
No
Is the signal at Pin(24) of IC2000 "H" ? Check AUDIO-MUTE line, and service it if
Yes detective.
Are the analog audio signals outputted to each pin
of IC2200?
No
IC2200 7PIN AUDIO(L) Replace IC2200.
IC2200 1PIN AUDIO(R)
Yes
Are the audio signals outputted to the audio No Check the periphery between Pin(1,7) of IC2200
terminal (JK2200)? and JK2200, and service it if detective.
1-8-6 E5K11TR
FLOW CHART NO.21
Audio is not outputted. (JK5002)
Set the disc (with 5.1ch Audio) on the disc tray, and playback.
Are the analog audio signals outputted to each pin
of CN5001 on 5.1ch Amp CBA. No
Replace the BD Main CBA or BD Mechanism
CN5001 15PIN FRONT-AUDIO(L) Assembly.
CN5001 18PIN FRONT-AUDIO(R)
CN5001 10PIN SURROUND(L)
CN5001 12PIN SURROUND(R)
CN5001 6PIN CENTER
CN5001 8PIN SUB WOOFER
Yes
Check each line between each pin of CN5001
Are the analog audio signals inputted to each pin and each pin of IC5101,IC5201 and IC5301
of IC5101, IC5201 and IC5301. No and service it if defective.
IC5101 2, 6PIN FRONT-AUDIO(L/R) CN5001 15,18PIN IC5101 2,6PIN FRONT-AUDIO(L/R)
IC5201 2, 6PIN SURROUND(L/R) CN5001 10,12PIN IC5201 2,6PIN SURROUND(L/R)
IC5301 2, 6PIN CENTER/SUB WOOFER CN5001 6,8PIN IC5301 2,6PIN CENTER/SUB WOOFER
Yes
Are the analog audio signals outputted to each pin
of IC5101, IC5201 and IC5301. No
Replace ICs (IC5101, IC5201 or IC5301).
IC5101 1,7PIN FRONT-AUDIO(L/R)
IC5201 1,7PIN SURROUND(L/R)
IC5301 1,7PIN CENTER/SUB WOOFER
Yes
Do the mute signals of CN5001 on MULTI AUDIO
CBA become to "H" level? No
Replace the DVD Main CBA Unit.
FRONT-AUDIO(L) CN5001 14PIN
FRONT-AUDIO(R) CN5001 18PIN
SURROUND(L/R) CN5001 13PIN
CENTER CN5001 5PIN
SUB WOOFER CN5001 9PIN
Yes
Is the analog audio signal of each line outputted to
each terminal of JK5002 (as shown below) ? No
Check each line and service it if defective.
IC5101 1PIN JK5002 FRONT-AUDIO(L)
IC5101 7PIN JK5002 FRONT-AUDIO(R)
IC5201 1PIN JK5002 SURROUND(L)
IC5201 7PIN JK5002 SURROUND(R)
IC5301 1PIN JK5002 CENTER
IC5301 7PIN JK5002 SUB WOOFER
1-8-7 E5K11TR
IC2000
(SUB MICRO CONTROLLER)
IC2001
MUTE1 TO VIDEO
EV+3.3V RESET 14 RESET MUTE1 21
MUTE2 BLOCK DIAGRAM
MUTE2 22
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
