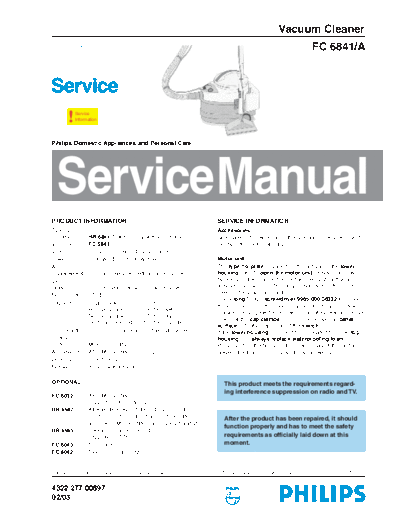

Image preview - the first page of the document
>> Download FC6841A_SM_4565177412 documenatation <<
Text preview - extract from the document
Vacuum Cleaner
FC 6841/A
! Service
Information
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION SERVICE INFORMATION
Type no. Accessories:
name : HR 68xx Triathlon (dry, wet and shampoo) See drawing for replacing of the shampoo pressure hose, for
Versions : FC 6841 = red example the pistol handgrip.
Voltage : 230 V a.c. 50 Hz; 240 V a.c. 50 Hz
Power : 1300 W (IEC) / 1500 W max. Motor unit:
Air The type no. plate is placed on the outside of the lower
displacement : 51 l/sec. measured without accessories housing (38). To open the motor unit, remove the inlay
Vacuum by pressing the inlay on the cord winder push-button and
(water col.): 230 cm measured without accessories remove 2 screws (E). (The inlay is mounted on the cover by
Noise level : 77 dB means of a snap construction).
Use a long Philips screwdriver 9965 000 08332 to remove
Capacity : Supply tank 3 litres (2)
the 6 screws (F) of the lower housing / top housing. (Holes
Recovery tank 9 litres wet (7)
in lower housing are 13 cm deep). For safety reasons, make
Recovery tank 17 litres dry (7)
sure that the cap clamps do not come above the panel
Dust bag (HR 6947) 10 litres dry (39)
surface (31) after replacing of the switch (30).
Cord length : 6.3 or 9.3 m (depends on the national version) If the lower housing (38) must be separated from the top
Shampoo housing (15) always replace waterproofing foam (22).
system : Motorised pump Press hard on the housing during assembly of this unit to
Air exhaust : AFS-MICRO filter FC 8032 prevent the foam from moving during assembly.
Dimensions : 46 x 45 x 32 cm
Net weight : 8.3 kg (without tools)
OPTIONAL This product meets the requirements regard-
ing interference suppression on radio and TV.
FC 8032 : AFS-MICRO filters
4822 015 70056. Item 20
HR 6947 : Athena 8836 947 01000 = 4822 015 70058
Contains: 4 Paper dust bags, 1 motor filter After the product has been repaired, it should
and 1 AFS-MICRO filter. Items 29, 24 and 20
function properly and has to meet the safety
HR 6965 : Cleaning liquid for carpets
4822 390 80176 requirements as officially laid down at this
FC 8043 : Turbo nozzle moment.
FC 8042 : Twist and clean nozzle
