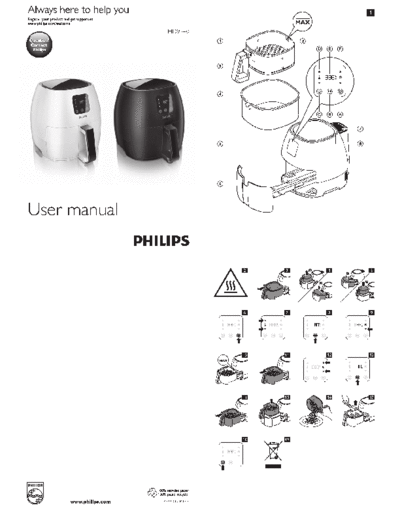

Image preview - the first page of the document

>> Download hd9240-90-dfu-deu documenatation <<

Text preview - extract from the document

HD9240

User manual

2 3 4 5

6 7 8 9

10 11 12 13

14 15 16 17

18 19

4222.005.0413.2
English
- Keep the mains cord away from hot surfaces.
- Do not plug in the appliance or operate the control
introduction panel with wet hands.
Congratulations on your purchase and welcome to Philips! - Only connect the appliance to an earthed wall socket.
To fully benefit from the support that Philips offers, register Always make sure that the plug is inserted into the
your product at www.philips.com/welcome. wall socket properly.
Your new airfryer allows you to prepare your favourite ingredients and
snacks in a healthier way. - This appliance is not intended to be operated by
The airfryer uses hot air in combination with high-speed air circulation means of an external timer or a separate remote-
(Rapid Air) and a top grill to prepare a variety of tasty dishes in a healthy, control system.
fast and easy way. Your ingredients are heated from all sides at once and
there is no need to add oil to most of the ingredients.
- Do not place the appliance on or near combustible
For more inspiration for recipes and information about the airfryer, materials such as a tablecloth or curtain.
visit www.philips.com/kitchen. - Do not place the appliance against a wall or against
general description (Fig. 1) other appliances. Leave at least 10cm free space at
1 Basket the back, on both sides and above the appliance.
2 MAX indication Do not place anything on top of the appliance.
3 Basket handle - Do not use the appliance for any other purpose than
4 Pan
5 Control panel described in this manual.
- A Power on/off button - Do not let the appliance operate unattended.
- B START/STOP button - During hot air frying, hot steam is released through
- C Preset button
- D Temperature increase and decrease buttons
the air outlet openings. Keep your hands and face at a
- E Time/temperature indication safe distance from the steam and from the air outlet
- F Timer increase and decrease buttons openings. Also be careful of hot steam and air when
6 Drawer you pull the pan out of the appliance.
7 Air outlet openings
8 Air inlet - The accessible surfaces may become hot during
use (Fig. 2).
important
- Immediately unplug the appliance if you see dark
Read this user manual carefully before you use the
smoke coming out of the appliance. Wait for the
appliance and save it for future reference.
smoke emission to stop before you pull the pan out
Danger of the appliance.
- Never immerse the housing, which contains electrical - The pan becomes hot all over when it is used in the
components and the heating elements, in water nor airfryer. Let the pan cool down before you handle it.
rinse it under the tap.
Caution
- Do not let any water or other liquid enter the
- Place the appliance on a horizontal, even and stable
appliance to prevent electric shock.
surface.
- Always put the ingredients to be fried in the basket,
- This appliance is intended for normal household
to prevent them from coming into contact with the
use only. It is not intended for use in environments
heating elements.
such as staff kitchens of shops, offices, farms or other
- Do not cover the air inlet and the air outlet openings
work environments. Nor is it intended to be used by
while the appliance is operating.
clients in hotels, motels, bed and breakfasts and other
- Do not fill the pan with oil as this may cause a fire hazard.
residential environments.
- Never touch the inside of the appliance while it is
- If the appliance is used improperly or for professional
operating.
or semi-professional purposes or if it is not used
Warning according to the instructions in the user manual, the
- Check if the voltage indicated on the appliance guarantee becomes invalid and Philips refuses any
corresponds to the local mains voltage before you liability for damage caused.
connect the appliance. - Always return the appliance to a service centre
- Do not use the appliance if the plug, the mains cord authorised by Philips for examination or repair.
or the appliance itself is damaged. Do not attempt to repair the appliance yourself,
- If the mains cord is damaged, you must have it replaced otherwise the guarantee becomes invalid.
by Philips, a service centre authorised by Philips or - Always unplug the appliance after use.
similarly qualified persons in order to avoid a hazard. - Let the appliance cool down for approx. 30 minutes
- This appliance can be used by children aged from before you handle or clean it.
8 years and above and by persons with reduced - Make sure the ingredients prepared in this appliance
physical, sensory or mental capabilities or lack of come out golden-yellow instead of dark or brown.
experience and knowledge if they have been given Remove burnt remnants. Do not fry fresh potatoes
supervision or instruction concerning use of the at a temperature above 180
