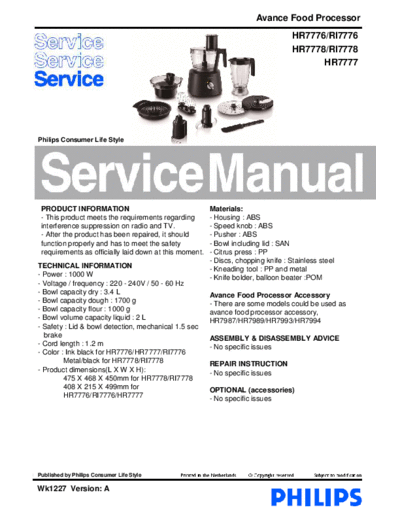

Image preview - the first page of the document
>> Download service documenatation <<
Text preview - extract from the document
Avance Food Processor
HR7776/RI7776
HR7778/RI7778
HR7777
Philips Consumer Life Style
PRODUCT INFORMATION Materials:
- This product meets the requirements regarding - Housing : ABS
interference suppression on radio and TV. - Speed knob : ABS
- After the product has been repaired, it should - Pusher : ABS
function properly and has to meet the safety - Bowl including lid : SAN
requirements as officially laid down at this moment. - Citrus press : PP
- Discs, chopping knife : Stainless steel
TECHNICAL INFORMATION - Kneading tool : PP and metal
- Power : 1000 W - Knife bolder, balloon beater :POM
- Voltage / frequency : 220 - 240V / 50 - 60 Hz
- Bowl capacity dry : 3.4 L Avance Food Processor Accessory
- Bowl capacity dough : 1700 g - There are some models could be used as
- Bowl capacity flour : 1000 g avance food processor accessory,
- Bowl volume capacity liquid : 2 L HR7987/HR7989/HR7993/HR7994
- Safety : Lid & bowl detection, mechanical 1.5 sec
brake ASSEMBLY & DISASSEMBLY ADVICE
- Cord length : 1.2 m - No specific issues
- Color : Ink black for HR7776/HR7777/RI7776
Metal/black for HR7778/RI7778 REPAIR INSTRUCTION
- Product dimensions(L X W X H): - No specific issues
475 X 468 X 450mm for HR7778/RI7778
408 X 215 X 499mm for OPTIONAL (accessories)
HR7776/RI7776/HR7777 - No specific issues
Published by Philips Consumer Life Style
Wk1227 Version: A
Partslists HR7776/HR7777/HR7778/RI7776/RI7778
Pos 12NC Description Remark
1 9965 100 56756 ICE KNOB (BLACK) For HR7776/RI7776/HR7777
9965 100 56814 ICE KNOB (SMOKE CHROME) For HR7778/RI7778
2 9965 100 56731 KNEADING KNOB (BLACK) For HR7776/RI7776/HR7777
9965 100 56809 KNEADING KNOB (SMOKE CHROME) For HR7778/RI7778
3 9965 100 56758 WHIPPING KNOB (BLACK) For HR7776/RI7776/HR7777
9965 100 56806 WHIPPING KNOB (SMOKE CHROME) For HR7778/RI7778
4 9965 100 56748 MOTOR BOWL For all Avance Food Processor
5 9965 100 56739 TOP HOUSING For all Avance Food Processor
6 9965 100 56757 HOUSING (BLACK) For HR7776/HR7777
9965 100 56819 HOUSING (BLACK,WALITA) For RI7776 only
9965 100 56823 HOUSING (METAL BODY) For HR7778 only
9965 100 56817 HOUSING (METAL BODY,WALITA) For RI7778 only
7 9965 100 56746 RUBBER FEET For all Avance Food Processor
8 9965 100 56734 SWITCH KNOB For all Avance Food Processor
For all Avance Food Processor except
9 9965 100 56729 PCBA (HV) RI7776/91 & RI7778/01
9965 100 56813 PCBA (LV) For RI7776/91 & RI7778/01
10 9965 100 56753 HOLDER SAFETY SWITCH + LEVER (JAR) For HR7776/RI7776/HR7777
11 9965 100 56738 HOLDER SAFETY SWITCH + LEVER (JUICER) For HR7776/RI7776/HR7777
12 9965 100 56776 CORD STORAGE BOX For HR7776/RI7776/HR7777
13 9965 100 56755 DRIVING COUPLING ASSY For HR7776/RI7776/HR7777
For all Avance Food Processor except
14 9965 100 56747 MOTOR ASSY RI7776/91 & RI7778/01
9965 100 56805 MOTOR ASSY(LV) For RI7776/91 & RI7778/01
15 9965 100 56736 POWER CORD WITH COVER + FERRITE CORE For HR7776/90 & HR7777/HR7778/00
9965 100 56767 POWER CORD 3PIN For HR7776/91 & HR7778/01
9965 100 56811 POWER CORD WITH COVER + FERRITE CORE For RI7776/RI7778
9965 100 56822 POWER CORD AUS VERSION For HR7778/03
16 9965 100 56745 BOTTOM For all Avance Food Processor
17 9965 100 56815 JUICER LID For HR7778/RI7778
18 9965 100 56808 PUSHER For HR7778/RI7778
19 9965 100 56812 SIEVE BLADE DISC + FILTER MESH ASSY For HR7778/RI7778
20 9965 100 56816 JUICER BOWL For HR7778/RI7778
21 9965 100 56818 JUICER BASE + LOCK ARM For HR7778/RI7778
22 9965 100 56807 BRUSH For HR7778/RI7778
23 9965 100 56803 MEASURING CUP (JUICER BOWL) For HR7778/RI7778
24 9965 100 56762 BOWL PUSHER For all Avance Food Processor
25 9965 100 56732 BOWL LID For all Avance Food Processor
26 9965 100 56761 DRIVER For all Avance Food Processor
Partslists HR7776/HR7777/HR7778/RI7776/RI7778
Pos 12NC Description Remark
27 9965 100 56763 BOWL For all Avance Food Processor
28 9965 100 56735 CHOPPING KNIFE For all Avance Food Processor
29 9965 100 56772 REAMER HEAD For all Avance Food Processor
30 9965 100 56754 REAMER BOWL For all Avance Food Processor
31 9965 100 56741 BOWL HANDLE For all Avance Food Processor
32 9965 100 56773 BOWL SAFETY LEVER For all Avance Food Processor
33 9965 100 56766 KNEADING HOOK For all Avance Food Processor
34 9965 100 56733 GRANULATING DISC For all Avance Food Processor
35 9965 100 56804 JULIENNE DISC For HR7778/RI7778/HR7987
36 9965 100 56821 FRENCH FRIES DISC (9 X 9MM) HR7778/HR7987
For all Avance Food Processor
37 9965 100 56775 SHREDDING DISC and HR7987
38 9965 100 56765 ADJUSTABLE SLICING DISC For all Avance Food Processor
39 9965 100 56752 WHISK For all Avance Food Processor
40 9965 100 56774 WHISK WIRE ASSY For all Avance Food Processor
41 9965 100 56769 SPATULA For all Avance Food Processor
42 9965 100 56742 MEASURING CUP (JAR) For all Avance Food Processor
43 9965 100 56751 JAR LID For all Avance Food Processor
44 9965 100 56768 BLENDER JAR For all Avance Food Processor
For all Avance Food Processor
45 9965 100 56737 KNIFE UNIT and HR7989
46 9965 000 23151 SEALING RING - BLENDER KNIFE For all Avance Food Processor
47 9965 100 56749 MINI JUCIER PUSHER For HR7777
48 9965 100 56764 MINI JUCIER LID For HR7777
49 9965 100 56743 JUCIER CONTAINER For HR7777
50 9965 100 56759 JUCIER FILTER For HR7777
51 9965 100 56771 SAFETY SWITCH + SWITCH HOLDER (JAR) For all Avance Food Processor
SAFETY SWITCH + SWITCH HOLDER
52 9965 100 56744 (JUICER) For all Avance Food Processor
For HR7989, HR7776 MEA &
53 9965 100 56882 JAR MILL ASSY Dubai, HR7778 MEA & Dubai
54 9965 100 56876 MINI BOWL LID For HR7994
55 9965 100 56877 BLADE + BLADE HOLDER For HR7994
56 9965 100 56878 MINI BOWL For HR7994
57 9965 100 57063 STORAGE BOX For HR7993/HR7778
58 9965 100 57062 STORAGE BOX LID For HR7993/HR7778
Main unit view HR7776/HR7777/HR7778/RI7776/RI7778
1 2 3
4 5 6
7 8 9
10 11 12
13 14 15
Main unit view HR7776/HR7777/HR7778/RI7776/RI7778
16 19 26
31 32 51
52
Accesorry view HR7776/HR7777/HR7778/RI7776/RI7778
17 18 20
21 22 23
24 25 27
28 29 30
33 34 35
Accesorry view HR7776/HR7777/HR7778/RI7776/RI7778
36 37 38
39 40 41
42 43 44
45 46 47
Accesorry view HR7776/HR7777/HR7778/RI7776/RI7778
48 49 50
53 54 55
56 57 58
