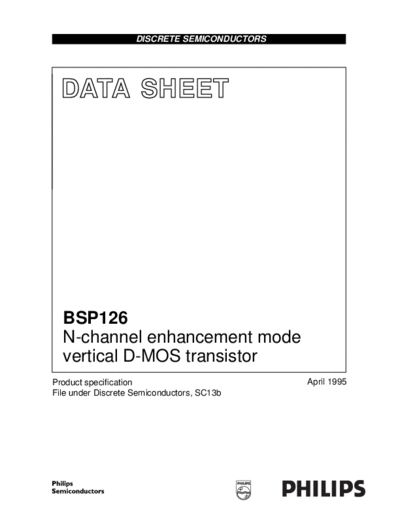

bsp126_147


>> Download bsp126_147 documenatation <<

Text preview - extract from the document
                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BSP126
  N-channel enhancement mode
  vertical D-MOS transistor
Product specification                         April 1995
File under Discrete Semiconductors, SC13b
Philips Semiconductors                                                                            Product specification

  N-channel enhancement mode vertical
                                                                                                         BSP126
  D-MOS transistor

DESCRIPTION                                  QUICK REFERENCE DATA
N-channel enhancement mode                    Drain-source voltage                         VDS        max.   250 V
vertical D-MOS transistor in a                Drain current (DC)                           ID         max.   350 mA
miniature SOT223 envelope and
                                              Total power dissipation up to Tamb = 25
