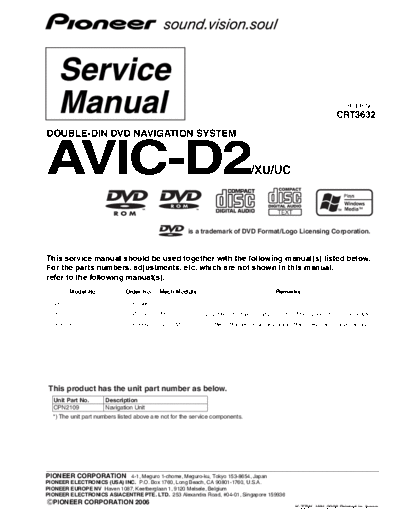

Image preview - the first page of the document
>> Download PIONEER AVI-CD2 documenatation <<
Text preview - extract from the document
ORDER NO.
CRT3632
DOUBLE-DIN DVD NAVIGATION SYSTEM
AVIC-D2 /XU/UC
is a trademark of DVD Format/Logo Licensing Corporation.
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. Order No. Mech.Module Remarks
AVIC-D1/UC CRT3466
CX-3016 CRT3056 MS3 DVD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-3158 CRT3394 S10.1AAC CD Mech. Module:Circuit Description, Mech.Description, Disassembly
This product has the unit part number as below.
Unit Part No. Description
CPN2109 Navigation Unit
*) The unit part numbers listed above are not for the service components.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
K-ZZW. JAN. 2006 Printed in Japan
1 2 3 4
SAFETY INFORMATION
CAUTION
A
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
performed can adversely affect the and reliability of the product and may void the .
If you are not qualified to the repair of this product properly and , you should not risk trying to do so
W
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
B Health & Safety Code Section 25249.6 - Proposition 65
This product contains mercury. Disposal of this material may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or the Electronics Industries
Alliance: www.eiae.org.
EXPLODED VIEWS AND PARTS LIST
C
PACKING(Page 8)
PACKING SECTION PARTS LIST *:Non spare part
Mark No. Description AVIC-D1/UC AVIC-D2/XU/UC
* 1-3 Registration Card CRY1238 CRY1245
1-5 Owner's Manual/POC/FRE CRB2091 CRB2146
1-6 Owner's Manual/POC/FRE CRB2090 CRB2145
* 1-7 Caution Card CRN1083 Not used
1-8 Owner's Manual/POC/FRE Not used CRB2251(French)
D 2-1 Owner's Manual CRB2088 CRB2143
2-2 Owner's Manual CRB2089 CRB2144
2-3 Installation Manual CRD3983 CRD4067
2-6 Owner's Manual Not used CRB2250(English)
4 Carton CHG5523 CHG5690
5 Contain Box CHL5523 CHL5690
6 Protector CHP2273 CHP2784
7 Protector CHP3006 CHP3141
8 Protector CHP3007 CHP3142
E
9 Protector CHP3045 CHP3143
10 Protector CHP3046 CHP3144
19 Sub Carton CHA3298 CHG5691
24 DVD-ROM CPJ1167 CPJ1175
F
2 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
EXTERIOR (1)(Page 10)
EXTERIOR (1) SECTION PARTS LIST
Mark No. Description AVIC-D1/UC AVIC-D2/XU/UC A
30 System Unit CWM9918 CWN1665
EXTERIOR (2)(Page 12)
EXTERIOR (2) SECTION PARTS LIST
Mark No. Description AVIC-D1/UC AVIC-D2/XU/UC
31 CC Unit CWM9919 CWN1663
36 Connector(CN701) CKS3805 CKS5051 B
37 Connector(CN702) CKS3991 CKS5049
38 Connector(CN551) CKS4065 CKS5205
58 Connector(CN2) DKN1236 CKS5076
59 Connector Unit CWM9921 CWN1664
63 Connector(CN2806) CKS4600 CKS5062
64 Connector(CN2804) CKS5209 CKS5524
C
EXTERIOR (3)(Page 14)
EXTERIOR (3) SECTION PARTS LIST
Mark No. Description AVIC-D1/UC AVIC-D2/XU/UC
17 Flexible PCB CNP8744 CNP9371
18 MONI_PANEL Unit CWM9920 CWN1662(Monitor Unit)
20 Connector(CN5002) CKS3968 CKS4715
21 Connector(CN5801) CKS3991 CKS5049
22 Connector(CN5700) CKS4130 CKS5060 D
25 Connector(CN5007) CKS4675 CKS5105
26 Connector(CN5008) CKS5208 CKS5080
27 LCD Panel CWX3229 CWX3386
30 Grille Unit CXC4434 CXC6372
E
F
AVIC-D2/XU/UC 3
5 6 7 8
1 2 3 4
ELECTRICAL PARTS LIST(Page 140)
CC UNIT
A Circuit Symbol and No. Part Name AVIC-D1/UC AVIC-D2/XU/UC
IC110 IC PEH007C PEH048A
IC111 IC PEH008C PEH049A
GY551 Sensor CSX1054 Not used
GY555 Sensor Not used CSX1105
C569 Not used CKSRYB105K10
SYSTEM UNIT
Circuit Symbol and No. Part Name AVIC-D1/UC AVIC-D2/XU/UC
B
L4000 Inductor LCTAW2R2J2520 LCYA2R2J2520
L4300 Inductor LCTAW1R0J2520 LCYA1R0J2520
L4302 Inductor LCTAW1R0J2520 LCYA1R0J2520
L4303 Inductor LCTAW1R0J2520 LCYA1R0J2520
MONITOR UNIT
Circuit Symbol and No. Part Name AVIC-D1/UC AVIC-D2/XU/UC
D5620 Diode Not used DAP202U
L5071 Inductor LCKAW100J2520 LCYA100J2520
C
L5078 Inductor LCKAW100J2520 LCYA100J2520
L5101 Inductor LCKAW100J2520 LCYA100J2520
L5151 Inductor LCKAW100J2520 LCYA100J2520
L5152 Inductor LCKAW100J2520 LCYA100J2520
L5181 Inductor LCKAW101J2520 LCYA101J2520
L5182 Inductor LCKAW101J2520 LCYA101J2520
L5801 Inductor LCKAW100J2520 LCYA100J2520
L5802 Inductor LCKAW100J2520 LCYA100J2520
D
L5803 Inductor LCKAW100J2520 LCYA100J2520
L5804 Inductor LCKAW100J2520 LCYA100J2520
L5901 Inductor LCKAW100J2520 LCYA100J2520
R5601 Not used RS1/16S0R0J
C5706 Not used CKSSYF104Z16
E
F
4 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
Page 56 Address 3D Page 103 Address 8D
A
C5706
CSX1105
B
Page 97 Address 6F Page 98 Address 4A
VSW5V
R5601
0R0
D5620 GNDP
DAP202U
C
D
E
F
AVIC-D2/XU/UC 5
5 6 7 8
1 2 3 4
PCB CONNECTION DIAGRAM
CC UNIT
A
NOTE FOR PCB DIAGRAMS
1.The parts mounted on this PCB
include all necessary parts for
A F CC UNIT
several destination.
For further information for
140
respective destinations, be sure
to check with the schematic dia-
gram.
2.Viewpoint of PCB diagrams
130
Connector Capacitor
SIDE A
120
B
SIDE B
P.C.Board Chip Part
110
100
B CN461
C 90
80
70
C CN601
D 60
50
H F CN5002
40
E
30
20
10
G F CN1701
Y
F
0
10 20 30 40 50 60 7
AF X
6 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
SIDE A
G F CN1802 EXTERNAL
IN/OUT
K F CN2804
B
C
D
E
F
60 70 80 90 100 110 120 130 140 150 160 170
FRONT AF
AVIC-D2/XU/UC 7
5 6 7 8
1 2 3 4
A
A F CC UNIT
B
C
D
E
F
170 160 150 140 130 120 110 100 90
AF
8 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
SIDE B
140
130
120
B
110
100
90 C
80
70
60 D
50
40
E
30
20
10
Y
F
0
90 80 70 60 50 40 30 20 10
X
AF
AVIC-D2/XU/UC 9
5 6 7 8
1 2 3 4
SYSTEM UNIT
A G F SYSTEM UNIT
120
AV IN/OUT
POWER SUPPLY
110
B
100
90
80
C
70
60
D
50
40
30
E
JF
CN5901
20
10
Y
F
0 10 20 30 40 50 60 70 80
GF X FRONT
10 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
SIDE A
F CN901
WIRED
REMOTE
CONTROLLER
FM/AM B
ANTENNA
FAN MOTOR
C
FM/AM TUNER UNIT
D
E
F
80 90 100 110 120 130 140 150 160 170
FRONT GF
AVIC-D2/XU/UC 11
5 6 7 8
1 2 3 4
A G F SYSTEM UNIT
A F CN801
B
C
D
E
F
170 160 150 140 130 120 110 100 90 80
GF
12 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
SIDE B
120
110
B
100
90
80
C
70
60
D
50
40
30
E
20
10
AF
CN605
Y
F
80 70 60 50 40 30 20 10 0
X
GF
AVIC-D2/XU/UC 13
5 6 7 8
1 2 3 4
MONITOR PCB
A
H F MONITOR PCB
TOUCH PANEL
B
C
D
E
F
LCD PANEL FRONT
HF
14 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
SIDE A
IF
CN5700 LCD PANEL
B
C
D
E
F
FRONT A F CN701
HF
AVIC-D2/XU/UC 15
5 6 7 8
1 2 3 4
A
H F MONITOR PCB
B
C
D
E
F
HF
16 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
SIDE B
B
C
D
E
F
HF
AVIC-D2/XU/UC 17
5 6 7 8
1 2 3 4
KEYBOARD PCB
A I F KEYBOARD PCB OPEN ANGLE DEST INFO TRFC P.ADJ MEMO
SIDE A
B
C
D
E
MAP AV VOL+ VOL- SRC RESET SELECT
F
IF
18 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
I F KEYBOARD PCB SIDE B A
B
C
D
E
H F CN5008
F
IF
AVIC-D2/XU/UC 19
5 6 7 8
1 2 3 4
CONNECTOR UNIT
A
K F CONNECTOR UNIT SIDE A
B
70
60
IP-BUS IN
C
50
AF
CN702
40
D
30
20
AV-BUS IN
E
L
CN2
10 X
F
0
30
Y
20
10
KF
20 AVIC-D2/XU/UC
1 2 3 4
5 6 7 8
A
K F CONNECTOR UNIT SIDE B
B
70
60
C
50
40
D
30
20
E
10
X
F
0
10
20
30
Y
KF
AVIC-D2/XU/UC 21
5 6 7 8
1 2 3 4
PANEL PCB
A
J F PANEL PCB SIDE A J F PANEL PCB SIDE B
B
G F CN1651
CD EJECT DVD EJECT
C
D
E
F
JF
22 AVIC-D2/XU/UC
1 2 3 4
