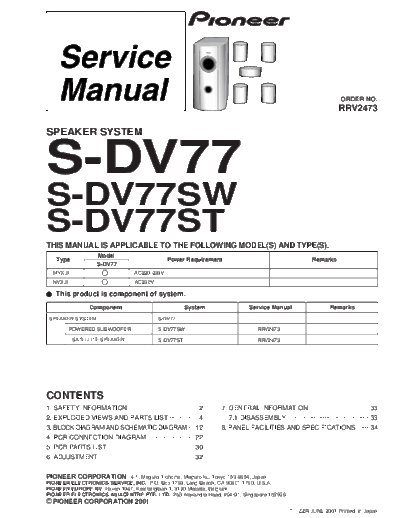

Image preview - the first page of the document



>> Download S-DV77-RRV2473 documenatation <<

Text preview - extract from the document

                                                                                                                          ORDER NO.
                                                                                                                         RRV2473

SPEAKER SYSTEM


S-DV77
S-DV77SW
S-DV77ST
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                      Model
    Type                                             Power Requirement                                        Remarks
                      S-DV77
   MYXJI                              AC220-230V
   NVXJI                              AC230V

    This product is component of system.
                  Component                                 System                 Service Manual                    Remarks
 SPEAKER SYSTEM                                  S-DV77

           POWERED SUBWOOFER                     S-DV77SW                              RRV2473
           SATELLITE SPEAKER                     S-DV77ST                              RRV2473




CONTENTS
1. SAFETY INFORMATION ...................................... 2          7. GENERAL INFORMATION ................................ 33
2. EXPLODED VIEWS AND PARTS LIST ............... 4                         7.1 DISASSEMBLY ............................................ 33
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ... 12                           8. PANEL FACILITIES AND SPECIFICATIONS ....... 34
4. PCB CONNECTION DIAGRAM ......................... 22
5. PCB PARTS LIST ............................................... 30
6. ADJUSTMENT .................................................... 32


PIONEER CORPORATION        4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
c PIONEER CORPORATION 2001
