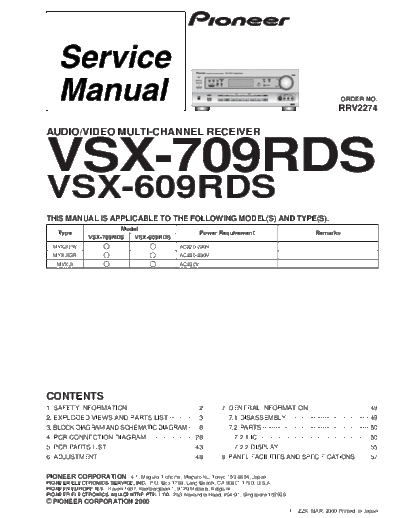

Image preview - the first page of the document
>> Download vsx-609rds_709rds documenatation <<Text preview - extract from the document ORDER NO.
RRV2274
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-709RDS
VSX-609RDS
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type Power Requirement Remarks
VSX-709RDS VSX-609RDS
MYXJIEW AC220-230V
MYXJIGR AC220-230V
MVXJI AC230V
CONTENTS
1. SAFETY INFORMATION ...................................... 2 7. GENERAL INFORMATION ................................ 49
2. EXPLODED VIEWS AND PARTS LIST ............... 3 7.1 DISASSEMBLY ............................................ 49
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..... 8 7.2 PARTS .......................................................... 50
4. PCB CONNECTION DIAGRAM ......................... 28 7.2.1 IC ............................................................ 50
5. PCB PARTS LIST ............................................... 43 7.2.2 DISPLAY ................................................. 55
6. ADJUSTMENT .................................................... 48 8. PANEL FACILITIES AND SPECIFICATIONS ....... 57
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
c PIONEER CORPORATION 2000
