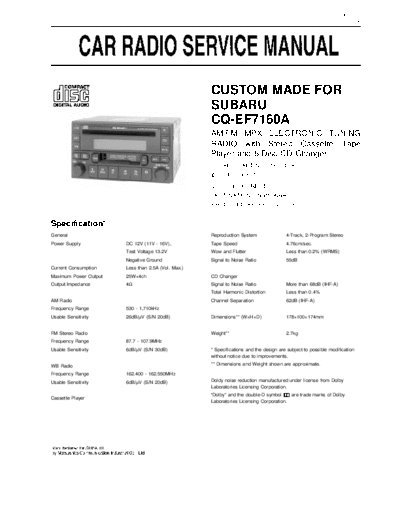

Image preview - the first page of the document
>> Download CQ-EF7160 documenatation <<Text preview - extract from the document ORDER No. 6072
I0
CUSTOM MADE FOR
SUBARU
CQ-EF7160A
AM/FM MPX ELECTRONIC TUNING
RADIO with Stereo Cassette Tape
Player and 6-Disc CD Changer
SUBARU PART No. : 86201SA030
ID CORD : P127
VEHICLE : FORESTER
DESTINATION : North America
PRODUCED AFTER : Jan., 2002
Specification*
General Reproduction System 4-Track, 2-Program Stereo
Power Supply DC 12V (11V - 16V), Tape Speed 4.76cm/sec.
Test Voltage 13.2V Wow and Flutter Less than 0.2% (WRMS)
Negative Ground Signal to Noise Ratio 55dB
Current Consumption Less than 2.5A (Vol. Max.)
Maximum Power Output 25W
