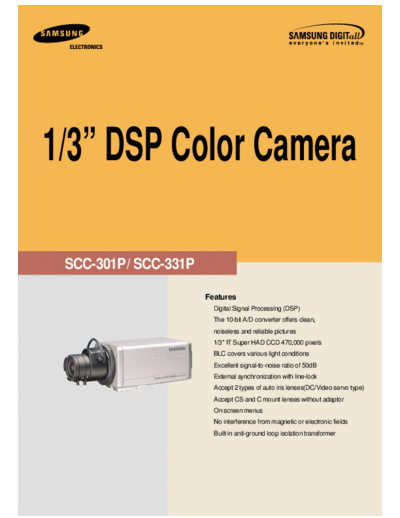

Image preview - the first page of the document
>> Download SCCA301P documenatation <<
Text preview - extract from the document
1/3" DSP Color Camera
SCC-301P/ SCC-331P
Features
Digital Signal Processing (DSP)
The 10-bit A/D converter offers clean,
noiseless and reliable pictures
1/3" IT Super HAD CCD 470,000 pixels
BLC covers various light conditions
Excellent signal-to-noise ratio of 50dB
External synchronization with line-lock
Accept 2 types of auto iris lenses(DC/Video servo type)
Accept CS and C mount lenses without adaptor
On screen menus
No interference from magnetic or electronic fields
Built-in anti-ground loop isolation transformer
Video Security Systems
SCC-301P SCC-331P
Specifications
MODEL SCC-301P SCC-331P
Scanning System PAL Standard:625 Lines,25Frames/sec
Image Device Interline transfer Super HAD CCD, 470,000 Pixels
Image Size 1/3 Inch
Picture Elements 795(H)x596(V) : Effective Picture Elements
Geometry No Geometry Distortion
Interlace 2:1 Interlace
Scanning Frequency Horizontal : 15.625KHz / 15.625KHz, Vertical : 50Hz / 50Hz
Sync. System Internal / Line-Lock
Resolution Horizontal:480TV Lines, Vertical:350TV Lines
Video Output Level VBS 1.0Vp-p(75 ohms, composite)
S/N Ratio More than 50dB
Min. Scene Illumination 0.5Lux @F1.2(50IRE)
Lens Mount C/CS Compatible
Gamma Correction 0.45
Lens Control(AI Lens) DC Iris, Video Iris
Camera ID : ON(12 Characters, Position Setting)/OFF
Shutter Speed : 1/60 ~ 1/100,000 sec 7 Steps
IRIS Control : ALC(DC/Video)/ELC(Level Control)
BLC : ON(Preset or Area Setting)/OFF
Controls(OSD)
AGC : ON/OFF
White Balance : ATW/AWC/Manual (3200K Preset, 5600K Preset, R/B Gain Adjustment)
V-SYNC : Internal/Line-Lock(V Phase Control)
Specia : Address setting, DTL Control, Posi/Nega
Exit : Quit/Save/Preset
Video Output : BNC(rear), AI Lens : 4-pin DIN(side)
Input/Output Sockets
Power : Power Cord.(rear) Power : 2pin term.(rear)
Power Indicator LED(rear)
Operating Temperature : -10 ~ 50 (14 ~ 122 )
Environmental Conditions
Humidity : Within 90% RH
Power Requirement AC 220V ~ 240V, 50Hz AC 24V & DC 12V, 50Hz
Power Consumption 4.5W 3.0W
Weight Approx. 450g
Dimensions(W x H x D) 65 x 52 x 133mm(2.65" x 2.05" x 5.24")
0dBu=0.775Vrms SCC-301P
Dimensions
SCC-331P
Distributed by: * Design and specifications are subject to change without notice.
Samsung Headquarters
Samsung Electronics Co., Ltd.
416, Maetan-3Dong, Paldal-Gu
Suwon City, Kyungki-Do, Korea 442-742
TEL : 82-31-200-5504, 5578 FAX : 82-31-200-5594
http://samsungelectronics.com/security/cctv/
