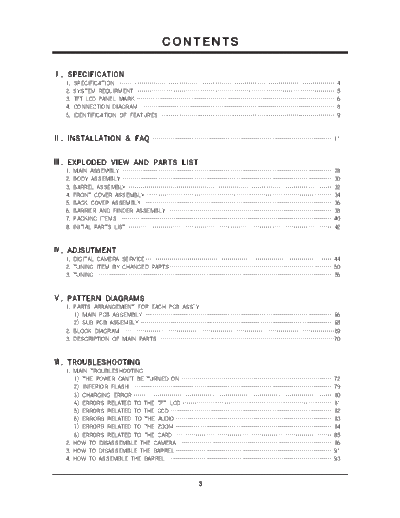

Image preview - the first page of the document
>> Download SM430 documenatation <<
Text preview - extract from the document
3
Type 1/2.5 CCD
Image Sensor Effective Pixel Approx. 4.0 Mega-pixel
Total Pixel Approx. 4.2 Mega-pixel
SHD Lens f = 6.2 ~ 17.4mm
Focal Length
(35mm film equivalent : 37 ~ 104mm)
Lens F No. F2.9 ~ F4.8
Still Image mode : 1.0X ~ 4.0X
Digital Zoom
Play mode : 1.0X ~ 8.8X (depends on image size)
Optical Viewfinder Real image optical viewfinder
Viewfinder
LCD Monitor 1.5 color TFT LCD
Type TTL auto focus
Focusing Normal : 80cm ~ infinity
Range
Macro : 5cm ~ 80cm(Wide), 50cm ~ 80cm(Tele)
Type Mechanical and Electronic shutter
Shutter
Speed 1 ~ 1/2,000 sec. (16 ~ 1/2,000 sec. in Night Scene mode)
Program AE
Control
Metering : Multi, Spot
Compensation 2EV (0.5EV steps)
Exposure ISO Equivalent Auto
Long Time Shutter Function only in Night Scene mode
Manual - Shutter Speed : 16 ~ 1 sec.
- F No. : Small/ Large selectable (depends on zoom ratio)
Modes Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off
Flash Range Wide : 0.3 ~ 3.0m, Tele : 0.5 ~ 2.0m
Recharging Time Approx. 7sec.
Sharpness Soft, Normal, Vivid
Effect Normal, B&W, Sepia, RGB
White Balance Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom
Voice Recording (max. 1 hour)
Voice Recording
Voice Memo in Still Image (max. 10 sec.)
Date Imprinting Date&Time, Date, Off (user selectable)
Modes : Auto, Manual, My Set, Scene, Night Scene, Portrait
* Scene : Children, Landscape, Close-up, Sunset, Dawn, Backlight, Fireworks, Beach & Snow
Still Image
Continuous : Single, Continuous
Shooting Self-timer : 2 sec., 10 sec.
With audio (recording time : memory capacity dependent)
Movie Clip Size : 640x480, 320x240
Frame rate : 30 fps, 15 fps
Multi Memory Card Slot (SD/MMC, Memory Stick Duo compatible)
Media - SD : up to 512MB guaranteed
- Memory Stick Duo : up to 128MB guaranteed
Storage
Still Image : JPEG(DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
File Format Movie Clip : AVI(MJPEG)
Audio : WAV
4
2272 : 2272x1704, 2048 : 2048x1536, 1600 : 1600x1200
Image Size
1024 : 1024x768, 640 : 640x480
2272 : S.FINE 14, FINE 28, NORMAL 40
2048 : S.FINE 17, FINE 33, NORMAL 49
Storage 1600 : S.FINE 28, FINE 53, NORMAL 75
Capacity (32MB) 1024 : S.FINE 64, FINE 106, NORMAL 139
640 : S.FINE 129, FINE 201, NORMAL 227
* These figures are measured under Samsung's standard conditions and
may vary depending on shooting conditions and camera settings.
Type Single image, Thumbnails, Slide show, Movie Clip
Image Play
Editing Trimming, Resizing
Digital output connector : USB 1.1
Audio : Mono
Interface
Video output : NTSC, PAL (user selectable)
DC power input connector : 3.3V
Primary battery : 2 x AA alkaline, Lithium, Ni-Mn, Ni-Zn/ 1x CR-V3
Rechargeable battery : 2x AA Ni-MH, Ni-Cd/ 1x I-Pack (SBP-1303)
Power Source
Adapter : SAC-32 (DC 3.3V, 2.0A)
Included battery may vary depending on sales region.
Dimensions (WxHxD) 106.8 x 55.5 x 32.2mm
Weight 144.3g (without batteries and card)
Operating Temperature 0 ~ 40
Operating Humidity 5 ~ 85 %
Camera Driver Storage Driver (Windows98/98SE/2000/ME/XP, Mac OS 9.0~10.2)
Software
Application Digimax Viewer, ArcSoft PhotoImpression
Multi Memory Card Slot (SD/MMC, Memory Stick Duo compatible)
Special Features VGA 30fps Movie Clip, 8 Kinds of Various Scene
Modes Superb 5cm Macro
PC with processor better than MMX Pentium 233MHz (XP : Pentium II 300MHz)
Windows 98/98SE/2000/ME/XP
For Windows Minimum 32MB RAM (XP: 128MB)
140MB of available hard-disk space, USB port, CD-ROM drive,
800 600 pixels, 16-bit colour display compatible monitor (24-bit color display recommended)
Power Mac G3 or later
Mac OS 9.0 ~ 10.2
For Macintosh Minimum 64MB RAM
110MB of available hard-disk space, USB port, CD-ROM drive,
QuickTime 4.0 or later for Movie Clip
5
Recording mode
[ Image & Full Status ]
No. Description Icons
1 Battery
Recording mode
3 Camera shake warning
4 Flash
5 Self-timer
6 Voice memo
7 Macro
8 Metering
9 SD card/ MS DUO indicator
10 Sharpness
11 Auto focus frame
12 Date/ Time 2004/01/01 01:00 PM
13 Exposure compensation
14 White Balance
15 RGB
16 Image quality
17 Image size/ Continuous shot 2272, 2048, 1600, 1024, 640
Number of available shots remaining 28
Remaining time(Movie clip/ Voice recording) 00:01:30/01:00:00
19 Optical/ Digital Zoom rate
6
Play mode
No. Description Icon
1 Battery
2 Play mode
3 File Type
4 Voice memo
5 Protect indicator
6 DPOF indicator
7 Stored image number 9
SIZE : 2272x1704 Size
S I Z E : 2272X1704 AV : F6.0 Aperture value
A V : F6.0 TV : 1/125 Shutter speed
T V : 1/125 ISO : 50 ISO sensitivity
FLASH : OFF FLASH : OFF Whether or not the
DATE : 2004/01/01 flash is used.
DATE : 2004/01/01 Recording date
7
Lithium-Ion SBP-1103
Memory Stick Duo SD Card
8
Power button Viewfinder
Shutter button Flash light
amount sensor
Speaker
Flash
Self-timer Microphone
lamp
USB/ AV
connection terminal
DC input
connection point
Lens
Autofocus indicator lamp(Green) Zoom W button (Thumbnail)
Flash indicator lamp(Red) Zoom T button (Digital zoom)
Viewfinder
Mode dial
Strap eyelet
LCD button
LCD monitor
5-function button
Tripod socket
+&-/ DELETE button Play mode button
9
Battery chamber cover
SD memory
card slot
Memory Stick
DUO slot
Battery chamber
Voice memo/ UP button
Flash/ Self-timer/
LEFT button RIGHT button
MENU/ OK button
Macro / DOWN
Play & Pause button
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1. MAIN ASSEMBLY
1-11
1-5
1-4
1-2
1-9
1-12 1-2
1-10
1-3
1-1
1-8
1-3
1-7 1-6
28
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
1-1 Q7211028902A TRIPOD CONNECTOR 1
1-2 Q6003038401A SCREW 2
1-3 Q9761173501 SCREW 7
1-4 Q7411101505A STRAP LINK 1
1-5 Q7217292702A SIDE COVER 1 D 430
Q7217306401A SIDE COVER 1 D 370
1-6 Q7409150601B PROTECTION SHEET 1
1-7 Q7217293801A DECORATION MIRROR 1
1-8 Q7017037701C LOGO PLATE 1
1-9 Q7012078701A DECORATION RING 1
1-10 Q9007205701A FRONT COVER SUB ASSY - KENOX D430 1
Q9007205801A FRONT COVER SUB ASSY - DIGIMAX 430 1
Q9007205901A FRONT COVER SUB ASSY - KENOX D370 1
Q9007206001A FRONT COVER SUB ASSY - DIGIMAX 370 1
1-11 Q9007200201A BACK COVER ASS'Y 1 D 430
Q9007204801A BACK COVER ASS'Y 1 D 370
1-12 Q9007200101A TOP COVER ASS'Y 1 D 430
Q9007204701A TOP COVER ASS'Y 1 D 370
29
2. BODY ASSEMBLY
2-13
2-41
2-14
2-12
2-40
2-30
2-29 2-17
2-28
2-33
2-11
2-34
2-36
2-35 2-4 2-17
2-39
2-3
2-32
2-2
2-15 2-31
2-37
2-42
2-25 2-27
2-8 2-1 2-23 2-26
2-7
2-24
2-16
2-6
2-10
2-22
2-38
2-20
2-9
2-21
2-5 2-19
2-18
30
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
2-1 Q7211067903A BODY 1
2-2 Q3708006201A COMBO SOCKET CONNECT 1
2-3 Q0961900301A SCREW 2
2-4 Q4101027701A COMBO FPCB 1
2-5 Q7011044802A BATTERY CONTACT 2
2-6 Q7217293602A BATTERY GUIDE PLATE 1
2-7 Q7017038204A BATTERY PLATE 1
2-8 Q7217292504B BATTERY COVER 1 D 430
Q7217306301A BATTERY COVER 1 D 370
2-9 Q7411101401A BATTERY HINGE 1
2-10 Q6107055901A BATTERY HINGE SPRING 1
2-11 Q9761173507 SCREW 5
2-12 Q7211068103A TFT LCD HODER 1
2-13 Q0704009601A LCD PANNEL 1
2-14 Q9761174507 SCREW 4
2-15 Q0601004301A SELF LED 1
2-16 Q9002127601A BARREL ASS'Y 1 D 430
Q9002127701A BARREL ASS'Y 1 D 370
2-17 Q7409155401A SHIELD FORM_A 2
2-18 Q0902008001A MIC 1
2-19 Q7211068203A BARREL FRAME 1
2-20 Q4103010701A PHOTO PCB 1
2-21 Q0509000601A PHOTO TR 1
2-22 Q9761173507 SCREW 1
2-23 Q7309039402A OLPF CUSHION 1
2-24 Q2904001501A IR CUT FILTER 1
2-25 Q0604002701A CCD SENSOR 1 D 430
Q0604002901A CCD SENSOR 1 D 370
2-26 Q7011045002A CCD PLATE_2 1
2-27 Q7011044902A CCD PLATE 1
2-28 Q9008067501A MAIN PCB ASS'Y 1 D 430
Q9008068701A MAIN PCB ASS'Y 1 D 370
2-29 Q2401007601A MAIN CONDENSOR 1
2-30 Q9008068101A SUB PCB SMD ASS'Y 1
2-31 Q7409155501A SHIELD FORM_B 2
2-32 Q7014004101A REFLECTOR 1
2-33 Q2604002101A TRIG TRANS 1
2-34 Q7211068002A REFLECTOR HOLDER 1
2-35 Q0611003101A XE-TUBE 1
2-36 Q7309039701A TUBE RUBBER 2
2-37 Q7217292901A FRESNEL LENS 1
2-38 Q9761173507 SCREW 3
2-39 Q6001013001A SCREW 2
2-40 Q4101028601A EMI SHEET-DKJ1 1
2-41 Q7409154001A ESD SHEET A - DKJ1 1
2-42 Q9003020701A FINDER ASS'Y 1 D 430
Q9003020001A FINDER ASS'Y 1 D 370
31
3. BARREL ASSEMBLY
3-59
3-25 3-24
3-1 3-20 3-38
3-28
3-22
3- 23
3-19
3-11 3-18
3-12 3-15
3-17
3-26 3-27 3-16
3-13
3-55
3-22
3-2 3-5
3-6 3-8
3-37
3-7
3-35 3-14
3-36
3-3
3-34
3-30
3-10
3-54
3-58
3-31 3-4
3-53
3-32 3-29
3-33 3-21
3-9 3-52
3-51
3-40
3-39
3-46
3-41
3-47
3-45 3-48
3-44
3-56 3-50
3-42
3-49
3-57
32
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
3-1 Q9002124401A LENS BASE ASS'Y 1
3-2 Q7212172506A LENS BASE 1
3-3 Q7411097601A AF GUIDER BAR_A 1
3-4 Q7411097701A AF GUIDER BAR_B 1
3-5 Q7411085902A ZOOM GEAR_A SHAFT 1
3-6 Q7411097801A ZOOM GEAR_B SHAFT 4
3-7 Q7411090001B ZOOM GEAR_C SHAFT 2
3-8 Q7411097901B ZOOM GEAR_D SHAFT 1
3-9 Q3107001701A ZOOM MOTOR 1
3-10 Q9611142007 SCREW 2
3-11 Q7212160001B ZOOM MOTOR GEAR 1
3-12 Q7212160101A ZOOM GEAR_A 1
3-13 Q7411085802A ZOOM GEAR_D 1
3-14 Q7411085702A ZOOM GEAR_C 1
3-15 Q7411085601B ZOOM GEAR_B 1
3-16 Q7212160602B ZOOM GEAR_E 2
3-17 Q7212172701A ZOOM GEAR_H 3
3-18 Q7212173801A ZOOM GEAR_G 1
3-19 Q7212172601A ZOOM COVER 1
3-20 Q7012075903A ZOOM COVER_B 1
3-21 Q9761142507 SCREW 1
3-22 Q0961900301A SCREW 2
3-23 Q9008067901A MAIN FPCB ASS'Y 1
3-24 Q4101027401A MAIN F PCB 1
3-25 Q9002104301A AF MOTOR ASS'Y 1
3-26 Q4101026701A ZOOM MOTOR FPCB 1
3-27 Q0608001001A PHOTO INTERRUPTER 2
3-28 Q0608000701A PHOTO REFLECTOR 1
3-29 Q7012076001A AF PI CAP 1
3-30 Q9002121701A 3rd LENS BARREL ASS'Y 1
3-31 Q9002119301A 3rd LENS ASS'Y 1
3-32 Q7012069406C AF LIMIT SPRING 1
3-33 Q6001014001A SCREW 1
3-34 Q6107048305A 3RD LENS BARREL SPRING 1
3-35 Q7212174303A AF GUIDE HOLDER 1
3-36 Q0961900101A SCREW 1
3-37 Q0994913101A SCREW 1
3-38 Q6003040401A SCREW 2
3-39 Q7212172104A GUIDE PLATE 1
3-40 Q9002119401A 2nd LENS BARREL ASS'Y 1
3-41 Q9002119101A 2nd LENS ASS'Y 1
3-42 Q9005017101A SHUTTER ASS'Y 1
3-43 Q0961900301A SCREW 2
3-44 Q7409137303C SHUTTER SHIELD 1
3-45 Q7411085305A 2ND MOVE PIN 3
3-46 Q7012075703A F_PCB GUIDER 1
3-47 Q7212179601A ZOOM RING 1 D 430
Q7212172003A ZOOM RING 1 D 370
3-48 Q7212171702A SLIP RING 1
3-49 Q7012075502A 1ST PUSH PLATE 1
3-50 Q7411097502A 1st MOVE PIN 3
3-51 Q7212179701A CAM BARREL 1 D 430
Q7212172202A CAM BARREL 1 D 370
3-52 Q7012075802A FINDER HOLDER 1
3-53 Q9002119501A OUTER GUIDE BARREL ASS'Y 1
3-54 Q7212172303A OUTER CAM BARREL 1 D 430
Q7212172402A OUTER CAM BARREL 1 D 370
3-55 Q9761173007 SCREW 5
3-56 Q9002119001A 1st LENS ASS'Y 1
3-57 Q7409128001A FRONT SHIELD 1
3-58 Q7012069301A AF CLIP 1
3-59 Q9002127601A BARREL ASS'Y 1 D 430
Q9002127701A BARREL ASS'Y 1 D 370
33
4. FRONT COVER ASSEMBLY
4-11
4-15
4-14
4-17 4-8
4-17
4-12
4-1 4-16
4-6
4-13 4-17
4-3
4-10
4-2 4-7
4-8 4-9
4-4
4-19
4-5
4-18
34
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
4-1 Q9007205701A FRONT COVER SUB ASSY - KENOX D430 1
Q9007205801A FRONT COVER SUB ASSY - DIGIMAX 430 1
Q9007205901A FRONT COVER SUB ASSY - KENOX D370 1
Q9007206001A FRONT COVER SUB ASSY - DIGIMAX 370 1
4-2 Q4719002701A SPEAKER 1
4-3 Q7011045202A SPEAKER FRAME 1
4-4 Q7217305801A FRONT COVER - KENOX D430 1
Q7217292301A FRONT COVER - DIGIMAX 430 1
Q7217306001A FRONT COVER - KENOX D370 1
Q7217305901A FRONT COVER - DIGIMAX 370 1
4-5 Q7217292801A GRIP COVER 1
4-6 Q0961900301A SCREW 2
4-7 Q7217297001A PHOTO WINDOW 1
4-8 Q9761173007 SCREW 2
4-9 Q7217293101A SELF LED WINDOW 1
4-10 Q7217293001A FINDER WINDOW 1
4-11 Q9007200101A TOP COVER ASS'Y 1 D 430
Q9007204701A TOP COVER ASS'Y 1 D 370
4-12 Q7217292601A TOP COVER 1 D 430
Q7217306201A TOP COVER 1 D 370
4-13 Q7217293301A POWER BUTTON 1 D 430
Q7217306601A POWER BUTTON 1 D 370
4-14 Q6107044602A RELEASE SPRING 1
4-15 Q7307005501A RELEASE BUTTON 1
4-16 Q7409145101A RELEASE WASHER 1
4-17 Q9761173507 SCREW 3
4-18 Q7409153001A MIRROR TAPE 1
4-19 Q7409147401A BARREL SPONGE 1
35
5. BACK COVER ASSEMBLY
5-4
5-1
5-3
5-2
5-15
5-7
5-14
5-8
5-11
5-5
5-9
5-12
5-10
5-16
5-6
5-13
5-6
36
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
5-1 Q9007200201A BACK COVER ASS'Y 1 D 430
Q9007204801A BACK COVER ASS'Y 1 D 370
5-2 Q7217292401A BACK COVER 1 D 430
Q7217306101A BACK COVER 1 D 370
5-3 Q7017033702B MODE CLICK PLATE 1
5-4 Q7217293501A MODE DIAL 1 D 430
Q7217306701A MODE DIAL 1 D 370
5-5 Q9008060101A MODE CONTACT ASS'Y 1
5-6 Q9761172507 SCREW 8
5-7 Q7217285905A ZOOM BUTTON 1
5-8 Q7217286303A INNER ZOOM BUTTON 1
5-9 Q0961900101A SCREW 2
5-10 Q7217293403A MODE BUTTON 1 D 430
Q7217306501A MODE BUTTON 1 D 370
5-11 Q9007196001A NAVY BUTTON ASS'Y 1
5-12 Q9008066601A KEY FPCB ASS'Y 1
5-13 Q9765173007 SCREW 2
5-14 Q7217293201A SB LED WINDOW 1
5-15 Q7308014802A JACK COVER 1
5-16 Q7409147303A LCD SPONGE 1
37
6. BARRIER AND FINDER ASSEMBLY
6-1
6-8
6-2 6-3
6-4 6-5
6-6
6-7
6-4
6-22
6-9
6-21
6-18
6-20
6-19
6-17
6-10
6-16
6-14
6-11 6-15
6-13
6-12
38
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
6-1 Q9002119801A BARRIER ASS'Y 1
6-2 Q7212172804A FRONT PANEL 1
6-3 Q6107052903A BARRIER CLOSE SPRING 2
6-4 Q7212172902A BARRIER_A 2
6-5 Q7012076303A BARRIER BASE 1
6-6 Q9002119901A BARRIER LEVER PIN ASS'Y 1
6-7 Q6107052802A BARRIER OPEN SPRING 1
6-8 Q7409136301A FRONT PANEL TAPE 2
6-9 Q9003020701A FINDER ASS'Y 1 D 430
Q9003020001A FINDER ASS'Y 1 D 370
6-10 Q7213033505A FINDER BASE 1
6-11 Q7411098201A FINDER SHAFT_A 1
6-12 Q6721007803A CO LENS 1
6-13 Q7411098301A FINDER SHAFT_B 1
6-14 Q6107053002A FINDER SPRING 1
6-15 Q6721007903A VA LENS 1
6-16 Q7013015101A VA MASK 1
6-17 Q6726002202A PRISM_A 1
6-18 Q7013015502A FINDER MASK 1 D 430
Q7013015002A FINDER MASK 1 D 370
6-19 Q6721008001A EP LENS 1
6-20 Q6726002301A PRISM_B 1
6-21 Q7013014903B FINDER COVER 1
6-22 Q7409149701A FRONT TAPE 2
39
7. PACKING ITEMS
7-15 7-16 7-17 7-18 7-19
7-9 7-10 7-12 7-11
7-14
7-13
7-1
7-3
7-4
7-20 7-7
7-6
7-5
7-8
7-2
40
PARTS LIST
Fig.No. Parts No. Parts Name Q'ty Remarks
7-1 QP960210101A PE BAG (FOR CAMERA) 1
7-2 Q6909011601A PE BAG (FOR ACCESSORY) 1
7-3 Q6901172501A INNER PAD_KENOX D1_KOR 1
Q6901172401A INNER PAD_D1_EXP 1
7-4 Q6904025301A POUCH_DIGIMAX 430_KOR/EXP 1
7-5 Q6806176401A Q/GUIDE_KENOX D430_KOR 1
Q6806176501A Q/GUIDE_DIGIMAX 430_ENG 1
Q6806176601A Q/GUIDE_DIGIMAX 430_GER 1
Q6806176701A Q/GUIDE_DIGIMAX 430_FRA 1
Q6806176801A Q/GUIDE_DIGIMAX 430_SPA 1
Q6806176901A Q/GUIDE_DIGIMAX 430_ITA 1
Q6806177001A Q/GUIDE_DIGIMAX 430_CHI(T) 1
Q6806177101A Q/GUIDE_DIGIMAX 430_DUT 1
Q6806177201A Q/GUIDE_DIGIMAX 430_POR 1
Q6806177301A Q/GUIDE_DIGIMAX 430_SWE 1
Q6806177401A Q/GUIDE_DIGIMAX 430_DEN 1
Q6806177501A Q/GUIDE_DIGIMAX 430_FIN 1
Q6806177601A Q/GUIDE_DIGIMAX 430_RUS 1
Q6806177701A Q/GUIDE_DIGIMAX 430_CHI(S) 1
7-6 Q6806177801A U/MANUAL_KENOX D430_KOR 1
Q6806177901A U/MANUAL_DIGIMAX 430_ENG 1
Q6806178001A U/MANUAL_DIGIMAX 430_GER 1
Q6806178101A U/MANUAL_DIGIMAX 430_FRA 1
Q6806178201A U/MANUAL_DIGIMAX 430_SPA 1
Q6806178301A U/MANUAL_DIGIMAX 430_ITA 1
Q6806178401A U/MANUAL_DIGIMAX 430_CHI(T) 1
Q6806178501A U/MANUAL_DIGIMAX 430_DUT 1
Q6806178601A U/MANUAL_DIGIMAX 430_POR 1
Q6806178701A U/MANUAL_DIGIMAX 430_SWE 1
Q6806178801A U/MANUAL_DIGIMAX 430_DEN 1
Q6806178901A U/MANUAL_DIGIMAX 430_FIN 1
Q6806179001A U/MANUAL_DIGIMAX 430_RUS 1
Q6806179101A U/MANUAL_DIGIMAX 430_CHI(S) 1
7-7 Q6807002601E WARRANTY CARD_KOREA 1
Q6807003003R WARRANTY CARD_EXP 1
Q6807003802D WARRANTY CARD_UK 1
Q6807010902B WARRANTY CARD_RUS (3 YEARS) 1
Q6807011301A WARRANTY CARD_TSOE (CHINA) 1
Q6807009502D CARD PRODUCK (Mexico) 1
41
Fig.No. Parts No. Parts Name Q'ty Remarks
7-8 Q6901185101A G/T BOX_KENOX D430_KOR 1
Q6901185201A G/T BOX_DIGIMAX 430_EXP/AUS 1
Q6901186001A G/T BOX_DIGIMAX 430_USA/CAN(MADE IN CHINA) 1
Q6901186201A G/T BOX_DIGIMAX 430_USA/CAN (MADE IN KOREA) 1
7-9 Q4308000201A LI-ION BATTERY SBP-1103(CR-V3 Li-ion Type) 1
7-10 Q4301001801A "ALKALINE (1.5V, AA) 2EA-DURACEL ULTRA" 1
7-11 Q4309001001A LI-ION & NI-MH CHARGER SBC-1103MH 1
7-12 Q4602000601A SECURE DIGITAL CARD(32MB) 1
Q4602000701A SECURE DIGITAL CARD(64MB) 1
7-13 Q3719003201A AC ADAPTOR 1
7-14 Q3801003001A AC CODE CABLE_KOR 1
Q3801003201A AC CODE CABLE_EXP 1
Q3801003101A AC CODE CABLE_USA 1
Q3801001001A AC CODE CABLE_UK 1
Q3801003401A AC CODE CABLE_AUS 1
7-15 Q7409145001A STRAP 1
7-16 Q3802002001A USB CABLE 1
7-17 Q3802001901A A/V CABLE 1
7-18 Q4602000901A MEMORY STICK DUO CARD (32MB) 1
7-19 Q4602001001A MEMORY STICK DUO ADAPTOR 1
7-20 Q4609006301A DRIVER+ArcSoft (Photo) 1
Q4609006401A DRIVER+ArcSoft WalMart (Photo) 1
8. INITIAL PARTS LIST
PAGE PARTS NO. PARTS NAME SPEC SYMBOL
34 Q9007205701A FRONT COVER SUB ASSY - KENOX D430
34 Q9007205801A FRONT COVER SUB ASSY - DIGIMAX 430
34 Q9007205901A FRONT COVER SUB ASSY - KENOX D370
34 Q9007206001A FRONT COVER SUB ASSY - DIGIMAX 370
36 Q9007200201A BACK COVER ASSY D 430
36 Q9007204801A BACK COVER ASSY D 370
30 Q3708006201A COMBO SOCKET CONNECT
30 Q4101027701A COMBO FPCB
30 Q7011044802A BATTERY CONTACT
42
PAGE PARTS NO. PARTS NAME SPEC SYMBOL
30 Q7217292504B BATTERY COVER D 430
30 Q7217306301A BATTERY COVER D 370
30 Q0704009601A LCD PANNEL
30 Q9008067501A MAIN PCB ASSY D 430
30 Q9008068701A MAIN PCB ASSY D 370
30 Q9008068101A SUB PCB SMD ASSY
32 Q9002124401A LENS BASE ASS'Y
32 Q9008067901A MAIN FPCB ASS'Y
34 Q9007200101A TOP COVER ASSY D 430
34 Q9007204701A TOP COVER ASSY D 370
36 Q7217293501A MODE DIAL D 430
36 Q7217306701A MODE DIAL D 370
36 Q9008060101A MODE CONTACT ASSY
36 Q7308014802A JACK COVER
38 Q9002119801A BARRIER ASS'Y
36 Q9008066601A KEY FPCB ASSY-DKJ
66 Q3722002201A DC JACK-UC1-LGP2231
66 Q3601000601A CHIP FUSE-D1(4M)
68 Q2603002801A OSC TRANS-DKJ1
69 Q3403000301A RELEASE SWITCH-EVQPR
32 Q9005017101A SHUTTER ASS'Y
32 Q9002127601A DKJ BARREL ASSY-DKJ(4M) D 430
32 Q9002127701A DKJ BARREL ASSY-DKJ(3M) D 370
38 Q9003020701A FINDER ASSY-DKJ
30 Q0604002701A CCD SENSOR-DKJ1-MN39482
40 Q6806177801A U/MANUAL_KENOX D430_KOR
40 Q6806177901A U/MANUAL_DIGIMAX 430_ENG
40 Q6901185101A G/T BOX_KENOX D430_KOR
40 Q6901185201A G/T BOX_DIGIMAX 430_EXP/AUS/USA/CAN
40 Q6901186001A G/T BOX_DIGIMAX 430_USA/CAN
40 Q6904025301A POUCH_DIGIMAX 430_KOR/EXP
40 Q4609006301A DRIVER+ARCSOFT (PHOTO)
40 Q4609006401A DRIVER+ARCSOFT WALMART (PHOTO)
40 Q4609006501A DRIVER+ARCSOFT (PHOTO)
40 Q4609006601A DRIVER+ARCSOFT WALMART (PHOTO)
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
1) MAIN PCB Assembly
a) Parts Arrangement
C189
J1 U15
FB24
C194
E17 E16 FB25 R299
R101
C190
C84
15 18 10 5 R114 C188
R100
C229
R113
R118
R119
R116
R117
R115
C120
R98
C83
R88
R89
R86 R94
C82 R95
R99
C122
FB11 C191 C228
E5
E8
R112 C89 R110 R86 R97
R87
E4 C230
R85 C88
28
27
R92
E10
FB28
E3
E9
R425 Q4 Q3
R302
C221 U17
R209 R198 C210 C197 FB27
Q6
FB1 C220
R208 R210 R213 R356 R357 R212
C81
E2 Q5 C231
R207 1
8
1
R211
E6 R303 R304
R197 R424 C5
C6
U9 Q2 C195 C196
C85
R90
R206 R200
R199
4
5
R202
R427
R403
R205 R201
C1
1 2
R204 R408 C8
R203 R409
R2
R410
FB2
U7 Y1
R400
R411
R179 R178 FB30
C225 R6
C2
C242
R412 FB29
R180 R177
R181 R176 R4 C244 C243
R182 C222 U1 C186 C187 C127
C10
C9
C185
R183 R175 L21
C223 R174 R298
C180
R173 C129
R184 C184 C179
R185 R172 C128
C224 C178
R186 C183
R171 R292
C121 C177
BLEDN
54
1
C227
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
