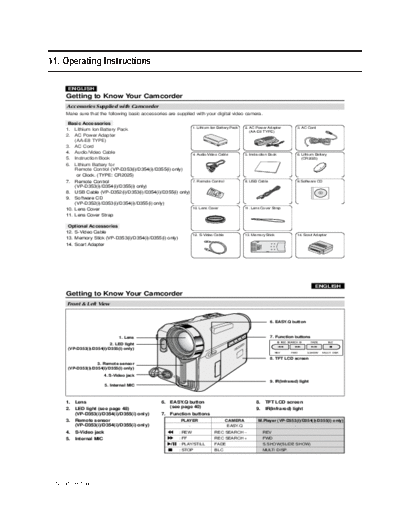

Image preview - the first page of the document
>> Download 05_Operation Instruction & Installation documenatation <<
Text preview - extract from the document
11. Operating Instructions
ENGLISH
Getting to Know Your Camcorder
Accessories Supplied with Camcorder
Make sure that the following basic accessories are supplied with your digital video camera.
Basic Accessories
1. Lithium Ion Battery Pack 2. AC Power Adapter 3. AC Cord
1. Lithium Ion Battery Pack (AA-E8 TYPE)
2. AC Power Adapter
(AA-E8 TYPE)
3. AC Cord
4. Audio/Video Cable 4. Audio/Video Cable 5. Instruction Book 6. Lithium Battery
5. Instruction Book (CR2025)
6. Lithium Battery for
Remote Control (VP-D353(i)/D354(i)/D355(i) only)
or Clock. (TYPE: CR2025)
7. Remote Control 7. Remote Control 8. USB Cable 9.Software CD
(VP-D353(i)/D354(i)/D355(i) only)
8. USB Cable (VP-D352(i)/D353(i)/D354(i)/D355(i) only)
9. Software CD
(VP-D352(i)/D353(i)/D354(i)/D355(i) only)
10. Lens Cover 10. Lens Cover 11. Lens Cover Strap
11. Lens Cover Strap
Optional Accessories
12. S-Video Cable
12. S-Video Cable 13. Memory Stick 14. Scart Adapter
13. Memory Stick (VP-D353(i)/D354(i)/D355(i) only)
14. Scart Adapter
12
ENGLISH
Getting to Know Your Camcorder
Front & Left View
6. EASY.Q button
1. Lens 7. Function buttons
2. LED light
(VP-D353(i)/D354(i)/D355(i) only)
8. TFT LCD screen
3. Remote sensor
(VP-D353(i)/D354(i)/D355(i) only)
4. S-Video jack
9. IR(Infrared) light
5. Internal MIC
1. Lens 6. EASY.Q button 8. TFT LCD screen
2. LED light (see page 48) (see page 40) 9. IR(Infrared) light
(VP-D353(i)/D354(i)/D355(i) only) 7. Function buttons
3. Remote sensor PLAYER CAMERA M.Player (VP-D353(i)/D354(i)/D355(i) only)
(VP-D353(i)/D354(i)/D355(i) only) - EASY.Q -
4. S-Video jack : REW REC SEARCH ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
