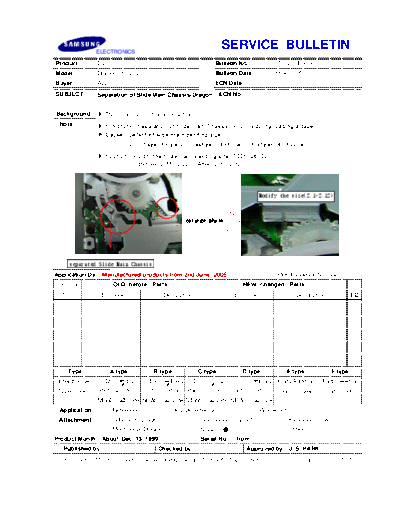

Image preview - the first page of the document
>> Download VP-D351EUR_HQ_Service_Bulletin documenatation <<
Text preview - extract from the document
ELECTRONICS
SERVICE BULLETIN
Product : DVC Bulletin No. : 05-DVC-E0006
Model : Dragon chassis Bulletin Date : 11-Aug-05
Buyer : ALL ECN Date :
SUBJECT : Separation of Slide Main Chassis(Dragon) ECN No :
Background : This is an SVC action information.
Note : Symptom : Separation of Slide Main Chassis (R-EMG during loading a tape)
Cause : Defect of slide main bending size
(Lot of specific period : last period of May ~ first period of June)
Solution : Modify the Slide Main Bending size (2005-06-02)
(Before : 2.15 ~2.22 After : 2.1 ~ 2.12)
Modify the size(2.1~2.12)
enlarge photo
separated Slide Main Chassis
Application Dat Manufactured products from 2nd.June. 2005 ( Interchangeability Code : * I.C )
Location OLD (before) Parts NEW (changed) Parts *
No. SEC Code Description SEC Code Description I.C
Type A type B type C type D type E type F type
Interchange OLD Early OLD Early OLD Early OLD Early Parts Addition Parts deletion
Type Code (Parts) (Prod.) (Parts) (Prod.) (Parts) (Prod.) (Parts) (Prod.) (None New) ( Old Del. )
(* I.C ) NEW Late NEW Late NEW Late NEW Late
Application Reference ( O ) Only Defected sets ( ) Whole sets ( )
Attachment Schematic Diagram ( ) Component Lay-out ( ) Exploded View ( )
Mechanical Diagram ( ) None ( ) Others ( )
Product Month : About Dec. 13. 1999 Serial No. (~ from) :
Published by : Checked by : Approved by : J. S. PARK
Revision (V8.2 : March 10, 1998) ... Global Strategy Group. Tech.-Info. Suppot Part ( Pages : 1 of 1 )
