Service Manuals, User Guides, Schematic Diagrams or docs for : Samsung Cam smA402

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

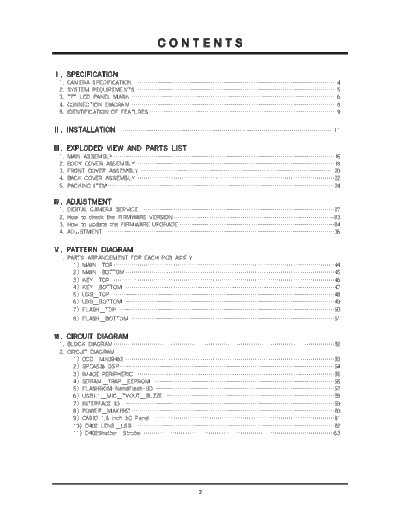

Image preview - the first page of the document



>> Download smA402 documenatation <<

Text preview - extract from the document

2
3
1. CAMERA SPECIFICATION

                Type               1/2.5" CCD
Image Sensor Effective Pixels Approx. 4.0 Mega-pixel
                Total Pixels       Approx. 4.2 Mega-pixel
                                   Lens f=5.8mm
                Focal Length
                                   (35mm film equivalent:35mm)
Lens            F No.              F 3.5 / F7.0
                 Digital Zoom      Still Image mode: 1.0X ~ 4.0X
                                   Play mode: 1.0X ~ 7.0X (depends on Image size)
LCD                                1.8" color TFT LCD
                Type               Fixed focus with two steps manual adjustment
Focusing                           Macro: 0.2m
                 Range
                                   Normal: 1.0m~infinity
Shutter         Type               Mechanical and Electronic shutter
                Speed              2 - 1/1000 sec.(8
