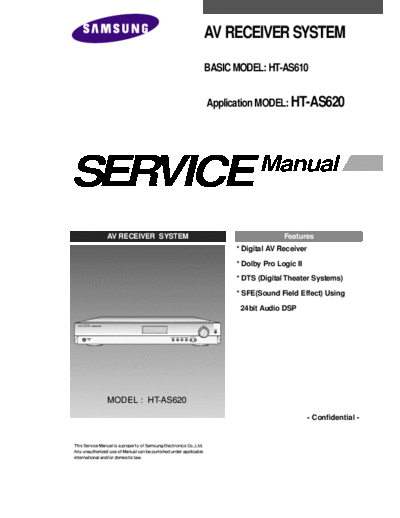

Image preview - the first page of the document



>> Download HTAS610_ET-SB-EX-SI_1263810785 documenatation <<

Text preview - extract from the document

                      AV RECEIVER SYSTEM

                      BASIC MODEL: HT-AS610


                      Application MODEL: HT-AS620




SERVICE                            Manual


 AV RECEIVER SYSTEM                       Features
                            * Digital AV Receiver

                            * Dolby Pro Logic II

                            * DTS (Digital Theater Systems)

                            * SFE(Sound Field Effect) Using

                             24bit Audio DSP




 MODEL : HT-AS620
                                                    - Confidential -
ELECTRONICS
2. Product Description
1. Specifications

                          Power Supply                                                 230V, 50 Hz
                          Standby Power Consumption                                    0.9W
                          Power Consumption                                            95W
        GENERAL           Weight                                                       4.2 kg
                          Dimensions (W x H x D)                                       430 x 65 x 350 mm
                          Operating Temperature Range                                  +5
