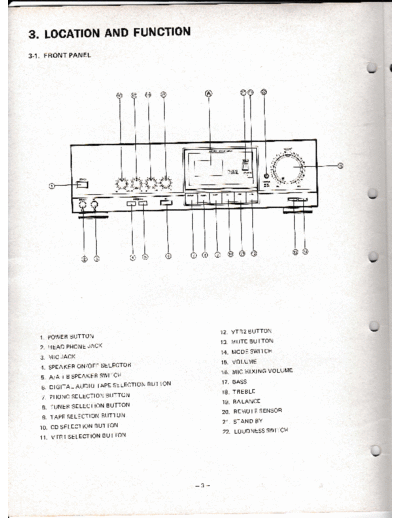

Image preview - the first page of the document
IMG_20160514_0015


>> Download IMG_20160514_0015 documenatation <<

Text preview - extract from the document
3. LocATloN AND FUNcTloN
3-1. FRoNT PANEL




                                                  12. vTR2 BUTTON
   1. PoWER BUTToN
                                                  13, MUTE BUTToN
   2. HEAD PHoNE JACK
                                                  14, MoDE SWlTCH
   3, M|C JACK
                                                  15. VOLUME
   4. SPEAKEB oN/oFF SELECToR
                                                  16, Mlc MlXlNG VoLUME
   5. AiA + B SPEAKER SWITCH
                                   BUTTON         17. BASS
   6. DlGlTAL AUDlO TAPE SELECT|oN
                                                  18. TREBLE
   7. PHoNo SELECT|oN BUTTON
                                                  19. BALANCE
   8. TUNER SELECT|oN BUTTON
                                                  20. REMoTE SENSOR
   9. TAPE SELECT|ON BUTToN
                                                  21. STAND BY
  10. cD SELECT|oN BUTToN
                                                  22. LoUDNESS SW|TCH
   11. VTR1 SELECTIoN BUTToN




                                            -3-
