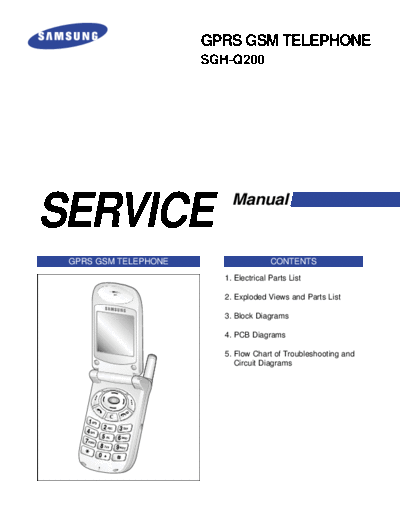

Image preview - the first page of the document
>> Download Samsung SGH-Q200 service manual documenatation <<
Text preview - extract from the document
GPRS GSM TELEPHONE
SGH-Q200
SERVICE Manual
GPRS GSM TELEPHONE CONTENTS
1. Electrical Parts List
2. Exploded Views and Parts List
3. Block Diagrams
4. PCB Diagrams
5. Flow Chart of Troubleshooting and
Circuit Diagrams
1. SGH-Q200 MAIN Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
0 SGH-Q200
1 6001-000464 SCREW-MACHINE PH, +, M1.4, L4, BLACK, SM10C, -
1 6001-001346 SCREW-MACHINE BH, OCTA, M1.7, L5, ZPC(BLK), SWRCH18A, FP
1 GH39-00118A CBF INTERFACE-DATA LINK SGH-Q200, -, -, 800 MM, -, BLK, -, -, -, DATA LINK
1 GH43-00376A BATTERY-900MA, SIL, ENG, MA 1LP473465B/900MAH-SIL, SGH-Q200, LI-ION,
1 GH44-00184A ADAPTOR-SGHN288 TAD TAD037EBE, SGH-N288, 110V~240 V, -, 5.2 V, AC/DC
1 GH46-00013A S/W UTILITY-SGHQ100 SGH-Q100, SGH-Q100, -, 1.0, -, CD, 1CD, -, ENGLISH
1 GH59-00261A UNIT-SGHQ200 EARPHONE SGH-Q200, EM-SS200Q, -, EAR PHONE, -,
1 GH68-02528A MANUAL-MAIN SGH-Q200, SAMSUNG, ENGLISH, UNKD, -, -, -, -, -, -, -,
1 GH68-02530A MANUAL-GPRS WIZARD SGH-Q200, SAMSUNG, ENGLISH, UNKD, -, -,
1 GH68-02531A MANUAL-MAIN SGH-Q200, SAMSUNG, GERMAN, GERM, -, -, -, -, -, -, -,
1 GH68-02533A MANUAL-GPRS WIZARD SGH-Q200, SAMSUNG, GERMAN, GERM, -, -,
1 GH68-02534A MANUAL-WAP SGH-Q200, DI, ENGLISH, GERM, -, -, -, -, -, -, -, -
1 GH68-02535A MANUAL-WAP SGH-Q200, DI, GERMAN, GERM, -, -, -, -, -, -, -, -
1 GH68-02606A MANUAL-PBCCH CARD SGH-Q200, SAMSUNG, ENGLISH, UNKD, -, -, -,
1 GH68-70545A MANUAL-WARRANTY SGH-200, SAMSUNG, UNKD
1 GH73-00703A RMO-RF JACK COVER SGH-Q200, RUBBER, -, W/SIL, -, -
1 GH73-00704A RMO-COVER CONNECTOR SGH-Q200, RUBBER, -, W/SIL, -, -
1 GH74-00731A MPR-WINDOW BOHO TAPE SCH-A300, VINYL, T0.2, -, -
1 GH74-01635A MPR-WINDOW BHO VINYL SCH- X 230, VINYL, T0.1, -, -
1 GH75-01100A MEC-VOLUME KEY SGH-Q200, -, -, -, NI, -, -
2 GH72-02479A PMO-VOLUME KEY SGH-Q200, -, ABS, NI, -, -, -
2 GH73-00701A RMO-VOLUME KEY SGH-Q200, RUBBER, -, BLK, -, -
1 GH75-01583A MEC-SHIELD COVER SGH-Q200, -, PC, -, -, -, GERM, -
2 GH72-02492A PMO-SHIELD COVER B SGH-Q200, -, ABS, NI PLT, -, -, -
2 GH74-02069A MPR-SHIELD COVER TAPE SGH-Q200, SHIELD TAPE, T0.15, SIL, -, -, -,
1 GH75-01735A MEC-SHIELD COVER B SGH-Q200, -, -, -, NI, -, GERM, -
1 GH92-00951A PBA MAIN-SGHQ200 SGH-Q200, SEU K, UNKD, -, -, -, -, -, -
2 GH41-00210A PCB-SGHQ200 MAINSGH-Q200, FR-4, 8L, S1.4, 0.9T, 100 X 158 MM, -, -
2 GH71-00077A NPR-ANT.CONTACT SGH-A100, KSP5202, T0.1, AU
2 GH73-00270A RMO-CONTACT RUBBER SGH-A100, RUBBER, 2.0 X 3 X T0.5, BLK, -
1 GH97-01918A MEA FRONT-COVER SGH-Q200, SAMSUNG, GERM, W/SIL, -, -, -
2 6001-000883 SCREW-MACHINE PH, +, M1.4, L5, ZPC(BLK), SWRCH18A, FP, P0.35
2 GH07-00093A LCD-SGHQ200 UG-12D24-FGHTX-A, SGH-Q200, 128 X 128DOTS, 38.4 X 62.85
2 GH59-00138A UNIT-SPHN2000 MIC ASS'Y SPH-N2000, OBG-15S44-C1033, -, MIC ASS'Y, -, -, -,
2 GH59-00272A UNIT-SGHQ200 CON ASSY SGHQ200, KBSGHQ200C, -, CONN, FPCB, -, ASSY
2 GH59-00273A UNIT-SGHQ200 KEYPAD SGH-Q200, KBSGHQ200, -, KEYPAD, -, ASSY
2 GH68-00370C LABEL(R)-DUMMY SPH-A1000, PC SHEET, PI4.4, T0.3, -
SAMSUNG Proprietary-Contents may change without notice
1-1
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 GH71-00476A NPR-SHIELD COVER A SGH-Q200, ZN GOLD PLT, -, NI, -
2 GH72-02482A PMO-DUAL LCD WINDOW SGH-Q200, -, ACRYL, SIL, -, -, -
2 GH72-02484A PMO-LCD WINDOW SGH-Q200, -, ACRYL, SIL, -, -, -
2 GH74-01268A MPR-SUPPORT BUZZER SGH-N288, PORON , PI8 X T0.5, BLK, -
2 GH74-01635A MPR-WINDOW BHO VINYL SCH- X 230, VINYL, T0.1, -, -
2 GH74-02066A MPR-DUAL LCD SPONGE 2 SGH-Q200, PORON, 37.6 X 32.7 X T1, BLK,
2 GH74-02070A MPR-CON SHIELD TAPE SGH-Q200, SHIELD TAPE, 9 X 6 X T0.4, SIL, -,
2 GH74-02251A MPR-SPEAKER TAPE SGH-Q200, COPPER TAPE, 19 X 4 X T0.1, -, -, -, -
2 GH74-02252A MPR-LED SPONGE SGH-Q200, SPONGE, 5 X 5.9 X T1, BLK, -, -, -, -
2 GH74-02399A MPR-F/UPPER BOHO VINYL SGH-Q200, VINYL, -, TRP, -, -, -, -
2 GH75-01097A MEC-FRONT COVER SGH-Q200, SAMSUNG, -, -, W/SIL, -, -
3 GH71-00635A NDC-HINGE DUMMY -, SGH-Q200, ZN GOLD PLT, -, -, -, -, -, -, NI, -
3 GH72-02472A PMO-FRONT COVER SGH-Q200, -, PC, W/SIL, -, -, -
3 GH72-02473A PMO-LED REFLECTOR SGH-Q200, -, PET, TRP, -, -, -
3 GH72-03010A PMO-NAVI. DUMMY SGH-Q200, PC, SIL, -, -, -, -, -, -
3 GH73-00705A RMO-FOLDER HOLDER SGH-Q200, RUBBER, -, W/SIL, -, -
3 GH74-02064A MPR-NAV DUMMY TAPE SGH-Q200, TAPE, T0.15, TRP, -, -, -, -
3 GH74-02065A MPR-LED SHIELD SPONGE SGH-Q200, SHIELD SPONGE, 4 X 4 X T3, SIL, -, -, -
2 GH75-01099A MEC-KEY PAD SGH-Q200, -, -, -, EF TYPE, -, -
3 GH72-02475A PMO-I KEY SGH-Q200, -, ABS, TRP, -, -, -
3 GH72-02476A PMO-NAV KEY SGH-Q200, -, ABS, W/SIL, -, -, -
3 GH72-02477A PMO-FUN KEY SGH-Q200, -, ABS, W/SIL, -, -, -
3 GH72-02478A PMO-KEY PAD SGH-Q200, -, EF TYPE, W/SIL, -, -, -
2 GH75-01101A MEC-FOLDER UPPER SGH-Q200, -, -, -, W/SIL, -, -
3 GH72-02481A PMO-FOLDER UPPER SGH-Q200, -, PC, W/SIL, -, -, -
3 GH74-01390A MPR-SPONGE DUAL LCD SGH-Q200, SPONGE, T1, BLK, -
3 GH74-01391A MPR-DUAL WINDOW TAPE SGH-Q200, TAPE, T0.1, TRP, -
2 GH75-01102A MEC-FOLDER LOWER SGH-Q200, -, -, -, W/SIL, -, -
3 GH72-02483A PMO-FOLDER LOWER SGH-Q200, -, PC, W/SIL, -, -, -
3 GH74-00258A MPR-TAPE MOTOR SGH-A100, TESA, T0.4, BLK, -
3 GH74-01392A MPR-SPONGE LCD SGH-Q200, SPONGE, T1, BLK, -
3 GH74-01394A MPR-WINDOW TAPESGH-Q200, TAPE, T0.1, TRP, -
3 GH75-01087A MEC-HINGE SCH- X 210, -, -, -, IVR, -, -
4 GH70-00020A IPR-SPRING HINGE SCH-A100, STS304, -, PI4.5 X PI0.7 X 8.2, -, -, -, -, -
4 GH72-00291A PMO-SHAFT HINGE SCH-A100, POM, BLK, -, -
4 GH72-00292A PMO-CAM HINGE SCH-A100, POM, BLK, -, -
4 GH72-00861A PMO-HINGE HOUSING SCH-850, PC, SIL, -, -
1 GH97-01919A MEA REAR-COVER SGH-Q200, SAMSUNG, GERM, W/SIL, -, -, -
2 GH42-00138A ANTENNA-SGHQ200 GRY SGH-Q200 ANTENNA, SGH-Q200, 890-960MHZ, -
SAMSUNG Proprietary-Contents may change without notice
1-2
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 GH75-01103A MEC-REAR COVER SGH-Q200, -, -, -, W/SIL, -, -
3 GH70-00038A IPR-SPRING LOCKER SPH-A1004, STS304, -, PI2.4 X 6, -, -, -, -, -
3 GH71-00475A NPR-ANT BUSHING SGH-Q200, ZN GOLD PLT, -, AU, -
3 GH72-02485A PMO-REAR COVER SGH-Q200, -, PC, W/SIL, -, -, -
3 GH72-02486A PMO-BATT LOCKER SGH-Q200, -, PC, W/SIL, -, -, -
3 GH73-00702A RMO-EAR JACK COVER SGH-Q200, RUBBER, -, W/SIL, -, -
3 GH74-02044A MPR-BUZZER SGH-Q200, HIMERON, 6.8 X 4 X T0.4, -, -, -, -, -
3 GH74-02067A MPR-REAR SPONGE SGH-Q200, SPONGE, 10 X 9.1 X T2, BLK, -, -, -, -
3 GH74-02068A MPR-REAR SHIELD SPONGE SGH-Q200, SHIELD SPONGE, 5.5 X 10 X T2, SIL,
1 GH99-02458A PAA MAIN-GERM SGH-Q200, DTM, GERM, -, -, -
2 GG68-10705A LABEL(P)-SEAL SP-R912, CRP, 65.0 x 95.0, -, ORG
2 GH68-00518B LABEL(P)-SEAL SGH-A100, ART, 100G, 46, 34, -, WHT, -, -, -
2 GH68-01778A LABEL(P)-BARCODE SHIPPING SGH-A100, ART, 100G, 250, 100, -, WHT, -, -, -
2 GH68-02107A LABEL(R)-MAIN SGH-Q200, MAT, T0.05, 41, 33, -, SIL, -, -, -
2 GH68-02190A LABEL(P)-IMEI BARCODE(GERM) SGH-Q100, ART, 100G, 100, 90, -, WHT, -, -, -
2 GH69-00842A BAG-VINYL HANDSET SGH-A300, LDPE, T0.06, 80, 170, TRP, -
2 GH69-00963A BOX (P)-UNIT MAIN STND SGH-Q200, SC300+E(KOL), -, -, -, -, -, 210 X 160 X 97
2 GH69-00966A CUSHION-CASE SGH-Q200, PULP, T1.3, -, -, -, -, -, 193 X 155 X 71
2 GH69-01066A BOX (P)-MASTER MAIN SGH-Q200, SW5, -, -, -, -, -, 505 X 329 X 206
2 3002-001121 AU501 BUZZER-MAGNETIC 88DB, 3.6 V, 120MA, 2700HZ, TP
2 2404-001239 C1001 C-TA, CHIP 100 UF, 20 %, 6.3 V, WT, TP, 3.3 X 2.7 X 1.7 MM
2 2404-001239 C1002 C-TA, CHIP 100 UF, 20 %, 6.3 V, WT, TP, 3.3 X 2.7 X 1.7 MM
2 2404-001239 C1003 C-TA, CHIP 100 UF, 20 %, 6.3 V, WT, TP, 3.3 X 2.7 X 1.7 MM
2 2203-001239 C1005 C-CERAMIC, CHIP 0.082 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000696 C1006 C-CERAMIC, CHIP 0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-000254 C1008 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C1009 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005571 C101 C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012
2 2203-005050 C1010 C-CERAMIC, CHIP 0.0018 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-000995 C1011 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C1012 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C1013 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-001072 C1014 C-CERAMIC, CHIP 0.056 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-001239 C1015 C-CERAMIC, CHIP 0.082 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000696 C1016 C-CERAMIC, CHIP 0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-001124 C1017 C-CERAMIC, CHIP 680 pF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000254 C1019 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005065 C102 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-000696 C1020 C-CERAMIC, CHIP 0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-3
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2203-000628 C1021 C-CERAMIC, CHIP 0.022 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000696 C1022 C-CERAMIC, CHIP 0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-001239 C1023 C-CERAMIC, CHIP 0.082 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-001124 C1024 C-CERAMIC, CHIP 680 pF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000254 C1028 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005053 C1029 C-CERAMIC, CHIP 0.0039 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-005571 C103 C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012
2 2203-000254 C1030 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000330 C1031 C-CERAMIC, CHIP 0.012 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C1036 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C1037 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C1038 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C1039 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005065 C104 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-001383 C1040 C-CERAMIC, CHIP 0.0005 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-000233 C1041 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C1044 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C1045 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005571 C105 C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012
2 2203-001383 C1050 C-CERAMIC, CHIP 0.0005 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2703-001180 C1052 INDUCTOR-SMD 15 nH, 5 %, 1 x 0.5 x 0.5 mm
2 2203-000995 C1053 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005065 C106 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2404-001281 C107 C-TA, CHIP 22 UF, 20 %, 6.3 V, GP, TP, 2012
2 2404-001281 C108 C-TA, CHIP 22 UF, 20 %, 6.3 V, GP, TP, 2012
2 2203-005065 C110 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-000254 C111 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005571 C112 C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012
2 2203-005065 C113 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-005061 C115 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-002494 C116 C-CERAMIC, CHIP 470 nF, 10 %, 16 V, X7R, TP, 2012
2 2404-001281 C117 C-TA, CHIP 22 UF, 20 %, 6.3 V, GP, TP, 2012
2 2203-000233 C118 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000254 C119 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005065 C120 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-005571 C126 C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012
2 2203-005496 C127 C-CERAMIC, CHIP 220 nF, +80-20 %, 10 V, Y5 V, TP, 1005
2 2404-001105 C201 C-TA, CHIP 10 UF, 20 %, 6.3 V, GP, TP, 2012
2 2203-000233 C202 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-4
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2404-001020 C203 C-TA, CHIP 10 uF, 20 %, 10 V, GP, TP, 3216, 3.2
2 2203-000812 C204 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000425 C205 C-CERAMIC, CHIP 0.018 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C207 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005061 C208 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000995 C211 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C212 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C213 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C214 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C215 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C216 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C217 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C218 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005061 C219 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000679 C301 C-CERAMIC, CHIP 0.027 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-001441 C309 C-CERAMIC, CHIP 75 pF, 5 %, 50 V, X7R, TP, 1005, 1.0 mm
2 2203-005061 C321 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000628 C400 C-CERAMIC, CHIP 0.022 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005065 C404 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-005065 C407 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2404-001151 C410 C-TA, CHIP 33 UF, 20 %, 6.3 V, LZ, TP, 3216
2 2203-005061 C411 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000643 C421 C-CERAMIC, CHIP 0.024 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000679 C422 C-CERAMIC, CHIP 0.027 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-001441 C425 C-CERAMIC, CHIP 75 pF, 5 %, 50 V, X7R, TP, 1005, 1.0 mm
2 2203-001630 C501 C-CERAMIC, CHIP 330 nF, +80-20 %, 16 V, Y5 V, TP, 1608
2 2203-001630 C502 C-CERAMIC, CHIP 330 nF, +80-20 %, 16 V, Y5 V, TP, 1608
2 2203-001630 C503 C-CERAMIC, CHIP 330 nF, +80-20 %, 16 V, Y5 V, TP, 1608
2 2203-000812 C504 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C505 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-005061 C506 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-005061 C508 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000254 C510 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005571 C520 C-CERAMIC, CHIP 10000 NF, +80-20 %, 6.3 V, Y5 V, TP, 2012
2 2404-001101 C522 C-TA, CHIP 1 uF, 20 %, 16 V, GP, TP, 2012, -
2 2203-005061 C601 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000254 C602 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C603 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C604 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
SAMSUNG Proprietary-Contents may change without notice
1-5
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2203-000254 C605 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C606 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C607 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C608 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C609 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005061 C610 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000628 C611 C-CERAMIC, CHIP 0.022 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000628 C612 C-CERAMIC, CHIP 0.022 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000254 C613 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C614 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C615 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005065 C622 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-000233 C701 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C702 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000254 C703 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C704 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000233 C705 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C706 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000254 C709 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C710 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C711 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C712 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005065 C717 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-000254 C718 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005061 C720 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-005061 C721 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-005061 C722 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-005065 C723 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-005065 C724 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-005065 C725 C-CERAMIC, CHIP 1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
2 2203-000254 C732 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C801 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000438 C802 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000995 C803 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C804 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000233 C805 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000254 C806 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000254 C807 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005552 C808 C-CERAMIC, CHIP 0.0022 nF, 0.1 pF, 50 V, NP0, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-6
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2203-000233 C809 C-CERAMIC, CHIP 0.1 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C810 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000995 C811 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000751 C812 C-CERAMIC, CHIP 330 nF, +80-20 %, 16 V, Y5 V, TP, 2012,
2 2203-000438 C818 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000870 C901 C-CERAMIC, CHIP 0.003 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-000438 C903 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-001201 C905 C-CERAMIC, CHIP 0.007 nF, 0.5 pF, 50 V, NP0, TP, 1005
2 2203-000438 C907 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000438 C908 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2404-001088 C913 C-TA, CHIP 2.2 uF, 20 %, 6.3 V, GP, TP, 2012, -
2 2203-000628 C914 C-CERAMIC, CHIP 0.022 nF, 5 %, 50 V, NP0, TP, 1005
2 2404-001151 C915 C-TA, CHIP 33 UF, 20 %, 6.3 V, LZ, TP, 3216
2 2203-000254 C917 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000679 C918 C-CERAMIC, CHIP 0.027 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000438 C919 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000812 C922 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000438 C923 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-002687 C924 C-CERAMIC, CHIP 1.2 nF, 10 %, 50 V, X7R, TP, 1005
2 2203-000359 C925 C-CERAMIC, CHIP 0.15 nF, 5 %, 50 V, NP0, TP, 1005
2 2404-001105 C926 C-TA, CHIP 10 UF, 20 %, 6.3 V, GP, TP, 2012
2 2203-000679 C928 C-CERAMIC, CHIP 0.027 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000438 C931 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000438 C932 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-005061 C934 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000278 C938 C-CERAMIC, CHIP 0.01 nF, 0.5 pF, 50 V, NP0, TP, 1005
2 2203-000438 C939 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2301-001214 C940 C-FILM, CHIP 4.7 nF, 5 %, 16 V, TP, 2012, -
2 2301-001387 C941 C-FILM, CHIP 0.82 nF, 5 %, 50 V, TP, 2012, -
2 2203-000995 C942 C-CERAMIC, CHIP 0.047 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-002968 C943 C-CERAMIC, CHIP 0.051 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000278 C944 C-CERAMIC, CHIP 0.01 nF, 0.5 pF, 50 V, NP0, TP, 1005
2 2203-000438 C951 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000254 C954 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-005061 C957 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-000696 C958 C-CERAMIC, CHIP 0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-005061 C959 C-CERAMIC, CHIP 100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
2 2203-005056 C960 C-CERAMIC, CHIP 0.0068 nF, 0.25 pF, 50 V, NP0, TP, 1005
2 2203-005056 C961 C-CERAMIC, CHIP 0.0068 nF, 0.25 pF, 50 V, NP0, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-7
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2203-000812 C962 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2404-001088 C963 C-TA, CHIP 2.2 uF, 20 %, 6.3 V, GP, TP, 2012, -
2 2203-000812 C964 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000254 C965 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2404-001105 C966 C-TA, CHIP 10 UF, 20 %, 6.3 V, GP, TP, 2012
2 2203-000812 C967 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C968 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C969 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000812 C970 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2301-001213 C972 C-FILM, CHIP 6.8 nF, 5 %, 16 V, TP, 2012, -
2 2301-001419 C973 C-FILM, CHIP 8.2 nF, 5 %, 16 V, TP, 2012, -
2 2301-001530 C974 C-FILM, CHIP 0.27 NF, 5 %, 50 V, TP, 2012, -
2 2301-001233 C975 C-FILM, CHIP 2.2 nF, 5 %, 50 V, TP, 2012, -
2 2203-000679 C976 C-CERAMIC, CHIP 0.027 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-002525 C977 C-CERAMIC, CHIP 0.56 nF, 10 %, 50 V, X7R, TP, 1005
2 2203-000812 C978 C-CERAMIC, CHIP 0.033 nF, 5 %, 50 V, NP0, TP, 1005
2 2203-000438 C979 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000254 C980 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 2203-000438 C983 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000438 C984 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000438 C985 C-CERAMIC, CHIP 1 nF, 10 %, 50 V, X7R, TP, 1005, -
2 2203-000254 C988 C-CERAMIC, CHIP 10 nF, 10 %, 16 V, X7R, TP, 1005, -
2 3705-001239 CN1001 CONNECTOR-COAXIAL -, JAC K, 50 Mohm, 50 ohm, 0.3dB
2 3711-004623 CN202 CONNECTOR-HEADER BOX , 20P, 2R, 0.5 mm, SMD-S, AUF
2 3711-004623 CN203 CONNECTOR-HEADER BOX , 20P, 2R, 0.5 mm, SMD-S, AUF
2 3710-001611 CN301 CONNECTOR-SOCKET 18P, 1R, 0.5 mm, SMD-A, AUF
2 3722-001715 CN401 JACK-PHONE 6P, 2.3PI, AG, BLK, -
2 3711-004621 CN601 CONNECTOR-HEADER BOX , 14P, 2R, 0.5 mm, SMD-S, AUF
2 3709-001187 CN801 CONNECTOR-CARD EDGE 6P, 2.54 MM, SMD-A, -
2 0401-001033 D101 DIODE-SWITCHING MCL4154, 25 V, 200mA, M-MELF, TP
2 1405-001082 D202 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 D203 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 D204 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001018 D302 VARISTOR 14 V, -, 1.6 x 0.8 mm, TP
2 1405-001018 D303 VARISTOR 14 V, -, 1.6 x 0.8 mm, TP
2 0407-000115 D501 DIODE-ARRAY DAN202U, 80 V, 100mA, CA2-3, SC-70,
2 0407-001002 D502 DIODE-ARRAY DAN222, 80 V, 300mA, CA2-3, EM3, TP
2 4709-001214 F1001 COUPLER-DIRECTION 880-915MHz, 19.5+-1dB, 13dB, 2.0 X 1.25 X 0.7 mm, TP
2 4709-001213 F1002 COUPLER-DIRECTION 1710-1785MHz, 14+-1dB, 12dB, 2.0 X 1.25 X 0.7 mm, TP
SAMSUNG Proprietary-Contents may change without notice
1-8
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2904-001325 F1003 FILTER-SAW 942.5MHZ, 50MHZ, 1.7DB(G), 2.0DB(P), TP, 2.8DB(G), 3.1DB(P), -
2 2904-001226 F901 FILTER-SAW 942.5MHz, 35MHz, 925-960MHz/2dB, TP, 925-960MHz/3.8dB, -
2 2904-001320 F902 FILTER-SAW 225MHZ, 60MHZ, -, TP, -, -
2 2904-001228 F903 FILTER-SAW 1.8425GHz, -, 1805-1880MHz/1dB, TP, 1805-1880MHz/3.5dB, -
2 4709-001217 F904 FREQ-DISTRIBUTER 880-960MHz, 1710-1880MHz, 0.7dB, 4 W, -30to+85C, 50 ohm
2 2703-001190 L1001 INDUCTOR-SMD 15 nH, 5 %, 1.6 x 0.8 x 0.8 mm
2 2703-001132 L1002 INDUCTOR-SMD 4.7 nH, 5 %, 1.6 x 0.8 x 0.8 mm
2 2703-001288 L1004 INDUCTOR-SMD 2.7 nH, 0.5 nH, 1.6 x 0.8 X 0.8 mm
2 2703-001040 L1005 INDUCTOR-SMD 10 nH, 5 %, 1.6 x 0.8 x 0.8 mm
2 2703-001207 L1006 INDUCTOR-SMD 6.8 nH, 5 %, 1.6 x 0.8 X 0.8 mm
2 2703-001207 L1007 INDUCTOR-SMD 6.8 nH, 5 %, 1.6 x 0.8 X 0.8 mm
2 2703-001206 L1008 INDUCTOR-SMD 4.7 nH, 0.3 nH, 1.6 x 0.8 X 0.8 mm
2 2703-001258 L1009 INDUCTOR-SMD 3.3 nH, 0.3 nH, 1.6 x 0.8 x 0.8 mm
2 3301-001105 L101 CORE-FERRITE AB, 1.6 x 0.8 x 0.8 mm, -, -
2 2703-001514 L902 INDUCTOR-SMD 68 nH, 5 %, 1.8 x 1.12 x 1.02 mm
2 2703-001514 L903 INDUCTOR-SMD 68 nH, 5 %, 1.8 x 1.12 x 1.02 mm
2 2703-001926 L904 INDUCTOR-SMD 27 nH, 2 %, 1.6 x 0.8 x 0.8 mm
2 2703-001747 L905 INDUCTOR-SMD 4.7 nH, 0.3 nH, 1.0 x 0.5 x 0.5 mm
2 2703-001514 L907 INDUCTOR-SMD 68 nH, 5 %, 1.8 x 1.12 x 1.02 mm
2 2703-001748 L909 INDUCTOR-SMD 5.6 nH, 0.3 nH, 1.0 x 0.5 x 0.5 mm
2 2703-001685 L910 INDUCTOR-SMD 82 nH, 5 %, 1.7 x 1.14 x 1.02 mm
2 2703-001613 L911 INDUCTOR-SMD 18 nH, 10 %, 1 x 0.5 x 0.5 mm
2 2703-001734 L912 INDUCTOR-SMD 6.8 nH, 5 %, 1 x 0.5 x 0.5 mm
2 2703-001132 L914 INDUCTOR-SMD 4.7 nH, 5 %, 1.6 x 0.8 x 0.8 mm
2 2007-007771 L915 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2703-001422 L916 INDUCTOR-SMD 22 nH, 5 %, 1.6 x 0.8 x 0.8 mm
2 2703-001422 L918 INDUCTOR-SMD 22 nH, 5 %, 1.6 x 0.8 x 0.8 mm
2 2703-001943 L933 INDUCTOR-SMD 10 nH, 5 %, 1.0 x 0.5 x 0.5 mm
2 4302-001119 M101 BATTERY-LI(2ND) 3 V, 0.1MAH, -, -, 3.1 V, -
2 2801-004116 OSC601 CRYSTAL-UNIT 0.032768MHZ, 20PPM, 28-AB K, 12.5FF, 65 kohm, TP
2 2809-001255 OSC801 OSCILLATOR-VCTCXO 13MHZ, 5PPM, 10 kohm//10 PF, TP, 3 V, 2MA
2 2806-001233 OSC901 OSCILLATOR-VCO 1167MHz/1615MHz, -, 0+-3dBm, TP, 2.85 V, -
2 2806-001232 OSC902 OSCILLATOR-VCO 1080MHz, -, -6to0dBm, TP, 2.85 V, 6.5mA
2 2806-001231 OSC903 OSCILLATOR-VCO 897.5MHz/1747.5MHz, -, -, TP, 2.85 V, 20mA
2 0504-001012 Q1001 TR-DIGITAL DTC114YE, NPN, 150MW, 10K/47 K, EMT3, TP
2 0504-001012 Q1002 TR-DIGITAL DTC114YE, NPN, 150MW, 10K/47 K, EMT3, TP
2 0504-001012 Q1003 TR-DIGITAL DTC114YE, NPN, 150MW, 10K/47 K, EMT3, TP
2 0504-000168 Q101 TR-DIGITAL RN1104, NPN, 100MW, 47K/47 K, SSM, TP
2 0504-000168 Q102 TR-DIGITAL RN1104, NPN, 100MW, 47K/47 K, SSM, TP
SAMSUNG Proprietary-Contents may change without notice
1-9
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 0504-000168 Q114 TR-DIGITAL RN1104, NPN, 100MW, 47K/47 K, SSM, TP
2 0501-002346 Q201 TR-SMALL SIGNAL 2SB1427, PNP, 500MW, SOT-89, TP, 390-820
2 0504-000168 Q204 TR-DIGITAL RN1104, NPN, 100MW, 47K/47 K, SSM, TP
2 0504-000168 Q205 TR-DIGITAL RN1104, NPN, 100MW, 47K/47 K, SSM, TP
2 0501-002011 Q301 TR-SMALL SIGNAL 2SD2114 K, NPN, 200MW, SOT-23, TP, 8
2 0501-000162 Q501 TR-SMALL SIGNAL 2SA1576, PNP, 200MW, SOT-323, TP, 180-390
2 0501-002011 Q502 TR-SMALL SIGNAL 2SD2114 K, NPN, 200MW, SOT-23, TP, 8
2 0504-000167 Q503 TR-DIGITAL RN1102, NPN, 100MW, 10K/10 K, SSM, TP
2 0504-000167 Q601 TR-DIGITAL RN1102, NPN, 100MW, 10K/10 K, SSM, TP
2 0504-000167 Q602 TR-DIGITAL RN1102, NPN, 100MW, 10K/10 K, SSM, TP
2 0504-000167 Q603 TR-DIGITAL RN1102, NPN, 100MW, 10K/10 K, SSM, TP
2 2007-000070 R1000 R-CHIP 0 ohm, 5 %, 1/16 W, DA, TP, 1608
2 2007-001288 R1001 R-CHIP 18 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007008 R1002 R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007008 R1003 R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000139 R1004 R-CHIP 220 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007132 R1005 R-CHIP 15 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007142 R1006 R-CHIP 10 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007771 R1007 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-001301 R1008 R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001301 R1009 R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R101 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007311 R1010 R-CHIP 22 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007008 R1011 R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007139 R1012 R-CHIP 47 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-001301 R1013 R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001301 R1014 R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007132 R1015 R-CHIP 15 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-001288 R1016 R-CHIP 18 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007008 R1017 R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007008 R1018 R-CHIP 300 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R102 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R1020 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R1021 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R1022 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R1023 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R1024 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R1025 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R1026 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-10
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2007-007771 R104 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000170 R105 R-CHIP 1 Mohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R107 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R108 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R109 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R110 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R115 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R116 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001319 R117 R-CHIP 1.2 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R119 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R18 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007308 R201 R-CHIP 33 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007308 R202 R-CHIP 33 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-001323 R203 R-CHIP 3 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007139 R204 R-CHIP 47 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007771 R206 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R210 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R211 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R212 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R213 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R214 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R215 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R216 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R217 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R218 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R222 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R223 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R224 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R225 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R226 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R227 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R228 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R229 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R230 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R231 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R232 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R300 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R302 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R304 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-11
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2007-000157 R305 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R306 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R307 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R308 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R309 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000166 R310 R-CHIP 300 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R311 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R314 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R315 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R321 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000140 R322 R-CHIP 1 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000143 R323 R-CHIP 4.7 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000839 R324 R-CHIP 39 ohm, 5 %, 1/16 W, DA, TP, 1608
2 2007-007771 R325 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R327 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R329 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000618 R330 R-CHIP 24 ohm, 5 %, 1/16 W, DA, TP, 1608
2 2007-000162 R401 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R402 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R403 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R404 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007021 R405 R-CHIP 75 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000566 R406 R-CHIP 220 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000242 R407 R-CHIP 1.5 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000159 R408 R-CHIP 56 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R426 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000141 R427 R-CHIP 2.2 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R502 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000142 R503 R-CHIP 2.7 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000162 R504 R-CHIP 100 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R507 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000143 R508 R-CHIP 4.7 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000143 R509 R-CHIP 4.7 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R510 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R511 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R512 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R514 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R517 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R520 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R601 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-12
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2007-000157 R603 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R604 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-001306 R605 R-CHIP 150 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000170 R606 R-CHIP 1 Mohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007142 R607 R-CHIP 10 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-000148 R608 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000157 R610 R-CHIP 47 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R613 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R615 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R616 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R617 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R618 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001311 R619 R-CHIP 270 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007317 R701 R-CHIP 2.2 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007317 R702 R-CHIP 2.2 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-000172 R703 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007317 R711 R-CHIP 2.2 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007317 R712 R-CHIP 2.2 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-000148 R714 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007698 R728 R-CHIP 5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007698 R729 R-CHIP 5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007698 R730 R-CHIP 5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007698 R731 R-CHIP 5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007698 R732 R-CHIP 5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007698 R733 R-CHIP 5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
2 2007-007771 R734 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R801 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R802 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000161 R803 R-CHIP 82 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000151 R804 R-CHIP 15 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000174 R805 R-CHIP 47 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R806 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000159 R807 R-CHIP 56 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000170 R808 R-CHIP 1 Mohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R809 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000148 R811 R-CHIP 10 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R812 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R813 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R814 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007318 R901 R-CHIP 1 kohm, 1 %, 1/16 W, DA, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-13
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2007-000172 R902 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R903 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001284 R905 R-CHIP 4.7 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R906 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R907 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R908 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R909 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-001298 R910 R-CHIP 51 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R914 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R915 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000147 R917 R-CHIP 8.2 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R919 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-001325 R921 R-CHIP 3.3 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R922 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000143 R923 R-CHIP 4.7 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001284 R926 R-CHIP 4.7 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R927 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001301 R928 R-CHIP 68 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-007771 R929 R-CHIP 0 OHM, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R930 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R931 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000138 R932 R-CHIP 100 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000153 R934 R-CHIP 22 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001217 R938 R-CHIP 82 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000141 R939 R-CHIP 2.2 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-001295 R940 R-CHIP 39 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R941 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000143 R942 R-CHIP 4.7 kohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000174 R943 R-CHIP 47 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R945 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R946 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 2007-000172 R947 R-CHIP 10 ohm, 5 %, 1/16 W, DA, TP, 1005
2 1209-001292 U1001 IC-ETC, LINEAR HD155171NP01EL, QFP, 24P, 165MIL, PLASTIC, 3.6 V, 240MW, -
2 1201-001785 U1002 IC-POWER AMP 08122, -, 8P, -, DUAL, 34DB, -, 7 V, -, -25TO+100C, -, -, -
2 0801-000794 U1003 IC-CMOS LOGIC 7S08, AND GATE, SOT-25, 5P, 63MIL,
2 0504-001042 U1004 TR-DIGITAL BCR10PN, NPN/PNP, 250MW, 10K/10 K,
2 0504-001042 U1005 TR-DIGITAL BCR10PN, NPN/PNP, 250MW, 10K/10 K,
2 2909-001084 U1006 FILTER-DUPLE X ER942.5MHZ, 897.5MHZ, 1/1.2DB, TP, -, -
2 0504-001042 U1008 TR-DIGITAL BCR10PN, NPN/PNP, 250MW, 10K/10 K,
2 1203-001985 U101 IC-VOLTAGE REGULATOR 2005, QFP, 48P, 276MIL, PLASTIC, 1.8/3 V,,
SAMSUNG Proprietary-Contents may change without notice
1-14
SGH-Q200 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
2 2203-001124 U1011 C-CERAMIC, CHIP 680 pF, 10 %, 50 V, X7R, TP, 1005, -
2 1203-001917 U102 IC-VOLTAGE REGULATOR 5213, SOT-23, 5P, 50MIL, PLASTIC, 3.3, 222MW, -
2 0801-002212 U103 IC-CMOS LOGIC 7S02, NOR GATE, SC-70, 5P, 49MIL, SINGLE, TP, PLASTIC, -, -,
2 0505-001423 U104 FET-SILICON FDG6323L, N/P, -, -, -, 0.3 W, SC70-6
2 1203-002127 U201 IC-BATTERY 1734, SOT-23, 6P, 150MIL, PLASTIC, 4.7/5.3 V, -, 0to+70C, 1A, -, TP
2 0506-001052 U202 TR-ARRAY UMH9N, NPN, 2, 150MW, SC-88, TP, 68-
2 1001-001088 U401 IC-ANALOG SWITCH MA X 4544EUT-T, -, SOT-23, 6P, -, SINGLE, 13 V, -
2 0504-001071 U402 TR-DIGITAL UMD9N, NPN/PNP, 150MW, 4.7, UMT6, TP
2 1106-001301 U501 IC-SRAM 1337, 262K x 16Bit, CSP, 72P, -, 85nS, 3 V, -, PLASTIC, -25to+85C,
2 0504-001042 U502 TR-DIGITAL BCR10PN, NPN/PNP, 250MW, 10K/10 K,
2 0801-000794 U503 IC-CMOS LOGIC 7S08, AND GATE, SOT-25, 5P, 63MIL,
2 1107-001225 U504 IC-FLASH MEMORY 9BV1604, 1M x 16/2M x 8Bit, uBGA, 48P, -, 110nS, 3 V, 10 %,
2 GH09-00017A U601 IC MICOM-SGHQ100 TR09BFTBE17IN2-DB, SGH-Q100, -, -, -, -, 144K X
2 1209-001219 U602 IC-SENSORLM60C, SOT-23, 3P, 115MIL, PLASTIC
2 1204-001827 U701 IC-SIGNAL PROCESSOR CSP1099R-BF-DT, BGA, 100P, 393MIL, PLASTIC, 3.3
2 0505-001423 U703 FET-SILICON FDG6323L, N/P, -, -, -, 0.3 W, SC70-6
2 0801-002345 U801 IC-CMOS LOGIC 7S04, INVERTER, SOT-353, 5P, 49MIL, SINGLE, TP, PLASTIC, -
2 0504-001042 U802 TR-DIGITAL BCR10PN, NPN/PNP, 250MW, 10K/10 K,
2 1209-001308 U901 IC-PLL/SYNTHESISER HD155131TF, QFP, 56P, 290MIL, PLASTIC, 3.3 V, -, -
2 3711-004814 VCON1 CONNECTOR-HEADER -, 2P, -, 2.5 MM, STRAIGHT, AU0.1U, BLK
2 3711-004814 VCON2 CONNECTOR-HEADER -, 2P, -, 2.5 MM, STRAIGHT, AU0.1U, BLK
2 1405-001082 ZD302 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD304 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD305 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD306 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD307 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD309 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD310 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD311 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD312 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD313 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD314 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD315 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD316 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD317 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD401 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD402 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD404 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
2 1405-001082 ZD405 VARISTOR 5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
SAMSUNG Proprietary-Contents may change without notice
1-15
2. SGH-Q200 Exploded View and its Parts List
2-1. Cellular phone Exploded View
1
2
3
4
4-1
4-2
9
10
5
8
11
7
12 6
13
14
15
16
17
19
18
20
21
23
22
SAMSUNG Proprietary-Contents may change without notice
2-1
SGH-Q200 Exploded view and its Part List
2-2. Cellular phone Parts List
SEC CODE
Location Description Remark
No. Silver
1 DUAL LCD WINDOW GH72-02482A SA
2 FOLDER UPPER GH75-01101A SA
3 CON ASS'Y GH59-00272A SA
4 LCD ASS'Y GH07-00093A SA
4-1 MOTOR 3101-001280 SA
4-2 SPEAKER 3001-001251 SA
5 FOLDER LOWER GH75-01102A SA
6 LCD WINDOW GH72-02484A SA
7 SCREW (M1.4 X 2) 6001-000883 SA
8 SCREW DUMMY GH68-00370C SA
9 SUA, VOLUME KEY ASS'Y GH75-01100A SA
10 SUA FRONT COVER GH75-01097A SA
11 MIC GH59-00138A SA
12 KEY PAD ASS'Y GH75-01099A SA
13 SHIELD COVER GH75-01735A SA
14 KEY FPCB GH59-00273A SA
15 MAIN PBA GH92-00951A SA
16 SUA, SHIELD COVER-B GH75-01583A SA
17 SCREW (M1.4 X 4) GH73-00704A SA
18 ANTEENA 6001-000464 SA
19 RF COVER GH42-00138A SA
20 SUA, REAR COVER GH73-00703A SA
21 REAR COVER GH75-01103A SA
22 SCREW (M1.7 X 5) 6001-001346 SA
23 BATTERY GH43-00376A 900mAh SA
SAMSUNG Proprietary-Contents may change without notice
2-2
SGH-Q200 Exploded view and its Part List
2-3. Test Jig (GH80-00865A)
G
KTA
D S
SD
/L
DS[
5A S/W UG
086 JIG
80-0 TEST TRONICS DEB
G
U
GH RS
EB
C
GP ELE
D
.2V +
TE
R4
ST
OWE
PA
-P
K C
S/W S
D
ON S
ER
POW
Data Cable Test Cable (GH39-00127A)
SWITCH
MODE POWER SDS DEBUG SDS DEBUG
ON S/W S/W D/L
D/L HIGH LOW LOW CONNECT N.C
CAL HIGH LOW LOW CONNECT N.C
SAMSUNG Proprietary-Contents may change without notice
2-3
ANTENNA
MIXER 1
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
