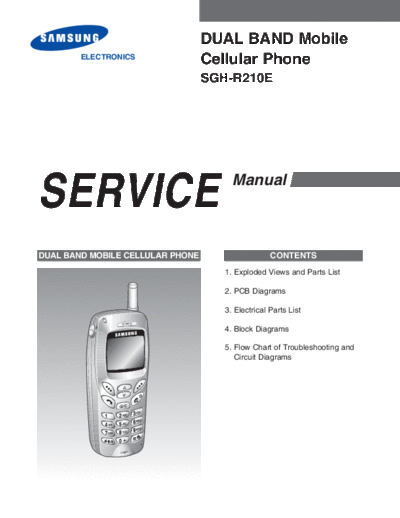

Image preview - the first page of the document
>> Download Samsung SGH-R210E service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
ELECTRONICS
Cellular Phone
SGH-R210E
SERVICE Manual
DUAL BAND MOBILE CELLULAR PHONE CONTENTS
1. Exploded Views and Parts List
2. PCB Diagrams
3. Electrical Parts List
4. Block Diagrams
5. Flow Chart of Troubleshooting and
Circuit Diagrams
ELECTRONICS
Samsung Electronics Co.,Ltd.
Printed in Korea
05/2002 Rev 1.0
GH68-02809A
1. Exploded Views and Parts List
1-1 Main
1-2 Main Parts List
1-3 Travel Adapter
1-4 Travel Adapter Parts List
1-5 Ciger Light Adapter
1-6 Ciger Light Adapter Parts List
1-7 Test Jig
1-8 EAR Microphone
1-9 Data Kit
1-10 Battery Charger
2. PCB Diagrams
2-1 Main Top
2-2 Main Bottom
3. Electrical Parts List
3-1 Main Parts List Top
3-2 Main Parts List Bottom
4. Block Diagrams
4-1 Main Baseband
4-2 Main RF
4-2-1 RF Transmit Part
4-2-2 RF Receive Part
5. Flow Chart of Troubleshooting and Circuit Diagrams
5-1 Power ON
5-2 Initial
5-3 Charging Part
5-4 Sim Part
5-5 Microphone Part
5-6 Speaker Part
5-7 Key Data Input
5-8 Alert Tone
5-9 Ring Indicator
5-10 Back Light
5-11 GSM Receiver
5-12 GSM Transmitter
5-13 DCS Receiver
5-14 DCS Transmitter
1. SGH-R210E Exploded Views and Parts List
1-1 Main
1
2
3
4
5
6
7
7-1
9 7-2
8
10
11
12 14
13
Exploded Views and Parts List 1-1
1-2 Main Parts List
SEC CODE
Location Description Remark
No. Navy Blue Green Dark Gray
1 MEC-FRONT COVER GH75-01484A GH75-01484B GH75-01484C
2 SPEAKER 3001-001233 3001-001233 3001-001233
3 MIC GH59-00240B GH59-00240B GH59-00240B
4 F1 KEY GH72-02784A GH72-02784A GH72-02784A
5 KEY PAD GH75-01160A GH75-01160A GH75-01160A
6 BUZZER 3002-001098 3002-001098 3002-001098
7 MAIN PBA GH92-01315A GH92-01315A GH92-01315A
7-1 LCD GH07-00075B GH07-00075B GH07-00075B
7-2 DOME SHEET GH72-02984B GH72-02984B GH72-02984B
8 COVER CONNECTOR GH73-00758A GH73-00758B GH73-00758C
9 VIBRATOR GH31-00019A GH31-00019A GH31-00019A
10 ANTENNA GH42-00120C GH42-00120B GH42-00120A
11 MEC-REAR COVER GH75-01165A GH75-01165B GH75-01165C
12 RF JACK HOLDER GH73-00759A GH73-00759B GH73-00759C
13 SCREW-MACHINE 6001-001542 6001-001542 6001-001542
14 BATTERY GH43-00369A GH43-00369B GH43-00369C
1-2 Exploded Views and Parts List
1-3 Travel Adapter
A B
C D
1-4 Travel Adapter Parts List
TYPE SEC CODE REMARK
A GH44-00171A CHINA
B GH44-00184A EUROPE
C GH44-00171C UNITED KINGDOM
D Gh44-00171E TAIWAN
Exploded Views and Parts List 1-3
1-5 Ciger Light Adapter
1-6 Ciger Light Adapter Parts List
DESCRIPTION SEC CODE REMARK
Ciger Light Adapter Code GH44-00170A BLACK
1-4 Exploded Views and Parts List
1-7 Test Jig
TEST JIG GH80-10508A
TEST JIG CABLE GH39-00079A
RF CABLE GH39-00090A
Exploded Views and Parts List 1-5
1-7-1 Test Jig
DC
POWER
SUPPLY
8922 or 8960
WIRELESS COMMUNICATIONS
TEST SET
RF CABLE
TEST JIG CABLE
232 CABLE
Note PC
1-6 Exploded Views and Parts List
1-8 EAR Microphone
EAR MICROPHONE GH59-00225B
1-9 Data Kit
DATA KIT GH39-00078A
1-10 Battery Charger
BATTERY CHAGER GH44-00234A
Exploded Views and Parts List 1-7
2. PCB Diagrams
2-1 Main Top
2-1 PCB Diagrams
2-2 Main Bottom
2-2 PCB Diagrams
3. Electrical Parts List
3-1 Main Parts List Top
NO Refer SEC Part Description Vendor Part No.
ence CODE
1 D441 0401-001033 DIODE-SWITCHING "MCL4154,25V,200mA,M-MELF,TP" MCL4154
2 D406 0406-001083 DIODE-TVS "-,6.1/-/7.2V,150W,SOT-323-5L" ESDA6V1W5
3 D407 0406-001083 DIODE-TVS "-,6.1/-/7.2V,150W,SOT-323-5L" ESDA6V1W5
4 D408 0406-001083 DIODE-TVS "-,6.1/-/7.2V,150W,SOT-323-5L" ESDA6V1W5
5 ZD1 0406-001083 DIODE-TVS "-,6.1/-/7.2V,150W,SOT-323-5L" ESDA6V1W5
6 ZD2 0406-001083 DIODE-TVS "-,6.1/-/7.2V,150W,SOT-323-5L" ESDA6V1W5
7 D401 0407-001002 DIODE-ARRAY "DAN222,80V,300mA,CA2-3,EM3,TP" DAN222
8 D304 0407-001007 DIODE-ARRAY "UMN1,80V,25mA,CA4-2,UM5,TR" UMN1TR
9 Q400 0501-000162 TR-SMALL SIGNAL "2SA1576,PNP,200MW,SOT-323,TP" STA1576G
10 Q100 0501-000225 TR-SMALL SIGNAL "2SC4617,NPN,200mW,EM3,TP,120-5" 2SC4617R
11 Q403 0501-002011 TR-SMALL SIGNAL "2SD2114K,NPN,200mW,SOT-23,TP,8" 2SD2114KT146V
12 Q405 0502-001201 TR-POWER "ZXT13P20DE6,PNP,1100MW,SOT-23-6" ZXT13P20DE6TA
13 Q409 0504-000167 TR-DIGITAL "RN1102,NPN,100MW,10K/10K,SSM,TP" DTC114EET1
14 Q411 0504-001012 TR-DIGITAL "DTC114YE,NPN,150MW,10K/47K,EMT3,TP" DTC114YE
15 Q410 0504-001049 TR-DIGITAL "DTA114YE,PNP,150MW,10K/47K,EMT3,TP" DTA114YE
16 U204 0504-001058 TR-DIGITAL "RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm" RN4985(TE85L)
17 U465 0504-001058 TR-DIGITAL "RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm" RN4985(TE85L)
18 U492 0504-001058 TR-DIGITAL "RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm" RN4985(TE85L)
19 Q401 0505-001332 FET-SILICON "FDG6301,N,25V,0.22A,4OHM,.3W,SC70-6" FDG6301N
20 U474 0505-001376 FET-SILICON "FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74" SI3865DV-T1
21 Q402 0505-001570 FET-SILICON "-,N/P,-,-,-,0.4W,SC70-6" SI1865DL-T1
22 U309 0506-001004 TR-ARRAY "UMC5N,NPN/PNP,2,50V,-,-100mA,3" UMC5NTR
23 U651 0506-001052 TR-ARRAY "UMH9N,NPN,2,150MW,SC-88,TP,68-" UMH9N-TN
24 U617 1103-001185 IC-EEPROM "24A2561,32Kx8Bit,TSSOP,8P,-,-,1.8V," S524ADOXF1-RCTO
25 U464 1106-001400 IC-SRAM "K6F4016U6E,256KX16BIT,TBGA, K6F4016U6E
48P,6X7MM"
26 U466 1107-001304 IC-FLASH MEMORY "AM29DL162,2MX8BIT,FBGA, AM29DL162DT-90WCI
48P,-,90NS,3V,10%"
27 U476 1201-001889 IC-POWER AMP "3110,SMD-MODULE,40P,10X10MM,DUAL" RF3110
28 U621 1203-001204 IC-VOLTAGE "2981,SOT-23,5P,59MIL,PLASTIC,3" LP2981AIM5X-3.3
REGULATOR
29 U620 1203-001454 IC-VOLTAGE "2981,SOT-23,5P,59MIL,PLASTIC,3" LP2981AIM5X-3.0
REGULATOR
30 U470 1203-001454 IC-VOLTAGE "2981,SOT-23,5P,59MIL,PLASTIC,3" LP2981AIM5X-3.0
REGULATOR
31 U614 1203-002127 IC-BATTERY "1734,SOT-23,6P,150MIL,PLASTIC,4.7/5.3V" LTC1734ES6#TR
32 U475 1203-002247 IC-VOL. DETECTOR "S-809,SOT-23-5,5P,-,-,-,150MW" S-80926ALMP-DAP-T2
33 U102 1203-002598 IC-VOLTAGE "2981,SOT-23,5P,2.92X1.6MM,PLASTIC" LP2981AIM5X-2.8
REGULATOR
3-1 Electrical Parts List
NO Refer SEC Part Description Vendor Part No.
ence CODE
34 U101 1203-002598 IC-VOLTAGE REGULATOR "2981,SOT-23,5P,2.92X1.6MM,PLASTIC" LP2981AIM5X-2.8
35 U619 1203-002599 IC-VOLTAGE REGULATOR "2981,SOT-23,5P,2.92X1.6MM,PLASTIC" LP2981AIM5X-2.5
36 U467 1205-002035 IC-COMM. CONTROLLER "VP40581B,FBGA,180P,-,PLASTIC,3.3V,-," VP40581B
37 U623 1205-002184 IC-TRANSCEIVER "SI4200-BM,MLP,32P,5X5MM,-,3V, SI4200-BM
-,-20TO+85C"
38 U685 1205-002185 IC-INTERFACE "SI4201-BM,MLP,20P,4X4MM,-,3V, SI4201-BM
-,-20TO+85C"
39 U684 1209-001434 IC-PLL/SYNTHESISER "SI4133T-BM,MLP,28P,5X5MM,-,3V, SI4133T-BM
-,-20TO+85C"
40 TH1 1404-001256 THERMISTOR-NTC "47KOHM,-,4500K,-,-,-,TP" B57231-V2473-J60
41 D424 1405-001018 VARISTOR "14V,-,1.6x0.8mm,TP" VC060314A300R
42 D419 1405-001019 VARISTOR "5.6V,-,1.6x0.8mm,TP" VC060305A150R
43 D420 1405-001019 VARISTOR "5.6V,-,1.6x0.8mm,TP" VC060305A150R
44 D442 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
45 D453 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
46 D421 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
47 D422 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
48 D443 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
49 R117 2007-000138 R-CHIP "100ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ101X
50 R321 2007-000138 R-CHIP "100ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ101X
51 R444 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
52 R447 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
53 R106 2007-000140 R-CHIP "1Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ102
54 R575 2007-000140 R-CHIP "1Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ102
55 R584 2007-000140 R-CHIP "1Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ102
56 R738 2007-000140 R-CHIP "1Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ102
57 R103 2007-000141 R-CHIP "2.2Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ222X
58 R433 2007-000141 R-CHIP "2.2Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ222X
59 R434 2007-000141 R-CHIP "2.2Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ222X
60 R402 2007-000142 R-CHIP "2.7Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ272
61 R101 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
62 R238 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
63 R240 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
64 R303 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
65 R313 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
66 R315 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
67 R348 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
68 R430 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
69 R461 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
70 R527 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
71 R535 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
72 R554 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
73 R558 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
Electrical Parts List 3-2
NO Refer SEC Part Description Vendor Part No.
ence CODE
74 R655 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
75 R661 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
76 R526 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" RC1005J103CS
77 R429 2007-000152 R-CHIP "20Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ203
78 R617 2007-000153 R-CHIP "22Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ223X
79 R764 2007-000153 R-CHIP "22Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ223X
80 R104 2007-000155 R-CHIP "27Kohm,5%,1/16W,DA,TP,1005" RC1005J273CS
81 R441 2007-000157 R-CHIP "47Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ473
82 R442 2007-000157 R-CHIP "47Kohm,5%,1/16W,DA,TP,1005" MCR01MZSJ473
83 R656 2007-000159 R-CHIP "56Kohm,5%,1/16W,DA,TP,1005" RC1005J563CS
84 R316 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
85 R432 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
86 R435 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
87 R437 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
88 R438 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
89 R450 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
90 R555 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
91 R579 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
92 R583 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
93 R605 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
94 R606 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
95 R638 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
96 R440 2007-000168 R-CHIP "470Kohm,5%,1/16W,DA,TP,1005" RK73K1ETP474J
97 R577 2007-000172 R-CHIP "10ohm,5%,1/16W,DA,TP,1005" RC1005J100CS
98 R578 2007-000172 R-CHIP "10ohm,5%,1/16W,DA,TP,1005" RC1005J100CS
99 R105 2007-001244 R-CHIP "91Kohm,5%,1/16W,DA,TP,1005" RC1005J913CS
100 R751 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ510
101 R752 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ510
102 R753 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ510
103 R754 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ510
104 R107 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ510
105 R445 2007-002796 R-CHIP "510ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ511
106 R446 2007-002796 R-CHIP "510ohm,5%,1/16W,DA,TP,1005" MCR01MZSJ511
107 R728 2007-002970 R-CHIP "56OHM,5%,1/16W,DA,TP,1005" RC1005J560CS
108 R644 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
109 R749 2007-007015 R-CHIP "13KOHM,5%,1/16W,DA,TP,1005" MCR01MZSJ133
110 R642 2007-007095 R-CHIP "390OHM,5%,1/16W,DA,TP,1005" MCR01MZSJ391
111 R658 2007-007107 R-CHIP "100Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP1003F
112 R452 2007-007317 R-CHIP "2.2Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF2201
113 R453 2007-007317 R-CHIP "2.2Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF2201
114 R454 2007-007317 R-CHIP "2.2Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF2201
115 R455 2007-007317 R-CHIP "2.2Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF2201
116 R456 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP1001F
3-3 Electrieal Parts List
NO Refer SEC Part Description Vendor Part No.
ence CODE
117 R457 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP1001F
118 R458 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP1001F
119 R459 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP1001F
120 R659 2007-007590 R-CHIP "82Kohm,1%,1/16W,DA,TP,1005" ERJ2RKF8202X
121 R319 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
122 R401 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
123 R626 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
124 R733 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
125 R734 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
126 R765 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
127 R779 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
128 U696 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" RC1005J000CS
129 R594 2007-008117 R-CHIP "2.7Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP2701F
130 R320 2011-001344 R-NETWORK "100ohm,5%,1/16W,L,CHIP,8P,TP" EXB28V101JX
131 R485 2011-001344 R-NETWORK "100ohm,5%,1/16W,L,CHIP,8P,TP" EXB28V101JX
132 R449 2011-001345 R-NETWORK "10Kohm,5%,1/16W,L,CHIP,8P,TP" EXB28V103JX
133 C126 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
134 C144 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
135 C305 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
136 C657 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
137 C719 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
138 C718 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
139 C764 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
140 C789 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
141 C791 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
142 C792 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
143 C793 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
144 C797 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" GRP1555C1H101JD01E
145 C101 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
146 C102 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
147 C123 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
148 C307 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
149 C309 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
150 C313 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
151 C319 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
152 C326 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
153 C331 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
154 C335 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
155 C434 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
156 C440 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
157 C449 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
158 C536 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
159 C587 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
Electrieal Parts List 3-4
NO Refer SEC Part Description Vendor Part No.
ence CODE
160 C712 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
161 C762 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
162 C807 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AH
163 C444 2203-000425 "C-CERAMIC,CHIP" "0.018nF,5%,50V,NP0,TP,1005" CM05CG180J50AH
164 C445 2203-000425 "C-CERAMIC,CHIP" "0.018nF,5%,50V,NP0,TP,1005" CM05CG180J50AH
165 C270 2203-000438 "C-CERAMIC,CHIP" "1nF,10%,50V,X7R,TP,1005,-" ECUE1H102KBQ
166 C821 2203-000628 "C-CERAMIC,CHIP" "0.022nF,5%,50V,NP0,TP,1005" GRP1555C1H220JZ01E
167 C267 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
168 C269 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
169 C330 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
170 C540 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
171 C555 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
172 C569 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
173 C586 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
174 C741 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
175 C768 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
176 C771 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
177 C772 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
178 C817 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
179 C818 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
180 C823 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
181 U690 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AH
182 C143 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
183 C264 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
184 C310 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
185 C311 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
186 C448 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
187 C647 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
188 C802 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
189 C312 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
190 C327 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
191 C437 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
192 C822 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
193 C263 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
194 C438 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
195 C439 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" GRP1555C1H330JZ01E+C01
196 C400 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AH
197 C401 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AH
198 C825 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AH
199 C826 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AH
200 C447 2203-000995 "C-CERAMIC,CHIP" "0.047nF,5%,50V,NP0,TP,1005" GRP1555C1H470JZ01E+C01
201 C824 2203-001383 "C-CERAMIC,CHIP" "0.0005nF,0.25pF,50V,NP0,TP,1005" GRP1555C1HR50CZ01E+C01
202 C775 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
3-5 Electrieal Parts List
NO Refer SEC Part Description Vendor Part No.
ence CODE
203 C776 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
204 C777 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
205 C779 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
206 C780 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
207 C781 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
208 C782 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
209 C783 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
210 C784 2203-001405 "C-CERAMIC,CHIP" "22nF,+80-20%,25V,Y5V,TP,1005" GRP155F51E223ZA01E+A01
211 C329 2203-003054 "C-CERAMIC,CHIP" "0.009nF,0.25pF,50V,NP0,TP,1005" CM05CG9R0C50AH
212 C539 2203-003054 "C-CERAMIC,CHIP" "0.009nF,0.25pF,50V,NP0,TP,1005" CM05CG9R0C50AH
213 C787 2203-005050 "C-CERAMIC,CHIP" "0.0018nF,0.25pF,50V,NP0,TP,1005" CL05C1R8CBNC
214 C788 2203-005050 "C-CERAMIC,CHIP" "0.0018nF,0.25pF,50V,NP0,TP,1005" CL05C1R8CBNC
215 C106 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
216 C332 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
217 C427 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
218 C534 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
219 C545 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
220 C578 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
221 C588 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
222 C597 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
223 C701 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
224 C706 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
225 C711 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
226 C318 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
227 C403 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
228 C431 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
229 C705 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
230 C748 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
231 C749 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
232 C125 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
233 C785 2203-005234 "C-CERAMIC,CHIP" "0.0012nF,0.25pF,50V,NP0,TP,1005" CL05C1R2CBNC
234 C786 2203-005234 "C-CERAMIC,CHIP" "0.0012nF,0.25pF,50V,NP0,TP,1005" CL05C1R2CBNC
235 C538 2203-005378 "C-CERAMIC,CHIP" "0.0024nF,0.25pF,50V,NP0,TP,1608" CL10C2R4CBNC
236 C450 2203-005480 "C-CERAMIC,CHIP" "33nF,10%,10V,X7R,TP,1005,-" C1005X7R1A333KT
237 C451 2203-005480 "C-CERAMIC,CHIP" "33nF,10%,10V,X7R,TP,1005,-" C1005X7R1A333KT
238 C459 2203-005481 "C-CERAMIC,CHIP" "47nF,10%,10V,X7R,TP,1005,-" GRP155R71A473KA01E
239 C751 2203-005482 "C-CERAMIC,CHIP" "100nF,10%,10V,X5R,TP,1005,-" GRP155R61A104KA01E+A02
240 C456 2203-005503 "C-CERAMIC,CHIP" "0.18nF,5%,25V,NP0,TP,1005" GRP1556C1E181JD01E+C02
241 C457 2203-005503 "C-CERAMIC,CHIP" "0.18nF,5%,25V,NP0,TP,1005" GRP1556C1E181JD01E+C02
242 C124 2404-001020 "C-TA,CHIP" "10uF,20%,10V,GP,TP,3216,3.2" TAJA106M010R
243 C710 2404-001020 "C-TA,CHIP" "10uF,20%,10V,GP,TP,3216,3.2" TAJA106M010R
244 C117 2404-001020 "C-TA,CHIP" "10uF,20%,10V,GP,TP,3216,3.2" TAJA106M010R
245 C306 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
Electrieal Parts List 3-6
NO Refer SEC Part Description Vendor Part No.
ence CODE
246 C328 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
247 C535 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
248 C708 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
249 C750 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
250 C436 2404-001134 "C-TA,CHIP" "100UF,20%,6.3V,LZ,TP,4028" 595D107X06R3B2T
251 C579 2404-001134 "C-TA,CHIP" "100UF,20%,6.3V,LZ,TP,4028" 595D107X06R3B2T
252 C446 2404-001162 "C-TA,CHIP" "47uF,20%,4V,LZ,TP,3216" F950G476MAAJZTQ2
253 C249 2404-001276 "C-TA,CHIP" "100UF,20%,6.3V,WT,TP,3528" TPSB107M006R0400
254 U695 2503-001041 C-NETWORK "100PFX4,10%,25V,-" W2A43A101KAT2A
255 L599 2703-001284 INDUCTOR-SMD "5.6nH,0.3nH,1.6x0.8x0.8mm" HK1608-5N6S-T
256 L611 2703-001512 INDUCTOR-SMD "27nH,5%,1.8x1.12x1.02mm" 0603CS-27NXJBC
257 L607 2703-001751 INDUCTOR-SMD "3.9nH,0.3nH,1.0x0.5x0.5mm" LL1005-FH3N9S
258 L600 2703-001943 INDUCTOR-SMD "10nH,5%,1.0x0.5x0.5mm" HK1005-10NJ-T
259 L408 2703-001986 INDUCTOR-SMD "33nH,5%,1.0x0.5x0.5mm" MLK1005S33NJT
260 L409 2703-001986 INDUCTOR-SMD "33nH,5%,1.0x0.5x0.5mm" MLK1005S33NJT
261 L608 2703-002165 INDUCTOR-SMD "7.5nH,5%,1.6x1.12x1.02 mm" 0603CS-7N5XJBC
262 L613 2703-002269 INDUCTOR-SMD "56NH,10%,1.0X0.5X0.5MM" CIH05T56NJNC
263 L612 2703-002416 INDUCTOR-SMD "3.9NH,5%,1608" 0603CS-3N9XJBW
264 X1 2801-004060 CRYSTAL-SMD "0.032768MHZ,30PPM,-,12.5PF, MS2V-TS
90OHM,TR"
265 U100 2809-001254 OSCILLATOR-VCTCXO "13MHZ,3PPM,10KOHM//10PF, TOA1300VAI4KRA
TP,3V,2MA"
266 F205 2904-001386 FILTER-SAW "942.5MHZ,-,1.9DB,TP, B7706
925-960MHZ/2.6DB,-"
267 F204 2904-001387 FILTER-SAW "1.8425GHZ,-,1.1DB,TP, B7716
1805-1880MHZ/3.0DB,-"
268 U203 2909-001146 FILTER-DUPLEXER "942.5MHZ,897.5MHZ,1.4/1.5DB,TP,-,-" LMG002S-5008C
269 L602 3301-001120 CORE-FERRITE BEAD "AB,30ohm,2x1.25x0.85mm,3000mA,TP" BLM21PG300SN1D
270 L605 3301-001362 CORE-FERRITE BEAD "AB,1kohm,1x0.5x0.5mm,50mA,TP," BLM15AG102PN1D
271 CN1 3705-001226 CONNECTOR-COAXIAL "MCX,JACK,75MOHM,50OHM,0.45DB" MHC-188
272 J402 3709-001088 CONNECTOR- "6P,2.54mm,SMD-S,AU" 2-1483271-2
CARD EDGE
273 M1 3710-001105 CONNECTOR-SOCKET "2P,1R,1.27mm,SMD-S,AU" 24-8005-002-100-867
274 J403 3710-001595 CONNECTOR-SOCKET "18P,1R,0.5mm,SMD-A,AUF" 1004-0018-304
275 U400 3722-001587 JACK-PHONE "6P,2.6PI,AG,BLK,-" 02-828D0-53BKA
276 BAT1 4302-001119 BATTERY-LI(2ND) "3V,0.1MAH,-,-,3.1V,-" RB414II06N
277 GH41-00276A PCB-SGHR210S "SGH-R210S,MR500,6L,-,0.8T, SGH-R210S/220S
118X155MM,-,-,-,-"
278 GH61-00026A SPRING ETC- "SGH-N620,BE-CU,-,-,-,-,-,-,GLD,-,-" SPRING ETC-
ANT.CONTACT
279 GH96-00970A ELA ETC-SGHR210S "SGH-R210S,SAMSUNG,SEA,-,-,-,-" ELA ETC-SGHR210S
280 GH07-00075B LCD-SGHR220 LCD "UG-12B98-FLHTX-A,SGH-R220, UG-12B98-FLHTX-A
128X64,"
3-7 Electrieal Parts List
NO Refer SEC Part Description Vendor Part No.
ence CODE
281 GH72-02984B PPR-SGHR210 "SGH-R210,PET+SUS301,WHT, SGHR210 METAL DOME
METAL DOME 51.38X39.52"
282 GH74-02030A MPR-ANT CONTACT "SGH-R210,PORON SPONGE, SGH-R210 ANT
SPONGE 5X4XT0.7,BLK," CONTACT SPON
Electrieal Parts List 3-8
3-2 Main Parts List Bottom
NO Refer SEC Part Description Vendor Part No.
ence CODE
1 BUZ300 3002-001098 BUZZER-MAGNETIC "94dB,3V,150mA,2700Hz,TP" BRT-03S
2 C308 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" GRP155F51C104ZA01E
3 C404 2203-005444 "C-CERAMIC,CHIP" "0.003nF,0.1pF,50V,NP0,TP,1005" CM05CG3R0B50AH
4 C411 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
5 C422 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
6 C716 2203-001017 "C-CERAMIC,CHIP" "0.004nF,0.25pF,50V,NP0,TP,1005" GRP1555C1H4R0CZ01E
7 C723 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AH
8 C724 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AH
9 C759 2203-001017 "C-CERAMIC,CHIP" "0.004nF,0.25pF,50V,NP0,TP,1005" GRP1555C1H4R0CZ01E
10 C760 2203-001017 "C-CERAMIC,CHIP" "0.004nF,0.25pF,50V,NP0,TP,1005" GRP1555C1H4R0CZ01E
11 C778 2503-001043 C-NETWORK "1UFX2,20%,10V,2012" CAD12X5R105M10AT
12 D302 0407-001002 DIODE-ARRAY "DAN222,80V,300mA,CA2-3,EM3,TP" DAN222
13 D411 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
14 D415 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" AVL 14K 02 200
15 D444 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
16 D445 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
17 D446 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
18 D447 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
19 D448 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
20 D449 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
21 D450 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
22 D451 0601-001094 LED "CHIP,Y-GRN,0.8x1.1mm,570nm" SSCYG101TS
23 LED1 0601-001402 LED "CHIP,RED/Y-GRN,1.2x1.5mm,660/570nm" CL-165HR/YG-D
24 LED2 0601-001540 LED "CHIP,BLUE,1.1X0.8MM,485NM" SLS-NNBD102TS
25 Q300 0501-002011 TR-SMALL SIGNAL "2SD2114K,NPN,200mW,SOT-23,TP,8" 2SD2114KT146V
26 R304 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" RC1005J104CS
27 R305 2007-000143 R-CHIP "4.7Kohm,5%,1/16W,DA,TP,1005" RC1005J472CS
28 R422 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" RC1005J104CS
29 R423 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" RC1005J104CS
30 R424 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
31 R427 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
32 R782 2007-000172 R-CHIP "10ohm,5%,1/16W,DA,TP,1005" RC1005J100CS
33 R783 2007-000172 R-CHIP "10ohm,5%,1/16W,DA,TP,1005" RC1005J100CS
34 R784 2007-000172 R-CHIP "10ohm,5%,1/16W,DA,TP,1005" RC1005J100CS
35 R785 2007-000172 R-CHIP "10ohm,5%,1/16W,DA,TP,1005" RC1005J100CS
36 R786 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
37 R787 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
38 R788 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
39 R789 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
40 R790 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
41 R791 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
3-9 Electrical Parts List
SIM CARD
BB INTERFACE
Block Diagrams
Serial Data
Interface
Battery
Type
VIBRATOR I/O
Interface
4-1 Main Baseband
MIC Battery
Voltage
4. Block Diagrams
A/D Battery
SPEAKER
Interface Temperature
ONE C
RF INTERFACE
SYSTEM CLOCK
(13MHz)
AFC
3VAERO
SRAM
PLL 3VRF
Li-Ion Battery
FLASH
(Standard)
VDD3.0
LOAD
EEPROM AVCC
SWITCH
Charging
RTC_CLOCK LVCC
Circuit
(32.768KHz)
KEYPAD
LCD RTC_3V3
4-1
4-2
4-2 Main RF
Si4200 (U623) Si4201 (U685)
EGSM RX F205
925~960 MHz
(CH62 : 947.4 MHz) SAW
LNA PGA ADC PGA DAC I
Filter
Mixer
Filter
F204
Channel
SAW
LNA PGA ADC PGA DAC Q
Filter
DCS RX
1805~1880 MHz
(CH698 : 1842.4 MHz) 100
kHz
RF Antenna
Conector S/W Si4133T (U684) VP40578
(CN1) (U203)
RF IF VCTCXO (U467)
(U100)
PLL PLL
DCS TX
SDATA
1710 ~ 1785 MHz
SCLK
(CH698 : 1747.4 MHz) SENB
Dual PAM PDNB
(U476)
PD
I
LPF Q
EGSM TX
880 ~ 915 MHz
(CH62 : 902.4 MHz)
Bryce Park
Block Diagrams
Block Diagrams
VC1 VC2 Si4133-T (U684)
Ant. S/W 3VTX
Tx(GSM) L H
Control
TXEN2 Tx(DCS) H L
Circuit from U467 Rx L L
23,24
VC1 VC2 1 RF 2 VCTCXO
1279 ~ 1314 MHz
AFC
PLL (U100)
2 11 1327 ~ 1402 MHz 7 4
4-2-1 RF Transmit Part
RF Antenna 880~895 MHz : 798 MHz
8 IF 895~900 MHz : 790 MHz
Conector S/W
PLL 900~915 MHz : 798 MHz
(CN1) (U203)
766 MHz
PDNB
9
-6dBm
5 3 26,27 -6dBm
@ 1301.4 MHz (G)
EGSM TX DCS TX -9dBm @ 798 MHz
880 ~ 915 MHz 1710 ~ 1785 MHz @ 1364.4 MHz (D) -9dBm
(CH62 : 902.4 MHz) (CH698 : 1747.4 MHz) @ 766 MHz
12,13 9,10
VP40578
31
/2 (U467)
Dual PAM
(U476)
1 5
PD 3
11 24 6 I
7
7 8 Q
LPF
9 25
BAND Selection
- GSM : Low
- DCS : High
Si4200 (U623)
SDATA
SCLK
SENB
2 Txpower
2
+VBATT Txpower
from U467
TXEN2 1
3VRF
Bryce Park
BAND Selection
VREG
4-3
4-4
Si4200 (U623) Si4201 (U685)
4 5 1
-52dBm 1,2
LNA PGA ADC PGA DAC 4 I
21,22 11,12
-50dBm (G)
4-2-2 RF Receive Part
Mixer -54dBm (D)
@ 67 kHz
Filter
3
Channel
-52dBm 1,2
3,4 3,4 LNA PGA ADC PGA DAC 2 Q
17,18 11,12
SAW SAW
Filter Filter
(F205) (F204) SDATA
100 SCLK
GSM : /2 I/O
kHz SENB
1 1
-51dBm -52dBm
12,13 31 7 14 VP40578
(U467)
EGSM RX DCS RX
925~960 MHz 1805~1880 MHz
(CH62 : 947.4 MHz) (CH698 : 1842.4 MHz)
-6dBm
@ 1895.6 MHz (G)
-9dBm PDNB
2
@ 1842.3 MHz (D)
23,24 9
10 1
2
RF 1849.8 ~ 1919.8 MHz
RF Antenna 7 VCTCXO 4 3
3 PLL 1804.9 ~ 1879.9 MHz AFC
Conector S/W (U100)
8 2
(CN1) (U203)
- 50dBm Si4133-T (U684)
@ 947.067 MHz Bryce Park
- 50dBm
@ 1842.467 MHz
Block Diagrams
5. Flow Chart of Troubleshooting and Circuit Diagrams
5-1 Power ON
'POWER ON'does not work
Yes
Check the Battery Voltage No
Charge the Battery
is more than 3.2V
Yes
When the "END" key is No
pressed, the voltage of "D304 pin1" Check the Dome sheet
3.6V?
Yes
No
U474 pin 2,3 > 3.2V Check the circuit related to U474
Yes
No
U619 pin 5 2.5 V ? Check the circuit related to U619
Yes
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
