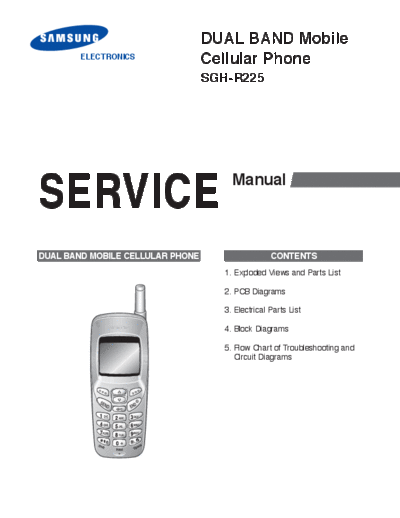

Image preview - the first page of the document
>> Download Samsung SGH-R225 service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
ELECTRONICS
Cellular Phone
SGH-R225
SERVICE Manual
DUAL BAND MOBILE CELLULAR PHONE CONTENTS
1. Exploded Views and Parts List
2. PCB Diagrams
3. Electrical Parts List
4. Block Diagrams
5. Flow Chart of Troubleshooting and
Circuit Diagrams
ELECTRONICS
Samsung Electronics Co.,Ltd.
Printed in Korea
03/2002 Rev 1.0
GH68-02691A
1. Exploded Views and Parts List
1-1 Main
1-2 Main Parts List
1-3 Travel Adapter
1-4 Travel Adapter Parts List
1-5 Ciger Light Adapter
1-6 Ciger Light Adapter Parts List
1-7 Test Jig
1-8 EAR Microphone
1-9 Data Kit
1-10 Battery Charger
2. PCB Diagrams
2-1 Main Top
2-2 Main Bottom
3. Electrical Parts List
3-1 Main Parts List Top
3-2 Main Parts List Bottom
4. Block Diagrams
4-1 Main Baseband
4-2 Main RF
4-2-1 RF Transmit Part
4-2-2 RF Receive Part
5. Flow Chart of Troubleshooting and Circuit Diagrams
5-1 Power ON
5-2 Initial
5-3 Charging Part
5-4 Sim Part
5-5 Microphone Part
5-6 Speaker Part
5-7 Key Data Input
5-8 Alert Tone
5-9 Ring Indicator
5-10 Back Light
5-11 GSM Receiver
5-12 GSM Transmitter
5-13 DCS Receiver
5-14 DCS Transmitter
1. SGH-R225 Exploded Views and Parts List
1-1 Main
1
2
3
4
5
6-1
6-2
6
8 7
9
10
11
12
SGH-R225 Exploded Views and Parts List 1-1
1-2 Main Parts List
Location No. Description SEC CODE Remark
1 FRONT COVER GH75-01702A
2 SPEAKER 3001-001233
3 MIC GH59-00240B
4 FI-KEY GH72-03772A
5 KEYPAD GH75-01700A
6 MAIN PBA GH92-01278A
6-1 LCD GH07-00075B
6-2 DOME SHEET GH72-02984B
7 IF CONNECT COVER GH73-00758A
8 MOTOR GH31-00019A
9 ANTENNA GH42-00141C
10 REAR COVER GH75-01165A
11 R/F COVER GH73-00759A
12 SCREW 6001-001542
1-2 SGH-R225 Exploded Views and Parts List
1-3 Travel Adapter
A B
C D
1-4 Travel Adapter Parts List
TYPE SEC CODE REMARK
A GH44-00171A CHINA
B GH44-00184A EUROPE
C GH44-00171C UNITED KINGDOM
D Gh44-00171E TAIWAN
SGH-R225 Exploded Views and Parts List 1-3
1-5 Ciger Light Adapter
1-6 Ciger Light Adapter Parts List
DESCRIPTION SEC CODE REMARK
Ciger Light Adapter Code GH44-00170A BLACK
1-4 SGH-R225 Exploded Views and Parts List
1-7 Test Jig
TEST JIG GH80-10508A
TEST JIG CABLE GH39-00079A
RF CABLE GH39-00090A
SGH-R225 Exploded Views and Parts List 1-5
1-7-1 Test Jig
DC
POWER
SUPPLY
8922 or 8960
WIRELESS COMMVNCAATIONS
TEST SET
RF CABLE
232 CABLE TEST JIG CABLE
Note PC
1-6 SGH-R225 Exploded Views and Parts List
1-8 EAR Microphone
EAR MICROPHONE GH59-00411A
1-9 Data Kit
DATA KIT GH39-00078A
1-10 Battery Charger
BATTERY CHAGER GH44-00256A
SGH-R225 Exploded Views and Parts List 1-7
2. PCB Diagrams
2-1 Main Top
2-1 SGH-R225 PCB Diagrams
2-2 Main Bottom
2-2 SGH-R225 PCB Diagrams
3. Electrical Parts List
3-1 Main Parts List Top
NO SEC CODE Reference Part Description Vendor Part No.
1 0401-001033 D441 MCL4154,25V,200mA,M-MELF,TP MCL4154
2 0406-001083 D406 -,6.1/-/7.2V,150W,SOT-323-5L ESDA6V1W5
3 0406-001083 D407 -,6.1/-/7.2V,150W,SOT-323-5L ESDA6V1W5
4 0406-001083 D408 -,6.1/-/7.2V,150W,SOT-323-5L ESDA6V1W5
5 0406-001083 ZD1 -,6.1/-/7.2V,150W,SOT-323-5L ESDA6V1W5
6 0406-001083 ZD2 -,6.1/-/7.2V,150W,SOT-323-5L ESDA6V1W5
7 0407-001002 D401 DAN222,80V,300mA,CA2-3,EM3,TP DAN222TL
8 0407-001007 D304 UMN1,80V,25mA,CA4-2,UM5,TR UMN1TR
9 0501-000162 Q400 2SA1576,PNP,200MW,SOT-323,TP,180-390 STA1576G
10 0501-000162 Q404 2SA1576,PNP,200MW,SOT-323,TP,180-390 STA1576G
11 0501-000225 Q100 2SC4617,NPN,200mW,EM3,TP,120-5 2SC4617R
12 0501-002011 Q403 2SD2114K,NPN,200mW,SOT-23,TP,8 2SD2114KT146V
13 0502-001201 Q405 ZXT13P20DE6,PNP,1100MW,SOT-23-6,TP,300-900 ZXT13P20DE6TA
14 0504-000167 Q409 RN1102,NPN,100MW,10K/10K,SSM,TP RN1102(TE85R)
15 0504-000167 U615 RN1102,NPN,100MW,10K/10K,SSM,TP RN1102(TE85R)
16 0504-001012 Q406 DTC114YE,NPN,150MW,10K/47K,EMT3,TP DTC114YE
17 0504-001012 Q407 DTC114YE,NPN,150MW,10K/47K,EMT3,TP DTC114YE
18 0504-001012 Q408 DTC114YE,NPN,150MW,10K/47K,EMT3,TP DTC114YE
19 0504-001021 U616 DTB113ZK,PNP,200MW,10K,SC-59,TP DTB113ZK
20 0504-001058 U465 RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm,UMD6,TP RN4985(TE85L)
21 0505-001332 Q401 FDG6301,N,25V,0.22A,4OHM,.3W,SC70-6 FDG6301N
22 0505-001376 U474 FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74 SI3865DV-T1
23 0505-001570 Q102 -,N/P,-,-,-,0.4W,SC70-6 SI1865DL-T1
24 0505-001570 Q402 -,N/P,-,-,-,0.4W,SC70-6 SI1865DL-T1
25 0506-001004 U309 UMC5N,NPN/PNP,2,50V,-,-100mA,3 UMC5NTR
26 1103-001185 U617 24A2561,32Kx8Bit,TSSOP,8P,-,-,1.8V,-,PLASTIC,-25to+70C,1uA,CMOS,TR 24LC256T-I-ST
27 1106-001400 U464 K6F4016U6E,256KX16BIT,TBGA,48P,6X7MM,70NS,
3V,10%,PLASTIC,-40TO+85C,12UA,CMOS,TR K6F4016U6E
28 1107-001304 U466 AM29DL162,2MX8BIT,FBGA,48P,-,90NS,3V,10%,
PLASTIC,-40TO+85C,-,CMOS,TR AM29DL162DT-90WCI
29 1201-001864 U476 08123,-,8P,13.75X8MM,DUAL,-,-,4.5V,-,-25TO+100C,-,-,-,-,- PF08123B
30 1203-001204 U470 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.3
31 1203-001204 U621 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.3
32 1203-001454 U101 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.0
33 1203-001454 U102 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.0
34 1203-001454 U613 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.0
35 1203-001454 U619 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.0
36 1203-001454 U620 2981,SOT-23,5P,59MIL,PLASTIC,3 LP2981AIM5X-3.0
3-1 SGH-R225 Electrical Parts List
NO SEC CODE Reference Part Description Vendor Part No.
37 1203-002127 U614 1734,SOT-23,6P,150MIL,PLASTIC,4.7/5.3V,-,0to+70C,1A,-,TP LTC1734ES6#TR
38 1203-002247 U475 S-809,SOT-23-5,5P,-,-,-,150MW,-40TO+85C,50MA,-,TP S-80926ALMP-DAP-T2
39 1205-001881 U618 VP40575,BGA,180P,472MIL,PLASTIC,3.3V,-,-20to+85C,TR,OneC Processor VP40575
40 1205-001935 U454 HD155128TF,TP,56P,-,-,3V,400mW,-20to+75C,QFP,- HD155128TF
41 1209-001337 U478 SI4133G-XM2R,LCC,28P,-,-,3.6V,-,-40to+85C,TP SI4133GXM2R
42 1404-001005 TH1 47Kohm,5%,4050K,2.0mW/C,TP NCP21WB473J03RA
43 1405-001018 D419 14V,-,1.6x0.8mm,TP VC060314A300R
44 1405-001018 D420 14V,-,1.6x0.8mm,TP VC060314A300R
45 1405-001018 D424 14V,-,1.6x0.8mm,TP VC060314A300R
46 1405-001093 D421 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
47 1405-001093 D422 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
48 1405-001093 D425 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
49 1405-001093 D442 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
50 1405-001093 D443 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
51 2007-000138 R200 100ohm,5%,1/16W,DA,TP,1005 RC1005J101CS
52 2007-000138 R321 100ohm,5%,1/16W,DA,TP,1005 RC1005J101CS
53 2007-000139 R203 220ohm,5%,1/16W,DA,TP,1005 RC1005J101CS
54 2007-000139 R204 220ohm,5%,1/16W,DA,TP,1005 RC1005J101CS
55 2007-000139 R444 220ohm,5%,1/16W,DA,TP,1005 RC1005J101CS
56 2007-000139 R447 220ohm,5%,1/16W,DA,TP,1005 RC1005J101CS
57 2007-000140 R106 1Kohm,5%,1/16W,DA,TP,1005 RC1005J102CS
58 2007-000140 R584 1Kohm,5%,1/16W,DA,TP,1005 RC1005J102CS
59 2007-000140 R738 1Kohm,5%,1/16W,DA,TP,1005 RC1005J102CS
60 2007-000141 R103 2.2Kohm,5%,1/16W,DA,TP,1005 RC1005J222CS
61 2007-000141 R223 2.2Kohm,5%,1/16W,DA,TP,1005 RC1005J222CS
62 2007-000141 R433 2.2Kohm,5%,1/16W,DA,TP,1005 RC1005J222CS
63 2007-000141 R434 2.2Kohm,5%,1/16W,DA,TP,1005 RC1005J222CS
64 2007-000142 R402 2.7Kohm,5%,1/16W,DA,TP,1005 RC1005J272CS
65 2007-000148 R101 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
66 2007-000148 R303 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
67 2007-000148 R313 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
68 2007-000148 R315 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
69 2007-000148 R348 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
70 2007-000148 R435 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
71 2007-000148 R438 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
72 2007-000148 R450 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
73 2007-000148 R461 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
74 2007-000148 R526 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
75 2007-000148 R535 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
76 2007-000148 R554 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
77 2007-000148 R558 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
78 2007-000148 R582 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
SGH-R225 Electrical Parts List 3-2
NO SEC CODE Reference Part Description Vendor Part No.
79 2007-000148 R604 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
80 2007-000148 R654 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
81 2007-000148 R655 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
82 2007-000148 R661 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
83 2007-000148 R751 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
84 2007-000152 R429 20Kohm,5%,1/16W,DA,TP,1005 RC1005J203CS
85 2007-000153 R213 22Kohm,5%,1/16W,DA,TP,1005 RC1005J223CS
86 2007-000155 R104 27Kohm,5%,1/16W,DA,TP,1005 RC1005J273CS
87 2007-000157 R441 47Kohm,5%,1/16W,DA,TP,1005 RC1005J473CS
88 2007-000157 R442 47Kohm,5%,1/16W,DA,TP,1005 RC1005J473CS
89 2007-000157 R443 47Kohm,5%,1/16W,DA,TP,1005 RC1005J473CS
90 2007-000159 R656 56Kohm,5%,1/16W,DA,TP,1005 RC1005J563CS
91 2007-000162 R112 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
92 2007-000162 R316 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
93 2007-000162 R430 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
94 2007-000162 R432 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
95 2007-000162 R437 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
96 2007-000162 R460 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
97 2007-000162 R527 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
98 2007-000162 R555 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
99 2007-000162 R579 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
100 2007-000162 R583 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
101 2007-000162 R605 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
102 2007-000162 R606 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
103 2007-000168 R440 470Kohm,5%,1/16W,DA,TP,1005 RC1005J474CS
104 2007-000168 R735 470Kohm,5%,1/16W,DA,TP,1005 RC1005J474CS
105 2007-000172 R220 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
106 2007-000172 R224 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
107 2007-000172 R577 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
108 2007-000172 R578 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
109 2007-000174 R123 47ohm,5%,1/16W,DA,TP,1005 RC1005J470CS
110 2007-000174 R569 47ohm,5%,1/16W,DA,TP,1005 RC1005J470CS
111 2007-001217 R218 82ohm,5%,1/16W,DA,TP,1005 RC1005J820CS
112 2007-001244 R105 91Kohm,5%,1/16W,DA,TP,1005 RC1005J913CS
113 2007-001292 R202 33ohm,5%,1/16W,DA,TP,1005 ERJ2GEJ330X
114 2007-001298 R221 51ohm,5%,1/16W,DA,TP,1005 RC1005J510CS
115 2007-002796 R445 510ohm,5%,1/16W,DA,TP,1005 ERJ2GEJ511X
116 2007-002796 R446 510ohm,5%,1/16W,DA,TP,1005 ERJ2GEJ511X
117 2007-002797 R107 560ohm,5%,1/16W,DA,TP,1005 ERJ2GEJ561X
118 2007-002797 R117 560ohm,5%,1/16W,DA,TP,1005 ERJ2GEJ561X
119 2007-002970 R210 56OHM,5%,1/16W,DA,TP,1005 RC1005J560CS
120 2007-002970 R728 56OHM,5%,1/16W,DA,TP,1005 RC1005J560CS
3-3 SGH-R225 Electrical Parts List
NO SEC CODE Reference Part Description Vendor Part No.
121 2007-003112 R211 27OHM,5%,1/16W,DA,TP,1005 RC1005J270CS
122 2007-003112 R217 27OHM,5%,1/16W,DA,TP,1005 RC1005J270CS
123 2007-007001 R575 3.9KOHM,5%,1/16W,DA,TP,1005 RC1005J392CS
124 2007-007009 R727 75OHM,5%,1/16W,DA,TP,1005 RC1005J750CS
125 2007-007015 R749 13KOHM,5%,1/16W,DA,TP,1005 RC1005J133CS
126 2007-007095 R726 390OHM,5%,1/16W,DA,TP,1005 RC1005J391CS
127 2007-007107 R658 100Kohm,1%,1/16W,DA,TP,1005 RC1005F1003CS
128 2007-007317 R452 2.2Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF2201X
129 2007-007317 R453 2.2Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF2201X
130 2007-007317 R454 2.2Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF2201X
131 2007-007317 R455 2.2Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF2201X
132 2007-007318 R456 1Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF1001X
133 2007-007318 R457 1Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF1001X
134 2007-007318 R458 1Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF1001X
135 2007-007318 R459 1Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF1001X
136 2007-007590 R659 82Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF8202X
137 2007-007771 R319 0OHM,5%,1/16W,DA,TP,1005 RC1005J000CS
138 2007-007771 R401 0OHM,5%,1/16W,DA,TP,1005 RC1005J000CS
139 2007-007771 R733 0OHM,5%,1/16W,DA,TP,1005 RC1005J000CS
140 2007-007771 R734 0OHM,5%,1/16W,DA,TP,1005 RC1005J000CS
141 2007-007771 R739 0OHM,5%,1/16W,DA,TP,1005 RC1005J000CS
142 2007-008117 R594 2.7Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF2701X
143 2011-001344 R320 100ohm,5%,1/16W,L,CHIP,8P,TP EXB28V101JX
144 2011-001344 R485 100ohm,5%,1/16W,L,CHIP,8P,TP EXB28V101JX
145 2011-001345 R449 10Kohm,5%,1/16W,L,CHIP,8P,TP EXB28V103JX
146 2203-000233 C144 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
147 2203-000233 C305 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
148 2203-000233 C452 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
149 2203-000233 C453 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
150 2203-000233 C454 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
151 2203-000233 C455 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
152 2203-000233 C718 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
153 2203-000233 C719 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
154 2203-000233 C764 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
155 2203-000254 C101 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
156 2203-000254 C102 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
157 2203-000254 C123 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
158 2203-000254 C210 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
159 2203-000254 C238 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
160 2203-000254 C307 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
161 2203-000254 C309 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
162 2203-000254 C313 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
SGH-R225 Electrical Parts List 3-4
NO SEC CODE Reference Part Description Vendor Part No.
163 2203-000254 C319 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
164 2203-000254 C326 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
165 2203-000254 C331 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
166 2203-000254 C335 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
167 2203-000254 C354 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
168 2203-000254 C434 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
169 2203-000254 C440 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
170 2203-000254 C449 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
171 2203-000254 C536 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
172 2203-000254 C587 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
173 2203-000254 C712 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
174 2203-000254 C744 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
175 2203-000254 C745 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
176 2203-000254 C762 10nF,10%,16V,X7R,TP,1005,- CM05X7R103K16AH
177 2203-000278 C206 0.01nF,0.5pF,50V,NP0,TP,1005 CM05CG100D50AH
178 2203-000278 C235 0.01nF,0.5pF,50V,NP0,TP,1005 CM05CG100D50AH
179 2203-000278 C239 0.01nF,0.5pF,50V,NP0,TP,1005 CM05CG100D50AH
180 2203-000359 C212 0.15nF,5%,50V,NP0,TP,1005 CM05CG151J50AH
181 2203-000438 C138 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
182 2203-000438 C211 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
183 2203-000438 C227 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
184 2203-000438 C229 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
185 2203-000438 C230 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
186 2203-000438 C240 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
187 2203-000438 C261 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
188 2203-000438 C556 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
189 2203-000438 C557 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
190 2203-000438 C562 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
191 2203-000438 C580 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
192 2203-000585 C110 220pF,10%,50V,X7R,TP,1005,- CM05X7R221K50AH
193 2203-000585 C111 220pF,10%,50V,X7R,TP,1005,- CM05X7R221K50AH
194 2203-000585 C112 220pF,10%,50V,X7R,TP,1005,- CM05X7R221K50AH
195 2203-000585 C114 220pF,10%,50V,X7R,TP,1005,- CM05X7R221K50AH
196 2203-000609 C203 22nF,10%,50V,X7R,TP,2012 CL21B223KBNC
197 2203-000628 C237 0.022nF,5%,50V,NP0,TP,1005 CM05CG220J50AH
198 2203-000679 C200 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
199 2203-000679 C232 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
200 2203-000679 C262 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
201 2203-000679 C540 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
202 2203-000679 C555 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
203 2203-000679 C569 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
204 2203-000679 C586 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
3-5 SGH-R225 Electrical Parts List
NO SEC CODE Reference Part Description Vendor Part No.
205 2203-000679 C740 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
206 2203-000679 C741 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
207 2203-000679 C743 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
208 2203-000679 C752 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
209 2203-000679 C765 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
210 2203-000679 C766 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
211 2203-000679 C768 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
212 2203-000679 C770 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
213 2203-000679 C771 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
214 2203-000679 C772 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
215 2203-000696 C582 0.002nF,0.25pF,50V,NP0,TP,1005 CM05CG2R0C50AH
216 2203-000697 C773 0.002nF,0.25pF,50V,NP0,TP,1608 CL10C020CBNC
217 2203-000812 C143 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
218 2203-000812 C204 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
219 2203-000812 C217 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
220 2203-000812 C234 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
221 2203-000812 C263 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
222 2203-000812 C264 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
223 2203-000812 C310 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
224 2203-000812 C311 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
225 2203-000812 C312 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
226 2203-000812 C327 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
227 2203-000812 C330 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
228 2203-000812 C437 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
229 2203-000812 C438 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
230 2203-000812 C439 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
231 2203-000812 C441 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
232 2203-000812 C442 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
233 2203-000812 C443 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
234 2203-000812 C448 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
235 2203-000812 C460 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
236 2203-000812 C664 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
237 2203-000812 C758 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
238 2203-000812 C763 0.033nF,5%,50V,NP0,TP,1005 CM05CG330J50AH
239 2203-000854 C244 0.039nF,5%,50V,NP0,TP,1005 CM05CG390J50AH
240 2203-000854 C698 0.039nF,5%,50V,NP0,TP,1005 CM05CG390J50AH
241 2203-000854 C699 0.039nF,5%,50V,NP0,TP,1005 CM05CG390J50AH
242 2203-000872 C538 0.003nF,0.25pF,50V,NP0,TP,1608 CL10C030CBNC
243 2203-000995 C400 0.047nF,5%,50V,NP0,TP,1005 CM05CG470J50AH
244 2203-000995 C401 0.047nF,5%,50V,NP0,TP,1005 CM05CG470J50AH
245 2203-001072 C447 0.056nF,5%,50V,NP0,TP,1005 CM05CG560J50AH
246 2203-001153 C215 0.068nF,5%,50V,NP0,TP,1005 CM05CG680J50AH
SGH-R225 Electrical Parts List 3-6
NO SEC CODE Reference Part Description Vendor Part No.
247 2203-001153 C494 0.068nF,5%,50V,NP0,TP,1005 CM05CG680J50AH
248 2203-002525 C126 0.56nF,10%,50V,X7R,TP,1005 CM05X7R561K50AH
249 2203-002525 C137 0.56nF,10%,50V,X7R,TP,1005 CM05X7R561K50AH
250 2203-002525 C481 0.56nF,10%,50V,X7R,TP,1005 CM05X7R561K50AH
251 2203-002668 C214 0.0005nF,0.1pF,50V,NP0,TP,1005 C1005C0G1H0R5BT
252 2203-003054 C329 0.009nF,0.25pF,50V,NP0,TP,1005 CM05CG9R0C50AH
253 2203-003054 C444 0.009nF,0.25pF,50V,NP0,TP,1005 CM05CG9R0C50AH
254 2203-003054 C445 0.009nF,0.25pF,50V,NP0,TP,1005 CM05CG9R0C50AH
255 2203-003054 C539 0.009nF,0.25pF,50V,NP0,TP,1005 CM05CG9R0C50AH
256 2203-003054 C757 0.009nF,0.25pF,50V,NP0,TP,1005 CM05CG9R0C50AH
257 2203-005050 C242 0.0018nF,0.25pF,50V,NP0,TP,1005 CM05CG1R8C50AH
258 2203-005050 C600 0.0018nF,0.25pF,50V,NP0,TP,1005 CM05CG1R8C50AH
259 2203-005052 C213 0.0033nF,0.25pF,50V,NP0,TP,1005 CM05CG3R3C50AH
260 2203-005061 C106 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
261 2203-005061 C107 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
262 2203-005061 C301 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
263 2203-005061 C332 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
264 2203-005061 C427 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
265 2203-005061 C534 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
266 2203-005061 C545 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
267 2203-005061 C578 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
268 2203-005061 C588 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
269 2203-005061 C597 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
270 2203-005061 C701 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
271 2203-005061 C706 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
272 2203-005061 C711 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
273 2203-005065 C108 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
274 2203-005065 C125 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
275 2203-005065 C318 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
276 2203-005065 C403 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
277 2203-005065 C705 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
278 2203-005065 C748 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
279 2203-005065 C749 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
280 2203-005234 C575 0.0012nF,0.25pF,50V,NP0,TP,1005 CM05CG1R2C50AH
281 2203-005234 C596 0.0012nF,0.25pF,50V,NP0,TP,1005 CM05CG1R2C50AH
282 2203-005382 C248 0.006nF,0.1pF,50V,NP0,TP,1005 GRP1555C1H6R0BZ01E
283 2203-005383 C753 7pF,0.1pF,50V,NPO,TP,1005,- GRP1555C1H7R0BZ01E
284 2203-005383 C754 7pF,0.1pF,50V,NPO,TP,1005,- GRP1555C1H7R0BZ01E
285 2203-005383 C755 7pF,0.1pF,50V,NPO,TP,1005,- GRP1555C1H7R0BZ01E
286 2203-005446 C413 0.0027nF,0.1pF,50V,NP0,TP,1005 GRP1555C1H2R7BZ01E
287 2203-005446 C721 0.0027nF,0.1pF,50V,NP0,TP,1005 GRP1555C1H2R7BZ01E
288 2203-005480 C450 33nF,10%,10V,X7R,TP,1005,- CM05X7R333K10AH
3-7 SGH-R225 Electrical Parts List
NO SEC CODE Reference Part Description Vendor Part No.
289 2203-005480 C451 33nF,10%,10V,X7R,TP,1005,- CM05X7R333K10AH
290 2203-005481 C459 47nF,10%,10V,X7R,TP,1005,- CM05X7R473K10AH
291 2203-005482 C746 100nF,10%,10V,X5R,TP,1005,- GRM36X5R104K10PT
292 2203-005482 C751 100nF,10%,10V,X5R,TP,1005,- GRM36X5R104K10PT
293 2203-005503 C456 0.18nF,5%,25V,NP0,TP,1005 CL05C181JANC
294 2203-005503 C457 0.18nF,5%,25V,NP0,TP,1005 CL05C181JANC
295 2203-005552 C727 0.0022nF,0.1pF,50V,NP0,TP,1005 C1005C0G1H2R2BT
296 2301-001232 C202 470pF,5%,50V,TP,2012,- ECHU1H471JX5
297 2404-001020 C117 10uF,20%,10V,GP,TP,3216,3.2 TAJA106M010R
298 2404-001020 C710 10uF,20%,10V,GP,TP,3216,3.2 TAJA106M010R
299 2404-001105 C105 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
300 2404-001105 C124 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
301 2404-001105 C145 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
302 2404-001105 C306 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
303 2404-001105 C328 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
304 2404-001105 C431 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
305 2404-001105 C535 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
306 2404-001105 C708 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
307 2404-001105 C750 10UF,20%,6.3V,GP,TP,2012 TCSCS0J106MPAR
308 2404-001134 C436 100UF,20%,6.3V,LZ,TP,4028 595D107X06R3B2T
309 2404-001134 C579 100UF,20%,6.3V,LZ,TP,4028 595D107X06R3B2T
310 2404-001162 C446 47uF,20%,4V,LZ,TP,3216 F950G476MAAJZTQ2
311 2404-001267 C249 220UF,20%,6.3V,-,TP,6032 TPSC227M006R0250
312 2703-001441 L599 5.6nH,0.3nH,1.6x0.8x0.8mm LL1608-FH5N6S
313 2703-001729 L594 1.8nH,0.3nH,1x0.5x0.5mm LL1005-FH1N8S
314 2703-001737 L595 2.7nH,0.3nH,1x0.5x0.5mm LL1005-FH2N7S
315 2703-001750 L402 2.2NH,0.3NH,1.0X0.5X0.5MM LL1005-FH2N2S
316 2703-001752 U624 39nH,5%,1.0x0.5x0.5mm LL1005-FH39NJ
317 2703-001786 L404 10NH,5%,1.0X0.5X0.5MM LL1005-FH10NJ
318 2703-001909 L606 2.2nH,0.3nH,1.6x0.8x0.8mm LL1608-FH2N2S
319 2703-001943 L600 10nH,5%,1.0x0.5x0.5mm HK1005-10NJ-T
320 2703-001950 L204 12nH,10%,1.0x0.5x0.5mm HK1005-12NK-T
321 2703-001950 L596 12nH,10%,1.0x0.5x0.5mm HK1005-12NK-T
322 2703-001952 L209 8.2nH,5%,1.0x0.5x0.5mm HK1005-8N2J-T
323 2703-001952 L211 8.2nH,5%,1.0x0.5x0.5mm HK1005-8N2J-T
324 2703-001952 L597 8.2nH,5%,1.0x0.5x0.5mm HK1005-8N2J-T
325 2703-001969 L218 8.2nH,10%,1.0x0.5x0.5mm HK1005-8N2K-T
326 2703-002267 L406 4.7NH,0.3NH,1.0X0.5X0.5MM CIH05T4N7SNC
327 2703-002308 L201 68NH,5%,1.0X0.5X0.5MM CIH05T68NJNC
328 2703-002309 L200 82NH,5%,1.0X0.5X0.5MM CIH05T82NJNC
329 2703-002314 L212 47NH,5%,1.0X0.5X0.5MM CIH05T47NJNC
330 2703-002314 L213 47NH,5%,1.0X0.5X0.5MM CIH05T47NJNC
SGH-R225 Electrical Parts List 3-8
NO SEC CODE Reference Part Description Vendor Part No.
331 2801-003856 X1 0.032768MHZ,20PPM,28-ACP,7PF,65KOHM,TP MC-146
332 2806-001266 U200 1880MHZ,-,-,TP,2.8V,- VOF1880C28KRA
333 2809-001254 U100 13MHZ,3PPM,10KOHM//10PF,TP,3V,2MA TOA1300VAI4KRA
334 2901-001230 E200 50V,0.3A,-,470PF,2.0X1.25X0.85MM,TP EMIC21B471MBNC
335 2904-001331 F200 225MHZ,-,-,TP,-,- SFH225CG001
336 2904-001334 F203 1.96GHZ,-,1930~1990MHZ/1.0DB,TP,1930~1990MHZ/2.4DB,- SFDG60WC001
337 2904-001334 F204 1.96GHZ,-,1930~1990MHZ/1.0DB,TP,1930~1990MHZ/2.4DB,- SFDG60WC001
338 2909-001164 U203 1.99GHZ,1.85GHZ,1.5/1.65DB,TP,-,- LMG002S-5029A
339 3301-001120 L602 AB,30ohm,2x1.25x0.85mm,3000mA,TP,FERRITE,0.015ohm BLM21PG300SN1D
340 3301-001362 L604 AB,1kohm,1x0.5x0.5mm,50mA,TP,FERRITE,1.5ohm BLM15AG102PN1D
341 3705-001226 CN1 MCX,JACK,75MOHM,50OHM,0.45DB KMS-157
342 3709-001088 J402 6P,2.54mm,SMD-S,AU 2-1483271-2
343 3710-001105 M1 2P,1R,1.27mm,SMD-S,AU 24-8005-002-100-867
344 3710-001595 J403 18P,1R,0.5mm,SMD-A,AUF 1004-0018-304
345 3722-001587 U400 6P,2.6PI,AG,BLK,- 02-828D0-53BKA
346 4302-001119 BAT1 3V,0.1MAH,-,-,3.1V,- RB414II06N
347 4709-001214 U622 880-915MHz,19.5+-1dB,13dB,2.0X1.25X0.7mm,TP DCS214E-0897
348 4709-001243 U623 1850-1910MHZ,14.8+-1DB,-,2X1.25X0.7MM,TP DCS214A-1880
349 GH61-00019A A200 SGH-N105,BE-CU,-,-,-,-,-,-,GLD,-,- -
3-9 SGH-R225 Electrical Parts List
3-2 Main Parts List Bottom
NO SEC CODE Reference Part Description Vendor Part No.
1 0406-001083 ZD3 -,6.1/-/7.2V,150W,SOT-323-5L ESDA6V1W5
2 0407-001002 D302 DAN222,80V,300mA,CA2-3,EM3,TP DAN222TL
3 0501-002011 Q300 2SD2114K,NPN,200mW,SOT-23,TP,8 2SD2114KT146V
4 0504-001012 U209 DTC114YE,NPN,150MW,10K/47K,EMT3,TP DTC114YE
5 0504-001058 U492 RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm,UMD6,TP RN4985(TE85L)
6 0504-001058 U493 RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm,UMD6,TP RN4985(TE85L)
7 0504-001058 U204 RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm,UMD6,TP RN4985(TE85L)
8 0601-001402 LED1 CHIP,RED/Y-GRN,1.2x1.5mm,660/570nm CL-165HR/YG-D
9 0601-001547 LED2 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
10 0601-001547 D427 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
11 0601-001547 D428 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
12 0601-001547 D429 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
13 0601-001547 D430 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
14 0601-001547 D431 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
15 0601-001547 D432 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
16 0601-001547 D433 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
17 0601-001547 D434 CHIP,BLUE,1.1X0.8MM,468NM SLS-NNBL102TS
18 1209-001379 U611 HD155173ANPEL,-,16P,-,-,3.4V,240MW,-25TO+85C,TP HD155173ANP
19 1405-001093 D411 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
20 1405-001093 D415 14V,20A,1x0.5x0.6mm,TP AVL 14K 02 200
21 2007-000139 R725 220ohm,5%,1/16W,DA,TP,1005 RC1005J221CS
22 2007-000139 R746 220ohm,5%,1/16W,DA,TP,1005 RC1005J221CS
23 2007-000139 R748 220ohm,5%,1/16W,DA,TP,1005 RC1005J221CS
24 2007-000139 R572 220ohm,5%,1/16W,DA,TP,1005 RC1005J221CS
25 2007-000139 R573 220ohm,5%,1/16W,DA,TP,1005 RC1005J221CS
26 2007-000143 R305 4.7Kohm,5%,1/16W,DA,TP,1005 RC1005J472CS
27 2007-000148 R651 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
28 2007-000148 R424 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
29 2007-000148 R427 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
30 2007-000148 R238 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
31 2007-000148 R240 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
32 2007-000148 R241 10Kohm,5%,1/16W,DA,TP,1005 RC1005J103CS
33 2007-000162 R304 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
34 2007-000162 R422 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
35 2007-000162 R423 100Kohm,5%,1/16W,DA,TP,1005 RC1005J104CS
36 2007-000172 R740 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
37 2007-000172 R741 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
38 2007-000172 R742 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
39 2007-000172 R743 10ohm,5%,1/16W,DA,TP,1005 RC1005J100CS
40 2007-000932 R574 470ohm,5%,1/16W,DA,TP,1005 RC1005J471CS
41 2007-000932 R745 470ohm,5%,1/16W,DA,TP,1005 RC1005J471CS
42 2007-000932 R747 470ohm,5%,1/16W,DA,TP,1005 RC1005J471CS
SGH-R225 Electrical Parts List 3-10
NO SEC CODE Reference Part Description Vendor Part No.
43 2007-000982 R624 5.6Kohm,5%,1/16W,DA,TP,1005 RC1005J562CS
44 2007-001217 R628 82ohm,5%,1/16W,DA,TP,1005 RC1005J820CS
45 2007-001217 R629 82ohm,5%,1/16W,DA,TP,1005 RC1005J820CS
46 2007-001305 R625 120ohm,5%,1/16W,DA,TP,1005 RC1005J121CS
47 2007-001311 R681 270ohm,5%,1/16W,DA,TP,1005 RC1005J271CS
48 2007-001313 R679 330ohm,5%,1/16W,DA,TP,1005 RC1005J331CS
49 2007-001313 R680 330ohm,5%,1/16W,DA,TP,1005 RC1005J331CS
50 2007-007142 R618 10Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF103X
51 2007-007142 R617 10Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF103X
52 2007-007311 R626 22Kohm,1%,1/16W,DA,TP,1005 ERJ2RKF2202X
53 2203-000233 C658 0.1nF,5%,50V,NP0,TP,1005 CM05CG101J50AH
54 2203-000311 C657 0.12nF,5%,50V,NP0,TP,1005 CM05CG121J50AH
55 2203-000438 C720 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
56 2203-000438 C270 1nF,10%,50V,X7R,TP,1005,- CM05X7R102K50AH
57 2203-000654 C585 270pF,10%,50V,X7R,TP,1005,- CM05X7R271K50AH
58 2203-000654 C655 270pF,10%,50V,X7R,TP,1005,- CM05X7R271K50AH
59 2203-000679 C713 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
60 2203-000679 C665 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
61 2203-000679 C267 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
62 2203-000679 C269 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
63 2203-000679 C767 0.027nF,5%,50V,NP0,TP,1005 CM05CG270J50AH
64 2203-000854 C723 0.039nF,5%,50V,NP0,TP,1005 CM05CG390J50AH
65 2203-000854 C724 0.039nF,5%,50V,NP0,TP,1005 CM05CG390J50AH
66 2203-000995 C661 0.047nF,5%,50V,NP0,TP,1005 CM05CG470J50AH
67 2203-001017 C716 0.004nF,0.25pF,50V,NP0,TP,1005 CM05CG4R0C50AH
68 2203-001017 C759 0.004nF,0.25pF,50V,NP0,TP,1005 CM05CG4R0C50AH
69 2203-001017 C760 0.004nF,0.25pF,50V,NP0,TP,1005 CM05CG4R0C50AH
70 2203-005061 C308 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
71 2203-005061 C418 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
72 2203-005061 C419 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
73 2203-005061 C420 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
74 2203-005061 C421 100nF,+80-20%,16V,Y5V,TP,1005 CM05Y5V104Z16AH
75 2203-005065 C411 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
76 2203-005065 C412 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
77 2203-005065 C415 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
78 2203-005065 C417 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
79 2203-005065 C422 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
80 2203-005065 C490 1000nF,+80-20%,10V,Y5V,TP,1608 CL10F105ZONC
81 2203-005444 C404 0.003nF,0.1pF,50V,NP0,TP,1005 CL05C030BBNC
82 2703-001986 L408 33nH,5%,1.0x0.5x0.5mm MLK1005S33NJT
83 2703-001986 L409 33nH,5%,1.0x0.5x0.5mm MLK1005S33NJT
84 3002-001098 BUZ300 94dB,3V,150mA,2700Hz,TP BRT-03S
3-11 SGH-R225 Electrical Parts List
SIM CARD
BB INTERFACE
Serial Data
Interface
Battery
SGH-R225 Block Diagrams
Type
4-1 Main Baseband
VIBRATOR I/O
Interface
MIC Battery
Voltage
4. Block Diagrams
A/D Battery
SPEAKER
Interface Temperature
ONE C
RF INTERFACE
SYSTEM CLOCK 3VTX
(13MHz)
AGC,AFC
XVCC
SRAM
PLL 3VRF
Li-Ion Battery
FLASH (Slim, Standard
Long)
VDD 3.0
LOAD
EEPROM AVCC 2.5
SWITCH
Charging
RTC_CLOCK DVCC 2.5
Circuit
(32.768KHz)
KEYPAD
LCD ALERT_VCC
4-1
4-2
C212
4-2 Main RF
EGSM L200
F204
925~960 MHz LC
(CH62 : 947.4 MHz) Filter
LNA F200
2nd Mixer 2 IRXP
Dual IF IRXN
PCS I&Q
SAW Mixer 1 SAW PGA
Demod. QRXP
1930~1990 MHz 45 MHz
Filter Filter
(CH661 : 1960 MHz) QRXN
LNA 225 MHz
SYNTHDATA
Serial data SYNTHCLOCK
Interface AGCLE
Bias
Circuit 45 MHz
F203
1st 270 MHz
Dual SAW 90 deg RXEN1
Filter EGSM : 1150 ~ 1185 MHz Shift
SI4133-XM2 PCS : 1705 ~ 1765 MHz(Rx)
HD155128TF 1/2
(U478) RF VCO 1715 ~ 1775 MHz(Tx)
(U454)
1/2
PLL1 VP40553-2
1/6 (U618)
RF Antenna PLL2 1/2
Conector S/W DCS : 270 MHz
IF VCO 90 deg
(CN1) (U203) 1080 MHz TXEN1
Shift
EGSM : 540 MHz 1/2
VCTCXO
(13MHz)
(U100)
DGSM : 270 MHz
EGSM : 270 MHz DCS : 135 MHz
PCS Dual PAM DCS : 135 MHz
TX VCO
1850 ~ 1910 MHz (U476)
(U200)
(CH661 : 1880 MHz)
Coupler ITXP
(U623)
Loop Phase I&Q ITXN
EGSM Filter Detector Mod.
880 ~ 915 MHz QTXP
(CH62 : 902.4 MHz) QTXN
Coupler
(U622)
APCIC (U611)
SGH-R225 Block Diagrams
SI4133-XM2
(U478) RF VCO
10 47 GSM : 1150 ~ 1185 MHz
PLL1
PCS : 1705 ~ 1765 MHz(Rx)
1715 ~ 1775 MHz(Tx)
2
SGH-R225 Block Diagrams
PLL1 RF VCO
SI4133-MLP28 10 47 GSM : 1150 ~ 1185 MHz
RF
PLL2 PCN : 1575 ~ 1650 MHz (Tx)
Conector U302 VP40553-2
23 30
(CN1) IF VCO 1080 MHz
1080 MHz U108
3 PLL2
Antenna U618
8 VCTCXO 23 30 VP40575
S/W 540 MHz
4-2-1 RF Transmit Part
(13MHz)
U203 (U100)
Antenna
2 15 IF VCO
S/W 1080MHz HD155128TF
5 2 11 38 1
U304 3 VCTCXO TXEN1
AFCDAC
U454 2
13MHz RAMPDAC
U305 35
13 4 14 11 7 U303 38 BAND Selection
1
PCS 11 TXEN - GSM : Low
EGSM 1850 ~ 1910 MHz - 2
RAMPDAC DCS : High
880 ~ 915 MHz 35
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
