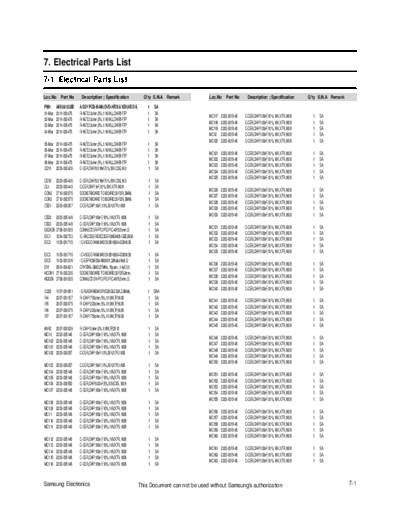

7. Electrical Parts List
7-1 Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
P001 AK92-01363B ASSY PCB-MAIN;DVD-HR755/XEH,HDD & 1 SA
01-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC117 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
02-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC118 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
03-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC119 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
04-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC120 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
05-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
06-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC121 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
07-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC122 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
08-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA
MC123 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CDY1 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G,160 1 SA
MC124 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC125 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CDY2 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G,160 1 SA
CL1 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
MC126 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CON2 3710-002075 SOCKET-BOARD TO BOARD;30P,2R,2MM, 1 SA
MC127 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CON3 3710-002075 SOCKET-BOARD TO BOARD;30P,2R,2MM, 1 SA
MC128 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CSD1 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
MC129 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC130 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CSD2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
CSD3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC131 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
DECKCN 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5mm,S 1 SA
MC132 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
DIC1 1204-002733 IC-ENCODER/DECODER;MS9405-CBZ,BGA 1 SA
MC133 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
DIC2 1105-001715 IC-VIDEO RAM;M13S128168,K4D261638 1 SA
MC134 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC135 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
DIC3 1105-001715 IC-VIDEO RAM;M13S128168,K4D261638 1 SA
DIC5 1103-001218 IC-EEPROM;524AB0X91,32Kbit,4Kx8,S 1 SA
MC136 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
DY1 2801-004621 CRYSTAL-SMD;27MHz,15ppm,-,14pF,30 1 SA
MC137 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
HCON1 3710-002326 SOCKET-BOARD TO BOARD;30P,2R,2mm, 1 SA
MC138 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
HDDCN 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5mm,S 1 SA
MC139 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC140 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
IC203 1107-001681 IC-FLASH MEMORY;S29GL032A,32Mbit, 1 SNA
IR4 2007-001157 R-CHIP;750ohm,5%,1/10W,TP,1608 1 SA
MC141 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
IR5 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
MC142 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
IR6 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
MC143 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
IR7 2007-001157 R-CHIP;750ohm,5%,1/10W,TP,1608 1 SA
MC144 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC145 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
KAR2 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
MC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC146 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC100 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC147 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC101 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC148 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC102 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
MC149 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC150 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC103 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA
MC104 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC151 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC152 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC106 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1608 1 SA
MC153 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC107 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC154 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC155 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC109 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC156 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC157 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC110 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC158 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC159 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC160 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC112 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC113 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC161 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC114 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC162 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC115 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC163 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC116 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
Samsung Electronics This Document can not be used without Samsung's authorization 7-1
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
MC164 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC224 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC165 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC225 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC166 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC167 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC168 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MC169 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MCK1A 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
MC170 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME1 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MC171 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME2 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MC172 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME70 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MC173 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME72 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MC174 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME74 2402-001086 C-AL,SMD;100UF,20%,16V,WT,TP,6.6X 1 SA
MC175 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME80 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MC176 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME81 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MC177 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME85 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4 1 SA
MC178 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
ME87 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4 1 SA
MC179 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MPR1 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MC180 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MPR3 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MC181 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MPR4 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
MC182 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MPR5 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MC183 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MPR6 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MC184 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR100 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC185 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR101 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC186 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR102 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC187 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR103 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC188 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR104 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC189 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR106 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC190 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR111 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC191 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR113 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC192 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC193 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR115 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC194 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR116 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC195 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR117 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC196 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR118 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC197 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR119 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC202 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR120 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC203 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
MR122 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC205 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR123 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC206 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR124 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC207 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR125 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC208 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR131 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC209 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR132 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC210 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR191 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
MC211 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC212 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,16 1 SA
MR300 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
MC213 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR301 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
MC214 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR304 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC215 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR309 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
MC216 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR310 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MC217 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR311 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
MC218 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR312 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA
MC219 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR322 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
MC221 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR324 3301-001309 BEAD-SMD;47ohm,1608,TP,-,- 1 SA
MC222 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
MR332 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MC223 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
7-2 This Document can not be used without Samsung's authorization Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
MR338 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
PL2 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MR339 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
PL3 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
MR342 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
PR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR343 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
PR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR344 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR13 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR345 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
PR14 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR346 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
PR15 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR355 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR358 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PR17 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR359 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PR18 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
MR364 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
PR19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR365 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
PR2 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 SA
MR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PR20 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
MR400 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR401 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR22 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
MR402 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR23 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR403 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR24 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
MR404 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR25 2007-001056 R-CHIP;6.2Kohm,5%,1/10W,TP,1608 1 SA
MR405 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR26 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
MR406 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR27 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,1608 1 SA
MR407 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR28 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR450 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
PR29 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR451 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR452 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR30 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 SA
MR5 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
PR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR500 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
PR6 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR501 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
PR7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR502 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PR8 2007-000381 R-CHIP;13Kohm,5%,1/10W,TP,1608 1 SA
MR503 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PR9 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR504 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PX1 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AA 1 SA
MR505 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR701 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR702 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R102 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
MRK2 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
R70 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
MROP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R71 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R72 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R73 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC11 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,160 1 SA
R74 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC13 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,160 1 SA
R75 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R76 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R77 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R78 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R79 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
R97 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC3 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP 1 SA
R98 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC4 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP 1 SA
R99 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
PC5 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP 1 SA
RB10 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC6 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP 1 SA
RB11 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
RC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
PC8 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
RC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
PC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
RC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
PE1 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
RC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
PE2 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4. 1 SA
RC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
PIC1 1205-001988 IC-DATA COMM./GEN.;TSB41AB1-PAP,Q 1 SA
RC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
PL1 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP,,,0 1 SA
Samsung Electronics This Document can not be used without Samsung's authorization 7-3
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
RCP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VC41 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V, 1 SA
RCP2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VC5 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
RCP3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VC7 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
RE1 2402-001237 C-AL,SMD;330uF,##20%,6.3V,-,REEL, 1 SA
VC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
RE2 2402-001237 C-AL,SMD;330uF,##20%,6.3V,-,REEL, 1 SA
VC9 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
RE3 2402-001237 C-AL,SMD;330uF,##20%,6.3V,-,REEL, 1 SA
VE1 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
RE4 2402-001237 C-AL,SMD;330uF,##20%,6.3V,-,REEL, 1 SA
VE2 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA
RE7 2402-001237 C-AL,SMD;330uF,##20%,6.3V,-,REEL, 1 SA
VE3 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
REC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VE4 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
REC3 2402-001237 C-AL,SMD;330uF,##20%,6.3V,-,REEL, 1 SA
VE5 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA
REC4 2402-000204 C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4 1 SA
VE6 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA
RH10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VE7 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA
RH11 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VE8 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x 1 SA
RH12 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VE9 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x 1 SA
RH29 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VIC1 1204-002726 IC-VIDEO DECODER;SAA7138GHL,LQFP, 1 SA
RH32 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VQ01 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA
RH33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VR1 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm/70 1 SA
RIC1 1203-003628 IC-POSI.FIXED REG.;G9966-18TGU,TO 1 SA
VR12 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
RIC2 1203-003627 IC-POSI.FIXED REG.;G9965-25TGU,TO 1 SA
VR13 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
RIC3 1203-003806 IC-POSI.ADJUST REG.;KIA78R000,DPA 1 SA
VR14 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
RIC4 0801-002701 IC-CMOS LOGIC;74VHCT125A,BUFFER,T 1 SA
VR15 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
RR5 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
VR19 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,1608 1 SA
VC1 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR2 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
VC10 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR20 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
VC12 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR21 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
VC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR22 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
VC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR24 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
VC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR25 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
VC16 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR26 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VC17 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR28 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VC18 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VC20 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR34 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
VC21 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR35 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VC22 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR36 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VC23 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR37 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR38 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm/70 1 SA
VC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR39 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC26 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA
VR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VC27 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,160 1 SA
VR40 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR41 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR42 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC3 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
VR43 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR44 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR45 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR46 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR47 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
VC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR48 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
VC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR49 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
VC37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR5 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
VC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR50 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
VC39 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V, 1 SA
VR51 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
VC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
VR54 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
VC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SA
7-4 This Document can not be used without Samsung's authorization Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
VR55 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
F1P01 3601-001127 FUSE-RADIAL LEAD;250V,3.15A,TIME- 1 SA
VR56 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
F1S01 3601-000237 FUSE-CARTRIDGE;250V,2A,SLOW-BLOW, 1 SA
VR57 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm/70 1 SA
FANCON 3711-003942 HEADER-BOARD TO CABLE;BOX,2P,1R,2 1 SA
VR58 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm/70 1 SA
IC1P01 1203-002183 IC-SWITCH VOL. REG.;278R12,TO-220 1 SA
VR59 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,-,TP 1 SA
IC1P02 1203-002183 IC-SWITCH VOL. REG.;278R12,TO-220 1 SA
VR6 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
IC1P03 AC14-12006D IC;KA431Z,TO-92,TAPING 1 SA
VR60 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 SA
IC1P05 AC14-12006N IC-VOLT REGU;KA78R12,SIP,STICK 1 SA
VR61 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 SA
IC1S01 1203-002805 IC-PWM CONTROLLER;ICE2BS01,PDIP,8 1 SA
VR62 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
IC1S02 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DI 1 SA
VR63 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
IC1S03 AC14-12006D IC;KA431Z,TO-92,TAPING 1 SA
VR7 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
L1S01 AC29-30050B FILTER LINE NOISE;-,400uH,-,AC250 1 SA
VR8 2007-000659 R-CHIP;27OHM,5%,1/10W,TP,1608 1 SA
L1S02 AC29-00002A FILTER LINE NOISE;-,30mH,-,-,BLF- 1 SA
VXS01 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AA 1 SA
PCN1 3710-002036 SOCKET-BOARD TO BOARD;12P,1R,2.5m 1 SA
PCN2 3710-002036 SOCKET-BOARD TO BOARD;12P,1R,2.5m 1 SA
PCNS6 3711-000240 HEADER-BOARD TO CABLE;1WALL,4P,1R 1 SA
P003 AK92-01364A ASSY PCB-SMPS;DVD-HR755/XEG,HDD & 1 SA
PPLD1 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R200 1 SA
BD1S01 0402-001608 DIODE-BRIDGE;GBJ2J,600V,2A,SIP-4, 1 SA
PPLD2 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R200 1 SA
C1P01 2401-004141 C-AL;33uF,20%,35V,GP,TP,6.3x7mm,5 1 SA
PT01 AC26-00014R TRANS SWITCHING-DVD-HR730;EER3534 1 SA
C1P02 2401-004141 C-AL;33uF,20%,35V,GP,TP,6.3x7mm,5 1 SA
Q1P01 0505-001522 FET-SILICON;FQP33N10,N,100V,33A,5 1 SA
C1P03 2401-004141 C-AL;33uF,20%,35V,GP,TP,6.3x7mm,5 1 SA
Q1P02 0505-001522 FET-SILICON;FQP33N10,N,100V,33A,5 1 SA
C1P06 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 1 SA
Q1P03 0505-001522 FET-SILICON;FQP33N10,N,100V,33A,5 1 SA
C1P07 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 1 SA
Q1S01 0505-001729 FET-SILICON;SPA04N60C3,N,600V,4.5 1 SA
C1S01 2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U 1 SA
R1P01 2001-000855 R-CARBON;560OHM,5%,1/4W,AA,TP,2.4 1 SA
C1S02 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V,Y5P 1 SA
R1P02 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA
C1S03 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V,Y5P 1 SA
R1P03 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA
C1S04 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK,17. 1 SA
R1P04 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA
C1S05 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK,17. 1 SA
R1P05 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8 1 SA
C1S06 2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U 1 SA
R1P06 2001-000904 R-CARBON;620OHM,5%,1/8W,AA,TP,1.8 1 SA
C1S10 2401-003842 C-AL;100uF,20%,450V,WT,BK,25.4X25 1 SA
R1P07 2003-000458 R-METAL OXIDE(S);100ohm,5%,2W,AF, 1 SA
C1S11 2305-001029 C-FILM,LEAD-PEF;10nF,10%,630V,TP, 1 SA
R1P09 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8 1 SA
C1S12 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1000V,Y5 1 SA
R1P10 2003-000458 R-METAL OXIDE(S);100ohm,5%,2W,AF, 1 SA
C1S13 2401-002438 C-AL;47##F,20%,50V,WT,TP,6.3x11,5 1 SA
R1S01 2002-000121 R-COMPOSITION;1Mohm,10%,1/2W,AA,T 1 SA
C1S14 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
R1S10 1404-001361 THERMISTOR-NTC;3ohm,4A,-,35mW/C,0 1 SA
C1S15 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x 1 SA
R1S11 2006-000273 R-CEMENT;27KOHM,5%,2W,CA,BK,6.4X6 1 SA
C1S16 2401-004141 C-AL;33uF,20%,35V,GP,TP,6.3x7mm,5 1 SA
R1S12 2006-000273 R-CEMENT;27KOHM,5%,2W,CA,BK,6.4X6 1 SA
C1S30 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5 1 SC
R1S13 2001-000546 R-CARBON;270KOHM,5%,1/4W,AA,TP,2. 1 SA
C1S31 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA
R1S14 2001-000546 R-CARBON;270KOHM,5%,1/4W,AA,TP,2. 1 SA
C1S32 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA
R1S15 2001-000546 R-CARBON;270KOHM,5%,1/4W,AA,TP,2. 1 SA
C1S33 2401-003390 C-AL;2200uF,20%,16V,LZ,TP,13x31.5 1 SA
R1S16 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8 1 SA
C1S34 2401-003390 C-AL;2200uF,20%,16V,LZ,TP,13x31.5 1 SA
R1S17 2001-000894 R-CARBON;6.8ohm,5%,1/8W,AA,TP,1.8 1 SA
C1S35 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA
R1S18 2001-001006 R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X 1 SA
C1S36 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,1 1 SA
R1S19 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1. 1 SA
C1S37 2401-003499 C-AL;330uF,20%,16V,LZ,TP,8x11.5mm 1 SA
R1S20 2003-000105 R-METAL OXIDE;0.33ohm,5%,2W,AD,TP 1 SA
CN1S01 3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P 1 SA
R1S21 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X 1 SA
D1P03 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5 1 SA
R1S22 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA
D1P12 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5 1 SA
R1S30 2001-000062 R-CARBON;470OHM,5%,1/4W,AA,TP,2.4 1 SA
D1P13 0401-000101 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA
R1S31 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1. 1 SA
D1S01 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO- 1 SA
R1S32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA
D1S02 0401-000101 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA
R1S33 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3 1 SA
D1S03 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA
R1S34 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8 1 SA
D1S30 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA
VA1S01 1405-000186 VARISTOR;470V,2500A,17.5x7.5mm,TP 1 SA
D1S31 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,-,TP 1 SA
VA1S02 1405-001026 VARISTOR;470V,600A,9x7mm,TP 1 SA
D1S32 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,-,TP 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
D1S33 0402-001600 DIODE-RECTIFIER;MBRF20100CT,100V, 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
D1S34 0402-001600 DIODE-RECTIFIER;MBRF20100CT,100V, 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
Samsung Electronics This Document can not be used without Samsung's authorization 7-5
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
P022 AK92-01362A ASSY PCB-JACK;DVD-HR755/XEG,HDD & 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
AC1 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC( 1 SA
AC11 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,160 1 SA
ZD1P01 0403-000390 DIODE-ZENER;UZP33B,31.4-34.6V,100 1 SA
AC12 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,160 1 SA
ZD1S01 0403-000713 DIODE-ZENER;MTZJ20B,18.63-17.7V,5 1 SA
AC2 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,160 1 SA
ZD1S02 0403-001318 DIODE-ZENER;MTZJ4.3B,4.17-4.43V,5 1 SA
AC3 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 SA
AC4 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 SA
AC5 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA
ACN5 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25mm, 1 SA
P005 AK92-01365A ASSY PCB-FUNCTION;DVD-HR755,HDD & 1 SA
AE2 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AC6 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V, 1 SA
AC7 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V, 1 SA
AE24 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
AC8 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V, 1 SA
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
