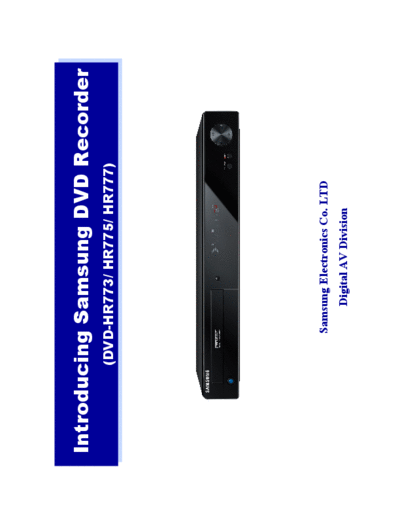

Image preview - the first page of the document



>> Download samsung_dvd-hr773_hr775_hr777_training_manual documenatation <<

Text preview - extract from the document

Introducing Samsung DVD Recorder
 Introducing Samsung DVD Recorder
       (DVD-HR773/ HR775/ HR777)
        (DVD-HR773/ HR775/ HR777)




           Samsung Electronics Co. LTD
               Digital AV Division
What is SEC's DVD-HR773?


             Digital A/V system for video playing & recording
             Digital A/V system for video playing & recording
                   using optical disc as the medium format
                    using optical disc as the medium format



                                       Optical Medium and HDD
    High-quality Recording
                                               Recording
                                       Digital recording by an optical
    High picture and sound quality
                                       medium and HDD format allows
   recording capability comparing
                                      random access capability and easy
   with analog medium recording
                                      & convenient recording
   systems




                                                                          2
 Samsung HDD-DVD Recorder
 General Introduction

t Model No : DVD-HR773, HR775, HR777

 Characteristics

 1. Super picture & sound quality recording with MPEG-2(VBR) on DVD-R/+R/-RW/+RW
 /RAM/HDD    compatible with A/V & PC

 2. Convenient control through random accessibility of HDD disc
      - One touch recording : Automatic empty area recording
      - High Speed Search and Play

 3. Qui ck dubbi ng : W t h t he qui ck dubbi ng f unct i on, dat a t r ans f er f r om
                          i
 HDD t o DVD Di s c i s f as t er t han ever

 4. Advanced playback functions for multiple purposes

 (Compatible with DVD, Audio-CD, CD-R/RW(MP-3,MPEG4), DVD-R/+R/-RW/+RW, HDD
 Disc)
                                                                               3
 5. USB host port provides compatible with USB devices(MP3P,DSC, PMP, Card Reader).
DVD-HR773 Playback & other Features


  Progressive Scan
   By scanning all 576 lines(PAL) in one pass,
   progressive scanning provides high vertical
   resolution and flicker-free, high-density image
   output that does not suffer from the loss of
   quality during subject movement -- which is
   characteristic of the conventional interlaced
   scanning method.                                  25 Frame/Sec          50 Frame/Sec


  Program Navigator

  Recorded programs are shown as thumbnail pictures, and information
  such as title, recording dates and times are displayed on menu screen.
  User can choose a desired program.
  Editing
   Simple non-linear editing is possible on menu screen without additional editing
   system. User can delete part of a program or entire program, and edit program title.
                                                                                          4
Assembly
DVD-HR773 consists of Deck, Main PCB, Jack PCB, SMPS PCB,
PCB,FRONT PCB, HDD,DECK, Top, Bottom, Panel Ass'y.


                                   MAIN PCB
    Power Cord

                     SMPS PCB
                                              TOP COVER

      FRONT PCB
                                JACK PCB



DECK(LOADER)

                       BOTTOM
                                       HDD



               FRONT PANNEL
   Di s as s em y and Reas s em y
                  bl           bl
   pr oces s oval
. Top Cabi net Rem

. As s ' y Fr ont - Cabi net Removal

. Har d Di s k Removal

. As s ' y Deck- >Mai n PCB - > S. M. P. S. PCB Removal
  - > FRONT AV PCB - > JACK PCB
Supplide Accessary
: DVD-HR773 supply below accessary
Specifications
DVD-HR773 Key Features
   Recording Features
         MPEG-2 VBR(Variable Bit Rate) Recording
         Creating a DVD video title using DVD-RW/+RW/-R/+RW/RAM
         One-Touch Recording
         Automated Quality Adjustment for Timer Recording
         Copying data from a digital camcorder using a DV input jack
         Selectable Recording Mode

   Playing Features

         Progressive Scan
         Program Navigation

   Other Features
         HDMI CEC(Anynet+) control
           USB hos t cont r ol                                         9
1. Overall block diagram
2. Wiring diagram
3. B/E DIGITAL Board H/W I nt er f ace
4. Fr ont - Mi com I nt er f ace
