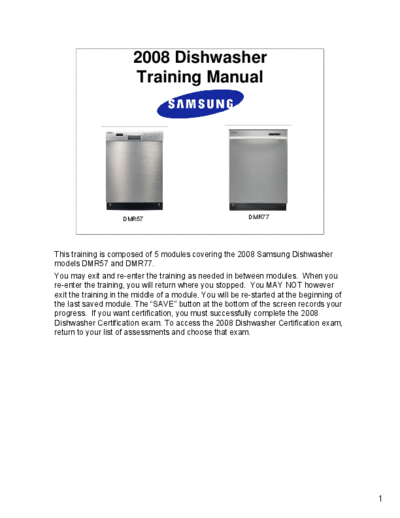

                       2008 Dishwasher
                       Training Manual




                    DMR57                                 DMR77




This training is composed of 5 modules covering the 2008 Samsung Dishwasher
models DMR57 and DMR77.
You may exit and re-enter the training as needed in between modules. When you
re-enter the training, you will return where you stopped. You MAY NOT however
exit the training in the middle of a module. You will be re-started at the beginning of
the last saved module. The "SAVE" button at the bottom of the screen records your
progress. If you want certification, you must successfully complete the 2008
Dishwasher Certification exam. To access the 2008 Dishwasher Certification exam,
return to your list of assessments and choose that exam.




                                                                                          1
Total Kitchen Design




                       2
                   Model Number Nomenclature




                                                     Buyer Code




For 2008 there are two styles of dishwasher, a sleek front or traditional front design.
The units are offered in three different color choices




                                                                                          3
                                       Quietness
         Problem - Washing dishes can be noisy,
         especially in the evening and when
         watching TV. Most of the noise is from
         the motor on the bottom and the water
         spraying system. Samsung has two
         technologies for the insulation of those
         areas.
         Solution - Provides one of the lowest
         noise levels in it's class at 51dBA.
         How it Works - Through tight isolation of
         the pump and a 6-layer Door insulation
         system
         The front door panel has a unique 6-layer
         insulation system which dampens the
         noise from water spray. (Stainless Steel
         inner door-Asphalt-Felt-Air-Felt-Outer
         Door)




Washing dishes can be noisy, especially in the evening or when watching TV. Most
of the noise is from the motor on the bottom and the water spraying system.
Samsung employs two technologies to reduce the sound. The water pump is tightly
isolated and the door uses a 6 layer insulation system.




                                                                                   4
                            Hidden Dryer Element


        Problem - Exposed heating elements at
        the bottom of the tub can directly contact
        plastics, melting them. Also, potential
        burn hazard picking up small items right
        after the cycle is finished.
        Solution - The heating element is hidden
        below the all-stainless tub. This
        eliminates the possibility of accidentally
        touching the element when hot. Also,
        this structure provides a better
        appearance for the dishwasher.




Exposed heating elements at the bottom of the tub can directly contact plastics,
melting them. To reduce this problem the heating element is hidden below the all-
stainless tub. This also eliminates the possibility of accidentally touching the
element when hot.




                                                                                    5
                              Food Residue




Some dishwashers leave heavy residue from dishes in a "catch", which must be
manually cleaned. Samsung uses a hard food disposer with a triple filtration system.
This is connected to a built in garbage disposal. This reduces the residue that
builds up in the bottom of the dishwasher.




                                                                                       6
                                Loading Flexibility


        Problem - Afraid to wash delicate items like
        wine glasses? Can't fit those new larger 14"
        plates under the top rack?
        Solution - Tilted Rack
        With tilted rack system, more space is
        provided to give you infinite freedom to load
        extra, even odd-sized items. It even easily
        accommodates large 14
