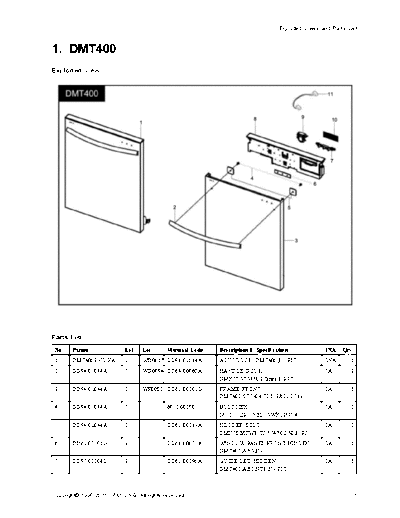

Image preview - the first page of the document
ZysBj1-Exploded_View_Parts_List(map)


>> Download ZysBj1-Exploded_View_Parts_List(map) documenatation <<

Text preview - extract from the document
                                                                                  Exploded Views and Parts List



1. DMT400
Exploded View




Parts List
 No.   Parent              Lvl.   Loc.     Material Code   Description & Specification             SNA   Qty.
 1     DMT400RHS/XAC 1            WD0017 DD94-01044A       ASSY-DOOR; DMT400,R3-PJT                SNA      1
 2     DD94-01044A         2      WD0094 DD64-00060A       HANDLE-DOOR;                            SA       1
                                                           DMR78,STS430,1.0mm,R-PJT
 3     DD94-01044A         2      WF0082 DD61-00201G       FRAME-FRONT;                            SA       1
                                                           DMT400,STS304,T0.8,W601,L743
 4     DD94-01044A         2               6011-001805     BOLT-HEX;                               SA       2
                                                           M5,L15,ZPC(YEL),SWRCH18A
 5     DD94-01044A         2               DD61-00243A     HOLDER-BOLT;                            SA       2
                                                           DMR78,MSWR,T2.5,W50,L50,R-PJ
 6     DD61-00201G         3               DD64-00075A     WINDOW-PANEL FRONT HIDDEN;              SA       1
                                                           DMT400,ABS,R3-
 7     DD97-00104C         3               DD61-00296A     GUIDE-LED HIDDEN;                       SA       1
                                                           DMT400,ABS,NTR,R3-PJT
