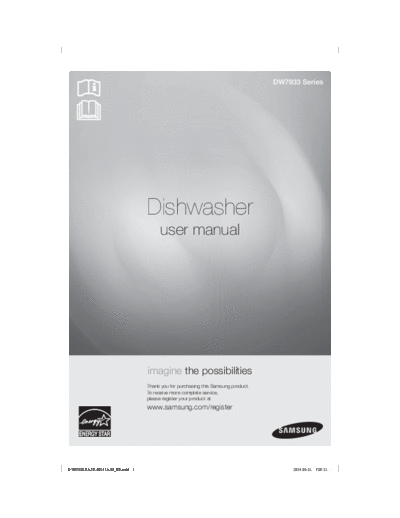

Image preview - the first page of the document
>> Download DW7933LRASR-00141A-03_EN_CFR_MES documenatation <<
Text preview - extract from the document
DW7933 Series
Dishwasher
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
DW7933LRASR-00141A-03_EN.indd 1 2014-03-31 7:29:21
Features of your new
samsung dishwasher
Your new Samsung Dishwasher will change the way you feel about doing
dishes. From its extra large capacity to its energy efficiency, your new Samsung
dishwasher has all the features to make your chores much less mundane.
1. Extra large capacity
The upper rack is slanted for larger dishes. The space has been maximized to accommodate
a variety of dish sizes.
2. Increased convenience
The smart auto cycle determines the level of soil on the dishes and initiates the optimal cycle
for cleaning. Use this feature to save water, energy, and time.
3. Extremely quiet operation
Efficient noise control technology gives you the quietest possible operation. Your new
Samsung dishwasher is quieter than ever.
4. Self-cleaning filter
This product keeps food waste internally while operating, then drains it automatically with the
water.
5. Smart digital leakage sensor
Samsung dishwasher is equipped with a unique digital leakage sensor designed to detect
even the smallest traces of water. Located below the dishwasher, the sensor immediately
shuts off the electrical connection after detecting a leak saving you from the expensive
aftermath of a water-related emergency.
This manual contains important information regarding the use and care of your new Samsung
dishwasher. Refer to it for descriptions of the control panel, instructions on how to use the
dishwasher, and tips for making the most of its state-of-the-art features and technologies. The
"Cycle chart" on page 22 offers an overview of the different cycles and the "Troubleshooting"
section on page 23 tells you what to do if something goes wrong.
2_ Features of your new samsung dishwasher
DW7933LRASR-00141A-03_EN.indd Sec9:2 2014-03-31 7:29:25
Safety information
Throughout this manual, you'll see Warning and Caution notes. These
important safety instructions do not cover all possible situations that might
occur.
It is your responsibility to use caution when installing, maintaining, and operating
your dishwasher. Samsung will not be liable for damages resulting from improper
use.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this user manual mean:
Hazards or unsafe practices that may result in severe personal injury or
death.
WARNING
Hazards or unsafe practices that may result in personal injury or property
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your dishwasher, follow these basic safety precautions:
CAUTION
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
WARNING - When using the dishwasher, follow basic precautions, including the
following:
Read all instructions before using the dishwasher.
As with any equipment using electricity, water, and moving parts, potential hazards exist.
Use the dishwasher only for its intended function.
Use only detergents or wetting agents recommended for use in a dishwasher, and keep
them out of the reach of children.
When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal, and
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.
For plastic items not so marked, check the manufacturer's recommendations.
Do not touch the HEATING ELEMENT during or immediately after use.
SAVE THESE INSTRUCTIONS
Safety information _3
DW7933LRASR-00141A-03_EN.indd Sec1:3 2014-03-31 7:29:25
Safety information
Do not operate the dishwasher unless all ENCLOSURE panels are properly in place.
Do not tamper with the controls.
Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
To reduce the risk of injury, do not allow children to play in or on the dishwasher.
To reduce the risk of fire or explosion:
- Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a period, before using the dishwasher turn
on all hot water faucets and let the water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use
an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
After unpacking the dishwasher, keep the packaging out of the reach of children.
The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by
yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.
Do not install the dishwasher near electrical components. Keep the dishwasher away from
open flames.
Install and level your dishwasher on an uncarpeted floor that can support its weight.
Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
See page 8 for more information on grounding your dishwasher.
Connect the ground wire to the green ground connector in the terminal box.
After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may cause
property damage.
The water supply line is susceptible to breakage. As time goes by, it becomes less flexible.
Check the line periodically. If it is swollen, torn, cut or there is a water leak, replace it
immediately.
To safely operate this appliance, familiarize yourself with its operations and exercise care
when using it.
Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not
wash dishes exposed to these materials.
Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the
detergent come into contact with your skin and eyes.
Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.
SAVE THESE INSTRUCTIONS
4_ Safety information
DW7933LRASR-00141A-03_EN.indd Sec1:4 2014-03-31 7:29:25
Do not allow children to play in or on the dishwasher. They may harm themselves or
damage the dishwasher.
Disconnect the power cable (or disconnect the circuit breaker) before servicing your
dishwasher.
Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs
and modifications are permitted by authorized service technicians only. Work done by an
unauthorized person may void your warranty.
Before disposing of your dishwasher, remove the door of the washing compartment or the
door latch so that children or small animals do not get trapped inside.
If the dishwasher is left unused for an extended period of time, turn off the water supply.
This dishwasher is intended for residential use only.
BEFORE USING YOUR DISHWASHER
WARNING
WARNING
Tip-Over Hazard
- Do not use the dishwasher until it is correctly installed.
- Do not push down on an open door.
- Do not place excessive weight on the open door.
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
- Electrically ground the dishwasher
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.
State of California Proposition 65 Warnings:
WARNING
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the State of California to cause cancer,
birth defects, or other reproductive harm, and requires businesses to warn of potential
exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm. This appliance can cause low-level exposure to some
of the substances listed, including benzene, formaldehyde, and carbon monoxide.
SAVE THESE INSTRUCTIONS
Safety information _5
DW7933LRASR-00141A-03_EN.indd Sec1:5 2014-03-31 7:29:25
Contents
SETTING UP YOUR DISHWASHER 7 Unpacking your dishwasher
7
7 Checking parts
8 Meeting installation requirements
USING YOUR DISHWASHER 9 Control panel
9
11 Progress lights
11 Display
11 Cycle selector
12 Basic guidelines
14 Removing the plate support
14 Adjusting the angle of the plate supports
15 Adjusting the height of the upper rack
15 Removing the upper rack
16 Loading the lower rack
16 Loading the upper rack
17 Using the cutlery basket
18 Using the dispenser
CLEANING AND MAINTAINING YOUR 20 Cleaning the exterior
DISHWASHER 20 Cleaning the interior
20
20 Cleaning the nozzles
21 Storing your dishwasher
CYCLES 22 Cycle chart
22
TROUBLESHOOTING 23 Check these points if your dishwasher...
23
26 Information codes
APPENDIX 27 Helping the environment
27
27 Specifications
6_ Contents
DW7933LRASR-00141A-03_EN.indd Sec2:6 2014-03-31 7:29:26
Setting up your dishwasher
Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you're not at risk of injury when washing
dishes.
UNPACKING YOUR DISHWASHER
