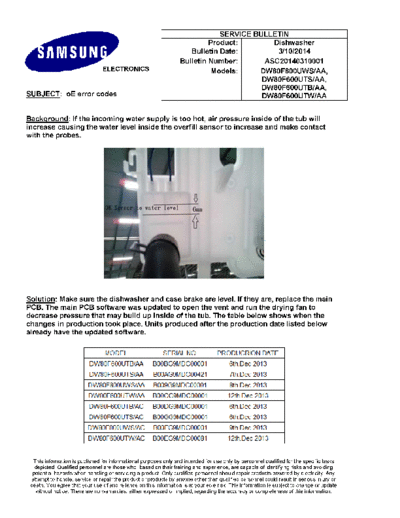

Image preview - the first page of the document
>> Download ASC20140310001 documenatation <<
Text preview - extract from the document
SERVICE BULLETIN
Product: Dishwasher
Bulletin Date: 3/10/2014
Bulletin Number: ASC20140310001
ELECTRONICS Models: DW80F800UWS/AA,
DW80F600UTS/AA,
DW80F600UTB/AA,
SUBJECT: oE error codes DW80F600UTW/AA
Background: If the incoming water supply is too hot, air pressure inside of the tub will
increase causing the water level inside the overfill sensor to increase and make contact
with the probes.
Solution: Make sure the dishwasher and case brake are level. If they are, replace the main
PCB. The main PCB software was updated to open the vent and run the drying fan to
decrease pressure that may build up inside of the tub. The table below shows when the
changes in production took place. Units produced after the production date listed below
already have the updated software.
This information is published for informational purposes only and intended for use only by personnel qualified for the specific tasks
depicted. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when handling or servicing a product. Only qualified personnel should repair products powered by electricity. Any
attempt to handle, service or repair the product or products by anyone other than qualified personnel could result in serious injury or
death. You agree that your use of and reliance on this information is at your sole risk. This information is subject to change or update
without notice. There are no warranties, either expressed or implied, regarding the accuracy or completeness of this information.
Date Information in the Serial Number:
th th
The 8 character in the serial number indicates the Production Year. The 9 character indicates the
Production Month. In the example above, the Production Year is 2012 (C) and the Production Month is
September (9).
Note: Consult the Samsung Service Website at (http://.service.samsungportal.com) for the Service Manual
and other information on this product.
This information is published for informational purposes only and intended for use only by personnel qualified for the specific tasks
depicted. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when handling or servicing a product. Only qualified personnel should repair products powered by electricity. Any
attempt to handle, service or repair the product or products by anyone other than qualified personnel could result in serious injury or
death. You agree that your use of and reliance on this information is at your sole risk. This information is subject to change or update
without notice. There are no warranties, either expressed or implied, regarding the accuracy or completeness of this information.
