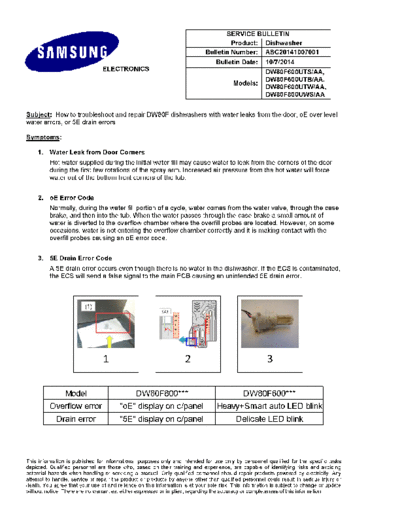

Image preview - the first page of the document
>> Download ASC20141007001 documenatation <<
Text preview - extract from the document
SERVICE BULLETIN
Product: Dishwasher
Bulletin Number: ASC20141007001
Bulletin Date: 10/7/2014
ELECTRONICS DW80F600UTS/AA,
DW80F600UTB/AA,
Models:
DW80F600UTW/AA,
DW80F800UWS/AA
Subject: How to troubleshoot and repair DW80F dishwashers with water leaks from the door, oE over level
water errors, or 5E drain errors
Symptoms:
1. Water Leak from Door Corners
Hot water supplied during the initial water fill may cause water to leak from the corners of the door
during the first few rotations of the spray arm. Increased air pressure from the hot water will force
water out of the bottom front corners of the tub.
2. oE Error Code
Normally, during the water fill portion of a cycle, water comes from the water valve, through the case
brake, and then into the tub. When the water passes through the case brake a small amount of
water is diverted to the overflow chamber where the overfill probes are located. However, on some
occasions, water is not entering the overflow chamber correctly and it is making contact with the
overfill probes causing an oE error code.
3. 5E Drain Error Code
A 5E drain error occurs even though there is no water in the dishwasher. If the ECS is contaminated,
the ECS will send a false signal to the main PCB causing an unintended 5E drain error.
1 2 3
Model DW80F800*** DW80F600***
Overflow error "oE" display on c/panel Heavy+Smart auto LED blink
Drain error "5E" display on c/panel Delicate LED blink
This information is published for informational purposes only and intended for use only by personnel qualified for the specific tasks
depicted. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when handling or servicing a product. Only qualified personnel should repair products powered by electricity. Any
attempt to handle, service or repair the product or products by anyone other than qualified personnel could result in serious injury or
death. You agree that your use of and reliance on this information is at your sole risk. This information is subject to change or update
without notice. There are no warranties, either expressed or implied, regarding the accuracy or completeness of this information.
Solutions:
1. Water Leak from Door Corners:
