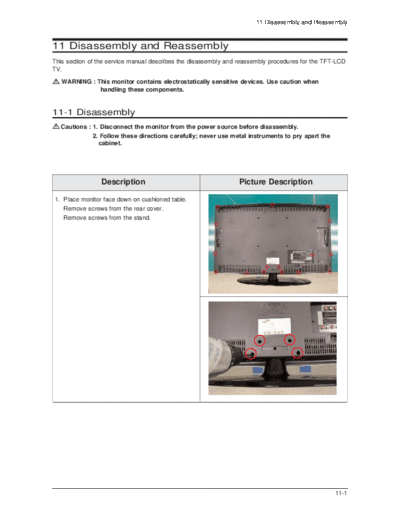

Image preview - the first page of the document



>> Download disassembly_and_reassembly_139 documenatation <<

Text preview - extract from the document

                                                                      11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.

   WARNING : This monitor contains electrostatically sensitive devices. Use caution when
              handling these components.


11-1 Disassembly
  Cautions : 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the
               cabinet.




                 Description                                    Picture Description

1. Place monitor face down on cushioned table.
   Remove screws from the rear cover.
   Remove screws from the stand.




                                                                                                  11-1
11 Disassembly and Reassembly


                Description                       Picture Description

2. Lift up the rear cover and remove the stand.




3. Remove Screws from the stand BRKT and lift
   up the stand BRKT.




11-2
                                                       11 Disassembly and Reassembly


                Description                        Picture Description

4. Disonnect cable from the boards.




5. Remove screws from the boards and lift up the
   boards.




                                                                                11-3
11 Disassembly and Reassembly


               Description                    Description Picture

6. Remove screws and Lift up the Lcd panel.




7. Remove 5 secews from the BRKT.
   Lift up the BRKT.




11-4
                                                                      11 Disassembly and Reassembly


                Description                                     Description Picture




11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




                                                                                               11-5
11 Disassembly and Reassembly

Memo




11-6
