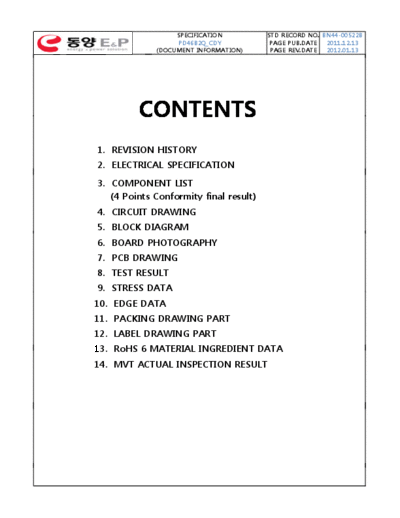

Image preview - the first page of the document
>> Download BN44-00522B documenatation <<
Text preview - extract from the document
SPECIFICATION STD RECORD NO. BN44-00522B
MARK PD46B2Q_CDY PAGE PUB.DATE 2011.12.13
(DOCUMENT INFORMATION) PAGE REV.DATE 2012.01.13
CONTENTS
1. REVISION HISTORY
2. ELECTRICAL SPECIFICATION
3. COMPONENT LIST
(4 Points Conformity final result)
4. CIRCUIT DRAWING
5. BLOCK DIAGRAM
6. BOARD PHOTOGRAPHY
7. PCB DRAWING
8. TEST RESULT
9. STRESS DATA
10. EDGE DATA
11. PACKING DRAWING PART
12. LABEL DRAWING PART
13. RoHS 6 MATERIAL INGREDIENT DATA
14. MVT ACTUAL INSPECTION RESULT
SPECIFICATION STD RECORD NO. BN44-00522B
MARK PD46B2Q_CDY PAGE PUB.DATE 2011.12.13
(REVISION HISTORY) PAGE REV.DATE 2012.01.13
1. REVISION HISTORY
SPECIFICATION STD RECORD NO. BN44-00522B
MARK PD46B2Q_CDY PAGE PUB.DATE 2011.12.13
(REVISION HISTORY) PAGE REV.DATE 2012.01.13
: REVISION HISTORY
PR
Revision
1.0
R.A 1 - - - -
(11.12.03)
Revision No.
PFC FET GATE R-CHIP SIZE
1 RP808,RP809 1/8W 100 F 2012 1/4W 100 F 3216
STRESS STRESS
2 ZDS803 MM3Z15VT1G BZX84B15LT1G
THERMISTOR PATTERN THERMISTOR
55" 3D MODE THERMISTOR , PATTERN
3
BOTTOM NG(92.8')
EYELET
EY7, EY8 - 2PHI EYELET
LED ODP IC VCC LINE SMD SIZE R9839 1/10W 1K F 1608 1/4W 1K F 3216
1.1 4
R.B 11.12.26 PWM SIGNAL LINE JP9815 1/10W 0 J 1608 1/4W 0 J 3216
(11.12.23)
BEAD BFS2550AOL
CY806S 400V 2.2nF
EMI() MARGIN Y-CAP , (AXIAL BEAD)
5
MARGIN
CY807S 400V 2.2nF 400V 1nF
Location No.
6 SILK L/C CY806S BBP801
Location No. Silk
LZ 50V 47uF LZ 50V 47uF
CS808
Straight Type Straight Type Left Forming Type
7 Forming
Forming RS807 1/8W 1K F 2012 1/4W 1K F 3216
JPS803 1/4W 0 J 3216 -
SEC S/N : SEC S/N :
CN08BN4400522BDC07BB40001 CN07BN4400522BDC07BB40001 R.B
1.1 BARCODE LABEL BARCODE
R.B 1 12.01.13 UNIT CODE
(11.12.23) UNIT CODE LABEL
SPECIFICATION STD RECORD NO. BN44-00522B
PD46B2Q_CDY PAGE PUB.DATE 2011.12.13
(ELECTRICAL SPECIFICATION) PAGE REV.DATE 2012.01.13
2. ELECTRICAL SPECIFICATION
CONTENTS
1. SUPPLY OVERVIEW
2. INPUT REQUIREMENTS
3. OUTPUT REQUIREMENTS
3.1
3 1 OUTPUT VOLTAGE
3.2 PROTECTION & SEQUENCE REQUIREMENTS
3.3 OUTPUT ON/OFF SEQUENCE
3.3 SMALL SIGNAL REQUIREMENTS
4. MECHANICAL REQUIREMENTS
4.1 PCB DIMENSION
4.2. CONNECTOR LOCATION AND WIRE HARNESS CONNECTION
4.3. PCB OUTLINE FIGURE
4.4. OUTPUT CONNECTOR
5. ENVIRONMENTAL & SAFETY REQUIREMENTS
5.1. ENVIRONMENTAL
5.2. SAFETY
6. RELIABILITY REQUIREMENTS
6.1. COMPONENTS DERATING (STRESS)
6.2. MTBF
6.3. RELIABILITY TEST ONLY FOR DC VSS B'D
1. Supply Overview
1) This specification describe the requirements of DC VSS which designed to be used in
Samsung Electronics PD46B2Q .
2) The maximum total power drawn from the outputs is 214 watt max for respectively.
This can be drawn in any combination from all outputs, within the levels specified in output
requirements section
3) # of output of the DC VSS is voltage 4ea and current 4ea.
4) Remote ON/OFF control :
DC VSS Vdrv, B5V, B13V, Vamp(except ST_BY A5V) outputs shall be enabled with an
active high TTL compatible signal (PS_ON). ST_BY A5V is ON whenever AC power is
present.
5) All output specifications shall be met under worst-case conditions of input voltage, Min /
Max load currents and temperature range and long-terms operation.
6) The DC VSS shall be global shut downed responding to any protection status Required
status.
protection are OTP,OVP,OCP,(UVP).
7) Output Current Definition :
Peak Current : Repeatable Peak Current (excluding turn-on inrush current)
Max. Current : Max. output current capability of each outputs.
Typical Current : Typical max. load configuration
Detail R li bili Test : R f to the reliability specification of Visual Display Division
8) D il Reliability T Refer h li bili ifi i f Vi l Di l Di i i
2. Input Requirements
3. Output Requirements
3.1. Output Voltage
(1) DC VSS OUTPUT
(2) LED OUTPUT
3.2. Protection & Sequence Requirements
3.3. Output ON/OFF Sequence
3.4. Small Signal Requirements
4. Mechanical Requirements
4.1. PCB Dimension
4.2. Connector Location And Wire Harness Connection
4.3. PCB Outline Figure
4.4. Output Connector
5. Environmental & Safety Requirements
5.1. Environmental
5.2. Safety
6. Reliability Requirements
6.1. Components Derating (Stress)
6.2. MTBF
6.3. Reliability Test Only For DC VSS B'd
SPECIFICATION STD RECORD NO. BN44-00522B
MARK PD46B2Q_CDY PAGE PUB.DATE 2011.12.13
(COMPONENT LIST) PAGE REV.DATE 2012.01.13
3.
3 COMPONENTS LIST
(4 Points Conformity final result)
LED TV
REV R.B
PD46B2Q_CDY
PD46B2Q_CDY 4
'-' :
CODE BN44-00522B
NO. LOCATION DESCRIPTION SPECIFICATION Q'TY VENDOR PART NO. CODE Ass'y Circuit Diagram BOM
FR-1,245*285,1.6T sectional GAOXIN ELECTRONICS PCB]PD46B2Q_CDY MRNAA037330 - OK PCB]PD46B2Q_CDY - PCB]PD46B2Q_CDY
1 FOR SET PCB (DOOSAN, KING BORAD) 1 Axial
, CTI 600 HT CIRCUITS KOREA/DAEDUCK
PCB]PD46B2Q_CDY - OK PCB]PD46B2Q_CDY - PCB]PD46B2Q_CDY
ELECTRONIC
AL6063 53*30*8.9 YOOWON NRT H/S]PD46B2Q_CDY HS1 MBBAA035220 - OK H/S801S H/S801S H/S @]PD46B2Q_CDY HS801S
H/S801S HEAT SINK 1 HS
YOOBANGWHABOONG electricity - - OK - - -
600V 15A SHINDENGEN D15XB60 MPBAC003210 - OK D15XB60 D15XB60(600V/15A) 600V 15A
BD801S DIODE-BRIDGE 1 HS
600V 15A GULF GSIB15A60 MPBAC004790 - OK GSIB15A60 - 600V 15A
2
WHITE SHINETSU G-746 MFAAA000210 - OK - - WHITE
FOR BD801S COMPOUND 0.1g HS
OKONG OKC-5500 - - OK - - -
SUNGJINMETAL SW MSBH]3*10 Cr3+/SILVER MCAAA001610 - OK - - -
FOR BD801S SCREW-TAPTITE 1 HS
- OK - - -
AL6063 192*30 YOOWON NRT H/S]PD46B2Q_CDY HS2 MBBAA035230 - OK H/S802S H/S802S H/S @]PD46B2Q_CDY HS802S
H/S802S HEAT SINK 1 HS
YOOBANGWHABOONG electricity - - OK - - -
100V 20A TO-220F SANKEN FMEN-220A MPBAE014600 - OK EN-220A FMEN-220A(100V 20A) 100V 20A TO-220F
DS812,DM810,DM813 DIODE-SCHOTTKY 3 HS
100V 20A TO-220F Nihon-Inter FCH20BU10 MPBAE015490 - OK FCH20BU10 - 100V 20A TO-220F
300V 10A TO-220F TSC SFF1005GA MPBAI012040 - OK SFF1005GA SFF1005GA(300V 10A) 300V 10A TO-220F
DM811 U.F-DIODE 1 HS
300V 10A TO-220F SENSITRON SDURF1030CTR MPBAI012060 - OK SDURF1030CTR - 300V 10A TO-220F
300V 10A TO-220F TSC SFF1005G MPBAI012050 - OK SFF1005G SFF1005G(300V 10A) 300V 10A TO-220F
DM814 U.F-DIODE 1 HS
300V 10A TO-220F SENSITRON SDURF1030CT MPBAI012070 - OK SDURF1030CT - 300V 10A TO-220F
WHITE SHINETSU G-746 MFAAA000210 - OK - - WHITE
FOR DS812,DM810,DM811,DM813,DM814 COMPOUND 0.25g HS
OKONG OKC-5500 - - OK - - -
SW CH M/S 3*9.2 SILVER (WASHER REMOVE) SUNGJINMETAL SW CH M/S 3*9.2 SILVER MCAAA008920 - OK - - SW CH M/S 3*9.2 SILVER (WASHER REMOVE)
FOR DS812,DM810,DM811,DM813,DM814 SCREW-TAPTITE 5 HS
- OK - - -
AL6063 126.6*25 YOOWON NRT H/S]PD46B1Q_CDY HS3 MBBAA035260 - OK H/S803S H/S803S H/S @]PD46B2Q_CDY HS803S
H/S803S HEAT SINK 1 HS
YOOBANGWHABOONG electricity - - OK - - -
500V 8A TO-220 TOSHIBA TK8A50D MPCAE001130 - OK TK8A50D TK8A50D(500V 8A) 500V 8A TO-220
QM801S,QM802S FET 2 HS
500V 9A TO-220 MAGNACHIP FET MDF9N50 MPCAE012650 - OK FET MDF9N50 - 500V 9A TO-220
600V 11A TO-220F MAGNACHIP MDF11N60 MPCAE012460 - OK MDF11N60 MDF11N60(600V 11A) 600V 11A TO-220F
QP805S,QP806S FET 2 HS
600V 12A TO-220F TOSHIBA TK12A60D MPCAE012310 - OK TK12A60D - 600V 12A TO-220F
4
600V 9A TO-220F NXP BYV29FX-600 MPBAB005930 - OK BYV29FX-600 BYV29FX-600(600V 9A) 600V 9A TO-220F
DP804 DIODE-RECTIFIER 1 HS
600V 10A TO-220F SANKEN FMN-1106S MPBAB005940 - OK FMN-1106S - 600V 10A TO-220F
WHITE SHINETSU G-746 MFAAA000210 - OK - - WHITE
FOR QM801S,QM802S,QP805S,QP806S,DP804 COMPOUND 0.25g HS
OKONG OKC-5500 - - OK - - -
SW CH M/S 3*9.2 SILVER (WASHER REMOVE) SUNGJINMETAL SW CH M/S 3*9.2 SILVER MCAAA008920 - OK - - SW CH M/S 3*9.2 SILVER (WASHER REMOVE)
FOR QM801S,QM802S,QP805S,QP806S,DP804 SCREW-TAPTITE 5 HS
- OK - - -
SOP-8 FUJI SPC7011F MPJAZ007670 - OK SPC7011F SPC7011F SOP-8
5 ICP801 IC PFC CONTROL 1 SMD
- OK - - -
Vds=650V DIP-8 SANKEN STR2A153D MPJAZ007750 - OK STR2A153D STR2A153D Vds=650V DIP-8
6 ICS801S IC PWM 1 Person
- OK - - -
Vth=12V SOP-8 T.I UCC25600 MPJAZ001200 - OK UCC25600 UCC25600 Vth=12V SOP-8
7 ICM801 IC RESONANT CONTROL 1 SMD
- OK - - -
Vcc=12V 1GP SMD, 2CH DRIVE IC MAGNACHIP SLC5012M MPHAQ000040 - OK SLC5012M SLC5012M SLC5012M
8 IC9801,IC9802 IC DRIVER 2 SMD
- OK - - -
PWM DIMING INPUT IC SOT23-6Pin MAGNACHIP SLC9012M(MAP9101) MPJAZ007860 - OK SLC9012M(MAP9101) SLC9012M SLC9012M(MAP9101)
9 IC9804,IC9805,IC9806,IC9807,IC9808,IC9809,IC9810,IC9811 IC DRIVER 8 SMD
- OK - - -
VCC=36V 550mW SOIC-8 BCD AS358MTR-G1 MPJAK005120 - OK AS358MTR-G1 AS358MTR-G1 VCC=36V 550mW SOIC-8
10 IC9800 IC OP-AMP 1 SMD
VCC=36V 280mW FLT(NBI) 8P KEC KIA358F MPJAK003120 - OK KIA358F - VCC=36V 280mW FLT(NBI) 8P
36V 1% SOT-23F BCD AS431BNTR-E1 MPJAQ005110 - OK AS431BNTR-E1 AS431BNTR-E1 36V 1% SOT-23F
IC-POSI.
11 ICS802,ICS803,ICM802,IC9803 4 SMD
ADJUST REG.
36V 1% SOT-23F NXP TL431AMFDT MPJAQ005180 - OK TL431AMFDT - 36V 1% SOT-23F
500V 8A TO-220 TOSHIBA TK8A50D MPCAE001130 - OK TK8A50D TK8A50D(500V 8A) TK8A50D
12 Q9805,Q9806,Q9807,Q9808 FET 4 HS
500V 9A TO-220 MAGNACHIP FET MDF9N50 MPCAE012650 - OK FET MDF9N50 - FET MDF9N50
250V 7.5A D-PACK KEC KF9N25D MPCAE012920 - OK KF9N25D KF9N25D(250V 7.5A) 250V 7.5A D-PACK
13 Q9809,Q9810,Q9811,Q9812 FET 4 SMD
250V 6.2A D-PACK FAIRCHILD FDD7N25LZTM MPCAE012900 - OK FDD7N25LZTM - 250V 6.2A D-PACK
40V 35A D-PAK AOS AOD4186 MPCAE012730 - OK AOD4186 AOD4186 40V 35A D-PAK
14 QM804 FET 1 SMD
N-ch 40Vds 40A ANALOG POWER AM40N04-20D MPCAE012690 - OK AM40N04-20D - N-ch 40Vds 40A
60V 300mA SOT23 PANJIT 2N7002K MPCAE000560 - OK 2N7002K 2N7002K 60V 115mA SOT23
15 QS801,QQ801,QQ802,Q9804 FET 4 SMD
60V 300mA SOT23 KEC 2N7002K MPCAE012400 - OK 2N7002K - 60V 115mA SOT23
50V 100mA SOT-23 KEC KRC101S MPCAD005460 - OK KRC101S KRC101S 50V 100mA SOT-23
16 Q9802,Q9813,Q9814,Q9815,Q9816,Q9817 TR-DIGITAL 6 SMD
50V 100mA SOT-23 ROHM DTC143E MPCAA009860 - OK DTC143E - 50V 100mA SOT-23
NPN 60V 3A KEC KTD1624 MPCAA009800 - OK KTD1624 KTD1624 NPN 60V 3A
17 QS802 TR 1 SMD
NPN 60V 3A DIODESINC DXT651 MPCAA009930 - OK DXT651 - NPN 60V 3A
NPN 40V, 600mA SOT-23 Leshan Radio Company LMBT2222ALTIG MPCAA009690 - OK LMBT2222ALTIG 2222A NPN 40V, 600mA SOT-23
18 QP801,QP802,QQ803,Q9801,Q9803 TR 5 SMD
40V 600mA 350mW ONSEMI MMBT2222ALT1G MPCAA009660 - OK MMBT2222ALT1G - 40V 600mA 350mW
PNP -60V 600mA SOT-23 Leshan Radio Company LMBT2907ALTIG MPCAA009700 - OK LMBT2907ALTIG 2907A PNP -60V 600mA SOT-23
19 QP803,QP804,QS803,Q9800 TR 4 SMD
60V 600mA ONSEMI MMBT2907ALT1G MPCAD006050 - OK MMBT2907ALT1G - 60V 600mA
400V 2A DO-15 TSC SF26G MPBAI011930 - OK SF26G SF26G(400V 2A) 400V 2A DO-15
20 D9809,D9812,D9813,D9818 U.F-DIODE 4 Axial
400V 2A DO-15 GULF SSF2GG MPBAI003840 - OK SSF2GG - 400V 2A DO-15
1000V 1A PCTRONIX 1N4007S MPBAB000510 - OK 1N4007S 1N4007 1000V 1A
21 DS806,DS814,DS815 F.R-DIODE 3 Axial
1000V 1A DIODESINC 1N4007 MPBAB000530 - OK 1N4007 - 1000V 1A
1000V 1.5A TSC FR157G MPBAI004450 - OK FR157G FR157G 1000V 1.5A
22 DS804,DS808 U.F-DIODE 2 Axial
1000V 1.5A GULF RGP15M MPBAI012300 - OK RGP15M - 1000V 1.5A
1000V 1A GULF UF4007 MPBAI011710 - OK UF4007 UF4007 1000V 1A
23 DS807 U.F-DIODE 1 Axial
1000V 1A TSC UF4007 MPBAI012270 - OK UF4007 - 1000V 1A
1000V 3A 20mm Forming TSC 1N5408-09 MPBAB000550 - OK 1N5408-09 1N5408-09(1N5406) 1000V 3A 20mm Forming
24 DP801,DP805 GENERAL DIODE 2 Person
600V 3A 20mm Forming VISHAY 1N5406 MPBAB000850 - OK 1N5406 - 600V 3A 20mm Forming
40V 2A PANJIT SR24E MPBAE015090 - OK SR24E SR24E 40V 2A
25 DM815,DM816 DIODE 2 SMD
40V 2A DIODESINC B240A MPBAE014990 - OK B240A - 40V 2A
30V 200mA Leshan Radio Company LBAT54ALT1G MPBAE015180 - OK LBAT54ALT1G LBAT54ALT1G 30V 200mA
26 DS809,DM804,DM805 DIODE-SCHOTTKY 3 SMD
30V 200mA PANJIT BAT54A MPBAE015190 - OK BAT54A - 30V 200mA
75V 100mA SOT-23 Leshan Radio Company LMBD2838LT1G MPBAA005010 - OK LMBD2838LT1G LMBD2838LT1G 75V 100mA SOT-23
27 DS803 DIODE-SWITCHING 1 SMD
100V 350mA SOT-23 PANJIT BAV70 MPBAA005070 - OK BAV70 - 100V 350mA SOT-23
DP802,DP803,DS801,DS810,DS813,DQ811,DQ812,DQ813,DQ815,DQ816,DM802, 70V 200mA Leshan Radio Company LMDL6050T1G MPBAA004910 - OK LMDL6050T1G LMDL6050T1G 70V 200mA
28 DM803,DM806,DM807,DM808,DM809,DM817,D9806,D9807,D9810,D9811,D9814, DIODE-SWITCHING 25 SMD
D9815,D9816,D9817 100v 200mA SOD-323 PANJIT 1N4148WS MPBAA004890 - OK 1N4148WS - 100v 200mA SOD-323
30V 200mA Leshan Radio Company LBAT54CLT1H MPBAE015510 - OK LBAT54CLT1H LBAT54CLT1H 30V 200mA
29 D9801,D9802 DIODE-SWITCHING 2 SMD
30V 200mA PANJIT BAT54C MPBAE015520 - OK BAT54C - 30V 200mA
12V 500mW SOT-123 Leshan Radio Company LMSZ5242B MPBAD026660 - OK LMSZ5242B LMSZ5242B 12V 500mW SOT-123
30 ZDS801,ZDS802,ZDS804,ZDS805 DIODE-ZENER 4 SMD
12V 500mW SOT-123 ONSEMI MMSZ5242BT1G MPBAD001350 - OK MMSZ5242BT1G - 12V 500mW SOT-123
16.80V~19.10V 200mW ONSEMI MM3Z18VT1G MPBAD026890 - OK MM3Z18VT1G MM3Z18VT1G 16.80V~19.10V 200mW
31 ZD9801,ZD9802,ZD9803,ZD9804 DIODE-ZENER 4 SMD
18V 200mW SOD-323 Leshan Radio Company LM3Z18VT1G MPBAD026120 - OK LM3Z18VT1G - 18V 200mW SOD-323
15.30V~17.10V 200mW SOD-323 ONSEMI MM3Z16VT1G MPBAD027280 - OK MM3Z16VT1G MM3Z16VT1G 15.30V~17.10V 200mW SOD-323
32 ZDQ802 DIODE-ZENER 1 SMD
16V 200mW SOD-323 Leshan Radio Company LM3Z16VT1G MPBAD027260 - OK LM3Z16VT1G - 16V 200mW SOD-323
14.70~15.30V 225mW SOT-23 NXP BZX84-B15 MPBAD027490 - OK BZX84-B15 BZX84-B15 BZX84-B15
33 ZDS803 DIODE-ZENER 1 SMD
14.70~15.30V 250mW SOT-23 ONSEMI BZX84B15LT1G MPBAD027480 - OK BZX84B15LT1G - BZX84B15LT1G
14.30~15.80V 200mW SOD-323 ONSEMI MM3Z15VT1G MPBAD026830 - OK MM3Z15VT1G MM3Z15VT1G 14.30~15.80V 200mW SOD-323
34 ZDM801 DIODE-ZENER 1 SMD
15V 200mW SOD-323 Leshan Radio Company LM3Z15VT1G MPBAD026340 - OK LM3Z15VT1G - 15V 200mW SOD-323
6.40~7.20V 200mW SOD-323 Leshan Radio Company LM3Z6V8 MPBAD017740 - OK LM3Z6V8 LM3Z6V8 6.40~7.20V 200mW SOD-323
35 ZDQ803 DIODE-ZENER 1 SMD
6.8V 200mW SOD-323 ONSEMI MM3Z6V8T1G MPBAD027270 MM3Z6V8T1G - 6.8V 200mW SOD-323
436D 275V 0.68uF K 15 -Forming
275V 0.68uF 10% 15mm Pitch -Forming SUNIL ELECTRONICS MQDAB018310 OK 436D 275V 0.68uF K 0.68uF, 250V 275V 0.68uF 10% 15mm Pitch -Forming
1713
36 CX802S X-CAP 1 Person
275V 0.68uF 10% 15mm Pitch -Forming PILKOR ELECTRONICS C FL PCX2 337F7P684S MQDAF009340 OK PCX2 337F7P684S - 275V 0.68uF 10% 15mm Pitch -Forming
275V 0.1uF 10% 15mm Pitch SUNIL ELECTRONICS 436D 275V 0.1uF K 15 1760 MQDAF009020 OK 436D 275V 0.1uF K 0.1uF, 250V 275V 0.1uF 10% 15mm Pitch
37 CX801S X-CAP 1 Person
275V 0.1uF 10% 15mm Pitch PILKOR ELECTRONICS PCX2 335 M5104 MQDAF009350 OK PCX2 335 M5104 - 275V 0.1uF 10% 15mm Pitch
400V 1nF STRAIGHT TYPE DONGIL ELECTRONICS DA2GYE102MBSC04 MQCAA023560 OK DA2GYE102MBSC04 1000pF 250V 400V 1nF STRAIGHT TYPE
38 CY807S Y-CAP 1 Person
400V 1nF STRAIGHT TYPE HONGMING DCF102M34Y5UG6DLOEO MQCAA024870 OK DCF102M34Y5UG6DLOEO - 400V 1nF STRAIGHT TYPE
400V 470pF STRAIGHT TYPE HONGMING DCF471K34Y5PG6JL0EO MQCAA024860 OK DCF471K34Y5PG6JL0EO 470pF 250V 400V 470pF STRAIGHT TYPE
39 CY803S,CY804S Y-CAP 2 Person
400V 470pF STRAIGHT TYPE DONGIL ELECTRONICS DA2GYB471KBSC04 MQCAA024800 OK DA2GYB471KBSC04 - 400V 470pF STRAIGHT TYPE
400V 100pF STRAIGHT DONGIL ELECTRONICS DA2GYB101KBSC04 MQCAA023570 OK DA2GYB101KBSC04 100pF 250V 400V 100pF STRAIGHT
40 CY801S,CY802S Y-CAP 2 Person
400V 100pF STRAIGHT HONGMING DCF101K26Y5PG6JL0E0 MQCAA024880 OK DCF101K26Y5PG6JL0E0 - 400V 100pF STRAIGHT
450V 1.0uF 10% 15mm Pitch Stragiht 450V 1.0uF 10% 15mm Pitch Stragiht
PILKOR ELECTRONICS PCMP372 S00109 MQDAB018620 OK PCMP372 S00109 1uF, 450V
(TOP 14mm) (TOP 14mm)
41 CP801S,CP802S C-FILM 2 Person
450V 1 uF ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
