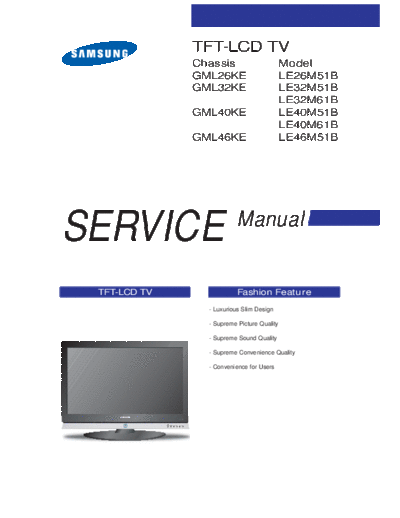

Image preview - the first page of the document



>> Download samsung_gml26ke_chassis_le26m51b_lcd_tv_sm_699 documenatation <<

Text preview - extract from the document

              TFT-LCD TV
              Chassis                       Model
              GML26KE                       LE26M51B
              GML32KE                       LE32M51B
                                            LE32M61B
              GML40KE                       LE40M51B
                                            LE40M61B
              GML46KE                       LE46M51B




SERVICE                  Manual


 TFT-LCD TV               Fashion Feature
                - Luxurious Slim Design

                - Supreme Picture Quality

                - Supreme Sound Quality

                - Supreme Convenience Quality

                - Convenience for Users
                                            Samsung Electronics Co.,Ltd.
- This Service Manual is a property of      416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
  Samsung Electronics Co., Ltd.             Gyeonggi-Do, Korea, 443-742
  Any unauthorized use of Manual can be     Printed in Korea
  punished under applicable International   P/N : BN82-00128M-00
  and/or domestic law.                      URL : http://itself.sec.samsung.co.kr/
                                                                                  2 Product Specifications



2 Product specifications

2-1 Fashion Feature

Supreme Digital Interface & Networking
-With a built-in HD digital tuner, it supports HD broadcasting with no particular set-top box and provides
 simple access with a single remote control.

Excellent Picture Quality
-DNIe technology provides life-like clear images.

My Color Control
-Colors can be set to your preference by adjusting Red, Green, Blue, Yellow, Pink and White.

Dynamic Contrast
-Automatically detects the input visual signal and adjusts to create optimum contrast.

Brightness Sensor
-Adjusts the screen brightness automatically depending on the brightness of the surrounding
 environment.

SRS TruSurround XT
-SRS TruSurround XT provides a virtual Dolby surround system.

Convenience
-The TV utilizes the HDMI system to implement perfect digital sound and picture quality.
 The Anynet system enables you to easily control Samsung audio-video (AV) devices from this TV.




                                                                                                        2-1
2 Product Specifications


 2-2 LE26M5 Specifications

              Item                         Description
