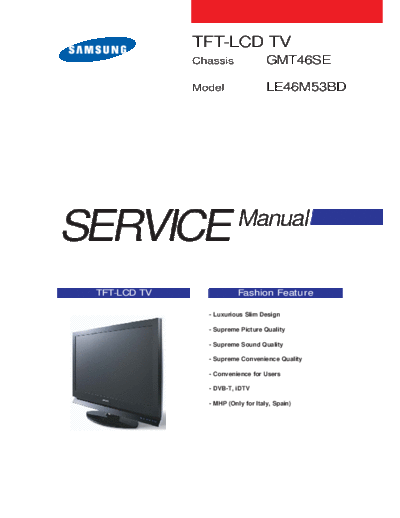

Image preview - the first page of the document



>> Download SAMSUNG_GMT46SE_CHASSIS_LE46M53BD_LCD_TV_SM.part2 documenatation <<

Text preview - extract from the document

              TFT-LCD TV
              Chassis               GMT46SE

              Model                 LE46M53BD




SERVICE                  Manual


 TFT-LCD TV               Fashion Feature

                - Luxurious Slim Design

                - Supreme Picture Quality

                - Supreme Sound Quality

                - Supreme Convenience Quality

                - Convenience for Users

                - DVB-T, iDTV

                - MHP (Only for Italy, Spain)
Copyright                                                  Trademarks

     2006 by Samsung Electronics Co., Ltd.                 Samsung is the registered trademark of Samsung
                                                           Electronics Co., Ltd.
All rights reserved.
                                                           LE46M53BD and Macmaster Cable Adapter are
This manual may not, in whole or in part, be copied,       trademarks of Samsung Electronics Co., Ltd.
photocopied, reproduced, translated, or converted to any
electronic or machine readable form without prior          Macintosh and Power Macintosh are trademarks of
written permission of Samsung Electronics Co., Ltd.        Apple Computer, Inc.

LE46M53BD Service Manual                                   All other trademarks are the property of their respective
                                                           owners.
First edition April 2006.

Printed in Korea.




ii
Contents
Contents
                                            Samsung Electronics Co.,Ltd.
- This Service Manual is a property of      416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
  Samsung Electronics Co., Ltd.             Gyeonggi-Do, Korea, 443-742
  Any unauthorized use of Manual can be     Printed in Korea
  punished under applicable International   P/N : BN82-00173A-00
  and/or domestic law.                      URL : http://itself.sec.samsung.co.kr/
                                                                                  2 Product Specifications



2 Product specifications

2-1 Fashion Feature

Supreme Digital Interface & Networking
-With a built-in HD digital tuner, it supports HD broadcasting with no particular set-top box and provides
 simple access with a single remote control.


Excellent Picture Quality
-DNIe technology provides life-like clear images.


Dynamic Contrast
-Automatically detects the input visual signal and adjusts to create optimum contrast.


SRS TruSurround XT
-SRS TruSurround XT provides a virtual Dolby surround system.


Convenience
-The TV utilizes the HDMI system to implement perfect digital sound and picture quality.
-Supports DVB-CI (Common Interface)
-Supports Modem (Only for Italy/Spain)
-Supports SMART CARD (NON CAS / Only for Italy / Spain)




                                                                                                        2-1
2 Product Specifications


2-2 Technical and Environmental Specifications
