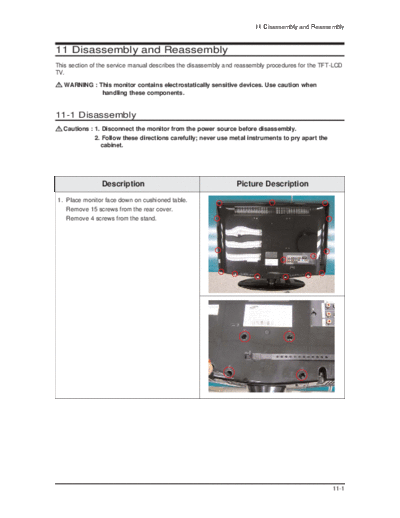

Image preview - the first page of the document



>> Download 05_Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                      11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.

   WARNING : This monitor contains electrostatically sensitive devices. Use caution when
              handling these components.


11-1 Disassembly
  Cautions : 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the
               cabinet.




                Description                                     Picture Description

1. Place monitor face down on cushioned table.
   Remove 15 screws from the rear cover.
   Remove 4 screws from the stand.




                                                                                                  11-1
11 Disassembly and Reassembly


                Description                       Picture Description

2. Lift up the rear cover and remove the stand.




3. Remove screws from the stand BRKT and lift
   up the stand BRKT.




11-2
                                                       11 Disassembly and Reassembly


               Description                         Picture Description

4. Disonnect cables from the boards.




5. Remove screws from the boards and lift up the
   boards.




                                                                                11-3
11 Disassembly and Reassembly


               Description                 Picture Description

6. Remove screw from the side connector.
   Remove screws from the panel BRKT.




7. Lift up the panel BRKT.




11-4
                                                                      11 Disassembly and Reassembly


                Description                                     Picture Description

8. Lift up the LCD panel.




11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




                                                                                               11-5
11 Disassembly and Reassembly

Memo




11-6
