5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/

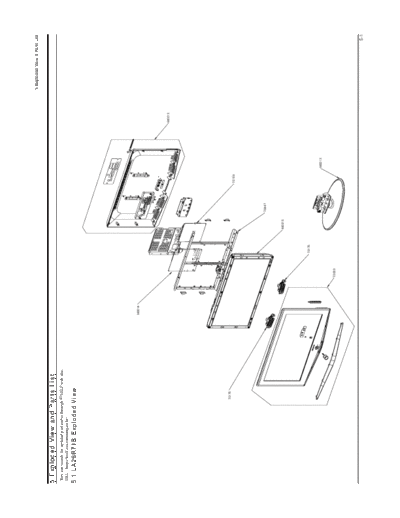

5-1 LA26R71B Exploded View
M0014
M0013
T0175
T0159
T0447
M0215
T0175
M0013
T0003
5-1
5 Exploded View & Parts List
5-2 LA26R71B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03012F ASSY COVER P-FRONT;26R71,SO,ABS+PMMA,HB, 1 SA
T0175 BN96-03053A ASSY SPEAKER P;16ohm,Bordeuax 26,Left,5W 1 SA
T0175 BN96-03054A ASSY SPEAKER P;16ohm,Bordeuax 26,Right,5 1 SA
M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 SA
T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 SNA
M0014 BN94-00879A ASSY PCB MAIN;LA26R71B,BORDEAUX,ASIA 1 SA
T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 SA
M0013 BN96-03014E ASSY COVER P-REAR;26R71,SO,ABS+PMMA,BK23 1 SA
M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 SA
5-2
5 Exploded View & Parts List
5-3 LA26R71W Exploded View
M0014
M0013
T0175
T0159
T0447
M0215
T0175
M0013
T0003
5-3
5 Exploded View & Parts List
5-4 LA26R71W Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03012P ASSY COVER P-FRONT;26R71,SO,(WHITE),ABS+ 1 S.A
T0175 BN96-03053A ASSY SPEAKER P;16ohm,Bordeuax 26,Left,5W 1 S.A
T0175 BN96-03054A ASSY SPEAKER P;16ohm,Bordeuax 26,Right,5 1 S.A
M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 S.A
T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 S.N.A
M0014 BN94-00879B ASSY PCB MAIN;LA26R71BX/* 1 S.N.A
T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 S.A
M0013 BN96-03014L ASSY COVER P-REAR;26R71,SO(WHITE),ABS+PM 1 S.A
M0013 BN96-03017B ASSY STAND P-BASE;26R71,ABS+PMMA,HB,WH12 1 S.A
5-4
5 Exploded View & Parts List
5-5 LA32R71B / LA32R71W Exploded View
M0014
M0013
T0175
T0447
M0215
T0175
T0003
M0013
5-5
5 Exploded View & Parts List
5-6 LA32R71B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-02996D ASSY COVER P-FRONT;32R71,SO,ABS+PMMA,HB, 1 SA
T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
M0215 BN07-00247A LCD-PANEL;LTA320WT-L14,8BIT,760*450*50.0 1 SA
T0447 BN96-02999A ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S 1 SNA
M0014 BN94-00876A ASSY PCB MAIN;LA32R71B,BORDEAUX,ASIA 1 SA
M0013 BN96-02997D ASSY COVER P-REAR;32R71,SO,ABS+PMMA,HB,B 1 SA
M0013 BN96-02998A ASSY STAND P-BASE;32R71,ABS+PMMA,HB,BK23 1 SA
5-7 LA32R71W Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03677E ASSY COVER P-FRONT;32R71,SO(WHITE,AM),AB 1 S.A
T0175 BN96-04207A ASSY SPEAKER P;8ohm,VE Type,Left,10W,Hor 1 S.N.A
T0175 BN96-04208A ASSY SPEAKER P;8ohm,VE Type,Right,10W,Ho 1 S.A
M0215 BN07-00247A LCD-PANEL;LTA320WT-L14,-,8BIT,760*450*50 1 S.A
T0447 BN96-02999A ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S 1 S.N.A
M0014 BN94-00876B ASSY PCB MAIN;LA32R71BX/* 1 S.A
M0013 BN96-02998B ASSY STAND P-BASE;32R71,-,ABS+PMMA,HB,WH 1 S.A
M0013 BN96-02997M ASSY COVER P-REAR;32R71,SO(WHITE),ABS+PM 1 S.A
5-6
5 Exploded View & Parts List
5-8 LA40R71B Exploded View
M0014
M0013
T0101
T0175
T0447
M0215
T0175
T0003
M0013
5-7
5 Exploded View & Parts List
5-9 LA40R71B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03011D ASSY COVER P-FRONT;40R71,SO,ABS+PMMA,HB, 1 SA
T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 SA
T0447 BN96-03009C ASSY BRACKET P-PANEL;BORDEAUX,40,AMLCD,I 1 SNA
M0014 BN94-00880A ASSY PCB MAIN;LA40R71BX,BORDEAUX,ASIA 1 SA
T0101 BN61-02427A BRACKET-WALL;BORDEAUX 40,SECC,T1.2 1 SNA
M0013 BN96-03013D ASSY COVER P-REAR;40R71,SO,ABS+PMMA,HB,B 1 SA
M0013 BN96-03016A ASSY STAND P-BASE;40R71,ABS+PMMA,HB,BK23 1 SA
5-8
