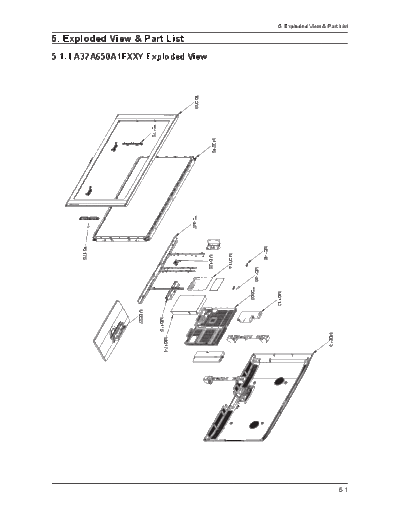

Image preview - the first page of the document
>> Download LA40A650A1F documenatation <<
Text preview - extract from the document
5. Exploded View & Part List
5. Exploded View & Part List
5-1. LA32A650A1FXXY Exploded View
T0003
T0175
M0215
T0447
M0146
T0175
M0014
M0125
M0146
T0603
M0112
M0027
M0115
M0013
M0174
5-1
5. Exploded View & Part List
5-1-1. LA32A650A1FXXY Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06840G ASSY COVER P-FRONT;32,L650A,SO(IDTV),,PC 1 S.A
T0175 BN96-06818B ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin, 1 S.A
M0215 BN07-00537A LCD-PANEL;LTF320HA02 1 S.A
T0447 BN96-04681A ASSY BRACKET P-PANEL;-,32R81,-,-,-,-,AM, 1 S.N.A
M0027 BN96-07211B ASSY STAND P-BASE;32,L650,ABS+PMMA,HB,RD 1 S.A
M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32",SECC,T1.6 1 S.N.A
M0146 BN61-02970A BRACKET-PANEL TOP;32 BORDEAUX PLUS,SECC, 1 S.N.A
M0014 BN94-01767A ASSY PCB MAIN;LA32A650A1FXXY 1 S.A
M0013 BN96-06888E ASSY COVER P-REAR;32,L650,SO(IDTV),ABS+P 1 S.A
5-2
5-3
5. Exploded View & Part List
M0013
M0112
M0146
M0146
T0603
M0014
M0215
M0125
5-2. LA40A650A1FXXY Exploded View
T0003 T0447
M0174
M0115
T0175
M0027
T0175
5. Exploded View & Part List
5-2-1. LA40A650A1FXXY Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06842G ASSY COVER P-FRONT;40,L650A,SO(IDTV),,PC 1 S.A
T0175 BN96-06809B ASSY SPEAKER P;8ohm,L550 P2/P3,Down Firi 1 S.A
M0215 BN07-00529A LCD-PANEL;LTF400HC01 1 S.A
T0447 BN96-06883C ASSY BRACKET P-PANEL;40,L650,UO,,,,,GASK 1 S.N.A
M0027 BN96-06259B ASSY STAND P-BASE;40AA1,ABS+PMMA,HB,RD02 1 S.A
M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.N.A
M0146 BN61-03414A BRACKET-PANEL TOP;PEONY52,SECC T1.2 2 S.N.A
M0014 BN94-01767B ASSY PCB MAIN;LA40A650A1FXXY 1 S.A
M0013 BN96-06890E ASSY COVER P-REAR;40,L650,SO(IDTV),ABS+P 1 S.A
5-4
5-5
5. Exploded View & Part List
M0013
M0112
M0146
M0146
T0603
M0014
M0215
M0125
5-3. LA46A650A1FXXY Exploded View
T0003 T0447
M0174
M0115
T0175
M0027
T0175
5. Exploded View & Part List
5-3-1. LA46A650A1FXXY Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06844G ASSY COVER P-FRONT;46,L650A,SO(IDTV),,PC 1 S.A
T0175 BN96-06809B ASSY SPEAKER P;8ohm,L550 P2/P3,Down Firi 1 S.A
M0215 BN07-00530A LCD-PANEL;LTF460HE01 1 S.A
T0447 BN96-06885D ASSY BRACKET P-PANEL;46,L650,UO,GASKET 1 S.N.A
M0027 BN96-06873A ASSY STAND P-BASE;46,L650A,,ABS+PMMA,HB, 1 S.A
M0115 BN61-03790A BRACKET-STAND LINK;AMBER 46,SECC,T1.6,-, 1 S.N.A
M0146 BN61-03415A BRACKET-PANEL TOP;PEONY 46,SECC T1.2 4 S.N.A
M0014 BN94-02128C ASSY PCB MAIN-AMLCD;LA46A650A1FXXY,BN41- 1 S.N.A
M0013 BN96-06892E ASSY COVER P-REAR;46,L650,SO(IDTV),ABS+P 1 S.A
5-6
5-7
5. Exploded View & Part List
M0013
M0112
M0146
M0146
T0603
M0014
M0215
M0125
5-4. LA52A650A1FXXY Exploded View
T0003 T0447
M0174
M0115
T0175
M0027
T0175
5. Exploded View & Part List
5-4-1. LA52A650A1FXXY Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06845G ASSY COVER P-FRONT;52,L650A,SO(IDTV),,PC 1 S.A
T0175 BN96-06809C ASSY SPEAKER P;8ohm,L550 P2/P3 52",Down 1 S.A
M0215 BN07-00531A LCD-PANEL;LTF520HE01 1 S.A
T0447 BN96-06887C ASSY BRACKET P-PANEL;52,L650A,UO,AMBER,G 1 S.N.A
M0027 BN96-06875A ASSY STAND P-BASE;52,L650A,,ABS+PMMA,HB, 1 S.A
M0115 BN61-03109A BRACKET-STAND LINK;TULIP-SIDE 46,SECC,T1 1 S.N.A
M0146 BN61-03056A BRACKET-PANEL TOP;TULIP52,SECC,T1.2 4 S.N.A
M0014 BN94-01767D ASSY PCB MAIN;LA52A650A1FXXY 1 S.A
M0013 BN96-06893E ASSY COVER P-REAR;52,L650,SO(IDTV),ABS+P 1 S.A
5-8
5. Exploded View & Part List
5-5. LA32A650A1FXXY Parts List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
LA32A650A1FXXY LA32A650A1F,N59A/32AA1-GAM,32,LCD-TV,AUS
0.1 M0001 BN90-01523G ASSY COVER FRONT;32,L651,SO(IDTV),,,,AMB 1 S.N.A
..2 T0003 BN96-06840G ASSY COVER P-FRONT;32,L650A,SO(IDTV),,PC 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.74 S.N.A
...3 M0112 BN63-04139G COVER-FRONT;32,L650,SO(IDTV),PC(CLR)+PC( 1 S.N.A
...3 BN96-06843A ASSY HOLDER P-BOSS BOTTOM;32,L650A,,ABS, 1 S.N.A
....4 BN61-03261L BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.65 S.N.A
....4 BN61-03793A HOLDER-BOSS BOTTOM;32,L650,ABS,HB,-,-,-, 1 S.N.A
....4 BN61-03261Q BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.06 S.N.A
...3 BN96-06846A ASSY HOLDER P-BOSS TOP;32,L650A,,ABS,HB, 1 S.N.A
....4 BN61-03261K BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE, 0.71 S.N.A
....4 BN61-03791A HOLDER-BOSS TOP;32,L650,ABS,HB,-,-,-,WH1 1 S.N.A
....4 BN61-03261Q BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.06 S.N.A
...3 M0146 BN96-07244D ASSY BOARD P-POWER & IR;LE32A656A1F,CT50 1 S.A
...3 T0069 BN60-00027N SPACER-FELT;L650 32,FELT,383,0.5,20 2 S.N.A
...3 T0069 BN60-00027T SPACER-FELT;L650 32,FELT,700,0.5,20 2 S.N.A
...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 3 S.N.A
...3 BN96-07658A ASSY HOLDER P-BOSS SIDE;32,L650,,PC V1 R 2 S.N.A
....4 BN61-03261A BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA 0.08 S.N.A
....4 BN61-04074C HOLDER-BOSS SIDE;AMBER 32",PC V1 RECYCLE 1 S.N.A
0.1 M0002 BN90-01528E ASSY COVER REAR;32,L650,SO(IDTV),AMBER 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 11 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 M0013 BN96-06888E ASSY COVER P-REAR;32,L650,SO(IDTV),ABS+P 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 T0069 AA63-60131N SPACER-FELT;L2,FELT,280*10,BLK,T0.5 2 S.N.A
...3 T0101 BN61-03348A BRACKET-WALL;LCD TV 32,SECC T1.2,-,-,-,- 4 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.7 S.N.A
...3 M0006 BN63-04442C COVER-REAR;32,L650,SO,ABS+PMMA,HB,BK23,H 1 S.N.A
...3 T0071 BN64-00777E INLAY-TERMINAL;32,L650,SO(IDTV),PS SHEET 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A
0.1 M0216 BN90-01580B ASSY STAND;32,L650,AMBER 1 S.N.A
..2 M0027 BN96-07211B ASSY STAND P-BASE;32,L650,ABS+PMMA,HB,RD 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A
...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A
...3 T0920 BN61-03679A GUIDE-STAND;32L450,PC+GF 20%,-,-,-,BK500 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
...3 T0004 BN63-03102D COVER-STAND BASE;32,L650,ABS+PMMA,HB,RD0 1 S.N.A
...3 M0126 BN73-00052C RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19, 4 S.N.A
5-9
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 BN91-02219A ASSY LCD-AMLCD;LE32A656A1FXXC 1 S.N.A
..2 M0215 BN07-00537A LCD-PANEL;LTF320HA02 1 S.A
0.1 BN91-02238A ASSY SHIELD-SQE;LA32A650A1FXXY 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 3 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 7 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A
..2 M2893 BH39-00362G LEAD CONNECTOR;SONOMA,UL1007#26,5PIN,100 1 S.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00802A LEAD CONNECTOR;LE32R86BDX,UL1007#26,UL/C 1 S.A
..2 M2893 BN39-00849C LEAD CONNECTOR;LNT4081FX/XAA,UL1007 #26, 1 S.A
..2 T0764 BN44-00208A SMPS-LCDTV;MK32P5T,SEM,AC/DC,137W,AC100 1 S.A
..2 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 3 S.N.A
..2 M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32",SECC,T1.6 1 S.N.A
..2 T0447 BN96-04681A ASSY BRACKET P-PANEL;-,32R81,-,-,-,-,AM, 1 S.N.A
...3 M0131 AA63-01437A GASKET;Bordeaux,Conductive Fabric,20mm,9 1 S.N.A
...3 M0131 AA63-01438A GASKET;Bordeaux,Conductive Fabric,7mm,8m 1 S.N.A
...3 BN61-02199B BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1. 1 S.N.A
...3 BN61-02200A BRACKET-GUIDE POWER L;Bordeaux 32,SECC,T 1 S.N.A
...3 M0146 BN61-02970A BRACKET-PANEL TOP;32 BORDEAUX PLUS,SECC, 1 S.N.A
...3 BN61-02974A BRACKET-PANEL BOTTOM;32 BORDEAUX PLUS,SE 1 S.N.A
...3 BN61-02978A BRACKET-GUIDE MAIN;32 BORDEAUX PLUS,SECC 1 S.N.A
...3 M0131 BN63-03327A GASKET;BORDEAUX PLUS,Conductive Fabric,2 1 S.N.A
..2 T0175 BN96-06818B ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin, 1 S.A
..2 M2893 BN39-01066A LEAD CONNECTOR-LVDS;LE40A650DX/XEF,UL283 1 S.A
..2 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 S.N.A
..2 T0175 BN96-07903C ASSY SHIELD P-PCB MAIN;32L450,L650,SO(DT 1 S.N.A
...3 AA63-01388A GASKET-EMI,SPONGE;SP-P300M,Conductive Fa 2 S.N.A
...3 M0131 BN63-03480A GASKET;LNT4642HX/XAA,Polyurethane Foam,1 1 S.N.A
...3 T0603 BN63-04700A SHIELD-PCB MAIN;450 SO,SECC,T0.5,AUSTRA 1 S.N.A
...3 M0131 BN63-04866A GASKET;LE40A676A1M,FABRIC,10mm,7mm,170mm 1 S.N.A
..2 BN96-08385A ASSY HOLDER P-SIDE AV;L650,AUSTRALIA,ABS 1 S.N.A
...3 M0254 BN61-02875R HOLDER-SIDE AV;40,L650,SO,ABS+PMMA,HB,BK 1 S.N.A
...3 M0131 BN63-04909A GASKET;LN40A650A1F,FABRIC,1mm,23.2mm,137 1 S.N.A
0.1 M0017 BN91-02246A ASSY CHASSIS;LA32A650A1FXXY 1 S.N.A
..2 M0014 BN94-01767A ASSY PCB MAIN;LA32A650A1FXXY 1 S.A
...3 CN3013_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A
...3 JA330 3722-001055 JACK-PHONE;5P/2C,AG,BLK,ANGLE 1 S.A
5-10
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 CN3009_NSI 3722-002275 JACK-DIN;4P,-,SN,BLK,- 1 S.A
...3 CN9001_NSI 3722-002546 JACK-USB;4P/1C,AU,BLK,ANGLE,A type 1 S.N.A
...3 CIS3 BN40-00124A TUNER;DNOS403SH071A(S),DNOS403SH071A(S), 1 S.A
...3 T0174 BN97-02153A ASSY SMD;LA32A650A1FXXY 1 S.N.A
....4 SUB05 0202-001278 SOLDER-CREAM;M705-221BM5-32-11,-,20~40UM 5.5 S.N.A
....4 D1004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3023 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3024 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3026 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3044 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3045 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3050 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3051 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3052 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3057_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3058_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3060 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3061 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D4004_CEC 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D5004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D5005 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D5006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D2001 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D2002 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D2003 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3071 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3072 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3073 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3074 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3075 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3076 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3077 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3078 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3079 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D1212_NCMO 0402-001098 DIODE-RECTIFIER;SK34,40V,3A,SMC,TP 1 S.A
....4 D2004 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3007 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3017 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3022 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3032_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3039_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3046 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3047 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
5-11
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3048 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3049 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3053 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3054 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D4007 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D9002 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D5009 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A
....4 D4010 0403-000584 DIODE-ZENER;VLZ3V6B,3.6/3.845V,500mW,SOD 1 S.N.A
....4 D3041 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3055_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3056 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3059 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3066 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3067 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3068 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3069_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D9003 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D1005 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A
....4 D3001 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3004 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3006 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3014 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3015 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3016 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3018 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3025 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3027 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3028 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3029 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3035_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3036_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3037_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3038_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3040_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3042_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3043_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3062 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3063 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3064 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3065 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D9001 0406-001181 DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6 1 S.A
....4 IC3011 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3012 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3013 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3014 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3015 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3016 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3017_4HD 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 IC3018_4HD 0406-001299 DIODE-TVS;CM1224-04MR,MSOP-10 1 S.A
....4 D2005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D2007 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
5-12
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D2010 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D4003 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D4005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D4006 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D4008 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D4009 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7001 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7002 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7003 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7004 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7006 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 Q9001 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q9002 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q1003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3008 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3009 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3011 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3012 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3013 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3016_4HDM 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3017 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3018_OP 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q4002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q4003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q4004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5007 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5008 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q6001_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2001 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q2003 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q1002_LCD 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q1004_50HZ 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q5003_NPN 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q1503_STT 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q1504_STT 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q1505_STT 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q3014_NSID 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q3015_NSID 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A
....4 IC104 0801-002237 IC-CMOS LOGIC;74V(A)HC1G04,INVERTER,SC-7 1 S.A
....4 IC104 0801-002237 IC-CMOS LOGIC;74V(A)HC1G04,INVERTER,SC-7 1 S.A
....4 IC104 0801-002780 IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER 1 S.A
5-13
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 T0596 0904-002348 IC-USC;USB2512,QFN,36P,6x6mm,24MHz,TR,PL 1 S.A
....4 IC5001 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A
....4 IC106 1001-001513 IC-VIDEO SWITCH;TMDS351PAG,TQFP,64P,9x9m 1 S.A
....4 IC2002 1002-001509 IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4 1 S.A
....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A
....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A
....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A
....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A
....4 IC113 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit,32Mx16 1 S.N.A
....4 IC113 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit,32Mx16 1 S.N.A
....4 IC113 1105-001828 IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M 1 S.A
....4 IC113 1105-001828 IC-DRAM;HYB18TC256160BF,DDR2,256Mbit,16M 1 S.A
....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A
....4 T0124 1201-002677 IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA 1 S.A
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.A
....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.A
....4 IC9003 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A
....4 T0087 1203-003695 IC-POSI.FIXED REG.;NCP1117ST33T3G,SOT-22 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
....4 IC4004 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A
....4 IC2004 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 IC118 1204-002779 IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17 1 S.A
....4 IC118 1204-002869 IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31 1 S.A
....4 IC7001 1204-002888 IC-DECODER;SAM7103,FPBGA,716P,27x27mm,PL 1 S.A
....4 IC3019 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A
....4 IC4011 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 1 S.A
....4 IC3007 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 IC3009_4HD 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 IC3010 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 IC4008 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 R110 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
5-14
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000103 R-CHIP;120Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000103 R-CHIP;120Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
5-15
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
5-16
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
5-17
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
5-18
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
5-19
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
