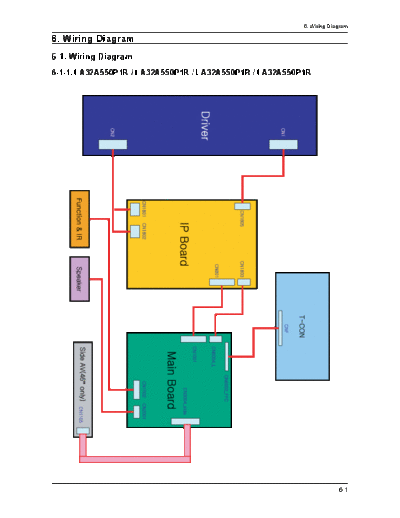

Image preview - the first page of the document
Wiring Diagram


>> Download Wiring Diagram documenatation <<

Text preview - extract from the document
                                                          6. Wiring Diagram

6. Wiring Diagram
6-1. Wiring Diagram
6-1-1. LA32A550P1R / LA32A550P1R / LA32A550P1R / LA32A550P1R




                                                                       6-1
6. Wiring Diagram

6-1-2. LA40A650A1R / LA46A650A1R / LA52A650A1R




6-2
6. Wiring Diagram




             6-3
6. Wiring Diagram

6-2. Connector Functions
6-2-1. PEARL (L550)

                    Connector                                        Functions

CN1 <-> CN1805                          Supply power and signal from IP Board to Panel Driver.

CN2 <-> CN1801,CN1802                   Supply power from IP Board to Panel Driver.

CN1803 <-> CN6004_L                     Supply dimming power from IP Board to MainBoard.

CN801 <-> CN1001                        Supply main power from IP Board to MainBoard.

CNF <-> CN6002_FFC                      The LVDS signal trasfered from MainBoard to Panel(T-Con).

CN3004_Side <-> CN1105 (Only 46 Inch)   The signal transfered from MainBoard to Side_AV.


6-2-2. AMBER (L650)

                    Connector                                        Functions

CN103 <-> CN1805                        Supply power and signal from IP Board to Panel Driver.

CN101 <-> CN1801,CN1802                 Supply power from IP Board to Panel Driver.

CN1803 <-> CN6004_L                     Supply dimming power from IP Board to MainBoard.

CN801 <-> CN1001                        Supply main power from IP Board to MainBoard.

CN505 <-> CN6002_FFC                    The LVDS signal trasfered from MainBoard to Panel(T-Con).

CN3004_Side (Only 46 Inch) <-> CN1105   The signal transfered from MainBoard to Side_AV.




6-4
                                                                                6. Wiring Diagram

6-3. Cables
6-3-1. LA46A550P1R cables

Code    BN39-00674A (Dimming 5P)    BN39-00802F (Power 24P)     BN39-00830A (Feed Back 7P)








        BN39-01020A (Inverter 2P)   BN39-01024A (Inverter 2P)   BN96-06678A
Code
                                                                (Side AV Cable Only 46")








Code    BN96-07161E (LVDS Cable)








                                                                                             6-5
6. Wiring Diagram

6-3-2. LA40A650A1R cables

Code         BN39-00674A (Dimming 5P)    BN39-00802F (Power 24P)    BN39-0830C (Feed Back 7P)








             BN39-01024A (Inverter 2P)   BN96-06678A                BN96-07161Q (LVDS Cable)
Code
                                         (Side AV Cable Only 46")








6-6
