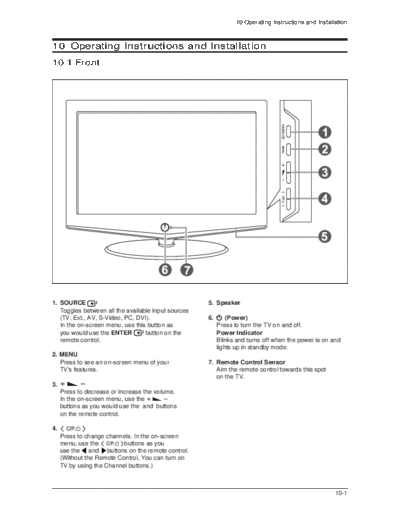

Image preview - the first page of the document
>> Download 05_Operation Instruction & Installation documenatation <<
Text preview - extract from the document
10 Operating Instructions and Installation
10 Operating Instructions and Installation
10-1 Front
1. SOURCE 5. Speaker
Toggles between all the available input sources
(TV, Ext., AV, S-Video, PC, DVI). 6. (Power)
In the on-screen menu, use this button as Press to turn the TV on and off.
you would use the ENTER button on the Power Indicator
remote control. Blinks and turns off when the power is on and
lights up in standby mode.
2. MENU
Press to see an on-screen menu of your 7. Remote Control Sensor
TV's features. Aim the remote control towards this spot
on the TV.
3.
Press to decrease or increase the volume.
In the on-screen menu, use the
buttons as you would use the and buttons
on the remote control.
4.
Press to change channels. In the on-screen
menu, use the buttons as you
use the and buttons on the remote control.
(Without the Remote Control, You can turn on
TV by using the Channel buttons.)
10-1
10 Operating Instructions and Installation
10-2 Viewing the Connection Panel
1. Connecting DVI
- Connect the DVI connector to the DVD connector.
- Connect the stereo audio cable to "R - AUDIO - L" on the rear of your set and the other end to
"Audio Out" of the sound card on your DVD.
- DVI does not support PC function.
2. Connecting Computer
- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the
Video Card of your computer.
- Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end
to "Audio Out" of the sound card on your computer.
3. Connecting an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by the set from one of the following
sources:
- An outdoor aerial / A cable television network / A satellite network
4. Connecting Set-Top Box, VCR or DVD
- Connect the VCR or DVD SCART cable (optional) to the SCART connector of the VCR or DVD.
- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to
the VCR (or DVD) and connect the VCR (or DVD) to your set.
5. Connecting External A/V Devices
- Connect RCA (optional) or S-VIDEO cable (optional) to an appropriate external A/V device such as
VCR, DVD or Camcorder.
- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.
- Headphone may be connected to the headphone output ( 6 ) on the rear of your set. While the
headphone is connected, the sound from the built-in speakers will be disabled.
7. Kensington Lock
- The Kensington lock (optional) is a device used to physically fix the system when used in a public place.
- If you want to use a locking device, contact the dealer where you purchased the TV.
10-2
10 Operating Instructions and Installation
10-3 Viewing the Remote Control
1. Television Standby button
2. Number buttons for direct channel access
3. One/Two-digit channel selection
4. : Volume increase
: Volume decrease
5. Temporary sound switch-off
6. Menu display and change confirmation
7. Control the cursor in the menu
8. Sound mode selection
9. Picture effect selection
10. Sound effect selection
13. Use to see information on the
current broadcast
14. Available source selection
15. Previous channel
16. P :Next channel
P :Previous channel
17. Exit the on screen menu
18. Picture freeze
19. Picture size selection
20. Automatic Power-off
21. Selects the TV mode directly
Teletext Functions
3. Teletext hold
6. Teletext index
10. Teletext sub page
11. Teletext size selection
12. Teletext display/mix both teletext
information and the normal broadcast
13. Teletext reveal
14. Teletext mode selection(LIST/FLOF)
16. P : Teletext next page
P : Teletext previous page
17. Teletext cancel
20. Teletext store
21. Exit from the teletext display
8,9,18,19. Fastext topic selection
10-3
10 Operating Instructions and Installation
10-4 Installation Notes and Precautions
10-4-1 Using the Anti-Theft Kensington Lock
The Kensington lock is a device used to physically fix the system when using it in a public place. The
locking device has to be purchased separately. The appearance and locking method may differ from
the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington
lock for proper use.
1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking
direction (Figure 2).
2. Connect the Kensington lock cable.
3. Fix the Kensington lock to a desk or a heavy stationary object.
10-4
10 Operating Instructions and Installation
10-5 How to Adjust the Stand
1. Place the front of the TV onto a soft cloth or cushion on a table as in Figure (1).
- Align the TV bottom along the table edge.
2. Press on the center of the TV back.
Adjust the stand as in Figure (2) while pressing the button on the back of the stand.
3. Place the TV on the table so that the TV sits safely.
10-6 How to Adjust the Angle of the TV
Note: When you adjust the stand, press the button on the back of the stand.
1. Figure (1) shows the adjustment angle ( -2◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
