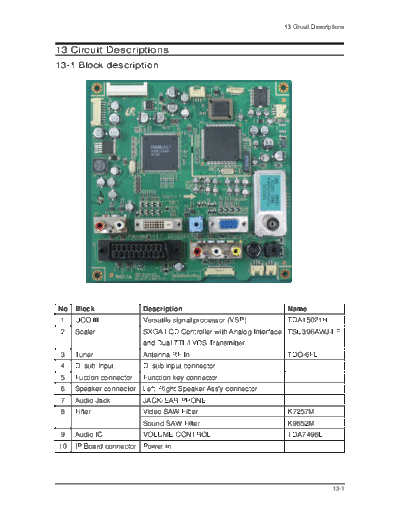

Image preview - the first page of the document



>> Download 08_Circuit Description documenatation <<

Text preview - extract from the document

                                                               13 Circuit Descriptions


13 Circuit Descriptions
13-1 Block description




No   Block               Description                            Name
 1   UCO III             Versatile signal processor (VSP)       TDA15021H
 2   Scaler              SXGA LCD Controller with Analog Interface TSU396AWJ-LF
                         and Dual TTL/LVDS Transmitter
 3   Tuner               Antenna RF In                          TDQ-6FL
 4   D_sub Input         D_sub input connector
 5   Fuction connector   Function key connector
 6   Speaker connector   Left, Right Speaker Ass'y connector
 7   Audio Jack          JACK-EAR PHONE
 8   Filter              Video SAW Filter                       K7257M
                         Sound SAW Filter                       K9652M
 9   Audio IC            VOLUME CONTROL                         TDA7496L
10   IP Board connector Power in




                                                                                 13-1
13 Circuit Descriptions

13-1-1 VCT49XYI (IC700)




13-1-2 VSP Block
 : CVBS, S-Video, RF(IF), SCART
   (RGB) Convert 656 format to video
   input and transfer to MST51510




13-2
                                  13 Circuit Descriptions

13-1-3 MSP Block
 : PC, Sound L/R, SCART,
   Receive audio input and send
   out to AMP.




13-1-4 SE6181(IC301)
- Scaler(MFM)
- Support Digital Video Input
- Internal LVDS IC
- Support PIP
- OSD controller engine




                                                    13-3
13 Circuit Descriptions

Memo




13-4
