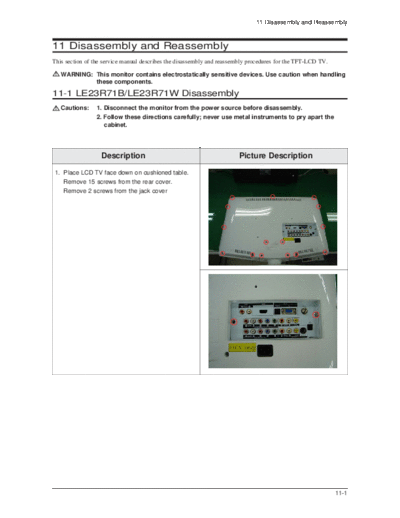

Image preview - the first page of the document



>> Download 06_Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                              11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD TV.

   WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
            these components.

11-1 LE23R71B/LE23R71W Disassembly
   Cautions:    1. Disconnect the monitor from the power source before disassembly.
                2. Follow these directions carefully; never use metal instruments to pry apart the
                   cabinet.




                  Description                                          Picture Description

1. Place LCD TV face down on cushioned table.
   Remove 15 screws from the rear cover.
   Remove 2 screws from the jack cover




                                                                                                             11-1
11 Disassembly and Reassembly




                Description                       Picture Description

2. Remove stand and lift up the rear cover.




3. Disconnect cables and remove screws from the
   boards




11-2
                                                         11 Disassembly and Reassembly




                Description                          Picture Description

4. Lift up the boards and remove screws from the
   stand brkt.




5. Lift up the stand brkt and remove 7 screws from
   the panel brkt.




                                                                                  11-3
11 Disassembly and Reassembly




                Description          Picture Description

6. Lift up the brkt and LCD panel.




7. LCD panel




11-4
                                                                      11 Disassembly and Reassembly


7. LCD panel




11-2 Reassembly

Reassembly procedures are in the reverse order of disassembly procedures.




                                                                                               11-5
11 Disassembly and Reassembly

Memo




11-6
