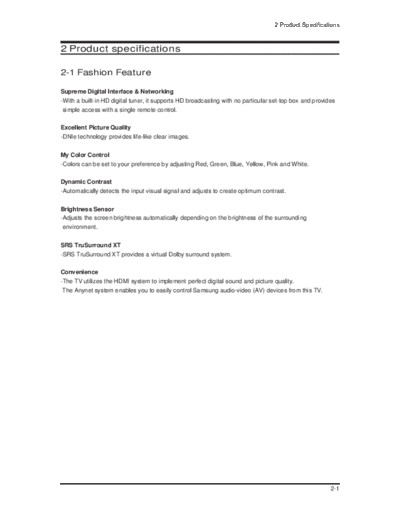

Image preview - the first page of the document



>> Download 04_Product Specification documenatation <<

Text preview - extract from the document

                                                                                  2 Product Specifications



2 Product specifications

2-1 Fashion Feature

Supreme Digital Interface & Networking
-With a built-in HD digital tuner, it supports HD broadcasting with no particular set-top box and provides
 simple access with a single remote control.

Excellent Picture Quality
-DNIe technology provides life-like clear images.

My Color Control
-Colors can be set to your preference by adjusting Red, Green, Blue, Yellow, Pink and White.

Dynamic Contrast
-Automatically detects the input visual signal and adjusts to create optimum contrast.

Brightness Sensor
-Adjusts the screen brightness automatically depending on the brightness of the surrounding
 environment.

SRS TruSurround XT
-SRS TruSurround XT provides a virtual Dolby surround system.

Convenience
-The TV utilizes the HDMI system to implement perfect digital sound and picture quality.
 The Anynet system enables you to easily control Samsung audio-video (AV) devices from this TV.




                                                                                                        2-1
2 Product Specifications


 2-2 LE26R71B / LE26R72B Specifications

              Item                                                           Description


   LCD Panel                    TFT-LCD panel, RGB vertical stripe, normaly white, 26-Inch viewable, 0.4215(H) x 0.4215(V) mm pixel pitchh
   Scanning Frequency           Horizontal : 30 kHz ~ 61 kHz (Automatic) / Vertical : 60 Hz ~ 75 Hz (Automatic)

   Display Colors               16,777,216 colours
   Maximum Resolution           Horizontal : 1360 Pixels
                                Vertical : 768 Pixels
   Input Video Signal           Analog 0.7 Vp-p
