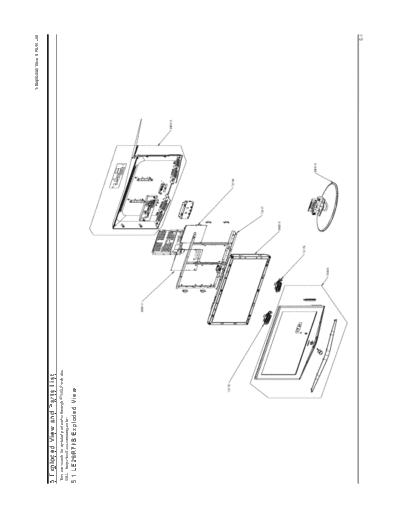

Image preview - the first page of the document
>> Download 10_Exploded View & Part List documenatation <<
Text preview - extract from the document
5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
5-1 LE26R71B Exploded View
M0014
M0013
T0175
T0159
T0447
M0215
T0175
M0013
T0003
5-1
5 Exploded View & Parts List
5-2 LE26R71B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03012A ASSY COVER P-FRONT;26R71,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03053A ASSY SPEAKER P;16ohm,Bordeuax 26,Left,5W 1 SA
T0175 BN96-03054A ASSY SPEAKER P;16ohm,Bordeuax 26,Right,5 1 SA
M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 SA
T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 SNA
M0014 BN94-00847A ASSY PCB MAIN;LE26R71BX,Q52A 1 SA
T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 SA
M0013 BN96-03014A ASSY COVER P-REAR;26R71,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 SA
5-2
5 Exploded View & Parts List
5-3 LE26R72B Exploded View
M0014
M0013
T0159
T0175
T0447
T0003
M0215
T0175
M0013
5-3
5 Exploded View & Parts List
5-4 LE26R72B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03260A ASSY COVER P-FRONT;26R72,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03264A ASSY SPEAKER P;16ohm,Bordeuax2, 26,Left, 1 SA
T0175 BN96-03265A ASSY SPEAKER P;16ohm,Bordeuax2, 26,Right 1 SA
M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 SA
T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 SNA
T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 SA
M0014 BN94-00847A ASSY PCB MAIN;LE26R71BX,Q52A 1 SA
M0013 BN96-03014A ASSY COVER P-REAR;26R71,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 SA
5-4
5 Exploded View & Parts List
5-5 LE32R71B Exploded View
M0014
M0013
T0175
T0447
M0215
T0175
T0003
M0013
5-5
5 Exploded View & Parts List
5-6 LE32R71B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03630A ASSY COVER P-FRONT;32R71,EO(CMO),ABS+PMM 1 SNA
T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
M0215 BN07-00207A LCD-PANEL;V320B1-L01,Duomo,8bit,760*450* 1 SA
T0447 BN96-02999B ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S 1 SNA
M0014 BN94-00963R ASSY PCB MAIN-CMO;LE32R71BX/* 1 SNA
M0013 BN96-02997A ASSY COVER P-REAR;32R71,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-02998A ASSY STAND P-BASE;32R71,ABS+PMMA,HB,BK23 1 SA
5-6
5 Exploded View & Parts List
5-7 LE32R72B Exploded View
M0014
M0013
T0175
T0447
M0215
T0175
T0003
M0013
5-7
5 Exploded View & Parts List
5-8 LE32R72B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03259A ASSY COVER P-FRONT;32R72,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03266A ASSY SPEAKER P;8ohm,Bordeuax2, 32,Left,1 1 SA
T0175 BN96-03267A ASSY SPEAKER P;8ohm,Bordeuax2, 32,Right, 1 SA
M0215 BN07-00247A LCD-PANEL;LTA320WT-L14,8BIT,760*450*50.0 1 SA
T0447 BN96-02999A ASSY BRACKET P-PANEL;BORDEAUX,32,AMLCD,S 1 SNA
M0014 BN94-00881A ASSY PCB MAIN;LE32R71BX,BORDEAUX 1 SA
M0013 BN96-02997A ASSY COVER P-REAR;32R71,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-02998A ASSY STAND P-BASE;32R71,ABS+PMMA,HB,BK23 1 SA
5-8
5 Exploded View & Parts List
5-9 LE37R72B Exploded View
M0014
M0013
T0175
T0447
M0215
T0175
T0003
M0013
5-9
5 Exploded View & Parts List
5-10 LE37R72B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03254A ASSY COVER P-FRONT;37R72,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03266A ASSY SPEAKER P;8ohm,Bordeuax2, 32,Left,1 1 SA
T0175 BN96-03267A ASSY SPEAKER P;8ohm,Bordeuax2, 32,Right, 1 SA
M0215 BN07-00255A LCD-PANEL;T370XW01,8bit,877.0*514.6*54.7 1 SA
T0447 BN96-03253A ASSY BRACKET P-PANEL;BORDEAUX-2,37,AUO,S 1 SNA
M0014 BN94-00877A ASSY PCB MAIN;LE37R72BX,BORDEAUX 2 1 SA
M0013 BN96-03256A ASSY COVER P-REAR;37R72,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-03016A ASSY STAND P-BASE;40R71,ABS+PMMA,HB,BK23 1 SA
5-10
5 Exploded View & Parts List
5-11 LE40R71B Exploded View
M0014
M0013
T0101
T0175
T0447
M0215
T0175
T0003
M0013
5-11
5 Exploded View & Parts List
5-12 LE40R71B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03011A ASSY COVER P-FRONT;40R71,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 SA
T0447 BN96-03009C ASSY BRACKET P-PANEL;BORDEAUX,40,AMLCD,I 1 SNA
M0014 BN94-00827A ASSY PCB MAIN;LE40R71BX/XEC,40" 1 SA
T0101 BN61-02032A BRACKET-WALL;32,MGM,SECC,T1.6 2 SNA
M0013 BN96-03013A ASSY COVER P-REAR;40R71,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-03016A ASSY STAND P-BASE;40R71,ABS+PMMA,HB,BK23 1 SA
5-12
5 Exploded View & Parts List
5-13 LE40R72B Exploded View
M0014
M0013
T0175
T0447
M0215
T0175
T0003
M0013
5-13
5 Exploded View & Parts List
5-14 LE40R72B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03258A ASSY COVER P-FRONT;40R72,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03266A ASSY SPEAKER P;8ohm,Bordeuax2, 32,Left,1 1 SA
T0175 BN96-03267A ASSY SPEAKER P;8ohm,Bordeuax2, 32,Right, 1 SA
M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 SA
T0447 BN96-03009C ASSY BRACKET P-PANEL;BORDEAUX,40,AMLCD,I 1 SNA
M0014 BN94-00827A ASSY PCB MAIN;LE40R71BX/XEC,40" 1 SA
M0013 BN96-03013A ASSY COVER P-REAR;40R71,EO,ABS+PMMA,HB,B 1 SA
M0013 BN96-03016A ASSY STAND P-BASE;40R71,ABS+PMMA,HB,BK23 1 SA
5-14
