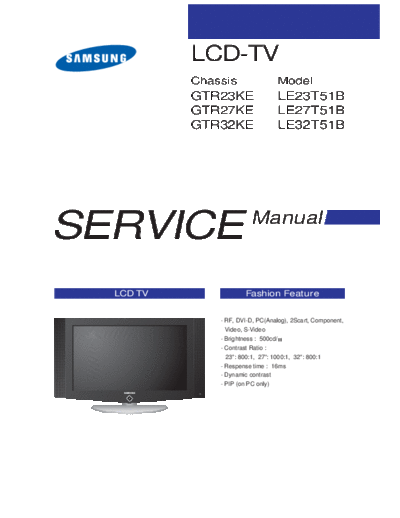

Image preview - the first page of the document
>> Download LE27T51B documenatation <<
Text preview - extract from the document
LCD-TV
Chassis Model
GTR23KE LE23T51B
GTR27KE LE27T51B
GTR32KE LE32T51B
SERVICE Manual
LCD TV Fashion Feature
- RF, DVI-D, PC(Analog), 2Scart, Component,
Video, S-Video
- Brightness : 500cd/
- Contrast Ratio :
23": 800:1, 27": 1000:1, 32": 800:1
- Respense time : 16ms
- Dynamic contrast
- PIP (on PC only)
Samsung Electronics Co.,Ltd.
-This Service Manual is a property of Samsung 416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Electronics Co., Ltd. Gyeonggi-Do, Korea, 443-742
Any unauthorized use of Manual can be punished Printed in Korea
under applicable International and/or domestic law. P/N : BN82-00128R-01
URL : http://itself.sec.samsung.co.kr/
LCD-TV
Chassis Model
GTR23KE LE23T51B
GTR27KE LE27T51B
GTR32KE LE32T51B
GTR32KE LE32T51S
SERVICE Manual
LCD TV Fashion Feature
- RF, DVI-D, PC(Analog), 2Scart, Component,
Video, S-Video
- Brightness : 500cd/
- Contrast Ratio :
23": 800:1, 27": 1000:1, 32": 800:1
- Respense time : 16ms
- Dynamic contrast
- PIP (on PC only)
Samsung Electronics Co.,Ltd.
-This Service Manual is a property of Samsung 416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Electronics Co., Ltd. Gyeonggi-Do, Korea, 443-742
Any unauthorized use of Manual can be punished Printed in Korea
under applicable International and/or domestic law. P/N : BN82-00128R-03
URL : http://itself.sec.samsung.co.kr/
1 Precautions
1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.
1-1 Safety Precautions
1-1-1 Warnings
1. For continued safety, do not attempt to modify the circuit
board.
2. Disconnect the AC power and DC power jack before
servicing.
1-1-2 Servicing the LCD Monitor
1. When servicing the LCD Monitor, Disconnect the AC
line cord from the AC outlet.
2. It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.
1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the Figure 1-1. Leakage Current Test Circuit
following safety checks:
1. Inspect each lead dress to make certain that the leads are 4. With the unit completely reassembled, plug the AC line
not pinched or that hardware is not lodged between the cord directly into a 120V AC outlet. With the unit's AC
chassis and other metal parts in the monitor. switch first in the ON position and then OFF, measure
2. Inspect all protective devices such as nonmetallic control the current between a known earth ground (metal water
knobs, insulating materials, cabinet backs, adjustment pipe, conduit, etc.) and all exposed metal parts,
and compartment covers or shields, isolation resistor- including: metal cabinets, screwheads and control shafts.
capacitor networks, mechanical insulators, etc. The current measured should not exceed 0.5 milliamp.
3. Leakage Current Hot Check (Figure 1-1): Reverse the power-plug prongs in the AC outlet and
repeat the test.
WARNING : Do not use an isolation
transformer during this test.
Use a leakage current tester or a metering system that 1-1-4 Product Safety Notices
complies with American National Standards Institute Some electrical and mechanical parts have special safety-
(ANSI C101.1, Leakage Current for Appliances), and related characteristics which are often not evident from visual
Underwriters Laboratories (UL Publication UL1410, inspection. The protection they give may not be obtained by
59.7). replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are
identified by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics
as the recommended replacement part might create shock, fire
and/or other hazards. Product safety is under review
continuously and new instructions are issued whenever
appropriate.
1-1
1 Precautions
1-2 Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section
of this manual.
Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
precautions, always follow the safety precautions.
1-2-1 General Servicing
Precautions 4. Check the insulation between the blades of the AC plug
1. Always unplug the unit's AC power cord from the AC and accessible conductive parts (examples: metal panels,
power source and disconnect the DC Power Jack before input terminals and earphone jacks).
attempting to: 5. Insulation Checking Procedure: Disconnect the power
(a) remove or reinstall any component or assembly, (b) cord from the AC source and turn the power switch ON.
disconnect PCB plugs or connectors, (c) connect a test Connect an insulation resistance meter (500 V) to the
component in parallel with an electrolytic capacitor. blades of the AC plug.
2. Some components are raised above the printed circuit The insulation resistance between each blade of the AC
board for safety. An insulation tube or tape is sometimes plug and accessible conductive parts (see above) should
used. The internal wiring is sometimes clamped to be greater than 1 megohm.
prevent contact with thermally hot components. Reinstall 6. Always connect a test instrument's ground lead to the
all such elements to their original position. instrument chassis ground before connecting the positive
3. After servicing, always check that the screws, lead; always remove the instrument's ground lead last.
components and wiring have been correctly reinstalled.
Make sure that the area around the serviced part has not
been damaged.
1-3 Electrostatically Sensitive Devices (ESD) Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The
following techniques will reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor 6. Do not remove a replacement ESD from its protective
components or assemblies, drain the electrostatic charge package until you are ready to install it. Most
from your body by touching a known earth ground. replacement ESDs are packaged with leads that are
Alternatively, wear a discharging wrist-strap device. To electrically shorted together by conductive foam,
avoid a shock hazard, be sure to remove the wrist strap aluminum foil or other conductive materials.
before applying power to the monitor. 7. Immediately before removing the protective material
2. After removing an ESD-equipped assembly, place it on a from the leads of a replacement ESD, touch the
conductive surface such as aluminum foil to prevent protective material to the chassis or circuit assembly into
accumulation of an electrostatic charge. which the device will be installed.
3. Do not use freon-propelled chemicals. These can Caution: Be sure no power is applied to the
generate electrical charges sufficient to damage ESDs. chassis or circuit and observe all
4. Use only a grounded-tip soldering iron to solder or other safety precautions.
desolder ESDs.
5. Use only an anti-static solder removal device. Some 8. Minimize body motions when handling unpackaged
solder removal devices not classified as "anti-static" can replacement ESDs. Motions such as brushing clothes
generate electrical charges sufficient to damage ESDs. together, or lifting your foot from a carpeted floor can
generate enough static electricity to damage an ESD.
1-2
1 Precautions
1-4 Installation Precautions
1. For safety reasons, more than two people are 6. Keep the antenna far away from any high-voltage
required for carrying the product. cables and install it firmly. Contact with the highvoltage
cable or the antenna falling over may
2. Keep the power cord away from any heat emitting cause fire or electric shock.
devices, as a melted covering may cause fire or
electric shock. 7. When installing the product, leave enough space
(10cm) between the product and the wall for
3. Do not place the product in areas with poor ventilation purposes.
ventilation such as a bookshelf or closet. The A rise in temperature within the product may cause fire.
increased internal temperature may cause fire.
4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.
5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.
1-3
1 Precautions
Memo
1-4
2 Product Specifications
2 Product Specifications
2-1 Fashion Feature
- RF, DVI-D, PC(Analog), 2Scart, Component, Video, S-Video
- Brightness : 500cd/
- Contrast Ratio :
23": 800:1, 27": 1000:1, 32": 800:1
- Respense time : 16ms
- Dynamic contrast
- PIP (on PC only)
2-1
2 Product Specifications
2-2 Specifications
2-2-1 LE23T51B Specifications
Item Description
LCD Panel TFT-LCD panel, RGB vertical stripe, normaly white, 23-Inch viewable, 0.372 (H) x 0.372(V)mm pixel pitch
Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic)
Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors 16.7 Million colors
Maximum Resolution Horizontal : 1360 Pixels
Vertical : 768 Pixels
Input Video Signal Analog 0.7 Vp-p 5% positive at 75 , internally terminated
Input Sync Signal Type : Seperate H/V
Level : TTL level
Maximum Pixel Clock rate 80 MHz
Active Display
Horizontal/Vertical 508.125 mm / 285.696 mm
AC power voltage & Frequency AC 220 ~ 240 V, 50~60 Hz
Power Consumption < 100W ( < 2W, stand by )
Dimensions(W x D x H)
Set 26.61 x 3.35 x 15.49 inches(675.9 x 85.0 x 393.4 mm) Body
26.61 x 8.02 x 17.30 inches (675.9 x 203.8 x 439.5 mm) With stand
Weight
Set(With stand) 16.76 lbs (7.6Kg)
Environmental Considerations Operating Temperature : 50 F ~ 104 F (10 C ~ 40 C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4 F ~ 113 F (-20 C ~ 45 C)
Storage Humidity : 5 % ~ 95 %
Tunning Frequency Synthesize
TV System System PAL, SECAM-B/G, D/K, I, I/I, L/L, NTPB (AV3.58, 4.43)
Sound BG, DK, I, L ( A2/NICAM )
Antena Input 75
- MAX Internal speaker Out : Right => 3W, Left => 3W
Sound Characteristic
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz
2-2
2 Product Specifications
2-2-2 LE27T51B Specifications
Item Description
LCD Panel TFT-LCD panel, RGB vertical stripe, normaly white, 27-Inch viewable, 0.1460 (H) x 0.4365(V)mm pixel pitch
Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic)
Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors 16.7 Million colors
Maximum Resolution Horizontal : 1360 Pixels
Vertical : 768 Pixels
Input Video Signal Analog 0.7 Vp-p 5% positive at 75 internally terminated
Input Sync Signal Type : Seperate H/V
Level : TTL level
Maximum Pixel Clock rate 80 MHz
Active Display
Horizontal/Vertical 596.259 mm / 335.232 mm
AC power voltage & Frequency AC 220 ~ 240 V, 50~60 Hz
Power Consumption < 140W ( < 2W, stand by )
Dimensions(W x D x H)
Set 30.18 x 3.78 x 18.07 inches (766.5 x 96.0 x 459.0 mm) Body
30.18 x 6.02 x 19.90 inches (766.5 x 203.8 x 505.5 mm) With stand
Weight
Set(With stand) 26.46 lbs (12.0 kg)
Environmental Considerations Operating Temperature : 50 F ~ 104 F (10 C ~ 40 C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4 F ~ 113 F (-20 C ~ 45 C)
Storage Humidity : 5 % ~ 95 %
Tunning Frequency Synthesize
TV System System PAL, SECAM-B/G, D/K, I, I/I, L/L, NTPB (AV3.58, 4.43)
Sound BG, DK, I, L ( A2/NICAM )
Antena Input 75
- MAX Internal speaker Out : Right => 5W, Left => 5W
Sound Characteristic
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz
2-3
2 Product Specifications
2-2-3 LE32T51B Specifications
Item Description
LCD Panel TFT-LCD panel, RGB vertical stripe, normaly white, 32-Inch viewable, 0.511 (H) x 0.511(V)mm pixel pitch
Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic)
Vertical : 60 Hz ~ 75 Hz (Automatic)
Display Colors 16.7 Million colors
Maximum Resolution Horizontal : 1360 Pixels
Vertical : 768 Pixels
Input Video Signal Analog 0.7 Vp-p 5% positive at 75 , internally terminated
Input Sync Signal Type : Seperate H/V
Level : TTL level
Maximum Pixel Clock rate 80 MHz
Active Display
Horizontal/Vertical 697.69 mm / 392.26 mm
AC power voltage & Frequency AC 220 ~ 240 V, 50~60 Hz
Power Consumption < 170 W ( < 2W, stand by )
Dimensions(W x D x H)
Set 36.00 x 4.09 x 20.82 inches (914.5 x 104.0 x 528.8 mm) With stand
36.00 x 9.74 x 23.29 inches (914.5 x 247.5 x 591.5 mm) Body
Weight
Set(With Stand) 33.07 Ibs (15.0 Kg)
Environmental Considerations Operating Temperature : 50 F~ 104 F (10 C ~ 40 C)
Operating Humidity : 10 % ~ 80 %
Storage Temperature : -4 F ~ 113 F (-20 C ~ 45 C)
Storage Humidity : 5 % ~ 95 %
Tunning Frequency Synthesize
TV System System PAL, SECAM-B/G, D/K, I, I/I, L/L, NTPB (AV3.58, 4.43)
Sound BG, DK, I, L ( A2/NICAM )
Antena Input 75
- MAX Internal speaker Out : Right => 7.5W, Left => 7.5W
Sound Characteristic
- BASS Control Range : -8 dB ~ + 8dB
- TREBLE Control Range : -8 dB ~ +8 dB
- Headphone Out : 10 mW MAX
- Output Frequency : RF : 80 Hz ~ 15 kHz
A/V : 80 Hz ~ 20 kHz
2-4
2 Product Specifications
2-2-4 Spec Comparison
Model LE23T51B / LE27T51B / LE32T51B LE23R41B / LE26R41B / LE32R41BX
Design
Frequency
Horizontal 30 ~ 61 kHz 30 ~ 61 kHz
Vertical 60 ~ 75 Hz 60 ~ 75 Hz
Display Color 16,777,216 colors 16,777,216 colors
PC Resolution
Maximum mode 1360 x 768 / 60 Hz 1360 x 768 / 60 Hz
Input Signal
Sync Signal H/V Separate, TTL, P. or N. H/V Separate, TTL, P. or N.
Video Signal 0.7 Vp-p @ 75ohm 0.7 Vp-p @ 75ohm
Power
Consumption
100W / 140W / 170W 100W / 140W / 170W
Normal
< 2W < 1W
Power Saving
Input source
DVI-D HDMI
Difference
PIP PIP(PC Only) PIP, POP
Sound 3W / 5W / 7.5W 3W / 5W / 10W
2-5
2 Product Specifications
2-3 Option Specification
Item Item Name Code.No Remark
Remote Control &
BN59-00488A
Batteries (AAA x 2)
Power Cord 3903-000042
Cover-Bottom BN63-02177A
23, 27" : BN96-02639A
Stand
32" : BN96-02633A
Stand Screw (4 ea) 6002-001294
Owner's Instructions BN68-00860C
2-6
3 Alignments and Adjustments
3 Alignments and Adjustments
3-1 General Alignment Instuction
1. Usually, a color LCD-TV needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.
2. Use the specified test equipment or its equivalent.
3. Correct impedance matching is essential.
4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort test result.
5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.
6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.
7. To protect aganist shock hazard, use an isolation transform.
3-1
3 Alignments and Adjustments
3-2 Factory Mode Adjustments
3-2-1 Entering Factory Mode
To enter 'Service Mode' Press the remote -control keys in this sequence :
- If you do not have Factory remote - control
Power OFF INFO MENU MUTE Power On
3-2-2 Panel Check
- Specially for LE32T51BX, You have to check Panel Maker Because of different adjustments as follows.
First of all, Check the label rating!
1) Label Rating File
LCD PANEL
MARK
* If not printed you could consider S(sec) panel mark.
2) If Panel Mark is "S", Set the factory mode indicating as follows.
* Option Byte
1. Panel Option : 32" AMLCD
If Panel Mark is "A", Set the factory mode indicating as follows.
* Option Byte
1. Panel Option : 32" AUO
Others are same shown below.
3-2
3 Alignments and Adjustments
3-2-3 Factory Mode Tree
- If you have Factory remote - control
[INFO] -> [FACTORY]
1. Calibration 1. Calibration : W/B Calibration
2. Option Byte
3. W/B AV Calibration
4. VCTi DTV Calibration
5. YC Delay PC Calibration
6. FLI5961
7. Adjust
8. Test Pattern 2. Option byte : Setting option
9. Password
10. Check Sum Panel option : 23" AMLCD, 27" CMO,
11. Spread Spectrum 32" AUO, 32" AMLCD
12. HDCP Gamma : on/off
13. Reset Auto Power : on/off
T-TRNPEU-0000 month day year time Video Mute :5
P-TRNPEU-0000 Language : English
Panel On Time(Hour) 0000 Hotel Mode : off/on
LNA Plus : off/on
V-chip : off
Auto FM : off/on
High Deviation : off/on
TTX List : Flop/List
MCC : off/on
TTX Group : User OSD
DVI : on/off
3. W/B : Adjustment White Balance
Sub Bright : 128
R off set : 128
G off set : 128
B off set : 128
Sub contrast : 128
R gain : 128
G gain : 128
B gain : 128
4. VCTi : VCTi IC Correct register
VCTi Page 1
VCTi Page 2
3-3
3 Alignments and Adjustments
1. Calibration 5. YC Delay
2. Option Byte
3. W/B RF PAL-B/G : 5
4. VCTi RF PAL-D/K : 6
5. YC Delay RF PAL-I : 5
6. FLI5961 RF PAL-L/L' : 5
7. Adjust RF SECAM-B/G : 2
8. Test Pattern RF SECAM-D/K : 0
9. Chip Debugger RF SECAM-I : 2
10. Check Sum RF SECAM-L/L' : 5
11. Spread Spectrum RF NTSC 3.58 : 5
12. HDCP RF NTSC 4.43 : 5
13. Reset AV PAL : 5
T-TRNPEU-0000 month day year time AV SECAM : 2
P-TRNPEU-0000 AV NTSC 3.58 : 5
Panel On Time(Hour) 0000 AV NTSC 4.43 : 5
AV PAL 60 : 5
6. FLI5961 : Scaler IC Correct register
Component Calibration: Result DTV Calibration
PC Calibration : Result PC Calibration
ACC/ACM
TNR
Picture Enhance
7. Adjust
User Control lnitial
LNA PLUS
Hotel Option
8. Test Pattern : VCTi IC'S own test patterns.
(Total 7 patterns)
9. Password : Use IC Register Correction.
10. Check Sum : 0000
11. Spread Spectrum
Spread Spectrum : on/off
Spread Spectrum Range : 2
Step : 63
12. HDCP : 0000
13. Reset
3-4
3 Alignments and Adjustments
3-3 White Balance - Calibration
3-3-1 White Balance -Calibration
1. Calibration DTV Calibration
PC Calibration
(Calibration Condition refer to next page)
3-3-2 White Balance - Adjustment
(low light) (hight light)
3. W/B Sub Bright Sub Contrast
R offset R gain
G offset G gain
B offset B gain
(W/B adjustment Condition refer next page)
3-3-3 Conditions for Measurement
1. On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 1 : 744X484@60 Hz
NO 6 : 1280X720@60 Hz (Component 720P)
NO 21 : 1024X768@60 Hz
* Pattern NO 15 : Color bar
NO 16 : Toshiba ABL Pattern
NO 17 : 16 gray
2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model LNR2355W,LNR2755W,LNR3255W.
3-5
3 Alignments and Adjustments
3-3-4 Method of Adjustment
1. Adjust the basic level of Component and PC input signals.
a) Set the input to the mode in which the adjustment will be made (Component PC ).
* Input signal - Component Mode : Model #6 (1280*720 Mode), Pattern #15 (picture 4-1)
- PC Mode : Model #21 (1024*768 Mode), Pattern #17 (Picture 4-2)
b) Enter factory Calibration (DTV, PC Mode Only).
* DTV Calibration Source change for PC PC Calibration
Picture 4-1 Color bar Picture 4-2 16gray
2. Adjust the white balance of AV, Component and DVI Modes.
a) Set the input to the mode in which the adjustment will be made (AV Component DVI).
* Input signal - VIDEO Mode : Model #1 (744*484 Mode), Pattern #16
- Component, DVI Mode : Model #6 (1280*720 Mode), Pattern #16
b) Enter factory W/B.
c) Adjust the low light.
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates. ( x : 263, y : 267, Y : 1.3 ft)
* Do not adjust green offset data.
Picture 4-3 Toshiba ABL Pattern
Low light
Measurement point
3-6
3 Alignments and Adjustments
d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates. ( x : 263, y : 267 )
* Do not adjust the green gain and sub-contrast (Y) data.
* (Only RE32T51BX) If Panel is AM-LCD, Y adjust 36FT/L.
Picture 4-4 Toshiba ABL Pattern
High light
Measurement point
3-7
3 Alignments and Adjustments
3-4 TORINO Micom Update
3-4-1 Installing G-Probe
1. Uncompress GProbe5.1.0.18.zip.
2. Run GProbe5.1.0.18.exe.
3. The files are created in the C: Program Files Genesis Microchip GProbe 5 folder.
4. Copy the ispoak_spi.hex file to the C: Program Files Genesis Microchip GProbe 5 folder.
5. Uncompress FLI5961-AC_GProbe_S0006-CSC-33B.zip.
6. Three files are extracted (FLI5961.Chip.GProbe, FLI5961.chm).
7. Copy all 2 files to the C: Program Files Genesis Microchip GProbe 5 ChipDB folder.
8. Run GProbe.exe in the C: Program Files Genesis Microchip GProbe 5 folder. The G-Probe program
is created.
3-8
3 Alignments and Adjustments
3-4-2 Connecting to the MAIN PCB
Switch off
Connect to the MAIN PCB. Connect to the PC
3-9
3 Alignments and Adjustments
3-4-3 Update Procedures
1. Open mgm.txt in the C: Program Files Genesis Microchip GProbe 5 folder.
2. The following result will appear.
//
// Batch file to program a sPI serial flash using ISP.
// Moving the stack to high memory area is now taken care of in IROM
// through the "Reset 0" command. Assumes the ISP driver is in the same
// directory as this file. Change ISP driver path in "fastFlashWrite"
// command, if different from current directory.
//
debugon
SetBuffer 0x2000 0x800
delay 200
Reset 0
delay 500
// SPI flash driver
RAMWrite ispoak_spi.hex
Run 0x500
delay 100
// Optional - Get Flash ID. The second parameter is a don't care
//FLASHCRC 0xff0000 0x20000
// Command delay for flash erase
SetDelay 1000 9000
FlashErase
// Command delay for flash write. This is for each flash write packet (upto 4 k Bytes)
SetDelay 1000 3000
// Change this line to point to a file in a different location, if needed
//fastFlashWrite C: Proj OAK APP-59xx debug obj 59xx_proj.hex
fastFlashWrite C: Program Files Genesis Microchip GProbe 5 T_TRNNUS.hex
// Optional - Get CRC of 128 kByte flash. For other sizes, change second parameter
// accordingly
//FLASHCRC 0x80000 0x20000
// to reset the monitor after programming the flash using DDC2BI ONLY:
// Un-comment the following three lines (PLEASE - FOR DDC2BI PORT SELECTED ONLY)
//0x8000=1
//0x8003=0
//0x8027=1
3-10
3 Alignments and Adjustments
The Micom program is to be copied to the folder marked in red and the name of the program is to be the
same as the file name marked in blue.
(If the Micom program is not in the folder marked in red, change the path to the folder which includes the
Micom program and then save the file.)
3. When completing all the procedures above, connect the Jig and the PCB, and run the G-Probe program.
After that
Enter 'test 10' as shown in the following figure and press Enter or click the Execute button.
If the result appears as shown in the following figure, it is properly connected.
3-11
3 Alignments and Adjustments
4. Enter 'batch mgm.txt' as show in the following figure and press Enter or click the Execute button to
update Micom.
If the MICOM update is successfully completed, the
above message appears.
3-12
4 Troubleshooting
4 Troubleshooting
4-1 No Power
LAMP off, power indicator No
Check a connection a power cable.
LED red color?
Yes
Does proper DC 12V No
Change a Assy PCB Power.
appear at C820, C823?
Yes
Does proper DC A3.3V, No Check a IC816, IC815
A5V appear at
Change a main PCB ass'y.
C834, C830?
Yes
Does proper DC 5V, 3.3V, No
1.8V appear at C813, C811, Check a IC821, IC811
C816? Change a main PCB ass'y.
Yes
No Check a other function.
A power is supplied to set? (No picture part)
Replace a lcd panel.
4-1
4 Troubleshooting
4-2 No Video (Analog PC Signal)
Power Indicator is off.
Lamp on, no video.
Yes
Check a PC source and check No Input a analog PC signal and
the connection of DSUB cable? connected cable(DPMS).
Yes
Does the signal appear at No PC cable. Change a PC
1
R781, R782, R783? cable. Change a main PCB ass'y.
Yes
Does the digital data appear
at output of No Check a IC310.
3
LVDS TX(R422~R425, Change a main PCB ass'y.
R430~R433)?
Yes
Check a LVDS cable? No
Replace a lcd panel? Please, Call to Samsung Co. LTD.
4-2
4 Troubleshooting
WAVEFORMS
1 R,G,B Output Signal 3 Digital Output Data of IC310
4-3
4 Troubleshooting
4-3 No Video (DVI-Digital Signal)
Power Indicator is off.
Lamp on, no video.
Yes
Check the connectionn No
Input a HDMI cable.
of HDMI cable?
Yes
Does the digital data appear at No HDMI cable change a HDMI cable
4 FT2704, 2705, 2706, 2708? change a main PCB ass'y.
Yes
Does the digital data
No
3 appear at output of IC310 Check a IC310.
LVDS(R422~R425, R430~R433)? Change a main PCB ass'y.
Yes
Check a LVDS cable? No
Replacea lcd panel? Please, Call to Samsung Co. LTD.
4-4
4 Troubleshooting
WAVEFORMS
3 Digital Output Data of IC310 4 Signal of DVI(Data)
4-5
4 Troubleshooting
4-4 No Picture (Tuner_CVBS)
Power Indicator is off. No Connect the RF cable and
Lamp on, no picure. check RF signal.
Yes
Does the signal appear at No
5 Check a IC210.
C268? Change a main PCB ass'y.
Yes
Does the digital data appear No
3 at output of R422~R425, Check a IC310.
R430~R433? Change a main PCB ass'y.
Yes
Check a LVDS cable? No
Replacea lcd panel? Please, Call to Samsung Co. LTD.
4-6
4 Troubleshooting
WAVEFORMS
3 Digital Output Data of IC310 5 Tuner_CVBS Output Signal
4-7
4 Troubleshooting
4-5 No Picture (Video_CVBS)
Power Indicator is off. No
Check a A/V cable and video signal.
Lamp on, no picure.
Yes
Dose the signal No
5 Check a connection harness.
appear at R7003?
Yes
Does the digital data appear No
3 at output of R422~R425, Check a IC310.
R430~R433? Change a main PCB ass'y.
Yes
Check a LVDS cable? No
Replacea lcd panel? Please, Call to Samsung Co. LTD.
4-8
4 Troubleshooting
WAVEFORMS
3 Digital Output Data of IC310 5 Tuner_CVBS Output Signal
4-9
4 Troubleshooting
4-6 No Picture (S-VIDEO_Y,C)
Power Indicator is off. No Connect the s-video cable.
Lamp on, no picure. Operating a video player.
Yes
Dose the signal appear at No
6 Check a connection harness.
R7001, R7002?
Yes
Does the digital data appear No Check a IC310.
3 at Output of R422~R425,
R430~R433? Change a main PCB ass'y.
Yes
Check a LVDS cable? No
Replacea lcd panel? Please, Call to Samsung Co. LTD.
4-10
4 Troubleshooting
WAVEFORMS
3 Digital Output Data of IC310 6 Analog Signal(Y,C)
4-11
4 Troubleshooting
4-7 No Sound
No
Picture is display, no sound. Connect a sound cable.
control a volume.
Yes
Does the signal appear at
Pin 12, 1(CH1_L, R Sound) No Check a connection harness and
7 and Pin 15, 2 headphone jack.
(CH2_L, R Sound)
of IC613?
Yes
Check the DC 8V No Check a IC813.
8
appear at C653? Change a main PCB ass'y.
Yes
Does the signal appear at No Check a IC611.
9
L624_OP, L625_OP? Change a main PCB ass'y.
Yes
Replace the speaker ass'y?
4-12
4 Troubleshooting
WAVEFORMS
7 The Signal are Inputed to IC610 8 DC +8V
9 Output WaveForm
4-13
4 Troubleshooting
Memo
4-14
5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
5-1 LE23T51B
M0013
M0014
M0107
T0175
M0111
M0003
5-1
5 Exploded View & Parts List
Location.No CODE-NO SPECIFICATION & DESCRIPTION Q'TY REMARK
T0003 BN96-02645B ASSY COVER P-FRONT;23T50,HIPS,HB,BK07,BK 1 SNA
T0175 BN96-02587A ASSY SPEAKER P;16OHM,TORINO 23,RIGHT,5W 1 SNA
M0107 BN61-02065A BRACKET-PCB;23" MGM,SECC,T1.0 1 SNA
M0014 BN94-00752C ASSY PCB MAIN-AMLCD;LE23T51BX/*,TORINO 1 SNA
M0013 BN96-02646B ASSY COVER P-REAR;23T50,EO,HIPS,HB,GR503 1 SNA
M0111 BN63-01718C COVER-STAND;TORINO,23,27,HIPS,HB,GR503,B 1 SNA
5-2
5 Exploded View & Parts List
5-2 LE27T51B
M0013
M0447
T0175
M0013
T0003
5-3
5 Exploded View & Parts List
Location.No CODE-NO SPECIFICATION & DESCRIPTION Q'TY REMARK
T0003 BN96-02642A ASSY COVER P-FRONT;27T50,EO,HIPS,HB,GR50 1 SNA
T0175 BN96-02589A ASSY SPEAKER P;16ohm,Torino 26",Right,5W 1 SNA
T0447 BN96-02640A ASSY BRACKET P-PANEL;TORINO 27,SECC 1 SNA
M0013 BN96-02641A ASSY COVER P-REAR;27T50,EO,HIPS,HB,GR503 1 SNA
M0013 BN96-02639A ASSY STAND P-BASE;TORINO,23,27,HIPS,HB,G 1 SNA
5-4
5 Exploded View & Parts List
5-3 LE32T51B
M0002
CIS
T0447
T0175
M0216
T0003
5-5
5 Exploded View & Parts List
Location.No CODE-NO SPECIFICATION & DESCRIPTION Q'TY REMARK
T0003 BN96-02625B ASSY COVER P-FRONT;32T50,EO,HIPS,HB,GR50 1 SNA
T0175 BN96-02591A ASSY SPEAKER P;8ohm,Torino 32",Right,10W 1 SNA
T0447 BN96-02628A ASSY BRACKET P-PANEL;TORINO 32",SECC 1 SNA
CIS BN39-00693A CBF HARNESS-IN-LET;TORINO,1617#22,3P,1P, 1
M0002 BN90-00786B ASSY COVER REAR;TORINO,32EO,32T50 1 SNA
M0216 BN90-00787A ASSY STAND;TORINO,32,32T50 1 SNA
5-6
6 Electrical Parts List
6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LE23T51BX/XEU Parts list
Level Loc. No. Code No. Description & Specification EA SA/SNA
0 LE23T51BX/XEU LE23T51B,Q54B/23T50-GTR,23,LCD-TV,UNITED 0
1 M0001 BN90-00791B ASSY COVER FRONT;TORINO,23EO,23T50 1 SNA
..2 M0081 6006-001096 SCREW-TAPTITE;WP,BH,+,M4.0,L12,BLK,SWRCH 4 SNA
..2 T0175 BN96-02586A ASSY SPEAKER P;16OHM,TORINO 23,LEFT,5W 1 SA
..2 T0003 BN96-02645B ASSY COVER P-FRONT;23T50,EO,HIPS,HB,BK50 1 SA
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 SNA
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 SNA
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 SA
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC+ABS,VIOLET 1 SNA
...3 T0071 BN64-00366A INDICATOR-LED;ROME-I,PC,CLEAR,ALL MODEL 1 SNA
...3 BN64-00413A KNOB-DECORATION;MGM,ABS,V0,GR70,SV012P 1 SNA
...3 T0022 BN64-00416A KNOB CONTROL;MGM,ABS,V0,BK500 1 SNA
...3 T0014 BN67-00078A LENS-IR;VENUS32",ACRYL,CLEAR,VENUS32" 1 SNA
...3 M0112 BN63-02201B COVER-FRONT;23T50,EO,HIPS,HB,BK500,BKN-1 1 SNA
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 1 SNA
...3 T0069 AA60-00091K SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.35, 2 SNA
...3 M0114 AA61-20129A HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25 1 SNA
...3 M0145 BN96-02626C ASSY BOARD P-FUNCTION;TORINO-23,SJ05-01- 1 SA
..2 T0175 BN96-02589A ASSY SPEAKER P;16ohm,Torino 26",Right,5W 1 SA
1 M0002 BN90-00792B ASSY COVER REAR;TORINO,23EO,23T50 1 SNA
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 9 SA
..2 M0013 BN96-02646B ASSY COVER P-REAR;23T50,EO,HIPS,HB,GR503 1 SA
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 4 SNA
...3 T0064 AA65-00003A CLAMPER CORE;SIR-T100,PE BLACK 1 SNA
...3 T0101 BN61-02058A BRACKET-WALL;23,27,MGM,SECC,T1.6 2 SNA
...3 BN64-00415A INLAY-JACK;MGM,PS,SHEET,T0.3,PAL 1 SNA
...3 M0006 BN63-02295A COVER-REAR;23T50,HIPS,HB,GR503,SESK,(PAL 1 SNA
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 SNA
1 M0216 BN90-00793A ASSY STAND;TORINO,23,23T50 1 SNA
..2 T0524 6902-000561 BAG PE;HDPE+NITRON(DOUBLE),T0.015+T0.5,W 1 SNA
..2 M0013 BN96-02639A ASSY STAND P-BASE;TORINO,23,27,HIPS,HB,G 1 SA
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 SA
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 3 SA
...3 BN61-01562A BRACKET-STAND BOTTOM;26,ROME,SECC,T2.0 1 SNA
...3 BN61-02054A GUIDE-STAND;TORINO,23,27,HIPS,HB,GR503 1 SNA
...3 M0111 BN63-01718C COVER-STAND;TORINO,23,27,HIPS,HB,GR503,D 1 SNA
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 5 SNA
1 T0852 BN91-00833C ASSY LCD-SPZ;RE23UO*AM LCD 1 SNA
..2 M0019 BN07-00184A LCD;LTA230W1-L02,8bit,546*318*46.3,16.7M 1 SA
1 M0017 BN91-00946C ASSY CHASSIS;LE23T51BX/*,TORINO 1 SNA
..2 M0014 BN94-00752C ASSY PCB MAIN-AMLCD;LE23T51BX/*,TORINO 1 SA
...3 T0245 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, 0.01 SNA
...3 FT230 2904-001179 FILTER-SAW;36.125MHz,-,32.65-39.6MHz/0.5 1 SA
...3 JA719 3701-001292 CONNECTOR-DVI;24P,3R,FEMALE,STRAIGHT,AU1 1 SA
...3 JA722 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 SA
...3 CN815 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 SA
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification EA SA/SNA
...3 CN801 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 SA
...3 JA710_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 SA
...3 JA711_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 SA
...3 JA723 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 SA
...3 JA717 3722-001734 JACK-VHS;4P,-,SN,BLK,- 1 SA
...3 JA715_EU 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 SA
...3 JA721 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 SA
...3 JA714_EU 3722-001938 JACK-PIN;3P,-,AU,GRN/BLU/RED,- 1 SA
...3 JA718 3722-002063 JACK-PIN;3P,AU,YEL/WHT/RED,STRAIGHT 1 SA
...3 CIS3 BN40-00072A TUNER;TECH0949PG46A(S),TECH0949PG46A(S), 1 SA
...3 BN97-00658C ASSY SMD-AMLCD;LE23T51BX/*,TORINO 1 SNA
....4 CIS5 0202-001375 SOLDER-CREAM;RMA-20-21L,S63,-,Sn63/Pb36. 8.48 SNA
....4 D120 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D210 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D211 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D212 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D213 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D214 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D215 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D216 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D217 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D218 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D219 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D220 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D221 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D222 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D316 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D317 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D318 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D612 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D613 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D614 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D615 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D616 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D617 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D618 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D619 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D621 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D710_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D711 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D712_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D713_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D714_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D715 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7719 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7720 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7721 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7722 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7723 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7724 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7725 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7726 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7727 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7730 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7731 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7733 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7734 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
6-2
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification EA SA/SNA
....4 D7740 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7741 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7742 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D7743 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D910 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D911 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D912 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D913 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 SA
....4 D800 0402-000553 DIODE-RECTIFIER;SS24,40V,2.0A,DO-214AA 1 SA
....4 D917 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225MW,SOT-2 1 SA
....4 D718_EU 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D7728 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D7729 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D7735 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D7736 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D7737 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D7738 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 SA
....4 D121 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350MW,SOT-23 1 SA
....4 D314 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 SA
....4 D319 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 SA
....4 D610 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 SA
....4 Q211 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 1 SA
....4 Q213 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 1 SA
....4 Q611 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 1 SA
....4 Q934 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 1 SA
....4 Q101 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q110_EU 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q111 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q212 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q214 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q310 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q420 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q421 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q612 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q613 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q614 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q711 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q803 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q908 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q910 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q932 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 SA
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 SA
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 SA
....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 SA
....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 SA
....4 IC104 0801-002267 IC-CMOS LOGIC;74LCX14,-,SOIC,14P,150MIL, 1 SA
....4 IC105 0909-001036 IC-REAL TIME CLOCK;DS1337S+T&R,-,SO,8P,1 1 SA
....4 IC613 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 SA
....4 IC310 1003-001857 IC-CRT CONTROLLER;FLI5921H-LF,PQFP,208P, 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5 1 SA
....4 IC112 1103-001279 IC-EEPROM;24C32,4Kx8,SOP,8P,5x4mm,2.5/5. 1 SA
....4 IC112 1103-001314 IC-EEPROM;24C16,2Kx8,SOP,8P,5x4mm,2.7/5. 1 SA
....4 IC113 1105-001284 IC-DRAM;636165,1Mx16Bit,TSOP,50P,467MIL, 1 SNA
....4 IC113 1105-001284 IC-DRAM;636165,1Mx16Bit,TSOP,50P,467MIL, 1 SNA
....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA
....4 T0085 1201-002136 IC-AUDIO AMP;LM481 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
