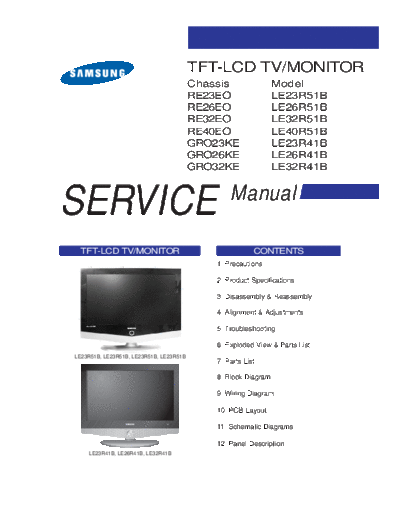

Image preview - the first page of the document
>> Download LE32R51B_ET-SB-EX-SI_1235560397 documenatation <<
Text preview - extract from the document
TFT-LCD TV/MONITOR
Chassis Model
RE23EO LE23R51B
RE26EO LE26R51B
RE32EO LE32R51B
RE40EO LE40R51B
GRO23KE LE23R41B
GRO26KE LE26R41B
GRO32KE LE32R41B
SERVICE Manual
TFT-LCD TV/MONITOR CONTENTS
1. Precautions
2. Product Specifications
3. Disassembly & Reassembly
4. Alignment & Adjustments
5. Troubleshooting
6. Exploded View & Parts List
LE23R51B, LE23R51B, LE23R51B, LE23R51B
7. Parts List
8. Block Diagram
9. Wiring Diagram
10. PCB Layout
11. Schematic Diagrams
12. Panel Description
LE23R41B, LE26R41B, LE32R41B
Samsung Electronics Co.,Ltd.
- This Service Manual is a property of 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Gyeonggi-Do,
Samsung Electronics Co., Ltd. Korea, 443-742
Any unauthorized use of Manual can be Printed in Korea
punished under applicable International P/N : BN82-00128A-01
and/or domestic law. URL : http://itself.sec.samsung.co.kr/
4 Alignments and Adjustments
4 Alignments and Adjustments
4-1 General Alignment Instuction
1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.
2. Use the specified test equipment or its equivalent.
3. Correct impedance matching is essential.
4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.
5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.
6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.
7. To protect aganist shock hazard, use an isolation transform.
4-1
4 Alignments and Adjustments
4-2 Factory Mode Adjustments
4-2-1 Entering Factory Mode
1. To enter "Service Mode" Press the remote -control keys in this sequence :
- If you do not have Factory remote - control
I FO
N MENU MU TE
- If you have Factory remote - control
- The buttons are active in the service mode.
1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)
2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)
4-2-2 PANEL CHECK
Specially for LE32R51BX, You have to check Panel Maker Because of different adjustments as follows.
First of all, Check the label rating!
1) Label Rating File
* If not printed you could consider S(sec) panel mark.
2) If Panel Mark is "A", Set the factory mode indicating as follows.
* Option Byte
1. Inch Option 32"
2. Gamma 32"AUO
3. Panel Option AUO
Others are same shown below.
4-2
4 Alignments and Adjustments
4-2-3 Factory Mode Tree
* Please set up for an appropriate INCH.
4-3
4 Alignments and Adjustments
4-4
4 Alignments and Adjustments
4-5
4 Alignments and Adjustments
4-6
4 Alignments and Adjustments
4-3 White Balance - Calibration
4-3-1 White Balance - Adjustment
4-7
4 Alignments and Adjustments
4-3-2 Conditions for Measurement
1. On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 1 : 744X484@60 Hz
NO 6 : 1280X720@60 Hz
NO 21 : 1024X768@60 Hz
* Pattern NO 36 : 16 Color Pattern
NO 16 : Toshiba ABL Pattern
2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model LT26A33W.
4-3-3 Method of Adjustment
1. Adjust the basic level of DTV and PC input signals.
a) Set the input to the mode in which the adjustment will be made (DTV PC ).
* Input signal - DTV Mode : Model #6 (1280*720 Mode), Pattern #36
- PC Mode : Model #21 (1024*768 Mode), Pattern #16 (Picture 4-1)
b) Enter factory Calibration, confirm the ADC data (DTV, PC Mode Only).
* ADC default value : Table 4-3.
Picture 4-1 Toshiba ABL Pattern
2. Adjust the white balance of RF, DTV, PC and DVI Modes.
a) Set the input to the mode in which the adjustment will be made(RF DTV PC DVI).
* Input signal - VIDEO Mode : Model #1 (744*484 Mode), Pattern #16
- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16
- PC Mode : Model #21 (1024*768 Mode), Pattern #16
b) Enter factory color control, confirm the data.
4-8
4 Alignments and Adjustments
c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates.
* Do not adjust green offset data.
Picture 4-2 Toshiba ABL Pattern
Low light
Measurement point
d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.
Picture 4-3 Toshiba ABL Pattern
High light
Measurement point
4-9
4 Alignments and Adjustments
4-4 Flash ROM Update
1. Installthe Flash Downloader
ConnectSet(Service Jack)and Jig Cable to execute Program Update.
2. Flash Downloader program update
-Before Turning on the set,Click "connect"which is under of OSD Screen!
-Turn on the Set.
3.Open the New Update File and Click the Program and Verify.
4.Program update sledding ismarked sequently on OSD screen.
5.Afterprogram update completion,message should be pop up.
4-10
8 Block Diagrams
8 Block Diagram
-This Document can not be used without Samsung's authorization.
8-1
8 Block Diagrams
Memo
8-2
3 Disassembly and Reassembly
3 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LE23A41B/LE26A41B/LE32A41B LCD TV.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these
components.
(ONLY LE32R51B) Check the connector of POWER BOARD which are CNI 801, 802.
IF Panel MARK is A(AUO), The wire which is from PANEL INVERTER Must be
connected into CNI 802.
IF Panel MARK is S(Sec), The wire which is from PANEL INVERTER
Must be connected into CNI 801.
3-1 LE23R51B, LE23R41B Disassembly
Cautions: 1. Disconnect the monitor from the power source before disassembly.
1. Place LCD TV face down on cushioned table.
Remove 9 screws from the rear cover.
Remove 4 screws from grip on the stand. and
remove the stand.
2. Remove the stand and lift up the rear cover.
3. Remove 3 screws and lift up the jack cover.
Disconnect speaker cable, function cable from the
board.
4. Remove 9 screws from the boards.
3-1
3 Disassembly and Reassembly
5. Lift up the Power board and Main board.
6. Remove 9 screws and Lift up the shield panel and
remove 4 screws.
7. Lift up the shield cover and LCD panel.
3-2 LE26R51B, LE32R51B, LE26R41B, LE32R41B Disassembly
1. Place LCD TV face down on cushioned table.
Remove 14 screws from the rear cover.
Lift up the rear cover.
2. Remove 3 screws from the Jack cover.
Remove 12 screws from The board.
3-2
3 Disassembly and Reassembly
3. Lift up the boards
4. Remove 11 screws from the shield.and lift up the
shield.
5. Remove 5 screws(Left :2/Right :3)
6. Lift up the BRKT.
3-3 LE40R51B Disassembly
1. Remove 8 screws from rearcover.
Remove 4 screws from grip on the stand.
2. Remove the stand and lift up the rear cover
3-3
3 Disassembly and Reassembly
3. Disconnect speaker cable, function cable and
Remove screws from the shield.
4. Disconnect Power Cables, LVDS Cable from
the power board.
5. Remove 4screws from the Main board and lift up
the board.
6. Remove 4 screws from the power board.
Disconnect Cables.
3-4
3 Disassembly and Reassembly
7. Disconnect inverter cable.
Lift up the power board.
8. Remove screws.
9. Remove screws from the panel BRKT. Remove
screws from the cabinet BRKT and lift up the
panel Assy.
10. Lift up the panel, Remove screws from the panel
BRKT(R/L).
Disconnect BRKT from the panel.
3-5
3 Disassembly and Reassembly
3-4 Reassembly
Reassembly procedures are in the reverse order of dissasembly procedures.
3-6
7 Electrical Parts List
7 Electrical Parts List
You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
7-1 Main PCB Parts
Loc. No. Code No. Description & Specification EA SA/SC SNA
LE23R41BX/XEC LE23R41B,Q21G/23R41-GRO,23,LCD-TV,SPAIN 0
M0014 BN94-00695C ASSY PCB MAIN;ROME2* 1 O
JA751 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 O
CN906 3705-001331 CONNECTOR-COAXIAL;PAL,ADAPTOR(J/J),-,75o 1 O
CN906 3711-000057 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,ANGLE,S 1 O
CN906 3711-004068 CONNECTOR-HEADER;BOX,5P,1R,2MM,ANGLE,SN, 1 O
CN906 3711-004122 CONNECTOR-HEADER;BOX,14P,1R,2mm,STRAIGHT 1 O
CN906 3711-004484 CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT, 1 O
JA721_E 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 O
JA722_E 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 O
JA752 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 O
JA782 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 O
JA785 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 O
JA771 3722-001734 JACK-VHS;4P,-,SN,BLK,- 1 O
JA714_E 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 O
JA784 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 O
JA715_E 3722-001938 JACK-PIN;3P,-,AU,GRN/BLU/RED,- 1 O
JA761 3722-002063 JACK-PIN;3P,AU,YEL/WHT/RED,STRAIGHT 1 O
CIS3 BN40-00051A TUNER;TMQZ6-404C,PDP-NELSON,PAL B/G,PAL 1 O
T0530 BN61-01521A SUPPORT-PCB;ROME,SPTE,T0.5,L11.0 1 S.N.A
T0530 BN61-01521A SUPPORT-PCB;ROME,SPTE,T0.5,L11.0 1 S.N.A
T0530 BN61-01521A SUPPORT-PCB;ROME,SPTE,T0.5,L11.0 1 S.N.A
M0107 BN63-01847A SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE 1 S.N.A
CIS6 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
T0174 BN97-00574C ASSY SMD;ROME2* 1 S.N.A
D101 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D709_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D7102 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D7103 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D7104 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D7105 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D710_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D7113 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D7114 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D711_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D712_EU 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D719 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D722 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D741 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D742 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO 1 O
D812 0402-000553 DIODE-RECTIFIER;SS24,40V,2.0A,DO-214AA 1 O
D617 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225MW,SOT-2 1 O
D620 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225MW,SOT-2 1 O
D621 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225MW,SOT-2 1 O
D901 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225MW,SOT-2 1 O
D726_EU 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200MW,SOT 1 O
D727_EU 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200MW,SOT 1 O
D210 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D211 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D212 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D213 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D214 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D215 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D216 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D217 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D769 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D770 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D771 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
7-1
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
D930 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D970 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D971 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D972 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D973 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D974 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D975 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D980_DE 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D981_DE 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D990 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500MW,LL- 1 O
D701_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D702 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D703_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D704 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D705_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D706 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D707_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D708 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D7112 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D713_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D714_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D715_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D716_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D717 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D718 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D720 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D721 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D723 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D724 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D7301 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D743 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D744 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D745 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D746 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D748 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D750 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D751 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D752 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D753_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D754_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D7551 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D7552 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D7553 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D755_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D756 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D757_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D758 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D759 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D760_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D761 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D762_EU 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D763 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D764 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D765 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D766 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D767 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D772 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D773 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D774 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D775 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D776 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D777 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D778 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D779 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D780 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D781 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D782 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
7-2
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
D982_DE 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D983_DE 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 1 O
D102 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350MW,SOT-23 1 O
D7302 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 O
D7303 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 O
D7304 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 O
D7305 0406-001172 DIODE-TVS;CDS3C30GTH,48V,0W,SMD 1 O
D622 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 O
D911 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 O
D912 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 O
D963 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 O
D964 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 O
D976 0407-000123 DIODE-ARRAY;DAN202K,80V,100MA,CA2-3,SOT- 1 O
Q1211_E 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 1 O
Q214_EU 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23 1 O
Q100 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q211 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q221 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q3004_E 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q608 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q611 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q612 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q615 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q630 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q631 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q632 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q633 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q634 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q635 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q912_EU 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q918 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q930 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q931 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q952 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q970 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT- 1 O
Q1210_E 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q1212_E 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q212_EU 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q213_EU 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q215 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q216 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q610 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q620 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q801 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q802 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q803 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q910 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q911 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 O
Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 O
IC104 0801-002267 IC-CMOS LOGIC;74LCX14,-,SOIC,14P,150MIL, 1 O
IC104 0801-002267 IC-CMOS LOGIC;74LCX14,-,SOIC,14P,150MIL, 1 O
IC901 0903-001362 IC-MICROCOMPUTER;M30620SPGP,16BIT,LQFP,1 1 S.N.A
IC605 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 O
IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL 1 O
IC909_E 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 O
IC913 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 O
IC203 1001-001211 IC-ANALOG MULTIPLEX;MM74HC4052MTC,DUALMU 1 O
IC108 1002-001398 IC-A/D CONVERTER;MST9883CR-110,24Bit(8x3 1 O
IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 O
IC112 1103-000129 IC-EEPROM;24C02,256x8,SOP,8P,5x4mm,4.5/5 1 O
7-3
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
IC112 1103-001279 IC-EEPROM;24C32,4Kx8,SOP,8P,5x4mm,2.5/5. 1 O
IC113 1105-001538 IC-DRAM;K4D263238E-GC36,4x1Mx32Bit,FBGA, 1 S.N.A
DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 O
T0085 1201-001495 IC-AUDIO AMP;7050,SOP,8P,150MIL,DUAL,26D 1 O
T0085 1201-002119 IC-AUDIO AMP;TPA3004D2,HTQFP,48P,7x7mm,- 1 O
IC616 1203-001109 IC-VOL. DETECTOR;7045,SOT-89,3P,-,PLASTI 1 O
IC905 1203-001559 IC-RESET;DS1834A,SOIC,8P,150MIL,PLASTIC, 1 O
T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 O
T0087 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3P,-,PLA 1 O
IC920 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI 1 O
T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 O
T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 O
T0087 1203-002844 IC-POSI.FIXED REG.;AP1117D-18A,TO-252-3L 1 O
T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 O
T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 O
T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 O
T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 O
T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 O
IC118 1204-002352 IC-VIDEO PROCESS;SVP-EX52-7052,PQFP,256P 1 O
IC610 1204-002411 IC-SOUND PROCESSOR;MSP4410K-QA-B3-500,PQ 1 O
R229 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 O
R230 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 O
R2357 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R919 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R9401 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R9405 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R9407_E 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R963 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R964 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R965 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R966 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R9661 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R9662 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 O
R121 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 O
23_ 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
EO_ 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R2008_O 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R207 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R214 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R215_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R216 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R221 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R222 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R236 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R237 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R239 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R240 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R241 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R245 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R247 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R248 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R280 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R281 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R282 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R283 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R3261_E 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R375 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R378 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R380_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R381_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R640 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R645 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R646 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R650 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R651 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R652 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R655 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
7-4
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
R681 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R686 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R688 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R717_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R718_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R7602_E 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R7618_E 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R7716_E 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9124 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9125 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9129 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R918 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9207 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9209 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9215 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9217 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9218 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9330 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R934 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R935 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9403 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R960 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9664 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R9665 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R994 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R995 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R996 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R997 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 O
R201 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R2013 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R2015 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R202 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R203 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R206 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R208 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R209 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R210 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R212 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R754 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R758 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R9673 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 O
R100 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R101 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R223 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R349 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R351 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R616 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R617 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R761 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R762 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R782 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R783 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R982 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R983 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R984 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R985 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R986 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 O
R102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R104 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R1245_E 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R234 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R2344 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R2345 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R235 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R252_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R260 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R261 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
7-5
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
R270 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R271 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R272 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R273 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R3159_E 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R613 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R614 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R618 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R628 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R629 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R630 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R631 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7111_E 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7120 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R719_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R738 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R745 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7488 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7490 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R757 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7590 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7613 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7614 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7619 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R7630 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R781 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9110_E 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9119 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9120 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9122 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9123 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R932 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R936 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R937 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R940 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R941 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R953 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R954 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R955 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R962 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9668 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R9669 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R967 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R968 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R969 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R974 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R975 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R976 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R990 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R991 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R992 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R993 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 O
R711_EU 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 O
R713_EU 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 O
R747_EU 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 O
R749_EU 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 O
R190 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 O
R1246 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R1267_E 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R1268_E 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R2358 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R251_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R253_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R254_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R355 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R356 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R357 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
7-6
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
R712_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R748_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R750_EU 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R7582 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R7585_E 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R7588 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R7616_E 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R7617_E 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R765 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R766 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R9108_E 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R9663 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 O
R131_OP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R211 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R258 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R259 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R3260_E 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R615 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R6402 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R6404 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R692 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R696 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R9104_E 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R924 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R931 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R9666 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R9667 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 O
R204 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 O
R205 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 O
R693 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 O
R224 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R242 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R244 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R338 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R925 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R926 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R927 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R928 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R938 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R939 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R945 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R946 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R9671 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R9672 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 O
R225 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R2356 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R238 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R256 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R257 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R619 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R632 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R657 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R810 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9109_E 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9118 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9132 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R917 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9213 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9222 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9224 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9231 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9232 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9234 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9235 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9238 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R929 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9332 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
7-7
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
R9334_E 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9335 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9336 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9402 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R942 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R943 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R944 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R9670 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R988 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R989 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 O
R714_EU 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 O
R743_EU 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 O
R233 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R620 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R623 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R639 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R641 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R642 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R649 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R690 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R691 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R759 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R760 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R802 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R803 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R804 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R805 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R812 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R8877 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R901 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R907_EU 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R913 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R9131 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R9133 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R9135 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R9211 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R957 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 O
R679 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 O
R860 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 O
R621 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 O
R622 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 O
R626_OP 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 O
R627_OP 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 O
R191 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 O
R9337 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 O
R1270_E 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 O
R249_EU 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 O
R110 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R111 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R633 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R634 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R635 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R638 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R795 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R796 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R797 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R798 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R9114 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 O
R601 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R602 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R603 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R604 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R605 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R606 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R607 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R608 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R609 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
7-8
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
R610 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R611 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R612 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R670 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R671 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R672 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R673 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 O
R175 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R310_EU 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R636 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R637 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R801 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R806 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R9675 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 O
R653 2007-000103 R-CHIP;120Kohm,5%,1/10W,TP,1608 1 O
R105 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 O
R120 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 O
R1260_E 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 O
R255_EU 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 O
R811 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R9111 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R9112 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R9113 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R9115 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R9116 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R9117 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 O
R647 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 O
R1271_E 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R250_EU 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R262 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R263 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R264 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R265 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R266 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R267 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R268 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R269 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R643_OP 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R644_OP 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 O
R7132 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 O
R7133 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 O
R7134 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 O
R721 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 O
R722 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 O
R3111 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R900_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R902_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R903_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R904_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R905_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R906_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R908_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R909_EU 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9100 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9101 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9102 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9103 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9105 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9106 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9128 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9501_O 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R9502_O 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R952 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R970 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R971 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R972 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R973 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
7-9
7 Electrical Parts List
Loc. No. Code No. Description & Specification EA SA/SC SNA
R977 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R978 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R979 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R981 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R998 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R999 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
RA920 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 O
R694 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 O
R715_EU 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 O
R746 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 O
R920 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 O
R624 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 O
R625 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 O
R231 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 O
R232 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 O
R858 2007-001068 R-CHIP;6.8Kohm,1%,1/10W,TP,1608 1 O
C7790 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R103 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R710_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7112_E 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7140_E 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R720 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R744 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7581 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7583 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7584 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7587_E 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7591 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7592 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7788 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R7789 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 O
R352 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 O
R353 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 O
R354 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 O
R751 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 O
R752 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 O
R753 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 O
R755 200◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
