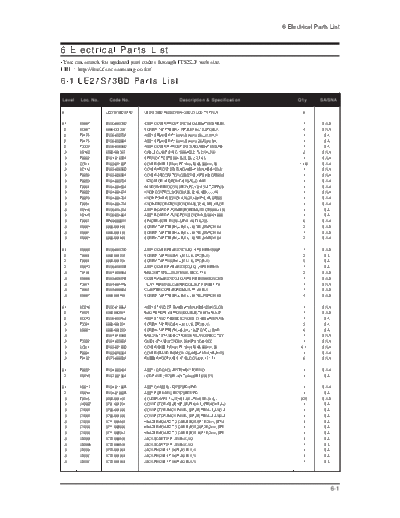

Image preview - the first page of the document
>> Download 11_Electrical Part List documenatation <<
Text preview - extract from the document
6 Electrical Parts List
6 Electrical Parts List
You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LE27S73BD Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
0 LE27S73BDX/FID LE27S73BD,R62A/27S70-GSD,27,LCD-TV,FINLA 0
0.1 M0001 BN90-00978D ASSY COVER FRONT;27S73,EO,ABS+PMMA,HB,BK 1 S.N.A
..2 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A
..2 T0175 BN96-03279A ASSY SPEAKER P;16ohm,Sonoma 26,Left,5W,N 1 S.A
..2 T0175 BN96-03280A ASSY SPEAKER P;16ohm,Sonoma 26,Right,5W, 1 S.A
..2 T0003 BN96-03836D ASSY COVER P-FRONT;27S73,EO,ABS+PMMA,HB, 1 S.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 2 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 1.118 S.N.A
...3 M0112 BN63-02656D COVER-FRONT;27S73,EO,ABS+PMMA,HB,BK23,S/ 1 S.N.A
...3 T0056 BN63-02658A COVER-DECORATION;GSM27KE,HIPS,HB,GR503,S 1 S.N.A
...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.N.A
...3 T0023 BN64-00476A KNOB POWER;SONOMA,26,32,40,HIPS,HB,GR503 1 S.N.A
...3 T0054 BN64-00477A KNOB-DECORATION;SONOMA26,32,40,ABS,HB,GR 1 S.N.A
...3 M0146 BN96-03437A ASSY BOARD P-POWER;BORDEAUX2,CT5000-4150 1 S.A
...3 M0145 BN96-03466A ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 1 S.A
...3 T0067 BP60-00032K SPACER-SCREEN;56L5,EVA,V0,T1.0,295 6 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 1 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 2 S.N.A
0.1 M0002 BN90-00979D ASSY COVER REAR;27S73,EO,HIPS,HB,BK500,P 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 9 S.A
..2 M0013 BN96-03837B ASSY COVER P-REAR;27S73,EO,-,HIPS,HB,BK5 1 S.A
...3 T0101 BN61-02058A BRACKET-WALL;23,27,MGM,SECC,T1.6 2 S.N.A
...3 M0006 BN63-02657B COVER-REAR;27S73,EO,HIPS,HB,BK500,SONOMA 1 S.N.A
...3 T0071 BN64-00444E INLAY-TERMINAL;CAMBRIDGE,26,PS SHEET,T0. 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A 4 S.N.A
0.1 M0216 BN90-01005A ASSY STAND;27T70,ABS+PMMA,HB,BK23,H/GLOS 1 S.N.A
..2 T0524 6902-000561 BAG PE;HDPE+NITRON(DOUBLE),T0.015+T0.5,W 1 S.N.A
..2 M0013 BN96-03945A ASSY STAND P-BASE;SONOMA 27,ABS+PMMA,HB, 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 3 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 6 S.A
...3 BN61-01830A BRACKET-STAND BOTTOM;26 MILANO,SECC,T2.0 1 S.N.A
...3 T0920 BN61-02369A GUIDE-STAND;SONOMA 26,HIPS V0,BK500 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
...3 T0004 BN63-02696A COVER-STAND BASE;GML26,ABS+PMMA,HB,BK23, 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 6 S.N.A
0.1 T0852 BN91-00948A ASSY LCD-CMO;LE27T51BX/*,TORINO 1 S.N.A
..2 M0215 BN07-00136A LCD-PANEL;V270B1-L01,Torino,8BIT,638.5*3 1 S.A
0.1 M0017 BN91-01166B ASSY CHASSIS;LE27S73BDX/FID 1 S.N.A
..2 M0014 BN94-01063B ASSY PCB MAIN;LE27S73BDX/FID 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA2007 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN902 3703-001600 CONNECTOR-BACK PANEL;32P,2R,FEMALE,ANGLE 1 S.A
...3 CN902 3703-001600 CONNECTOR-BACK PANEL;32P,2R,FEMALE,ANGLE 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A
...3 CN330 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 S.A
...3 JA2001 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA2005 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
...3 JA332 3722-001734 JACK-VHS;4P,SN,BLK,STRAIGHT 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002363 JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT 1 S.A
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 S.N.A
...3 CIS3 BN40-00080A TUNER;DNOS403ZH261B(S),DNOS403ZH261B(S), 1 S.A
...3 T0852 BN96-01470A ASSY BOARD P-OPTICAL;HP-P5581,OPTICAL 1 S.A
....4 CN906 3707-001067 CONNECTOR-OPTICAL;PLUG,SM,-,4.4/2.0mm 1 S.A
...3 T0174 BN97-01136B ASSY SMD;LE27S73BDX/FID 1 S.N.A
....4 CIS05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
