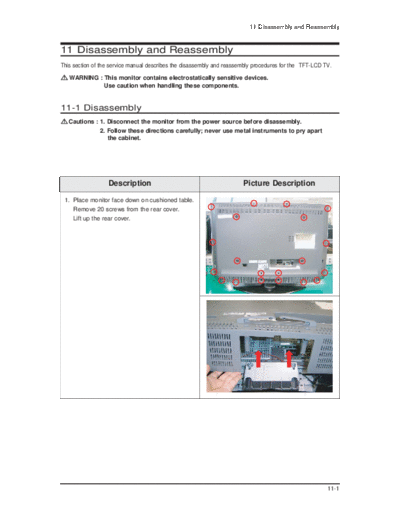

Image preview - the first page of the document



>> Download 06_Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                         11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD TV.

   WARNING : This monitor contains electrostatically sensitive devices.
             Use caution when handling these components.


11-1 Disassembly
   Cautions : 1. Disconnect the monitor from the power source before disassembly.
              2. Follow these directions carefully; never use metal instruments to pry apart
                 the cabinet.




                  Description                                          Picture Description

 1. Place monitor face down on cushioned table.
    Remove 20 screws from the rear cover.
    Lift up the rear cover.




                                                                                                        11-1
11 Disassembly and Reassembly


                    Description        Picture Description

 2. Remove the stand.




 3. Remove 10 screws and lift up two
       shield-covers.




11-2
                                           11 Disassembly and Reassembly


               Description                Picture Description

4. Disonnect cable from the boards.
   Remove 13 screws from the boards.




5. Lift up the boards.
   Remove 7 screws from the stand BRKT.




                                                                    11-3
11 Disassembly and Reassembly


                Description            Picture Description

6. Lift up the stand BRKT.
   Remove screws from the Lcd panel.




 7. Lift up the Lcd panel.
    Remove 5 screws from the BRKT.




11-4
                                                                   11 Disassembly and Reassembly


                 Description                                    Picture Description

 8. Lift up the BRKT.




11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




                                                                                            11-5
11 Disassembly and Reassembly

Memo




11-6
